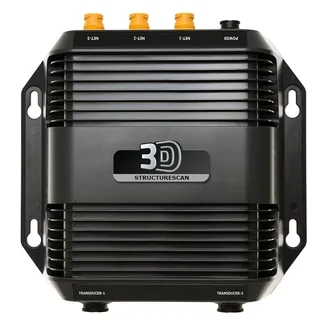

The Navico StructureScan 3D Module adds multi-beam 3D imaging, DownScan, and SideScan to compatible Lowrance and Simrad systems. It is aimed at anglers who want a perspective view of structure as well as conventional downward and side-looking images. This version is the module only, so the StructureScan 3D transducer must be supplied separately.

The high-speed 3D graphics processor provides ScanTrack pan-tilt-rotate and Leading Edge scanning functions, allowing the operator to examine structure and the area ahead of the boat. SideScan reaches up to 600 feet on each side, while 3D is listed to 200 feet depth. Three Ethernet ports provide an integrated network switch, but compatibility must be checked with the exact HDS, NSS, or NSO display before installation.

Key Features

- Multi-beam 3D imaging – Provides a perspective view of underwater structure.
- DownScan and SideScan – Adds downward and side-looking sonar views.
- 600-foot SideScan range per side – Provides the listed wide structure coverage.
- 200-foot 3D depth capability – Defines the stated perspective-imaging range.
- ScanTrack and Leading Edge scanning – Helps control the scan area and view structure ahead.

Who Is This For?

This StructureScan 3D module suits Lowrance and Simrad fishing systems that need perspective, DownScan, and SideScan imaging. It is not ideal for buyers without a compatible display or transducer, because the module alone cannot produce a view on the water.

Compatibility

Confirmed compatibility includes Lowrance HDS Gen3, Carbon, Live, and Pro displays, plus Simrad NSS evo2/evo3 and NSO evo2/evo3 systems. The StructureScan 3D transducer is required but not included in this module listing. No Garmin, Raymarine, NMEA 2000, radar, or autopilot compatibility was provided.

Technical Specifications

- Brand: Lowrance/Simrad Navico
- Model: StructureScan 3D Module, 000-12397-001
- Technology: Multi-beam 3D imaging, SideScan, DownScan
- Processor: High-speed 3D graphics processor
- Transducer: Not included; StructureScan 3D transducer required
- Range: 600 feet each side SideScan; 200 feet 3D depth
- Networking: Three Ethernet ports with integrated switch
- Voltage: 12-24V DC
- Compatibility: HDS Gen3/Carbon/Live/Pro, NSS evo2/evo3, NSO evo2/evo3
- Warranty: 2-year standard warranty

Warranty & Support

Navico provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The StructureScan 3D module is the expansion choice for a Lowrance or Simrad network that needs more perspective than DownScan alone can provide. Its trade-off is that both the display and 3D transducer must be confirmed separately. Choose it for structure fishing and 3D views, not as a ready-to-run sonar package.
