Lowrance HDS PRO 12 – w/ Preloaded C-MAP DISCOVER OnBoard – No Transducer

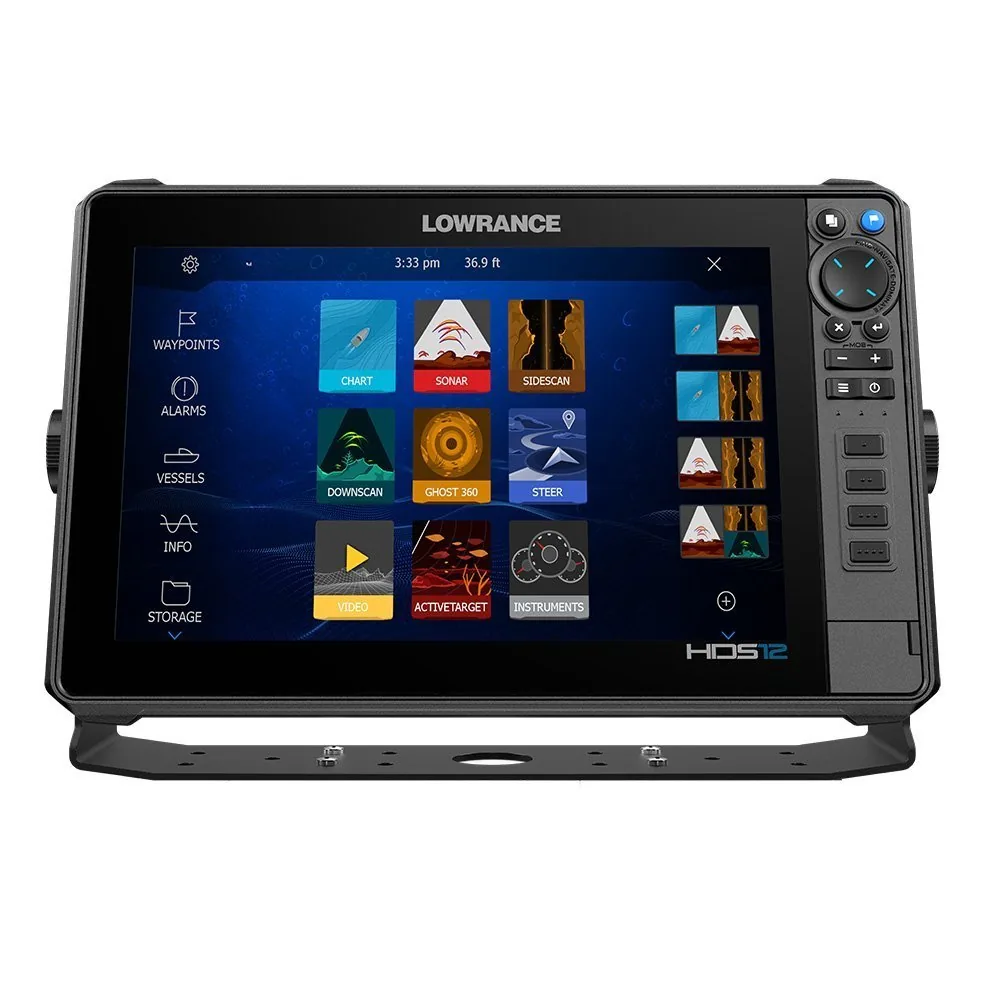

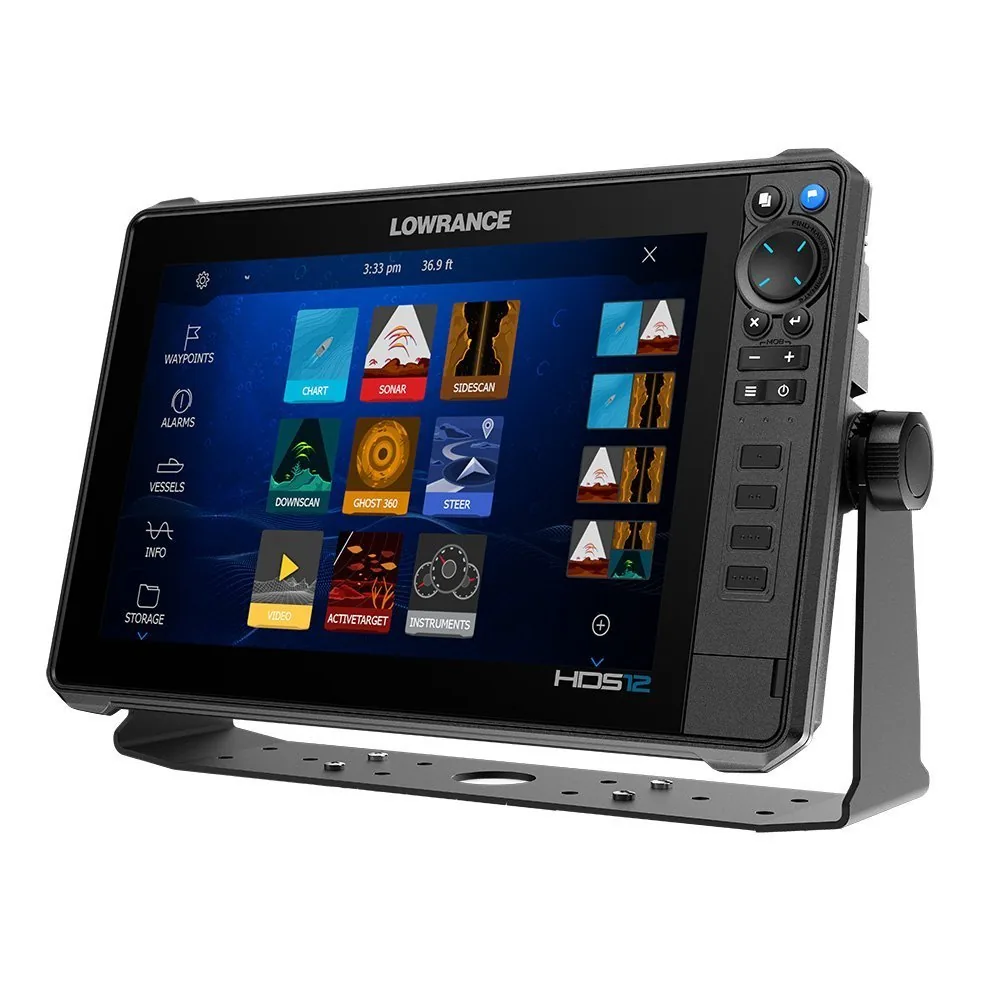

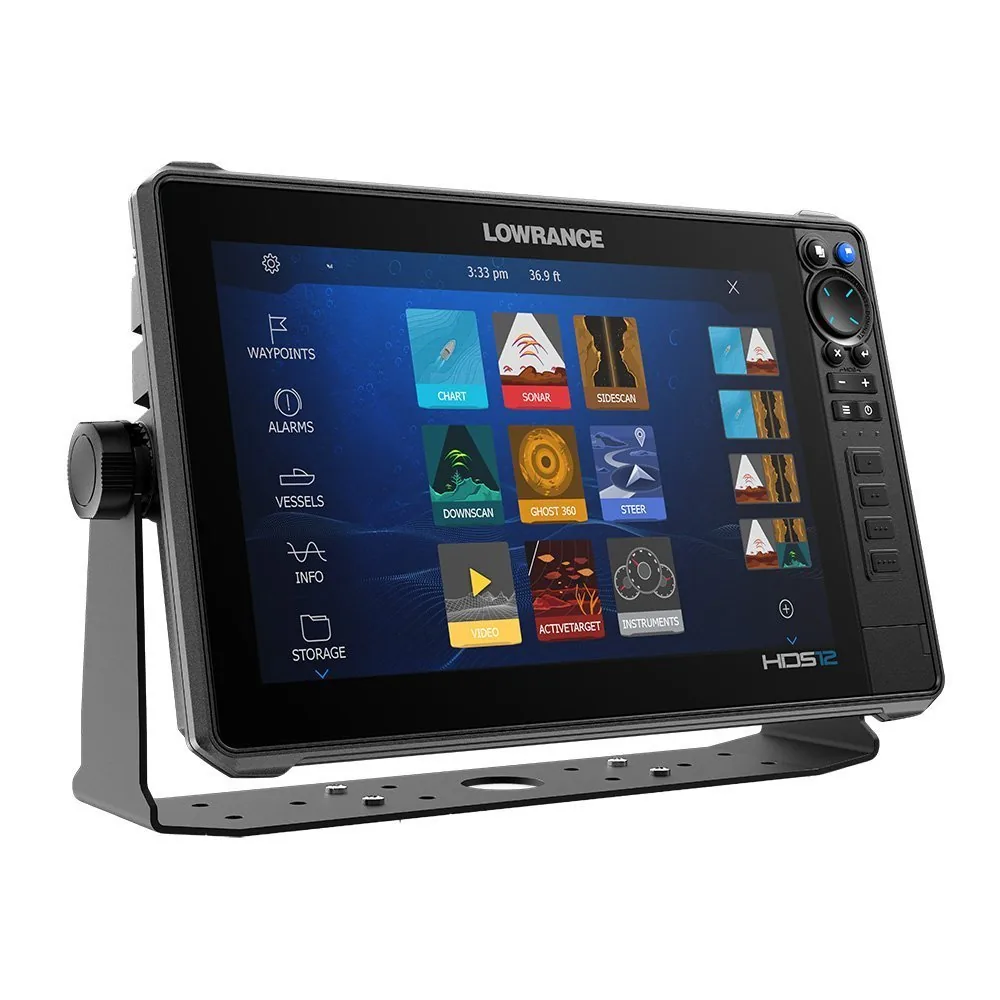

The Lowrance HDS PRO 12 display-only package provides a 12-inch SolarMAX HD multi-touch display, C-MAP DISCOVER OnBoard US and Canada charts, and integrated CHIRP, SideScan, and DownScan support. No transducer is included, so this version suits an existing Lowrance installation or a custom build where the sonar hardware will be selected separately. Its listed operating range is 5°F to 131°F.

Key Features

- 12-inch SolarMAX HD multi-touch display – Provides a large chart and sonar workspace for a larger fishing helm.
- 1280 x 800 WXGA resolution – Shows detailed mapping and fishfinding information across the screen.
- Integrated CHIRP, SideScan, and DownScan – Supports multiple sonar views when paired with a compatible transducer.
- C-MAP DISCOVER OnBoard US and Canada charts – Provides preloaded regional chart coverage for supported waters.
- Operating temperature from 5°F to 131°F – Defines the stated temperature range for installation and operation.

Who Is This For?

This model suits offshore fishing boats, larger center consoles, and Lowrance network installations where a 12-inch display is useful. It is a good choice for buyers who already have a compatible transducer or want to select one for a particular hull.

It is not ideal for a buyer who wants a complete fishfinder bundle, because the transducer is not included. It also needs more dash space than the HDS PRO 10 or 9.

Compatibility

Confirmed features include C-MAP DISCOVER OnBoard US and Canada charts and integrated CHIRP, SideScan, and DownScan support. The supplied information does not identify a specific compatible transducer, NMEA 2000, Ethernet, NMEA 0183, radar, autopilot, or third-party system. No named incompatible system was provided; verify Lowrance network and transducer requirements before installation.

Technical Specifications

- Brand: Lowrance
- Model: HDS PRO 12, 000-15984-001
- Display: 12-inch SolarMAX HD multi-touch
- Resolution: 1280 x 800 WXGA
- Sonar support: Integrated CHIRP, SideScan, DownScan; transducer required
- Transducer: Not included
- Preloaded charts: C-MAP DISCOVER OnBoard US and Canada
- Operating temperature: 5°F to 131°F / -15°C to 55°C
- Warranty: 2-year limited warranty
- Origin: Designed in the USA; made in Mexico

Warranty & Support

Lowrance provides a 2-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The HDS PRO 12 display-only model gives you the same large screen and C-MAP charts as the bundled version while leaving the transducer choice open. That flexibility helps when replacing a control head or matching sonar hardware to a specific hull, but it adds compatibility work and purchase cost. Choose the bundle if you need the Active Imaging HD transducer included; choose this version for a planned or existing Lowrance installation.
