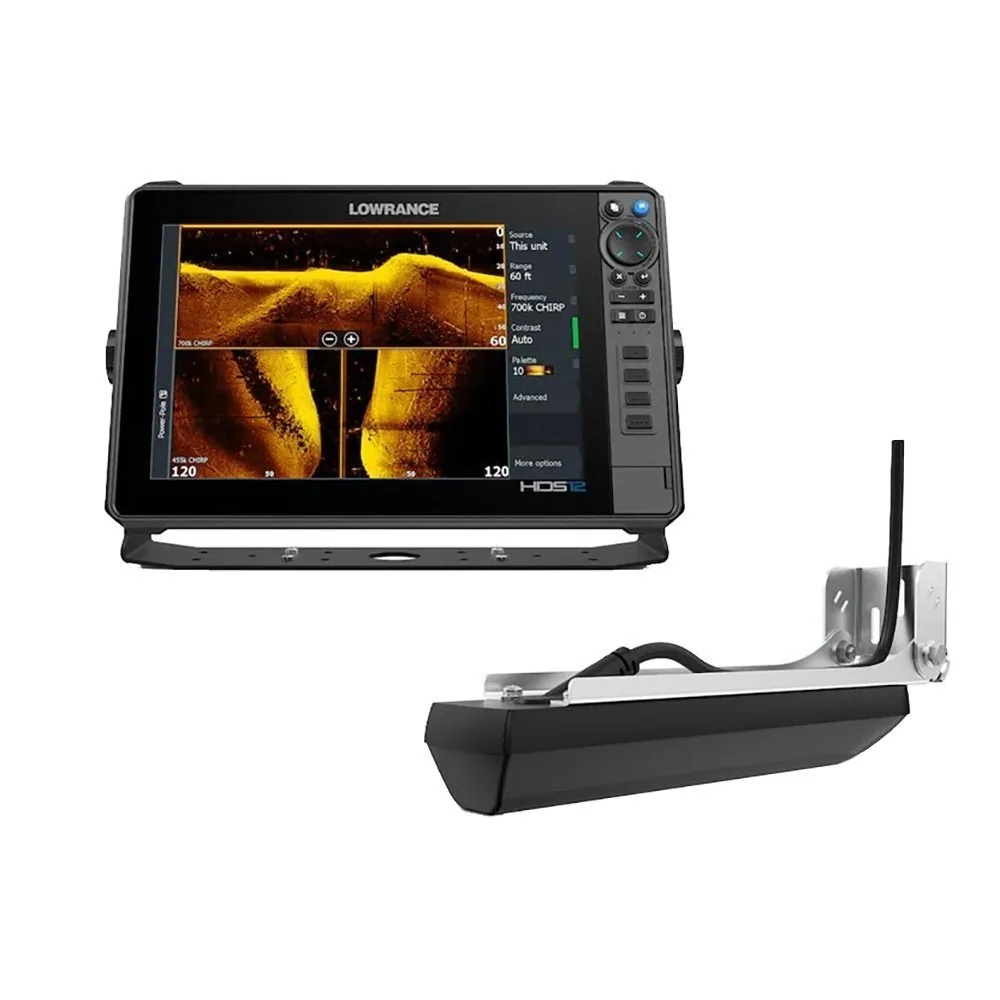

Lowrance HDS PRO 12 – w/ Preloaded C-MAP DISCOVER OnBoard & Active Imaging HD Transducer

The Lowrance HDS PRO 12 bundle gives the helm a 12-inch SolarMAX HD multi-touch display with C-MAP DISCOVER OnBoard US and Canada charts and an included Active Imaging HD 3-in-1 transducer. CHIRP, SideScan, and DownScan provide broad fishfinding coverage, while ActiveTarget 2 support, dual Ethernet, NMEA 2000, WiFi, and Bluetooth allow the system to grow on a serious fishing boat.

Key Features

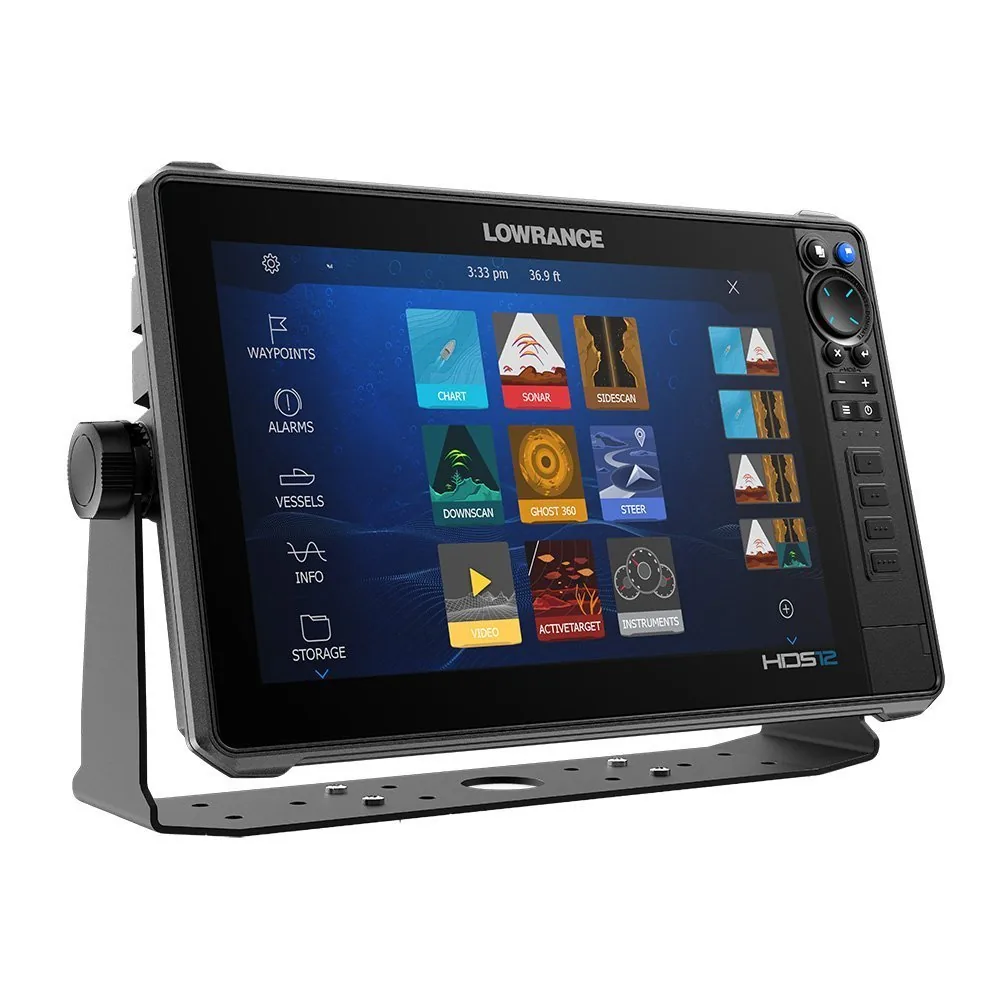

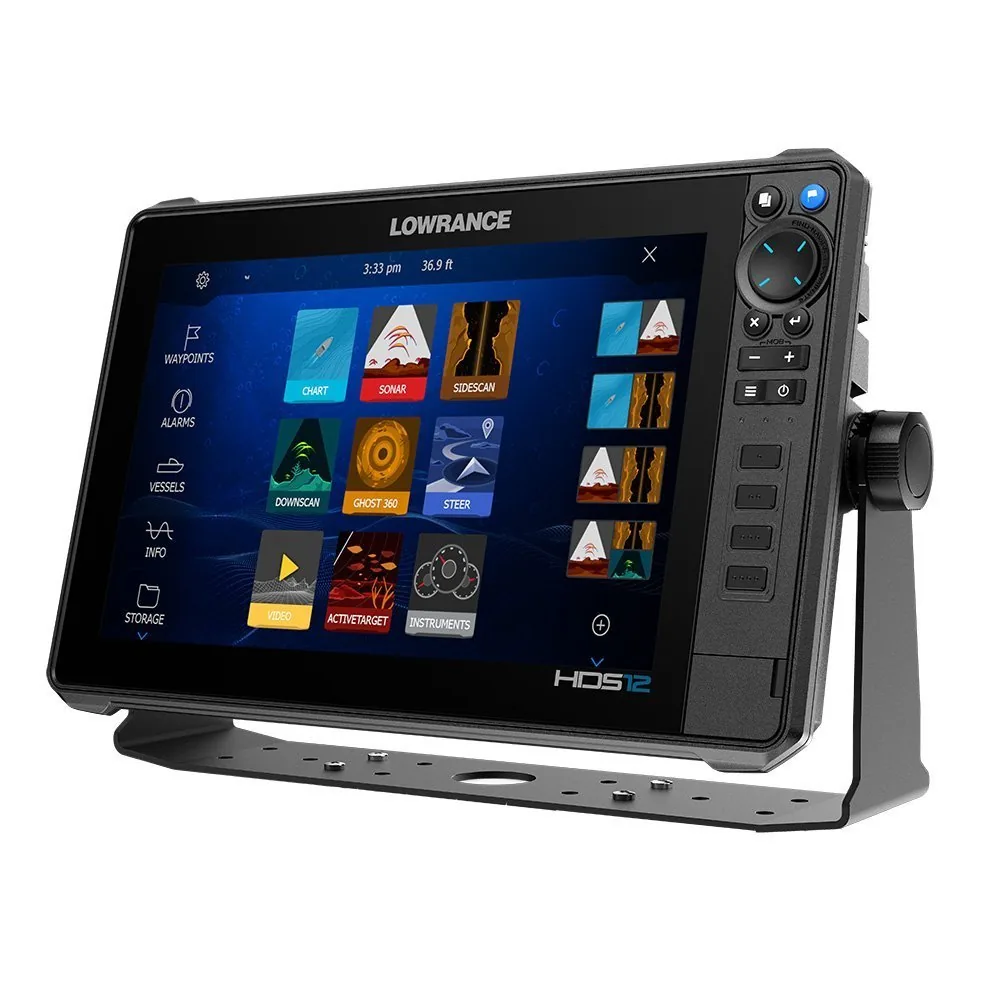

- 12-inch SolarMAX HD multi-touch display – Provides a large workspace for charts, sonar, and split-screen information.
- 1280 x 800 WXGA resolution – Shows detailed chart and sonar data across the 12-inch screen.
- Active Imaging HD 3-in-1 transducer included – Provides CHIRP, SideScan, and DownScan from the supplied transducer.
- ActiveTarget 2, CHIRP, SideScan, and DownScan HD support – Covers conventional, scanning, and compatible live-sonar functions.
- Dual Ethernet, NMEA 2000, WiFi, and Bluetooth – Provides several wired and wireless connection options for expansion.

Who Is This For?

This bundle suits offshore fishing boats, larger center consoles, tournament rigs, and coastal cruisers with room for a 12-inch display. The included transducer and regional charts make it a practical new-installation package.

It is not ideal for a compact helm where a 12-inch unit would crowd other instruments. Buyers who already own a compatible transducer may prefer the display-only version.

Compatibility

Confirmed components include the Active Imaging HD 3-in-1 transducer, ActiveTarget 2 support, C-MAP DISCOVER OnBoard US and Canada charts, dual Ethernet, NMEA 2000, WiFi, and Bluetooth. The supplied information does not identify NMEA 0183, radar, autopilot, or third-party transducer compatibility. No named incompatible system was provided; verify Lowrance network and accessory requirements before installation.

Technical Specifications

- Brand: Lowrance
- Model: HDS PRO 12, 000-15987-001
- Display: 12-inch SolarMAX HD multi-touch
- Resolution: 1280 x 800 WXGA
- Transducer: Active Imaging HD 3-in-1 with CHIRP, SideScan, DownScan
- Sonar support: ActiveTarget 2, CHIRP, SideScan, DownScan HD
- Preloaded charts: C-MAP DISCOVER OnBoard US and Canada

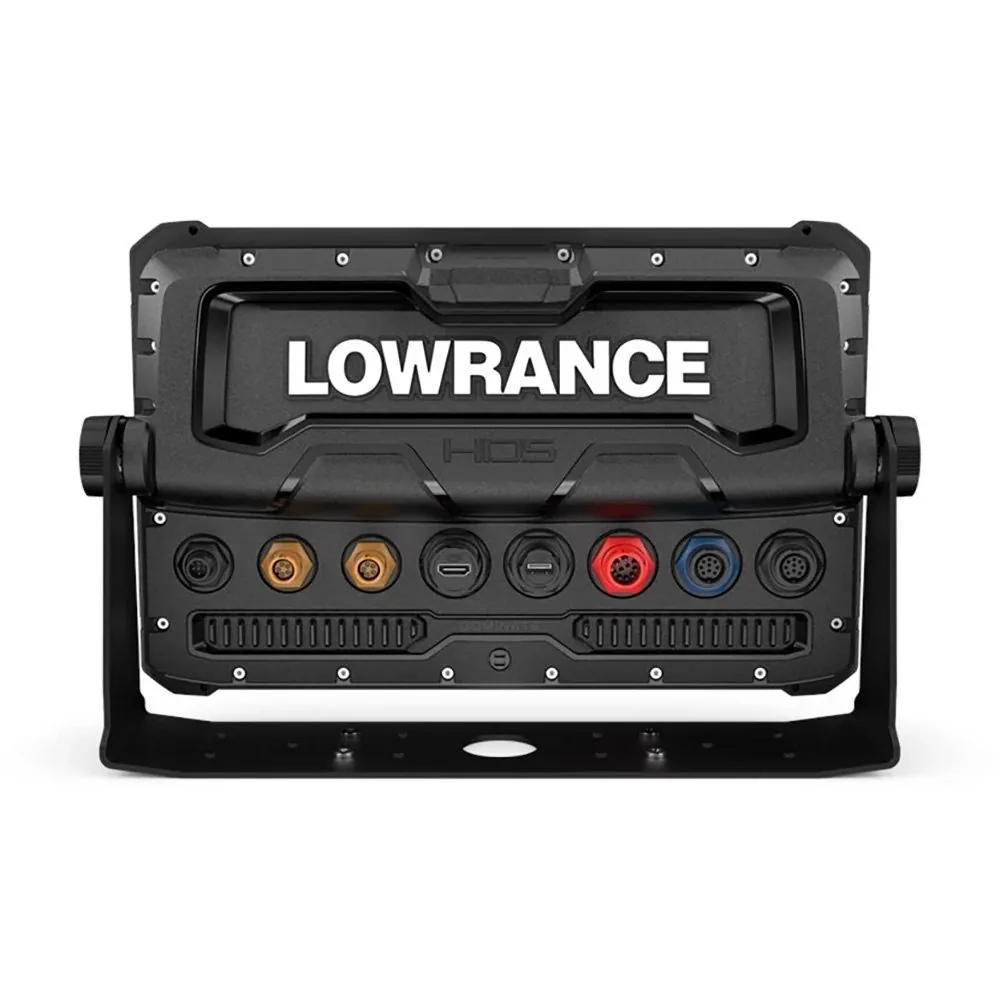

- Networking: Dual Ethernet, NMEA 2000, WiFi, Bluetooth
- Warranty: 2-year limited warranty
- Origin: Designed in the USA; made in Mexico

Warranty & Support

Lowrance provides a 2-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The HDS PRO 12 bundle is the complete 12-inch fishing package in this group, with the Active Imaging HD 3-in-1 transducer and C-MAP DISCOVER charts included. It gives more screen space than the HDS PRO 10 and 9, while retaining ActiveTarget 2 and broad networking. The trade-off is helm space: the 12-inch display is easier to read for split-screen use but needs a larger mounting area.
