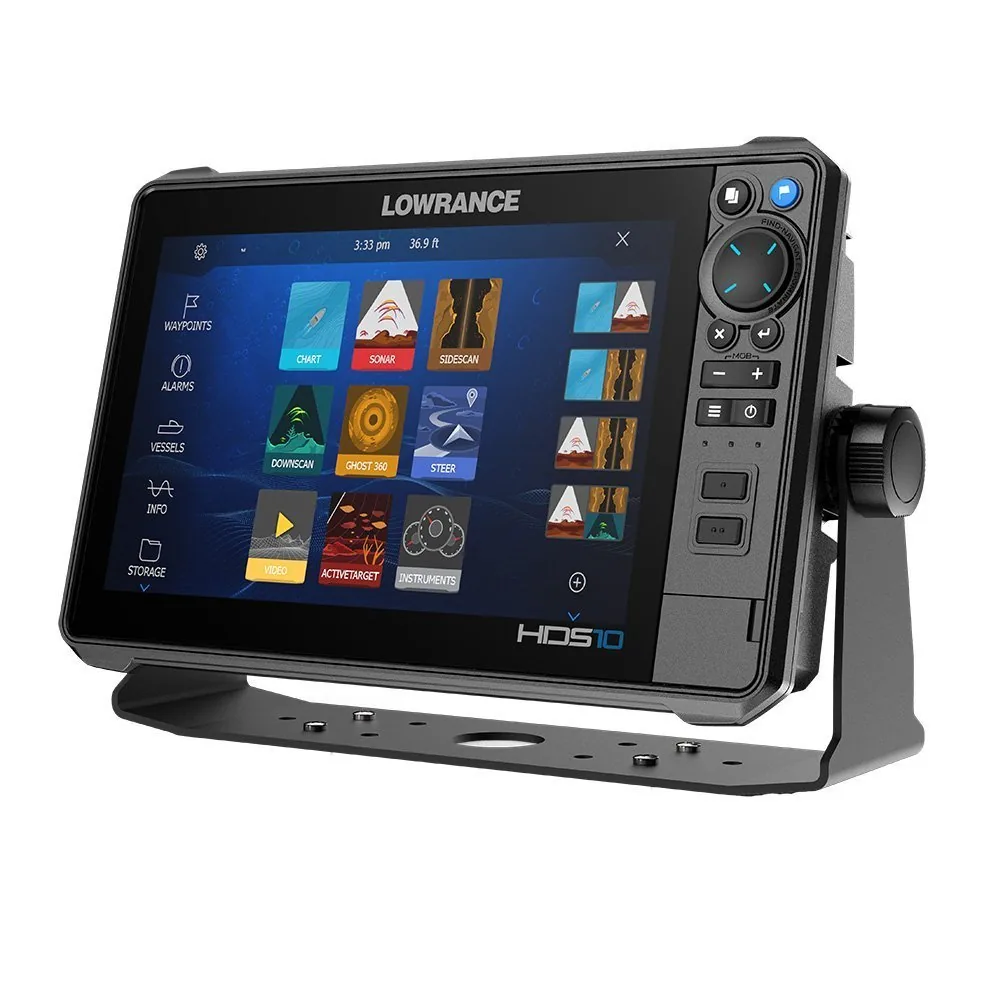

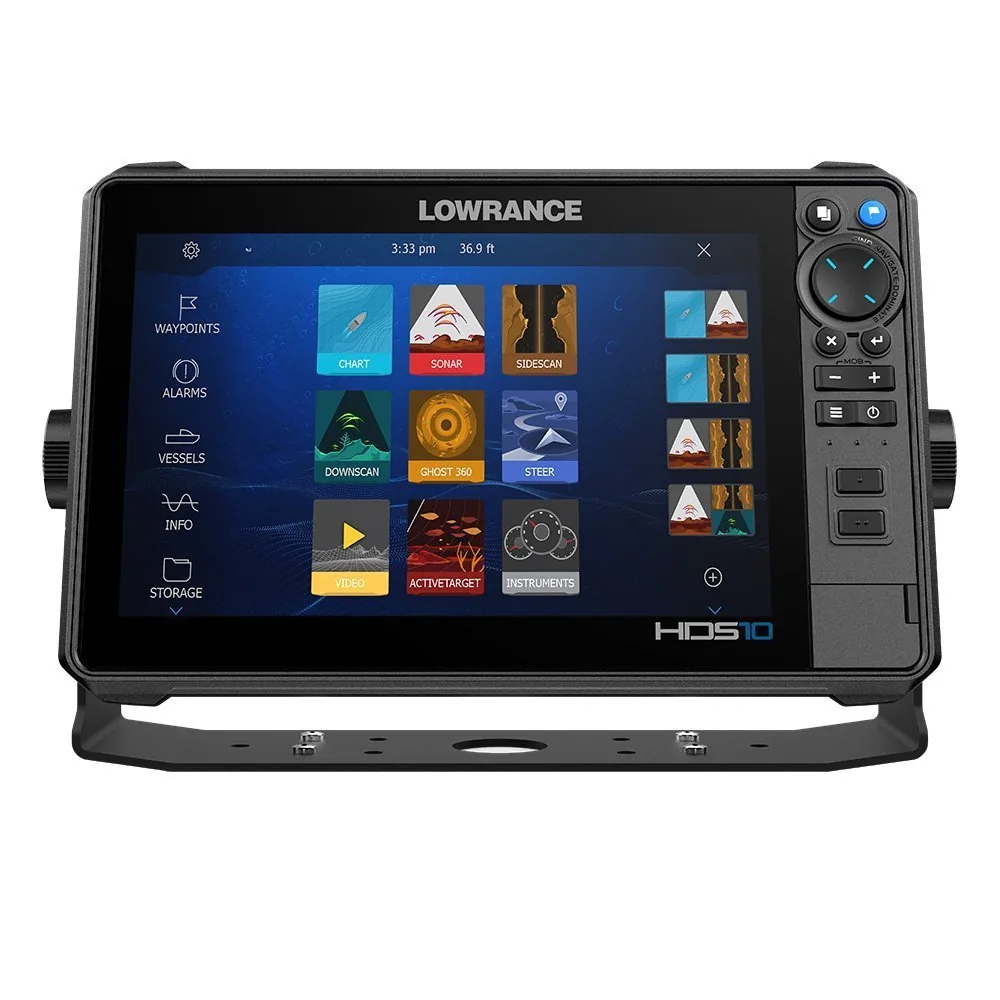

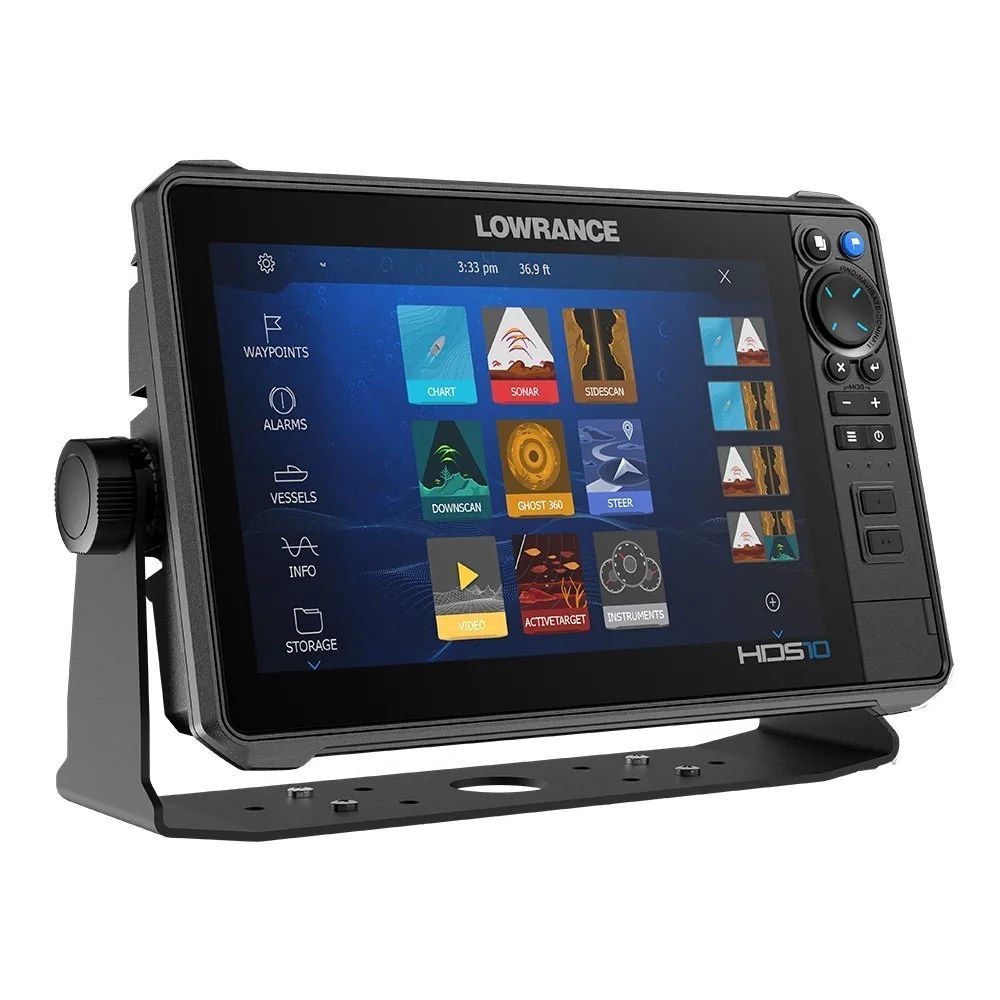

Lowrance HDS PRO 10 – w/ Preloaded C-MAP DISCOVER OnBoard – No Transducer

The Lowrance HDS PRO 10 display-only package gives you a 10-inch SolarMAX HD multi-touch display with C-MAP DISCOVER OnBoard US and Canada charts, Active Imaging HD support, ActiveTarget 2 support, and 1kW CHIRP capability. No transducer is included, so it suits an existing Lowrance installation or a custom build where the sonar transducer will be selected separately.

Key Features

- 10-inch SolarMAX HD multi-touch display – Provides a comfortable chart and sonar view without the space requirement of a 12-inch unit.
- 1280 x 720 HD resolution – Shows clear mapping and fishfinding detail in a mid-size display.
- Active Imaging HD, ActiveTarget 2, and 1kW CHIRP support – Provides a broad sonar platform when paired with compatible equipment.
- C-MAP DISCOVER OnBoard US and Canada charts – Provides preloaded regional chart coverage.
- Two Ethernet ports, NMEA 2000, WiFi, and Bluetooth – Provides confirmed connection options for network expansion.

Who Is This For?

This model suits fishing boats, center consoles, bay boats, and cruisers that need a 10-inch Lowrance display and already have a transducer plan. It is also useful as a replacement control head in an existing system.

It is not ideal for buyers who want a complete fishfinder package because the transducer is not included. A 12-inch HDS PRO offers more screen space, while the 9-inch model is easier to fit in a tight helm.

Compatibility

Confirmed features include C-MAP DISCOVER OnBoard US and Canada charts, Active Imaging HD, ActiveTarget 2, 1kW CHIRP, two Ethernet ports, NMEA 2000, WiFi, and Bluetooth. The supplied information does not identify a specific compatible transducer, NMEA 0183, radar, autopilot, or third-party system. No named incompatible system was provided; verify Lowrance network and transducer requirements before installation.

Technical Specifications

- Brand: Lowrance
- Model: HDS PRO 10, 000-15978-001
- Display: 10-inch SolarMAX HD multi-touch
- Resolution: 1280 x 720 HD
- Sonar support: Active Imaging HD, ActiveTarget 2, 1kW CHIRP
- Transducer: Not included
- Preloaded charts: C-MAP DISCOVER OnBoard US and Canada
- Networking: Two Ethernet ports, NMEA 2000, WiFi, Bluetooth
- Warranty: 2-year limited warranty
- Origin: Designed in the USA; made in Mexico

Warranty & Support

Lowrance provides a 2-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The HDS PRO 10 display-only version gives you the same 10-inch platform and C-MAP charts as the bundled model while leaving the transducer choice open. That is helpful for a custom hull installation or control-head replacement, but it means you must confirm the correct hardware separately. Choose the bundle for immediate Active Imaging sonar; choose this version when you already have a compatible transducer or a specific installation plan.
