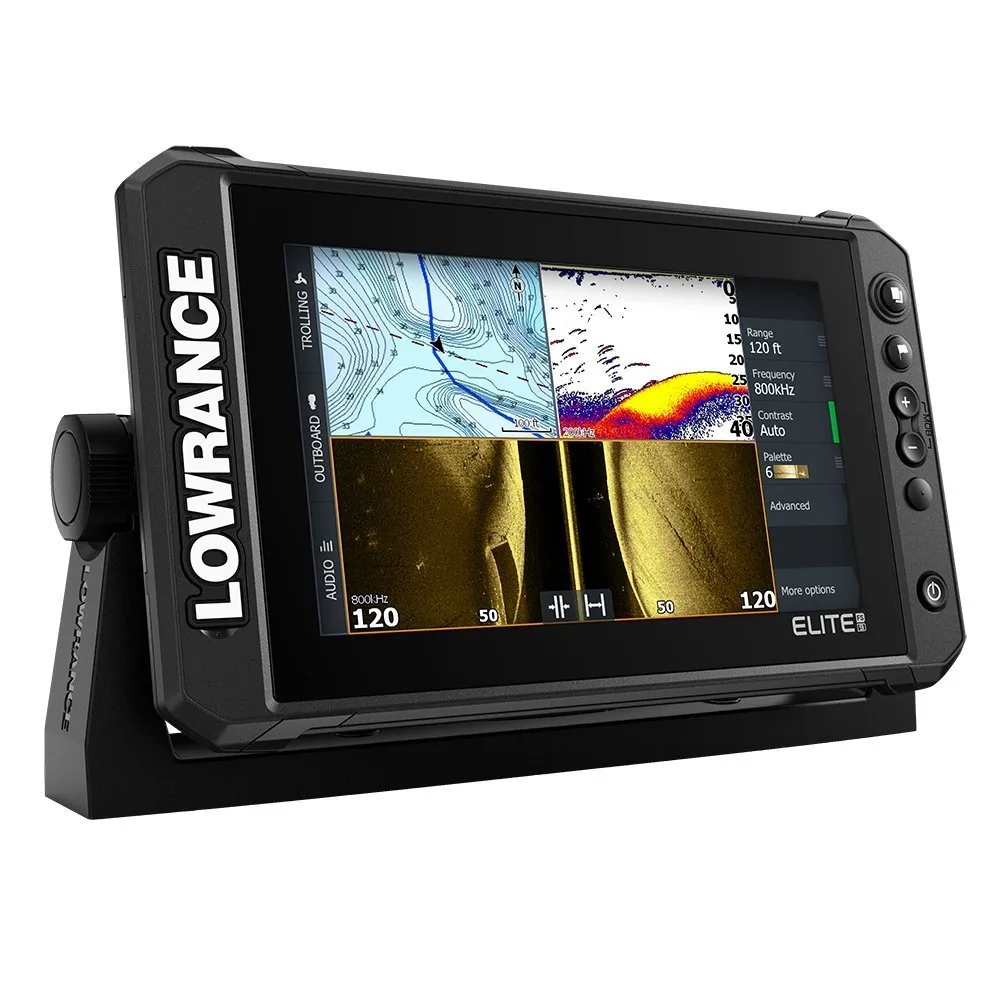

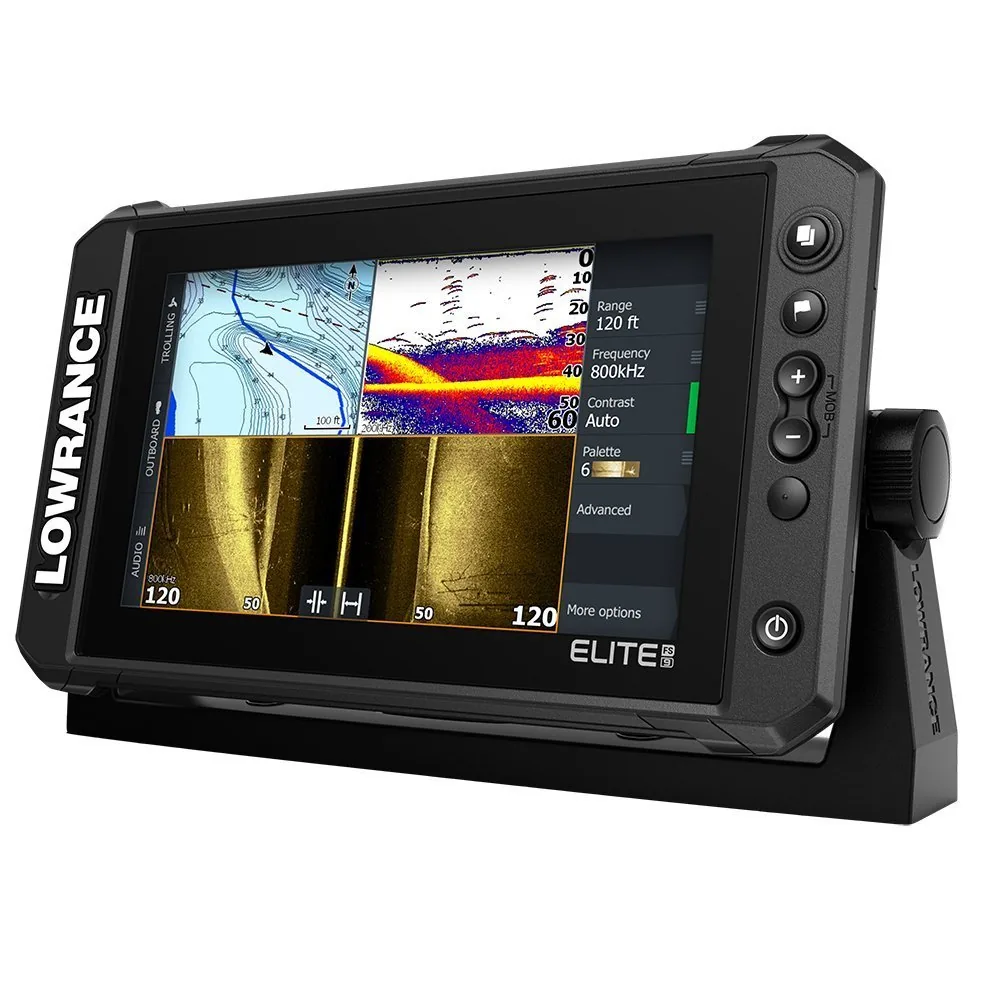

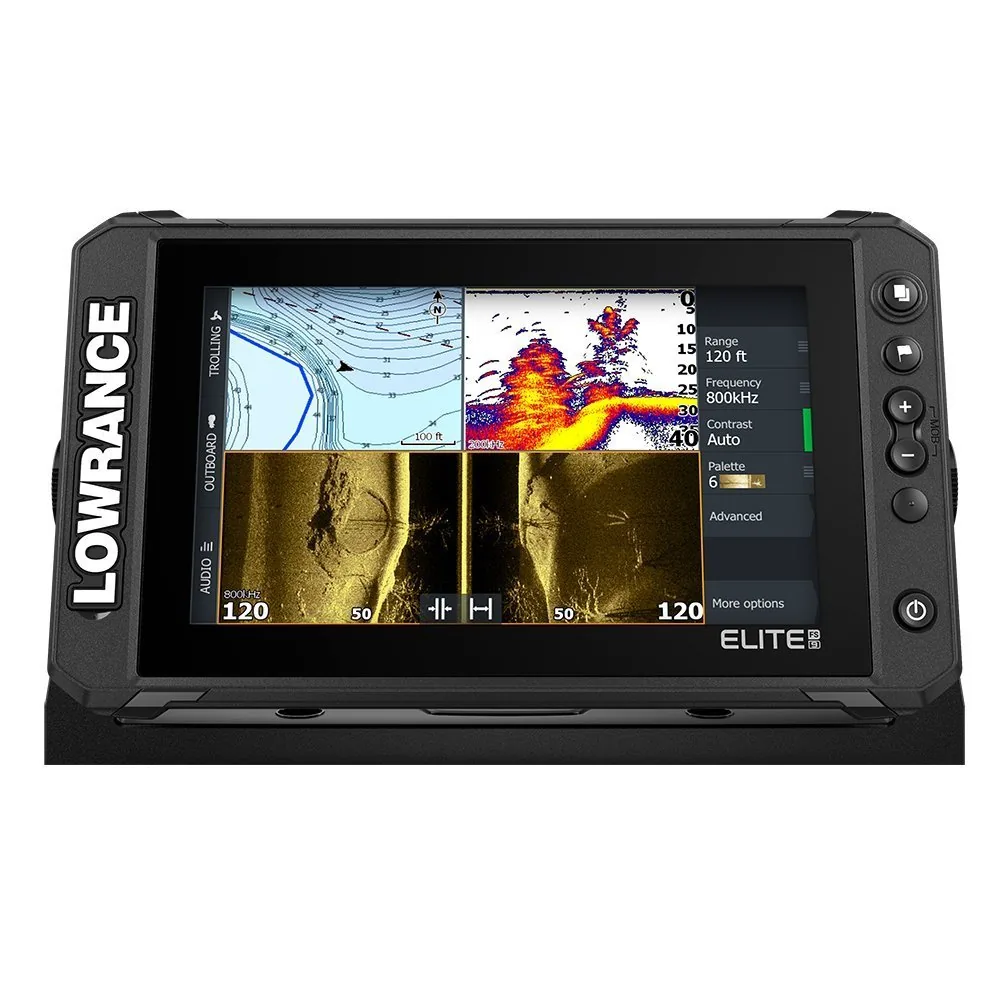

Lowrance Elite FS 9 Chartplotter/Fishfinder w/Active Imaging 3-in-1 Transom Mount Transducer

The Lowrance Elite FS 9 bundle combines a 9-inch multi-touch display with an included Active Imaging 3-in-1 transducer for CHIRP, SideScan, and DownScan. C-MAP Contour+ US and Canada charts are preloaded, while ActiveTarget Live support and FishReveal add fishing-focused expansion options. NMEA 2000, Ethernet, WiFi, and Bluetooth provide confirmed connections for a Lowrance marine electronics system.

Key Features

- 9-inch multi-touch high-resolution screen – Provides more chart and sonar viewing area than 7-inch units.
- 800 x 480 resolution – Displays essential navigation and fishfinding information while keeping the unit manageable for many consoles.
- Active Imaging 3-in-1 transducer included – Provides CHIRP, SideScan, and DownScan from the included transom-mount transducer.
- ActiveTarget Live and FishReveal support – Allows expansion with compatible live-sonar and fish-highlight functions.
- NMEA 2000, full Ethernet, WiFi, and Bluetooth – Provides several wired and wireless connection options for expansion.

Who Is This For?

This bundle suits coastal fishing boats, bay boats, bass boats, and mid-size center consoles that need a 9-inch display with the transducer included. The 3-in-1 sonar package is useful for anglers who want conventional and side-looking views from the same installation.

It is not ideal for a large offshore helm where a 12-inch display would be easier to read from a standing position. Buyers who already own a transducer should verify compatibility before choosing this bundled package.

Compatibility

Confirmed components include the Active Imaging 3-in-1 transducer, C-MAP Contour+ US/Canada charts, ActiveTarget Live support, FishReveal, NMEA 2000, full Ethernet, WiFi, and Bluetooth. The supplied information does not identify NMEA 0183, radar, autopilot, or third-party transducer compatibility. No named incompatible system was provided; verify Lowrance accessory and network requirements before installation.

Technical Specifications

- Brand: Lowrance
- Model: Elite FS 9, 000-15707-001
- Display: 9-inch multi-touch high-resolution screen
- Resolution: 800 x 480 pixels
- Transducer: Active Imaging 3-in-1 with CHIRP, SideScan, DownScan
- Sonar support: ActiveTarget Live and FishReveal
- Networking: NMEA 2000, full Ethernet, WiFi, Bluetooth
- Preloaded charts: C-MAP Contour+ US/Canada
- Warranty: 2-year limited warranty
- Origin: Designed in the USA; made in Mexico

Warranty & Support

Lowrance provides a 2-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The Elite FS 9 Active Imaging bundle is the complete 9-inch fishing package in this group, with the transducer and C-MAP charts included. It gives more physical display area than a 7-inch unit and broader sonar coverage than a basic CHIRP package. The trade-off is the 800 x 480 resolution, which provides less pixel detail than the Simrad NSS9 evo3S and other HD displays.
