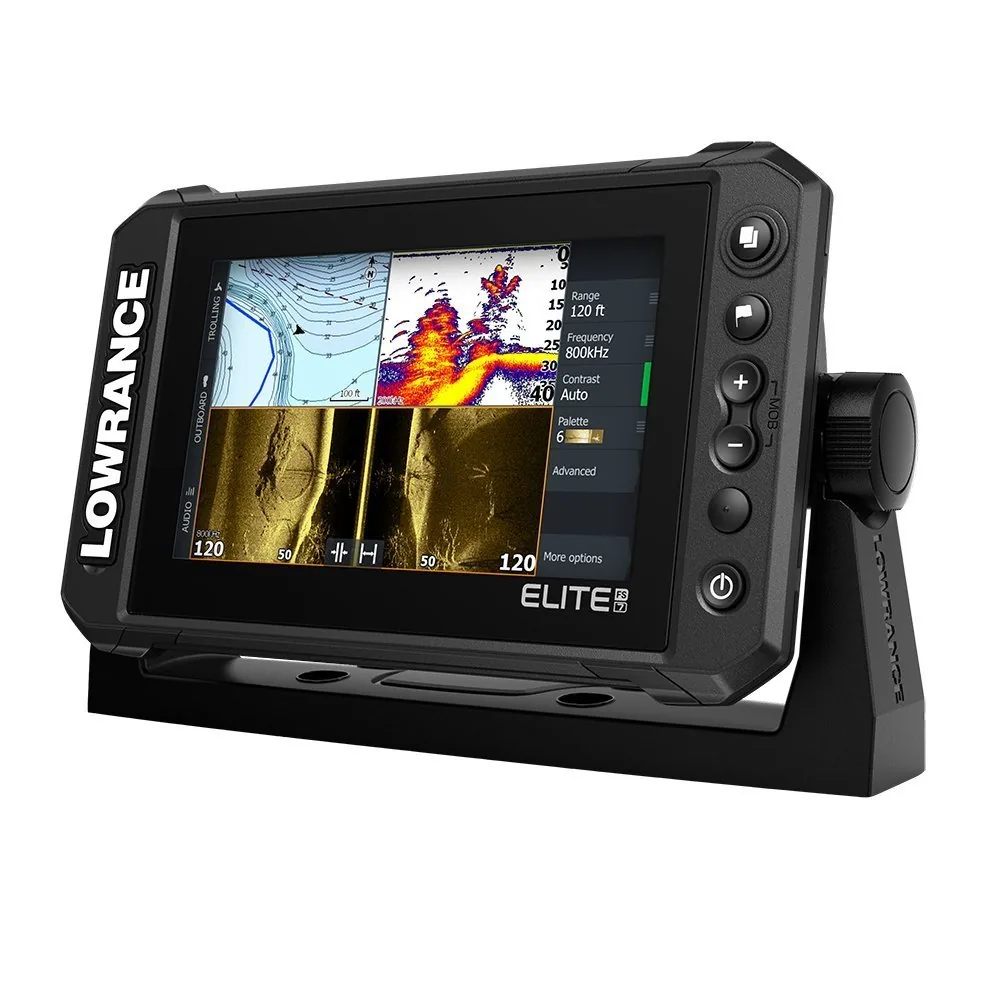

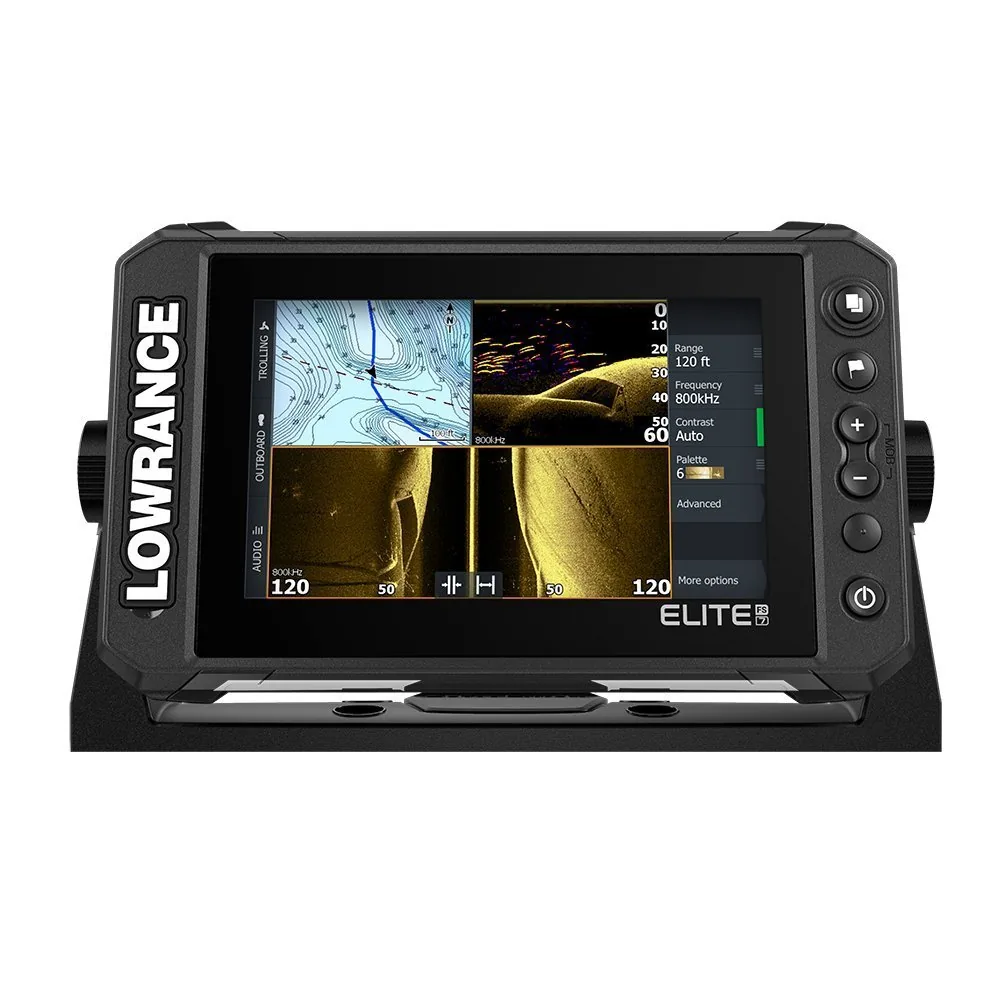

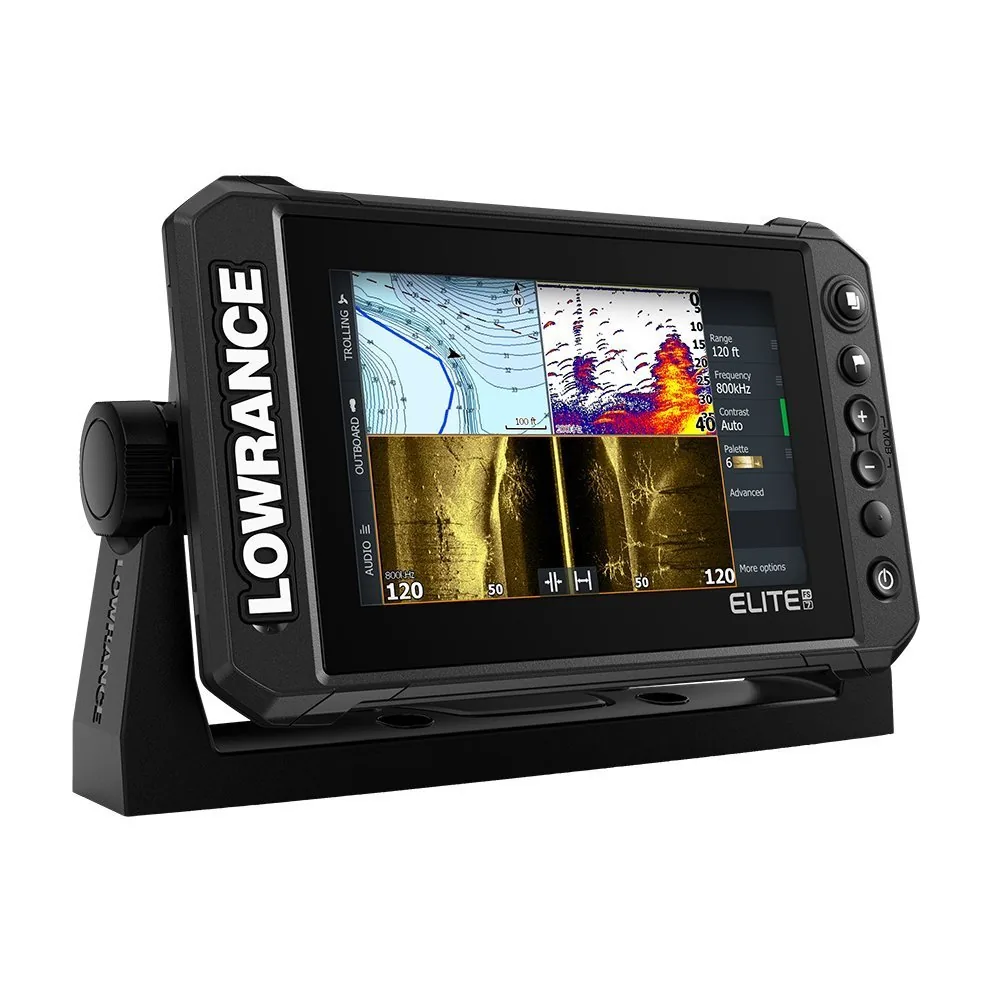

Lowrance Elite FS 7 Chartplotter/Fishfinder – No Transducer

A 7-inch screen sounds small until you’re running a bay boat with limited dash space and you realize the alternative is a bigger unit eating into rod storage. The Lowrance Elite FS 7 is built for exactly that trade-off: a multi-touch chartplotter/fishfinder combo compact enough for smaller center consoles and kayaks, without dropping the sonar tech serious anglers actually use.

Key Features

- Multi-touch 7″ screen rated over 1,200 nits — stays readable at noon on open water without a hood or visor trick.
- Built-in CHIRP, DownScan, and SideScan sonar — covers structure and bottom detail in one unit, no separate sonar module needed to get started.
- ActiveTarget support built in — add Lowrance’s live-imaging transducer later and this head unit is already wired to run it, so you’re not buying twice.
- 10 Hz internal WAAS/GLONASS GPS — position updates fast enough to keep a track line accurate at trolling speed, not just cruising speed.
- 3,000 waypoints and 100 routes of storage — enough for a season of marked spots without pruning the list every few trips.

Who This Is For

This fits anglers on smaller boats — bay boats, center consoles under 20 feet, kayaks with a console mount — who want real sonar capability without paying for a 9-inch-plus display they don’t have room for. It’s not the right pick if you’re already planning a multi-display helm or want the largest possible screen for a bigger center console; the Elite FS 7’s screen size is a deliberate space trade-off, not a budget cut.

Compatibility

Confirmed compatible: NMEA 2000 devices, single-port Ethernet networking, Wi-Fi and Bluetooth accessories, and Lowrance’s ActiveTarget live-imaging transducer system (sold separately). This unit ships with no transducer — the CHIRP/DownScan/SideScan sonar built into the head unit still needs a compatible Lowrance transducer connected before it reads anything.

Technical Specifications

- Display: 7″ multi-touch, 800x480px, >1,200 nits brightness
- Sonar: CHIRP, DownScan, SideScan, ActiveTarget-ready
- Transducer: Not included
- GPS: 10 Hz internal, WAAS/GLONASS
- Networking: NMEA 2000, Ethernet (1 port), Wi-Fi, Bluetooth
- Storage: 3,000 waypoints / 100 routes

Warranty & Support

Backed by Lowrance’s 2-Year Limited Warranty covering defects in materials and workmanship from the date of purchase.

Next to Lowrance’s larger Elite FS models, the 7-inch is the one to pick when console space is the real constraint, not the budget. Step up in screen size later if you upgrade boats — the ActiveTarget compatibility means the sonar investment carries forward either way.
