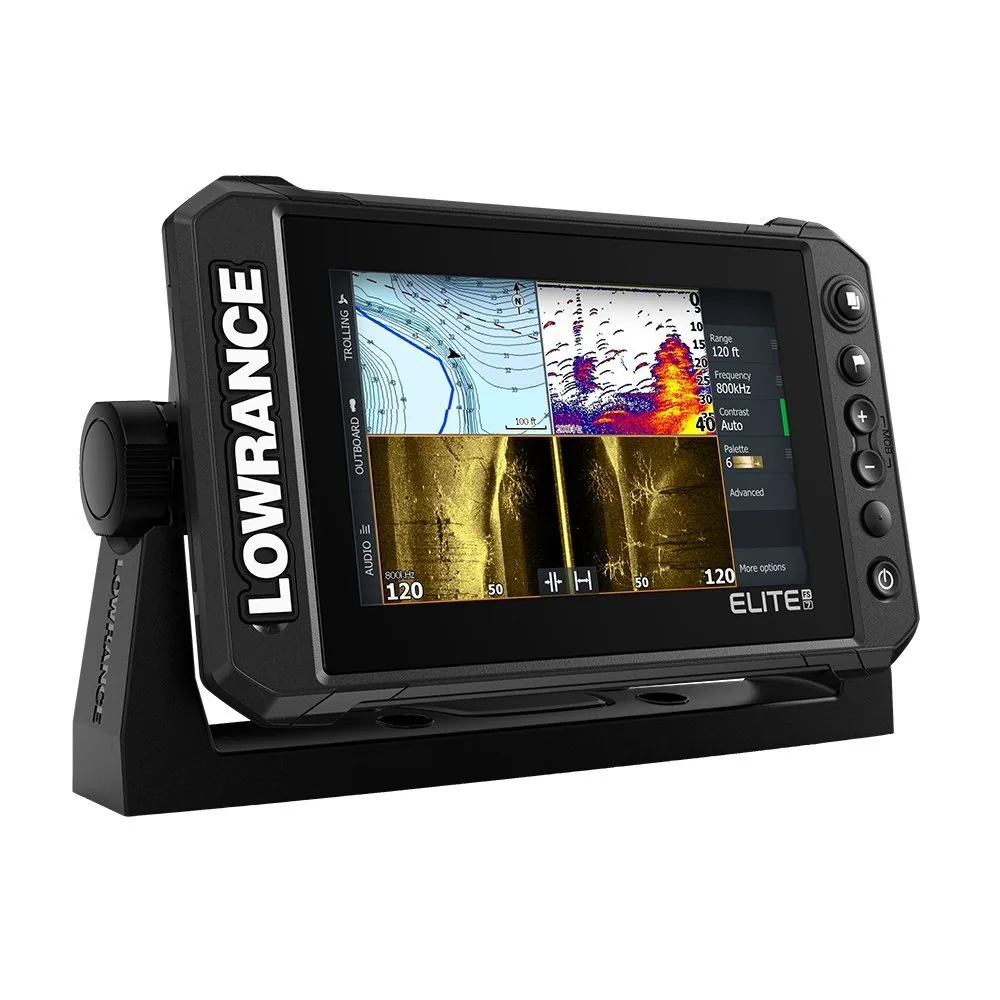

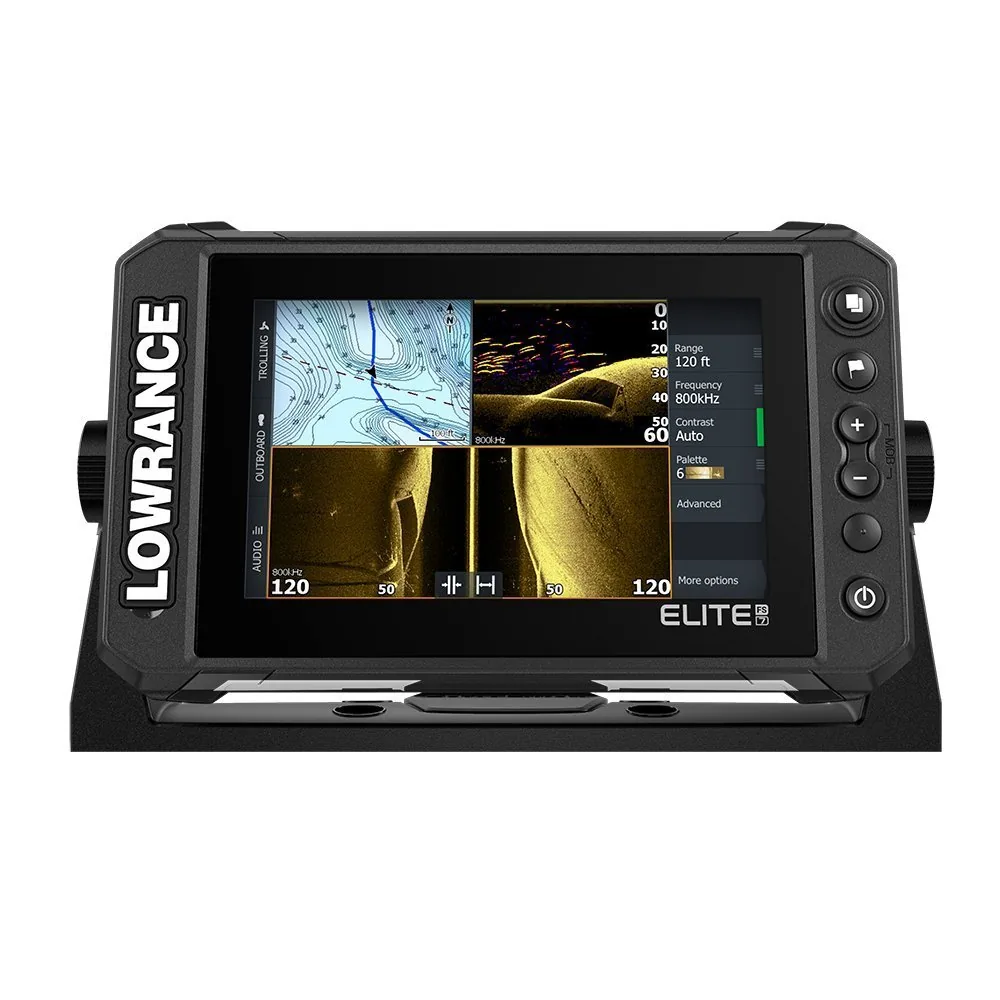

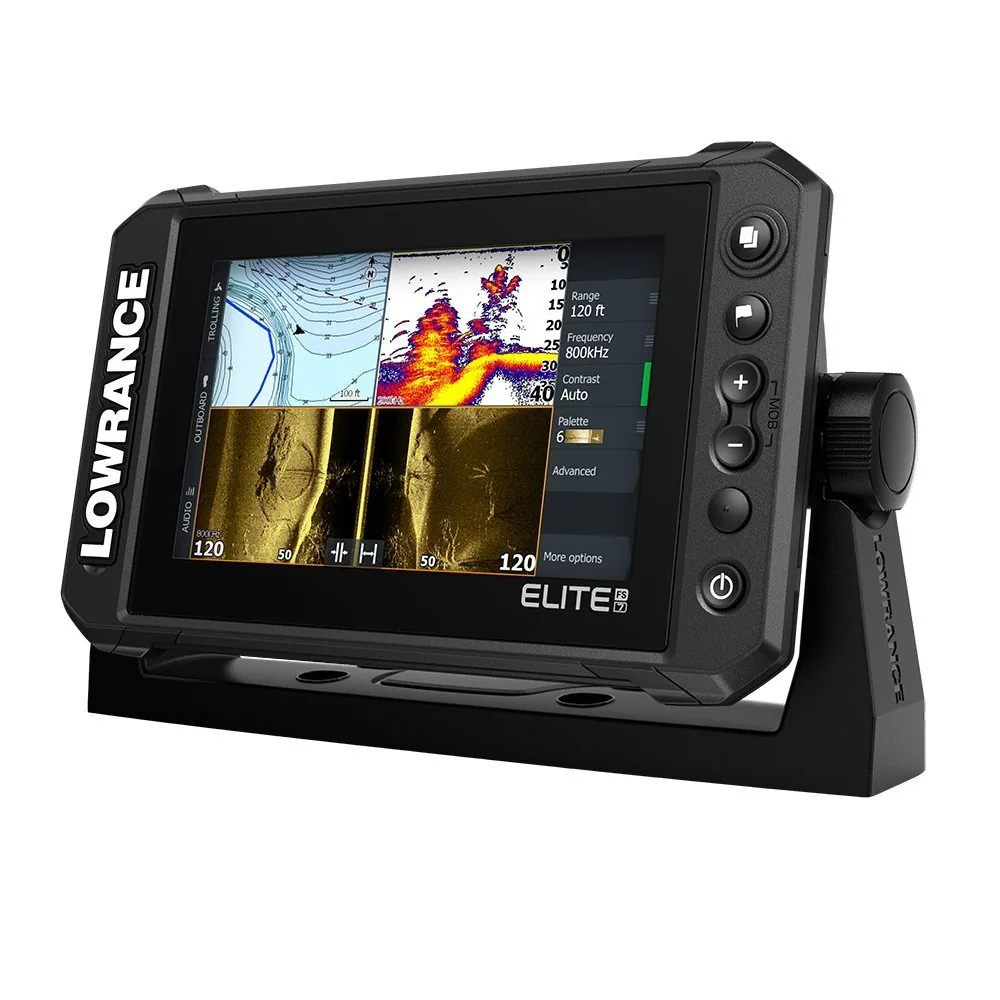

Lowrance Elite FS 7 Chartplotter/Fishfinder w/Active Imaging 3-in-1 Transom Mount Transducer

The Lowrance Elite FS 7 bundle combines a 7-inch multi-touch display with an included Active Imaging 3-in-1 transducer for CHIRP, SideScan, and DownScan. C-MAP Contour+ US/Canada charts are preloaded, while ActiveTarget Live support, FishReveal, NMEA 2000, Ethernet, WiFi, and Bluetooth provide room for expansion. It is a compact chartplotter/fishfinder package for anglers who want the transducer included from the start.

Key Features

- 7-inch multi-touch high-resolution screen – Provides a compact display for charting and sonar operation.
- 800 x 480 resolution – Keeps the unit easy to fit while displaying essential chart and fishfinding information.
- Active Imaging 3-in-1 transducer included – Provides CHIRP, SideScan, and DownScan from one transom-mount transducer.
- ActiveTarget Live and FishReveal support – Allows expansion with compatible live sonar and enhanced fishfinding views.
- NMEA 2000, Ethernet, WiFi, and Bluetooth – Provides confirmed wired and wireless connection options for a connected Lowrance system.

Who Is This For?

This bundle suits bass boats, aluminum fishing boats, bay boats, small center consoles, and trailerable coastal craft that need charting and multiple sonar views in a compact unit. The included transducer reduces the work and cost of starting a new installation.

It is not ideal for a large offshore helm that needs a 9- or 12-inch display for comfortable split-screen viewing. Buyers who already have a different transducer should also confirm compatibility before choosing this bundled package.

Compatibility

Confirmed components include the Active Imaging 3-in-1 transducer, C-MAP Contour+ US/Canada charts, ActiveTarget Live support, FishReveal, NMEA 2000, full Ethernet, WiFi, and Bluetooth. The supplied information does not identify NMEA 0183, radar, autopilot, or third-party transducer compatibility. No named incompatible system was provided; verify Lowrance accessory and network requirements before installation.

Technical Specifications

- Brand: Lowrance
- Model: Elite FS 7, 000-15692-001
- Display: 7-inch multi-touch high-resolution screen
- Resolution: 800 x 480 pixels
- Transducer: Active Imaging 3-in-1 with CHIRP, SideScan, DownScan
- Sonar support: ActiveTarget Live and FishReveal
- Networking: NMEA 2000, full Ethernet, WiFi, Bluetooth
- Preloaded charts: C-MAP Contour+ US/Canada
- Warranty: 2-year limited warranty
- Origin: Designed in the USA; made in Mexico

Warranty & Support

Lowrance provides a 2-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The Elite FS 7 Active Imaging bundle is a complete small-boat package with more scanning sonar coverage than the GT23-based Garmin bundle and a smaller installation footprint than a 9-inch unit. Its included transducer, C-MAP Contour+ charts, and ActiveTarget support make it a strong fishing-focused option. The trade-off is the 7-inch 800 x 480 screen, which provides less viewing room for split-screen charts and sonar.
