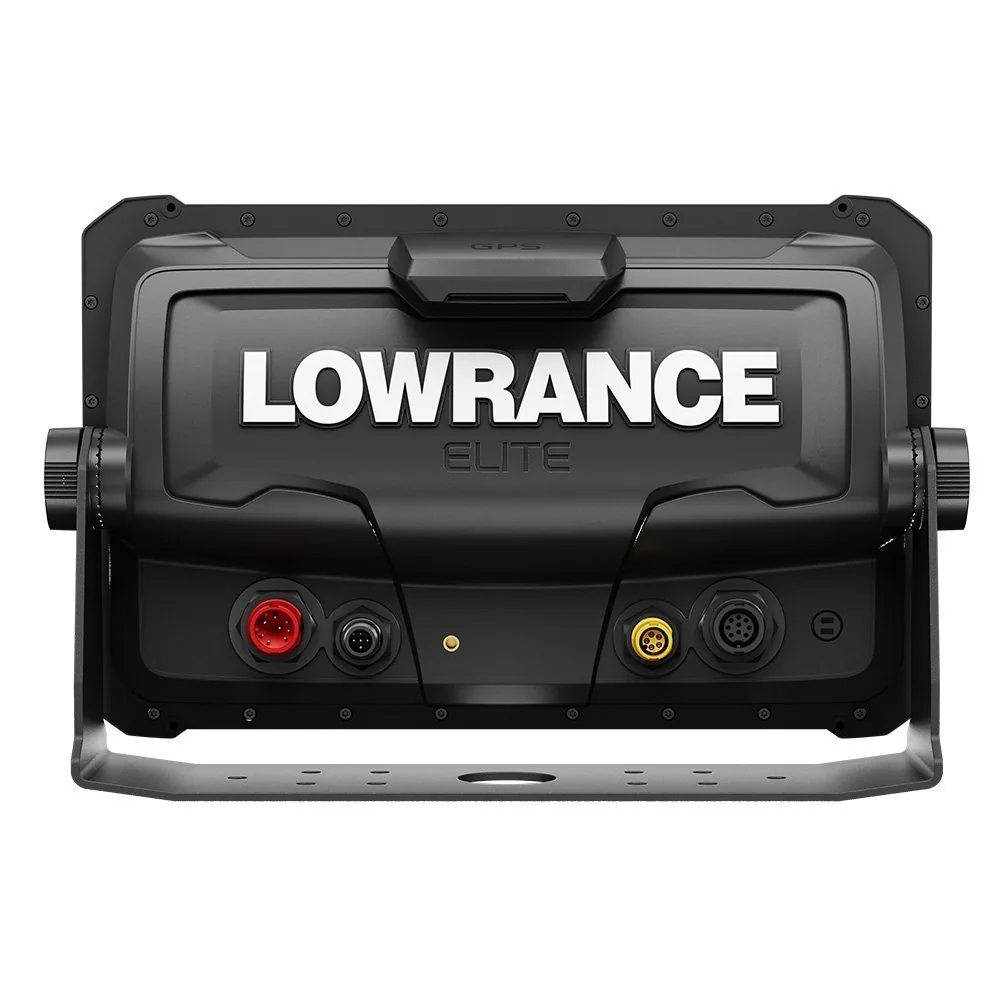

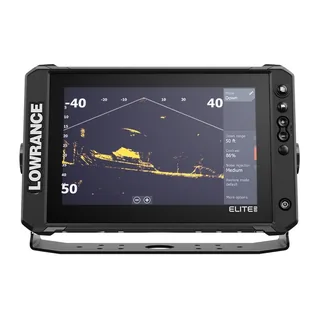

The Lowrance Elite FS 10 display-only model provides a 10-inch multi-touch display with 1280 x 800 resolution, C-MAP Contour+ US and Canada charts, Active Imaging support, ActiveTarget Live compatibility, and CHIRP. No transducer is included, so it suits a custom Lowrance installation or control-head replacement. Full Ethernet and NMEA 2000 support provide a practical base for a connected fishing boat.

Key Features

- 10-inch multi-touch display – Provides a clear chart and sonar workspace in a manageable helm size.
- 1280 x 800 resolution – Shows useful detail across mapping and split-screen sonar views.
- Active Imaging and ActiveTarget Live support – Provides expansion options for scanning and live sonar with compatible hardware.
- CHIRP sonar support – Supports conventional fishfinding when paired with a suitable transducer.
- Full Ethernet and NMEA 2000 support – Provides confirmed networking options for a Lowrance system.

Who Is This For?

This unit suits fishing boats, bay boats, center consoles, and owners upgrading to a 10-inch Lowrance display while selecting the transducer separately. Its screen size offers more room than 7-inch units without the installation demand of the Elite FS 12.

It is not ideal for buyers who need a complete fishfinder package because the transducer is not included. The bundled Elite FS 10 is easier for a new installation that requires the Active Imaging 3-in-1 transducer.

Compatibility

Confirmed features include C-MAP Contour+ US/Canada charts, Active Imaging, ActiveTarget Live, CHIRP, full Ethernet, and NMEA 2000. The supplied information does not identify NMEA 0183, radar, autopilot, WiFi, Bluetooth, or specific transducer compatibility for this listing. No named incompatible system was provided; verify Lowrance sonar and network requirements before installation.

Technical Specifications

- Brand: Lowrance
- Model: Elite FS 10, 000-15691-001
- Display: 10-inch multi-touch display
- Resolution: 1280 x 800 pixels
- Sonar support: Active Imaging, ActiveTarget Live, CHIRP
- Transducer: Not included
- Preloaded charts: C-MAP Contour+ US/Canada
- Networking: Full Ethernet and NMEA 2000 support
- Warranty: 2-year standard warranty
- Origin: Made in Mexico

Warranty & Support

Lowrance provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The Elite FS 10 display-only model is the custom-installation alternative to the bundled Elite FS 10, keeping the 10-inch 1280 x 800 screen, C-MAP charts, and ActiveTarget-ready platform while leaving the transducer choice open. That flexibility helps when upgrading an existing boat system, but sonar hardware must be matched separately. Choose the bundle for immediate Active Imaging; choose this version for a planned Lowrance installation.
