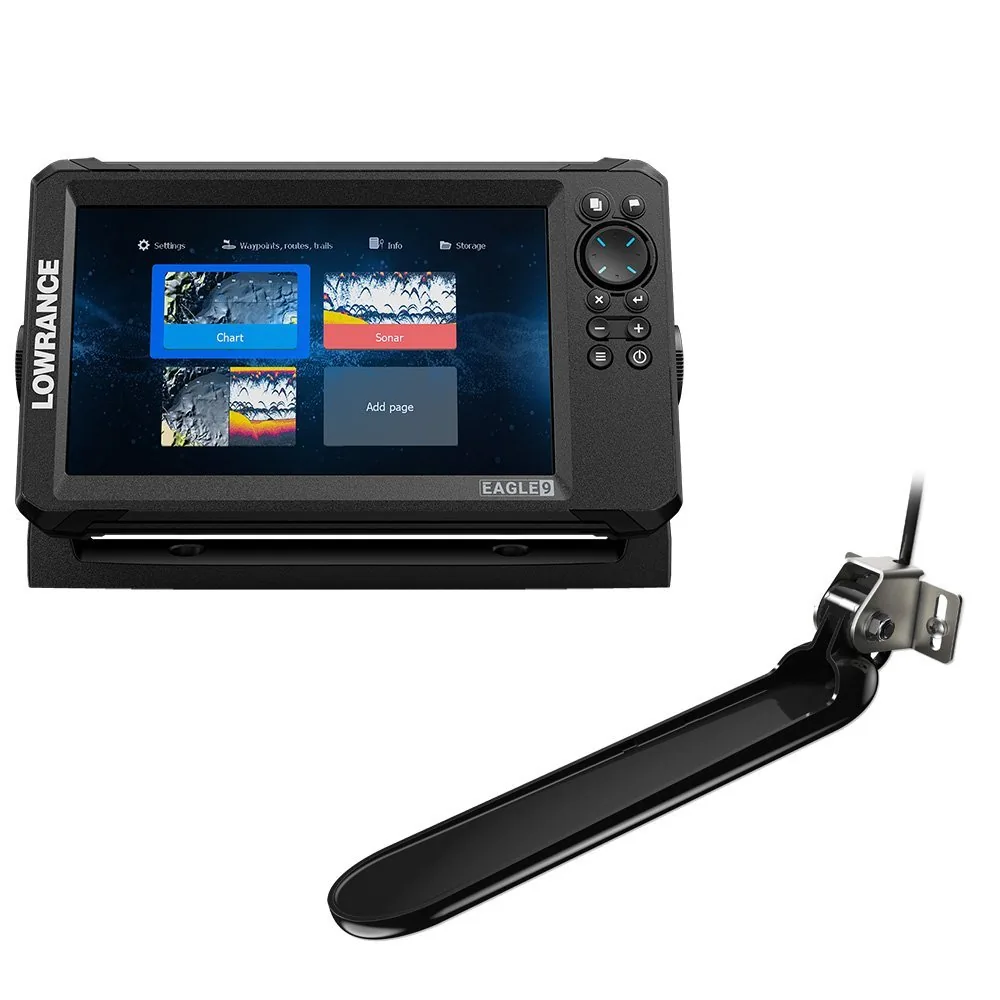

The Lowrance Eagle 9 TripleShot bundle combines a 9-inch IPS SolarMAX display with an included TripleShot HD transducer for wide-angle CHIRP, SideScan, and DownScan. C-MAP US Inland charts covering more than 17,000 lakes are preloaded, while Genesis Live real-time mapping allows anglers to build mapping information while operating. This is the largest display in the Eagle group.

Key Features

- 9-inch IPS SolarMAX display – Provides the most viewing area in this Eagle group for charts and sonar.
- 1024 x 600 resolution – Shows more mapping and imaging detail than 7-inch and 5-inch 800 x 480 displays.
- TripleShot HD transducer included – Provides wide-angle CHIRP, SideScan, and DownScan from one transducer.
- C-MAP US Inland charts for 17,000+ lakes – Provides broad preloaded freshwater coverage.
- Genesis Live real-time mapping – Allows anglers to create mapping information while on the water.

Who Is This For?

This unit suits freshwater fishing boats, bass boats, larger aluminum craft, and anglers who want the clearest chart and sonar view among these compact Eagle models. SideScan and DownScan provide more structure information than SplitShot packages.

It is not ideal for a small console where a 9-inch display would crowd other instruments. It is also focused on inland chart coverage rather than coastal navigation.

Compatibility

Confirmed components include the TripleShot HD transducer, wide-angle CHIRP, SideScan, DownScan, C-MAP US Inland coverage for 17,000+ lakes, and Genesis Live real-time mapping. The supplied information does not identify NMEA 2000, NMEA 0183, radar, autopilot, WiFi, Bluetooth, or third-party transducer compatibility. No named incompatible system was provided; verify Lowrance accessory requirements before installation.

Technical Specifications

- Brand: Lowrance
- Model: Eagle 9, 000-16128-001
- Display: 9-inch IPS SolarMAX display
- Resolution: 1024 x 600 pixels
- Sonar included: Wide-angle CHIRP, SideScan, DownScan
- Transducer: TripleShot HD included
- Preloaded charts: C-MAP US Inland, 17,000+ lakes
- Feature: Genesis Live real-time mapping
- Warranty: 1-year limited warranty
- Origin: Made in Mexico

Warranty & Support

Lowrance provides a 1-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The Eagle 9 TripleShot is the strongest fishing package in this group for display size and sonar coverage, adding SideScan to wide-angle CHIRP and DownScan. Genesis Live also adds mapping value beyond the preloaded lake charts. The trade-off is physical size and inland-only chart coverage, so it suits a larger freshwater helm rather than a compact coastal boat.
