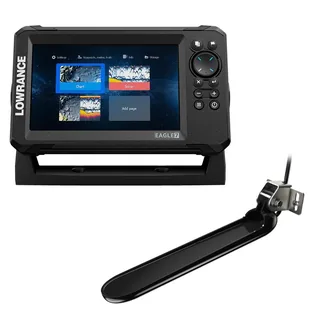

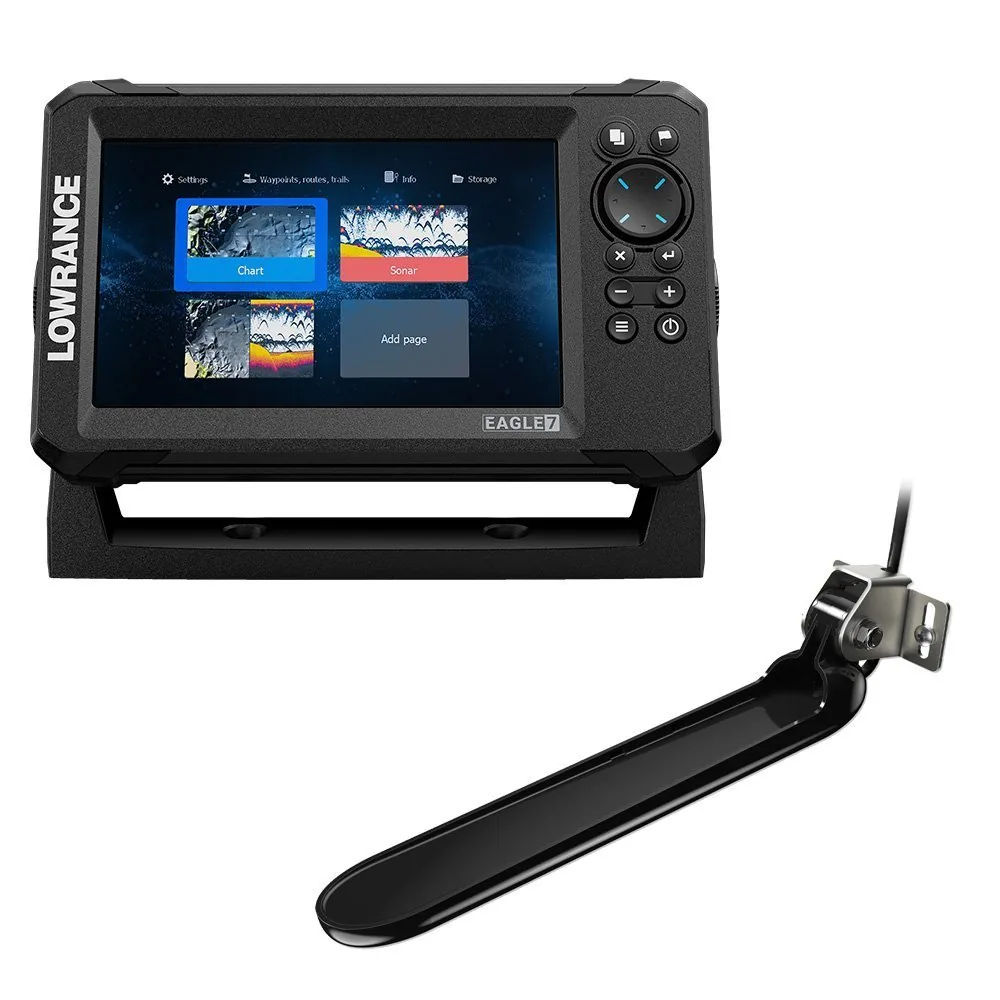

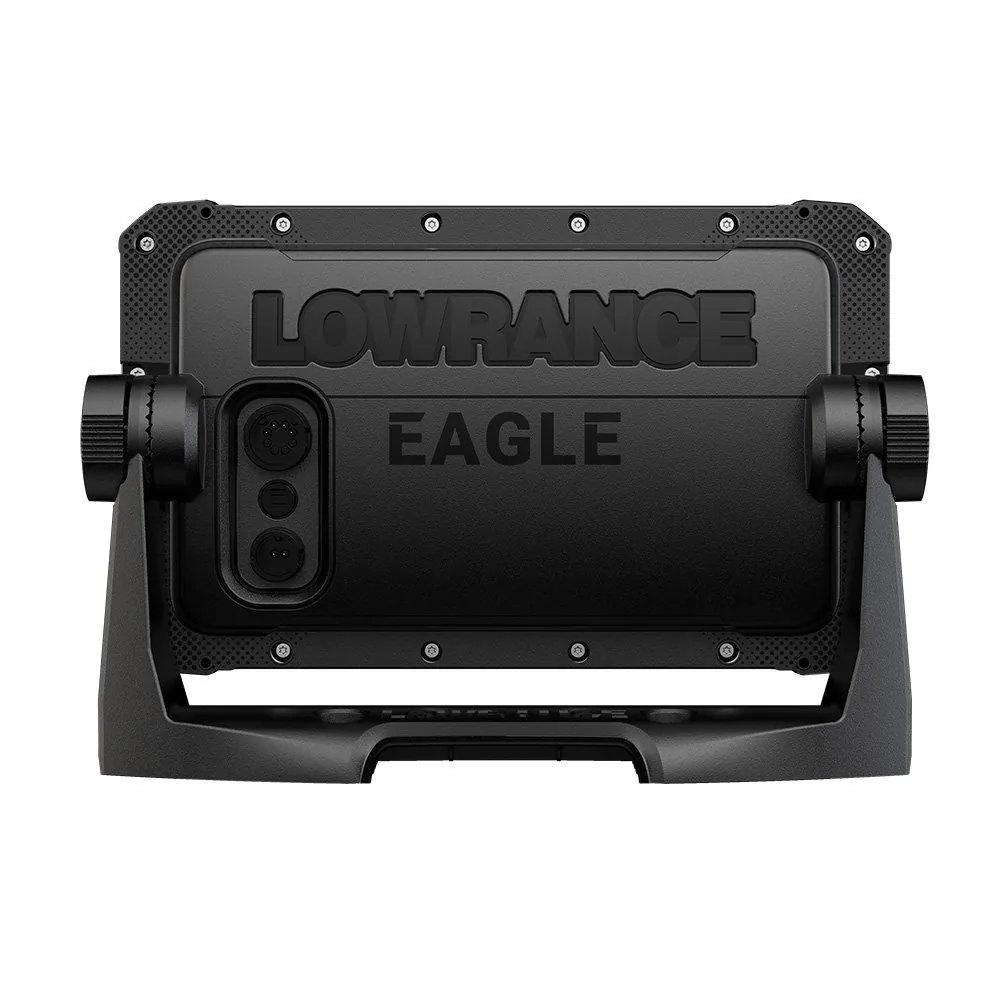

Lowrance Eagle 7 w/TripleShot Transducer & Discover OnBoard Chart

The Lowrance Eagle 7 TripleShot bundle combines a 7-inch IPS SolarMAX display with an included TripleShot HD transducer for wide-angle CHIRP, SideScan, and DownScan. C-MAP DISCOVER OnBoard US and Canada charts are included, and FishReveal helps identify fish targets with DownScan information. Its smaller screen and physical compactness suit freshwater boats, bay boats, and trailerable fishing craft.

Key Features

- 7-inch IPS SolarMAX display – Provides a compact but readable chart and sonar screen.
- 800 x 480 resolution – Displays essential mapping and sonar information while keeping installation simple.
- TripleShot HD transducer included – Provides wide-angle CHIRP, SideScan, and DownScan sonar.
- C-MAP DISCOVER OnBoard US and Canada charts – Provides preloaded regional chart coverage for supported waters.
- FishReveal technology – Helps present fish targets with DownScan structure information.

Who Is This For?

This model suits small center consoles, bass boats, aluminum fishing boats, bay boats, and trailerable craft that need SideScan and DownScan in a compact package. The included transducer makes it practical for a new installation.

It is not ideal for anglers who need live Forward and Down sonar or a larger 9-inch screen for split-screen work. The Eagle 9 provides more display area, while Eagle Eye models focus on live sonar.

Compatibility

Confirmed components include the TripleShot HD transducer, wide-angle CHIRP, SideScan, DownScan, C-MAP DISCOVER OnBoard US and Canada charts, and FishReveal technology. The supplied information does not identify NMEA 2000, NMEA 0183, radar, autopilot, WiFi, Bluetooth, or third-party transducer compatibility. No named incompatible system was provided; verify Lowrance accessory requirements before installation.

Technical Specifications

- Brand: Lowrance
- Model: Eagle 7, 000-16228-001
- Display: 7-inch IPS SolarMAX display
- Resolution: 800 x 480 pixels
- Sonar included: Wide-angle CHIRP, SideScan, DownScan
- Transducer: TripleShot HD included
- Preloaded charts: C-MAP DISCOVER OnBoard US and Canada
- Feature: FishReveal technology
- Warranty: 1-year limited warranty
- Origin: Made in Mexico

Warranty & Support

Lowrance provides a 1-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The Eagle 7 TripleShot is the compact alternative to the Eagle 9, offering the same type of wide-angle CHIRP, SideScan, DownScan, FishReveal, regional C-MAP charts, and included transducer in a smaller display. The trade-off is the 7-inch 800 x 480 screen, which provides less room for split-screen viewing. Choose it when console space matters more than display size.
