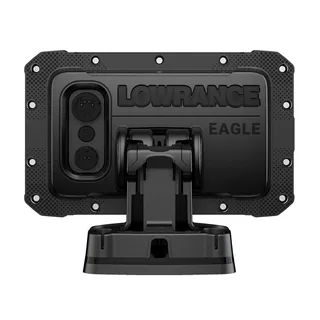

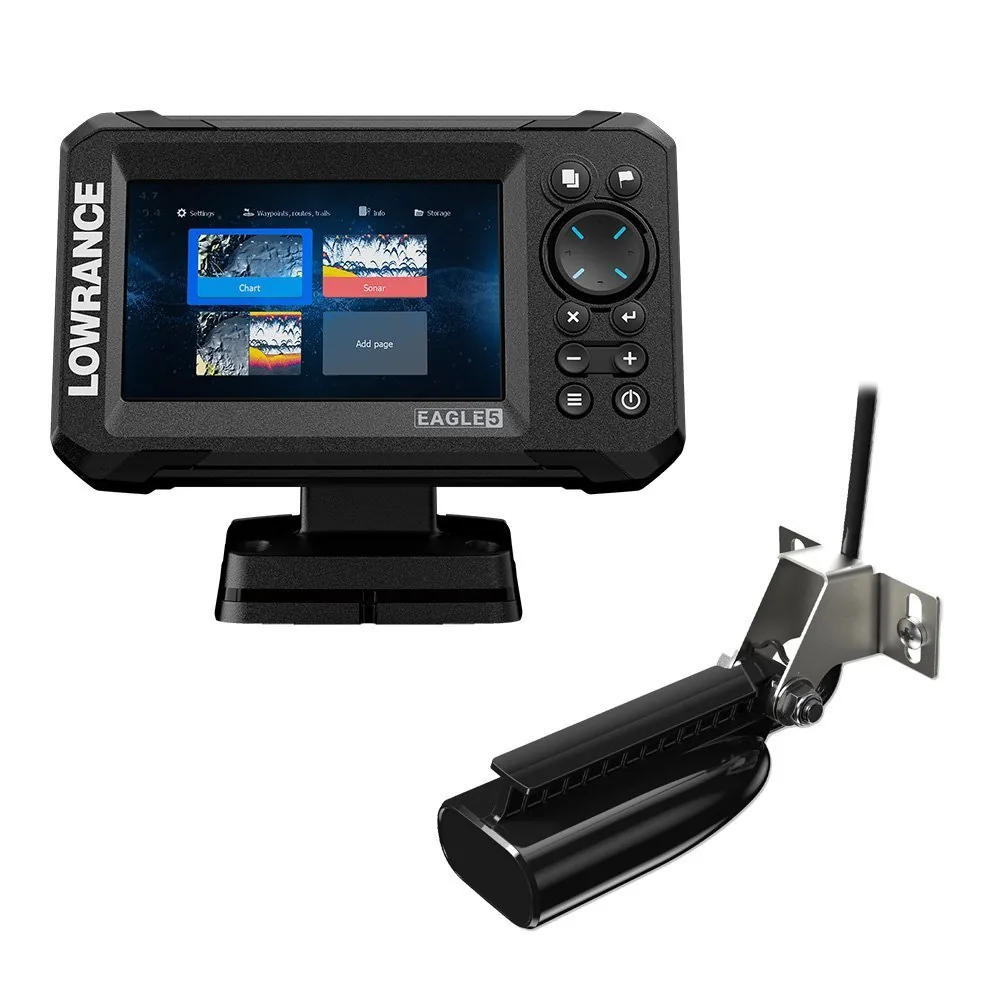

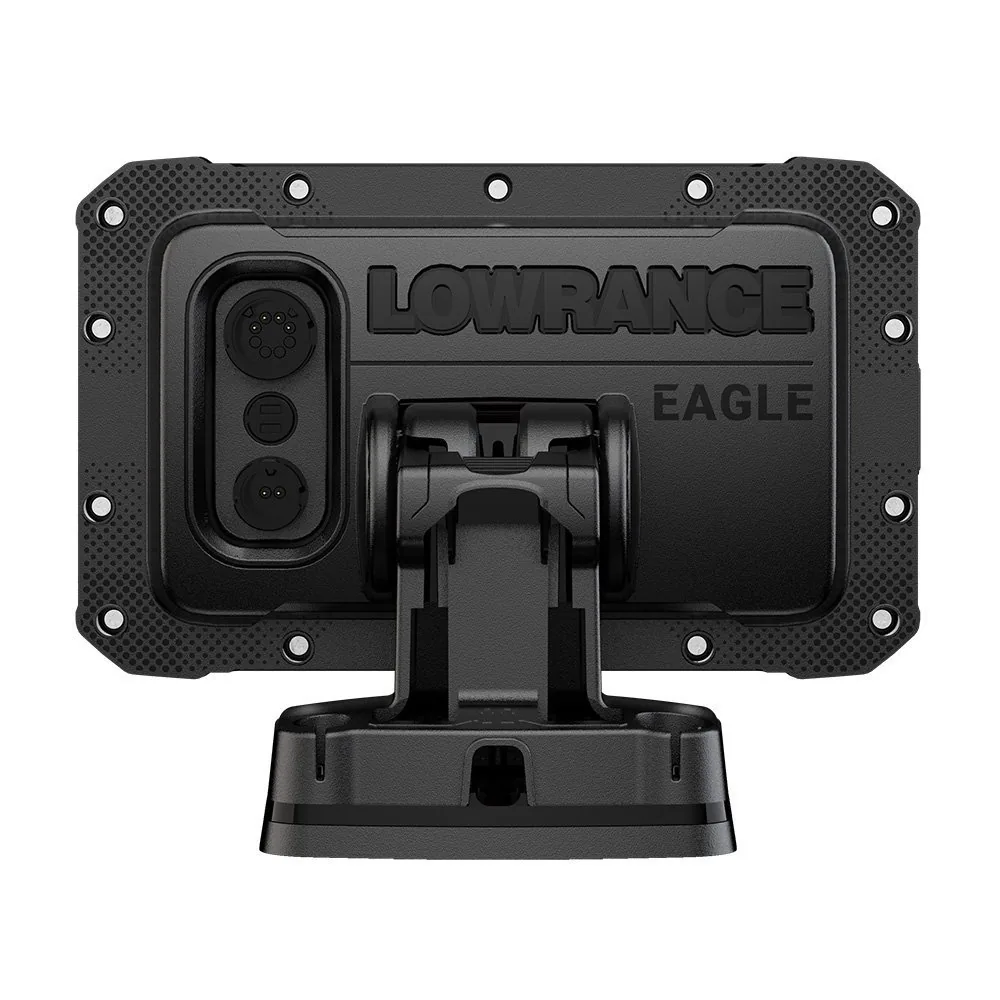

The Lowrance Eagle 5 Combo with SplitShot HD transducer is a compact freshwater chartplotter and fishfinder with a 5-inch IPS SolarMAX display, wide-angle CHIRP, DownScan Imaging, C-MAP US Inland coverage, and full autotuning sonar support. It is designed for anglers who need a small, complete package for lakes, small boats, and compact fishing setups.

Key Features

- 5-inch IPS SolarMAX display – Fits compact consoles and provides a dedicated chart and sonar screen.
- 800 x 480 resolution – Displays essential inland mapping and fishfinding information in a small housing.
- SplitShot HD transducer included – Provides wide-angle CHIRP and DownScan Imaging.
- C-MAP US Inland charts for 17,000+ lakes – Provides broad preloaded freshwater coverage.
- Full autotuning sonar support – Helps adjust sonar settings for changing depths and bottom conditions.

Who Is This For?

This model suits small freshwater fishing boats, kayaks with suitable mounting space, jon boats, and anglers who want the smallest complete Eagle package. The included SplitShot transducer makes installation straightforward.

It is not ideal for coastal navigation, large boats, or anglers who need SideScan. The 5-inch screen also provides less room for chart and sonar detail than the Eagle 7 and Eagle 9 models.

Compatibility

Confirmed components include the SplitShot HD transducer, wide-angle CHIRP, DownScan Imaging, C-MAP US Inland coverage for 17,000+ lakes, and full autotuning sonar support. The supplied information does not identify NMEA 2000, NMEA 0183, radar, autopilot, WiFi, Bluetooth, or third-party transducer compatibility. No named incompatible system was provided; treat this as a compact Lowrance freshwater package.

Technical Specifications

- Brand: Lowrance
- Model: Eagle 5, 000-16223-001
- Display: 5-inch IPS SolarMAX display
- Resolution: 800 x 480 pixels
- Sonar included: Wide-angle CHIRP, DownScan Imaging
- Transducer: SplitShot HD included
- Preloaded charts: C-MAP US Inland, 17,000+ lakes
- Autotuning: Full autotuning sonar support
- Warranty: 1-year limited warranty
- Origin: Made in Mexico

Warranty & Support

Lowrance provides a 1-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The Eagle 5 SplitShot is the smallest complete option in the Eagle range, with the transducer, inland charts, and autotuning included. It takes less space than the 7-inch and 9-inch models, but it gives up SideScan and the larger viewing area of TripleShot packages. Choose it for straightforward freshwater fishing on a compact boat.
