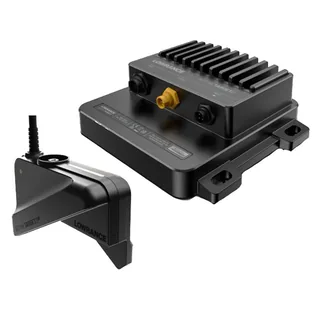

Lowrance ActiveTarget 2 XL Sonar Transducer Kit

The Lowrance ActiveTarget 2 XL is a live sonar transducer and module kit for anglers who want real-time views ahead, below, or in Scout mode. Its XL transducer array is designed for tournament bass boats, walleye rigs, and multi-species boats that need a longer tracking envelope than a basic live sonar setup. A compatible Lowrance display and Ethernet network are required to see the image.

The dynamic 550kHz-1.1MHz range supports the ActiveTarget 2 live views, with a stated range envelope up to 300 feet forward or down. The transducer mounts to a trolling-motor shaft or bow pole, so the mounting position affects what the angler can watch. Automatic software synchronization and stabilization help keep the live picture usable as the boat moves. The kit runs from 12-24V DC and draws 1.5A at 12V.

Key Features

- ActiveTarget 2 XL live sonar – Provides real-time Forward, Down, and Scout views.
- 550kHz to 1.1MHz dynamic frequency sweeps – Supports the listed live-sonar tracking range.
- Up to 300-foot Forward/Down range – Gives the angler more distance to scan for fish and structure.
- Trolling-motor shaft or bow-pole mounting – Lets the transducer position match the fishing technique.
- Automatic synchronization and stabilization – Helps maintain a usable live image during movement.

Who Is This For?

This ActiveTarget 2 XL sonar kit suits tournament bass boats, walleye boats, and high-performance freshwater fishing vessels. It is not ideal for buyers without a compatible Lowrance display and Ethernet network, or for anyone expecting a chartplotter or complete helm display in the box.

Compatibility

Confirmed compatibility includes Lowrance ActiveTarget 2 XL, a compatible multi-element live transducer, high-speed Ethernet, and mounting to a trolling-motor shaft or bow pole. The supplied information does not identify specific HDS or Elite display models, NMEA 2000, NMEA 0183, Garmin, Raymarine, or Simrad compatibility. No named incompatible system was provided; verify the display software and Ethernet requirements before installation.

Technical Specifications

- Brand: Lowrance
- Model: ActiveTarget 2 XL, 000-16140-001
- Device type: Live-streaming sonar transducer and module bundle
- Views: Forward, Down, and Scout
- Frequency: Dynamic 550kHz to 1.1MHz
- Range: Up to 91m / 300ft Forward/Down envelope
- Mounting: Trolling-motor shaft or bow pole
- Cable: 15 feet / 4.5m array cord
- Voltage: 12-24V DC
- Power draw: 1.5A at 12V

Warranty & Support

Lowrance provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The ActiveTarget 2 XL is the long-range live sonar choice for anglers already committed to Lowrance networking. Its trade-off is system dependence: without a compatible display, Ethernet path, and properly positioned bow or trolling-motor mount, the expensive transducer cannot be used. Choose it for real-time fish tracking, not as a standalone fishfinder.
