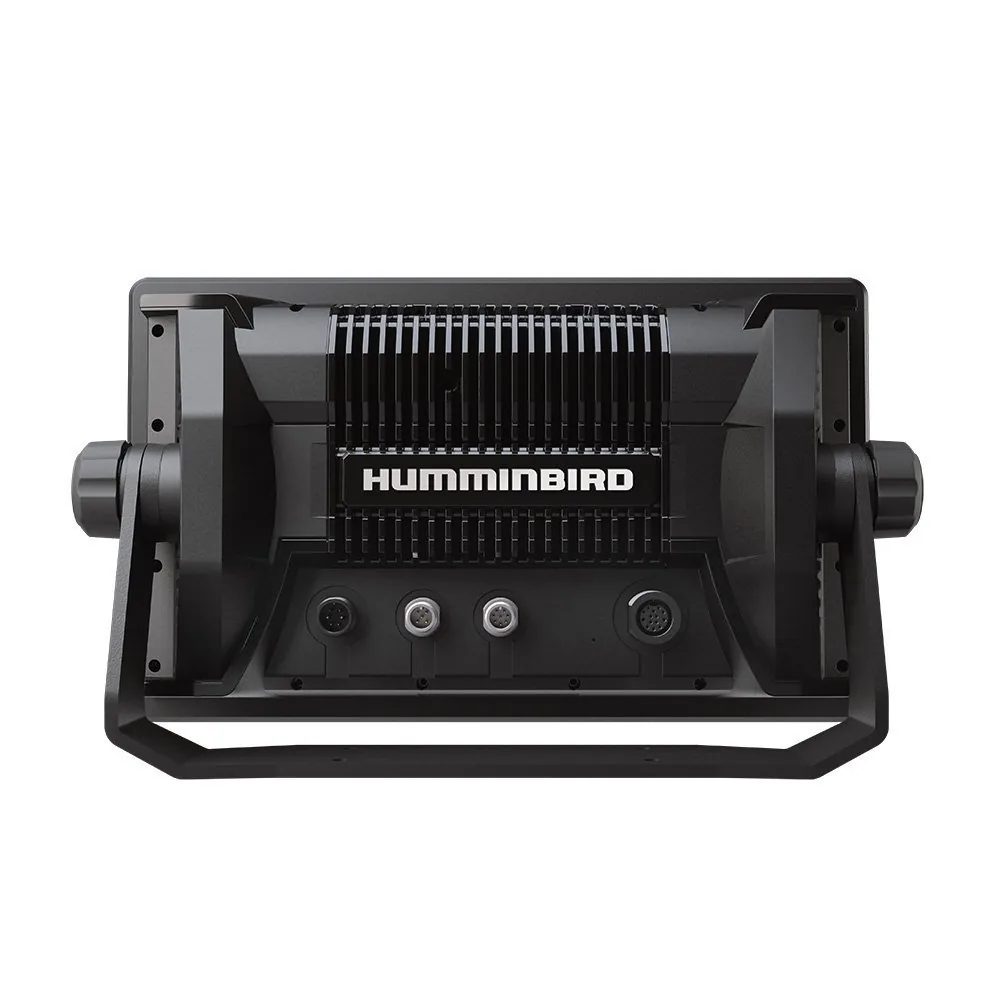

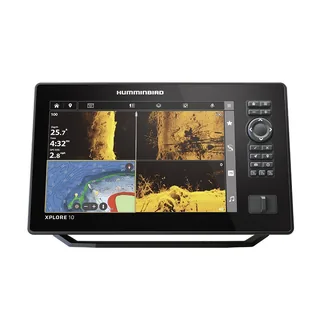

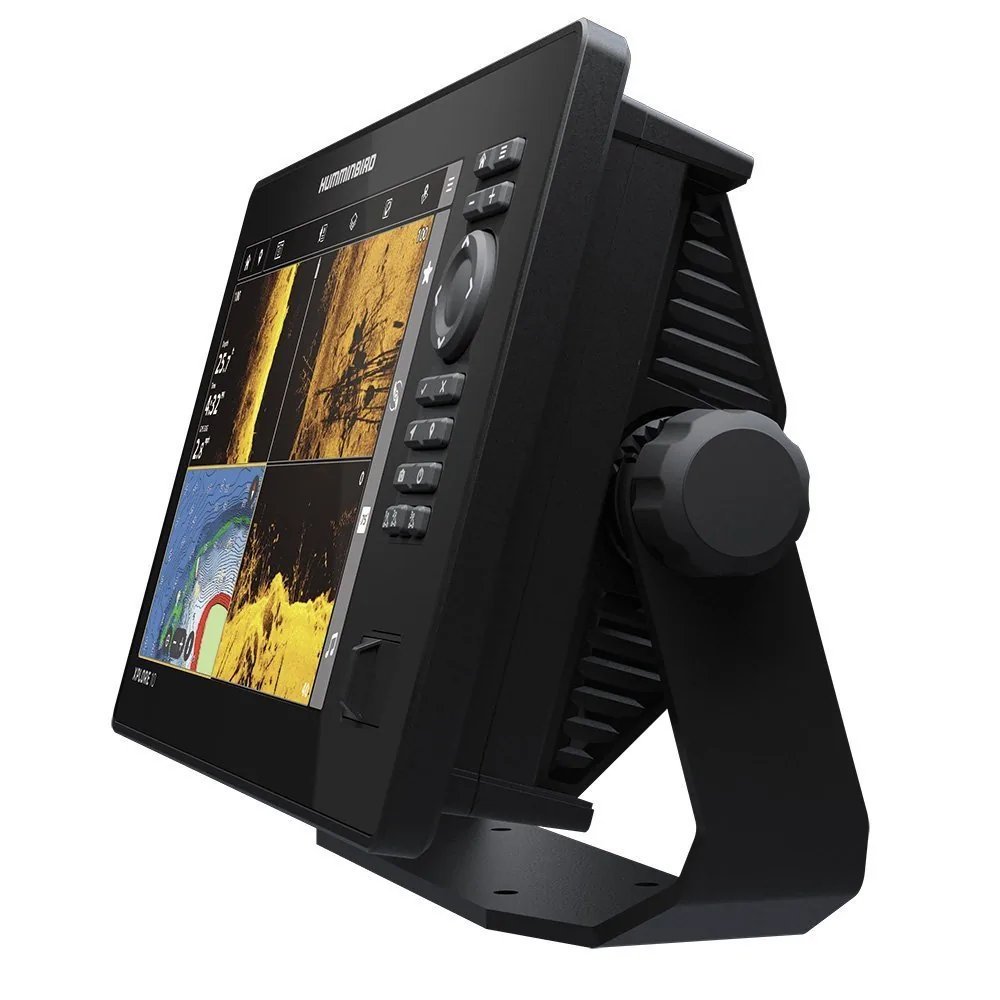

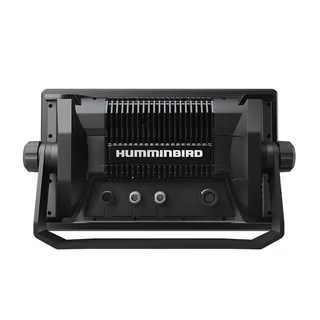

The Humminbird XPLORE 10 CHO is a 10.1-inch HD TFT control head with 1280 x 800 resolution, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP, internal dual-band GPS, and One-Boat Network support. No transducer is included, so it suits an existing Humminbird installation or a custom sonar build where the transducer will be selected separately.

Key Features

- 10.1-inch HD TFT touchscreen – Provides a clear chart and sonar workspace in a mid-size display.
- 1280 x 800 resolution – Shows useful detail across mapping and MEGA imaging views.
- MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP – Supports side, downward, and conventional sonar with suitable hardware.
- Internal dual-band GPS – Provides the listed dual-band positioning capability for mapping and navigation.
- NMEA 2000, Ethernet, WiFi, Bluetooth, and One-Boat Network – Provides broad connection options for a Humminbird system.

Who Is This For?

This model suits Humminbird owners replacing a display, anglers building a custom sonar installation, and fishing boats that already have a compatible transducer. Its 10.1-inch screen provides more room than smaller HELIX units without the size of an XPLORE 12.

It is not ideal for a first-time buyer who wants a complete fishfinder package because the transducer is not included. The bundled XPLORE 10 CMSI+ is the simpler choice when MEGA imaging hardware is needed immediately.

Compatibility

Confirmed features include MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP, internal dual-band GPS, NMEA 2000, Ethernet, WiFi, Bluetooth, and One-Boat Network support. The supplied information does not identify a specific compatible transducer, NMEA 0183, radar, autopilot, or third-party chartplotter system. No named incompatible system was provided; verify Humminbird sonar and network requirements before installation.

Technical Specifications

- Brand: Humminbird
- Model: XPLORE 10 CHO, 412010-1CHO
- Display: 10.1-inch HD TFT touchscreen
- Resolution: 1280 x 800 pixels
- Sonar support: MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP
- Transducer: Not included
- Networking: NMEA 2000, Ethernet, WiFi, Bluetooth, One-Boat Network
- GPS: Internal dual-band GPS
- Warranty: 2-year limited warranty
- Origin: Designed and made in the USA

Warranty & Support

Humminbird provides a 2-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The XPLORE 10 CHO is the flexible display-only alternative to the bundled XPLORE 10 CMSI+, retaining the 10.1-inch screen, dual-band GPS, MEGA imaging capability, and One-Boat Network support. It is useful when a transducer is already installed or will be chosen for a particular hull, but it is not ready for sonar use without that hardware. Choose the bundle for a complete MEGA imaging setup.
