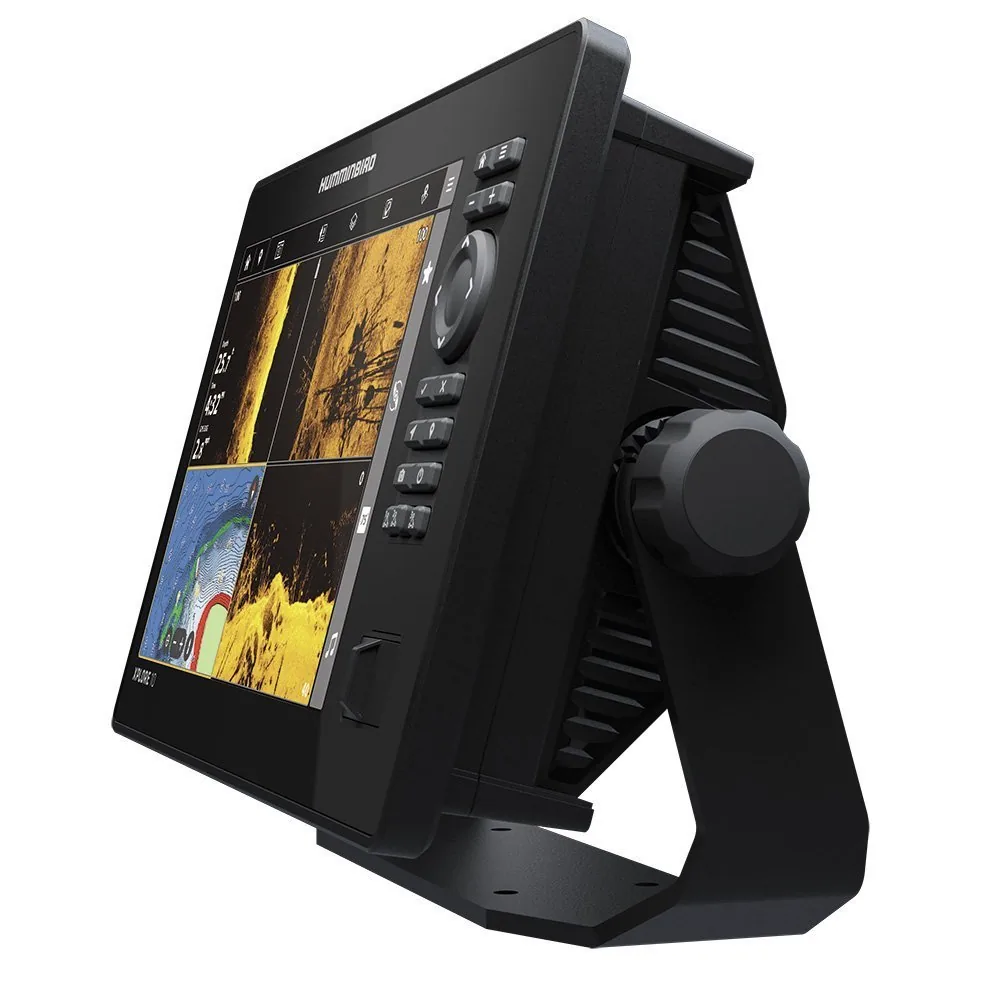

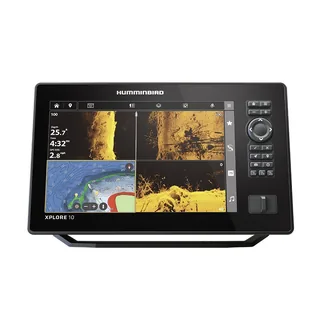

The Humminbird XPLORE 10 CMSI+ combines a 10-inch HD TFT touchscreen with 1280 x 800 resolution, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP, and an included XM 14 HW CMSI T transducer. Internal Precision GPS and One-Boat Network readiness support mapping and system expansion, making this a compact MEGA imaging fishfinder for freshwater and coastal fishing boats.

Key Features

- 10-inch HD TFT touchscreen – Provides a useful chart and sonar workspace without requiring a 12-inch helm installation.
- 1280 x 800 resolution – Shows detailed mapping and sonar information across the display.
- MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP – Provides side, downward, and conventional fishfinding views.
- XM 14 HW CMSI T transducer included – Supplies the hardware required for the listed imaging sonar.
- Internal Precision GPS and One-Boat Network readiness – Supports mapping and compatible Humminbird system expansion.

Who Is This For?

This unit suits bass boats, freshwater fishing boats, bay boats, and mid-size center consoles that need broad sonar views in a 10-inch display. The included transducer makes it suitable for a new installation.

It is not ideal for a compact console where a 10-inch display would crowd other instruments, or for buyers who already own a compatible transducer. The XPLORE 12 provides more room for split-screen fishing data.

Compatibility

Confirmed components include the XM 14 HW CMSI T transducer, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP, internal Precision GPS, and One-Boat Network readiness. The supplied information does not identify NMEA 0183, radar, autopilot, WiFi, Bluetooth, or specific third-party accessory compatibility. No named incompatible system was provided; verify Humminbird network and transducer requirements before installation.

Technical Specifications

- Brand: Humminbird
- Model: XPLORE 10 CMSI+, 412010-1
- Display: 10-inch HD TFT touchscreen
- Resolution: 1280 x 800 pixels
- Built-in sonar: MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP
- Transducer: XM 14 HW CMSI T transom mount included
- Networking: One-Boat Network integration ready
- GPS: Internal Precision GPS
- Warranty: 2-year limited warranty
- Origin: Designed and made in the USA

Warranty & Support

Humminbird provides a 2-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The XPLORE 10 CMSI+ is the mid-size bundled alternative to the XPLORE 12, offering the same MEGA Side Imaging+, Down Imaging+, Dual Spectrum CHIRP, and included XM 14 transducer in a smaller display. It is easier to fit while retaining a 1280 x 800 screen. The trade-off is less physical room for multiple chart and sonar panels than the 12-inch model.
