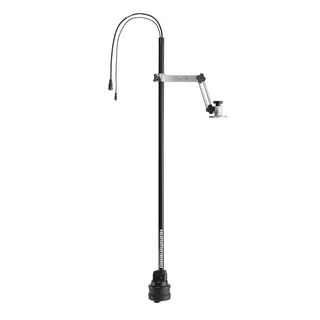

The Humminbird MEGA 360 Universal adds a rotating underwater view around the boat, showing structure, cover, and fish without steering the hull over the target. It is designed for anglers using compatible HELIX G3N/G4N, SOLIX, or APEX units with MEGA+ support. The universal bracket can be arranged for a pontoon, transom, or deck, making this a flexible 360 sonar upgrade.

MEGA Imaging+ runs at 1.2MHz and scans up to 125 feet in every direction, so the useful range is best in clearer, shallower fishing water rather than deep offshore work. Six selectable rotation speeds let the operator balance coverage and refresh rate. The adjustable aluminum bracket is the important installation detail: it gives you mounting options, but the transducer still needs to sit clear of the hull and prop wash for a clean picture.

Key Features

- 360-degree MEGA Imaging+ at 1.2MHz – Shows underwater structure around the boat rather than only beneath the transducer.
- 125-foot range in all directions – Covers the stated scanning distance around the boat.
- Six selectable rotation speeds – Lets the angler choose between faster refresh and slower detailed scanning.

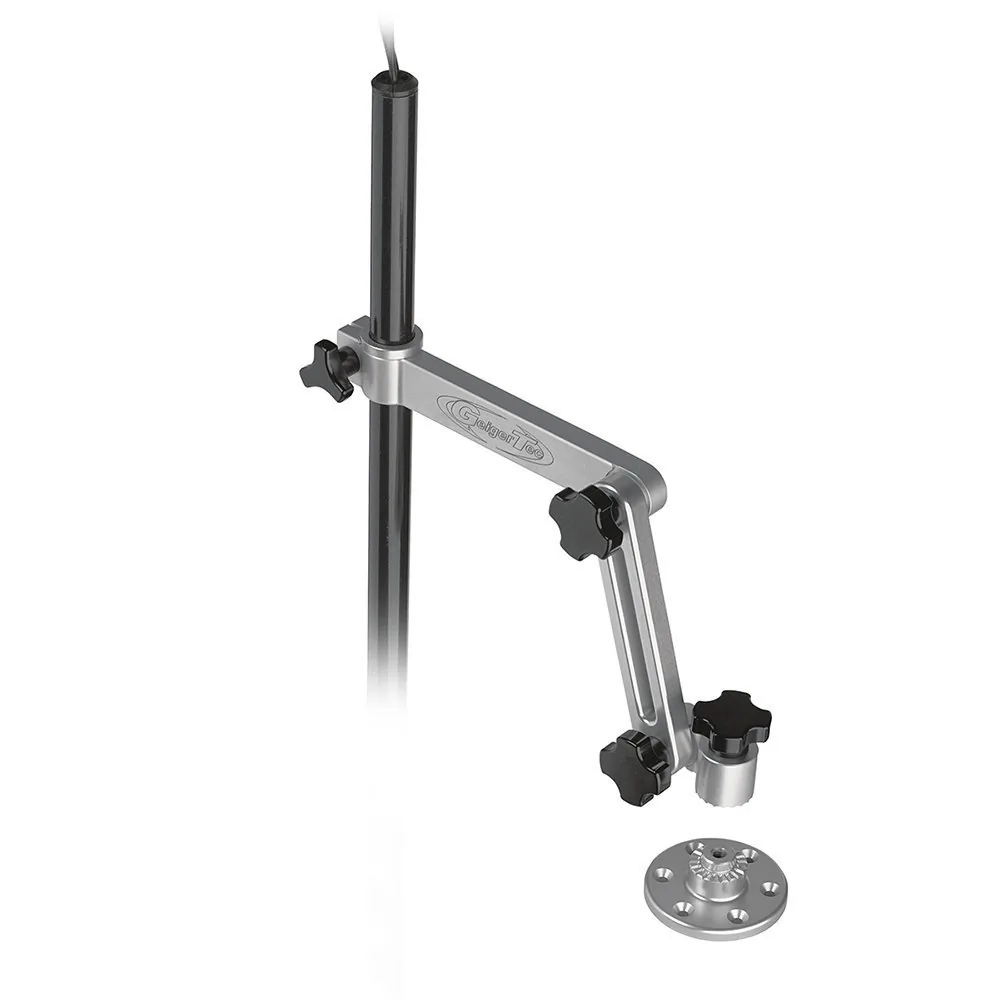

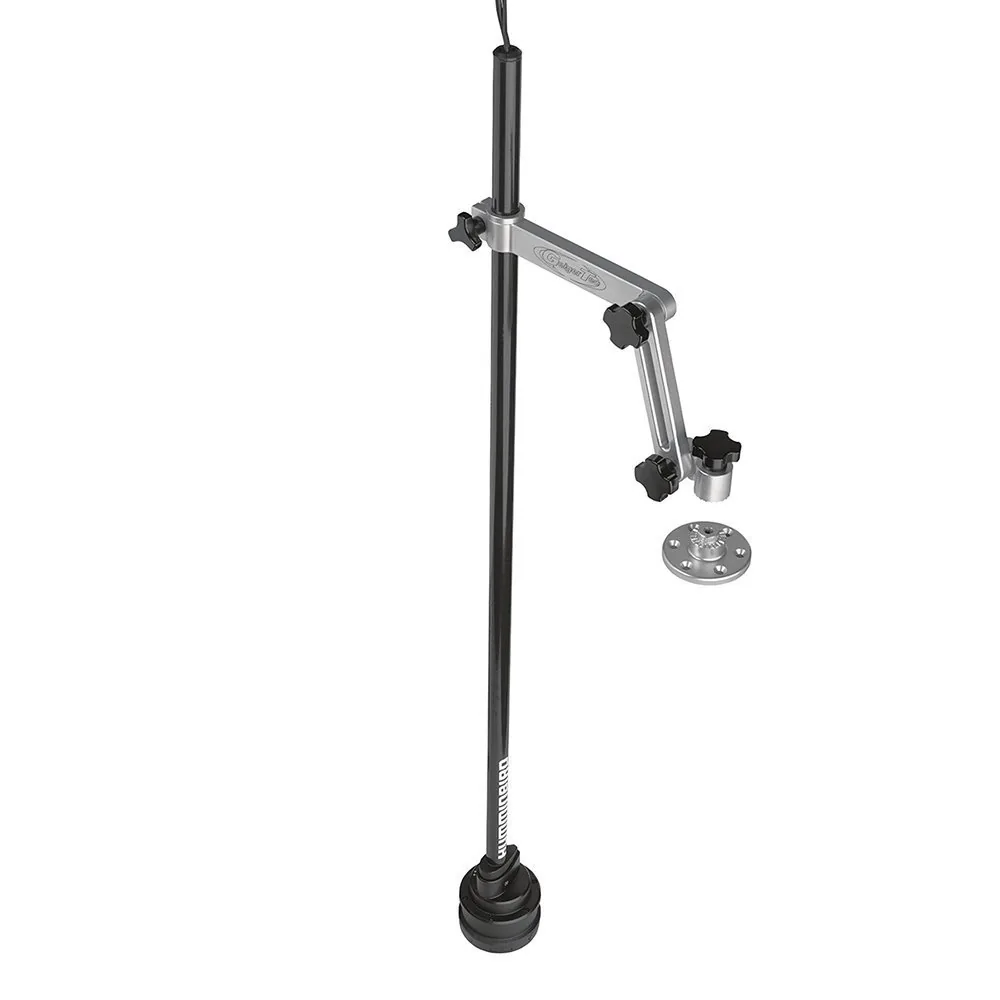

- Adjustable universal aluminum bracket – Supports pontoon, transom, or deck mounting arrangements.
- HELIX G3N/G4N, SOLIX, and APEX compatibility – Works with compatible Humminbird displays that support MEGA+ imaging.

Who Is This For?

This MEGA 360 sonar suits bass boats, pontoons, freshwater fishing boats, and anglers who search for structure before casting. It is not ideal for a boat without a compatible Humminbird MEGA+ display or for buyers expecting a guaranteed 125-foot view in every water condition.

Compatibility

Confirmed compatibility includes Humminbird HELIX G3N/G4N, SOLIX, and APEX units with MEGA+ support. The supplied information does not identify Garmin, Raymarine, Simrad, NMEA 2000, NMEA 0183, radar, or third-party display compatibility. No named incompatible system was provided; verify the display model, power, cable, and bracket position before installation.

Technical Specifications

- Brand: Humminbird
- Model: MEGA 360 Imaging Universal, 411260-1
- Imaging type: 360-degree high-frequency scanning
- Frequency: MEGA Imaging+ at 1.2MHz
- Range: 125 feet in all directions
- Mounting: Adjustable aluminum universal bracket
- Mounting options: Pontoon, transom, or deck
- Rotation: Six selectable speeds
- Compatible displays: HELIX G3N/G4N, SOLIX, APEX with MEGA+
- Warranty: 1-year limited warranty

Warranty & Support

Humminbird provides a 1-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The Universal MEGA 360 is the easier installation choice than the no-mount version because the adjustable bracket is included. The trade-off is that bracket position still matters; a poor location can put the transducer in turbulence or limit its scanning area. Choose it when your Humminbird display supports MEGA+ and you want a practical 360 structure-scanning upgrade.
