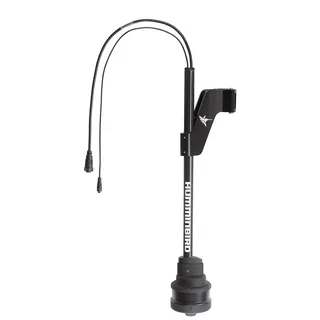

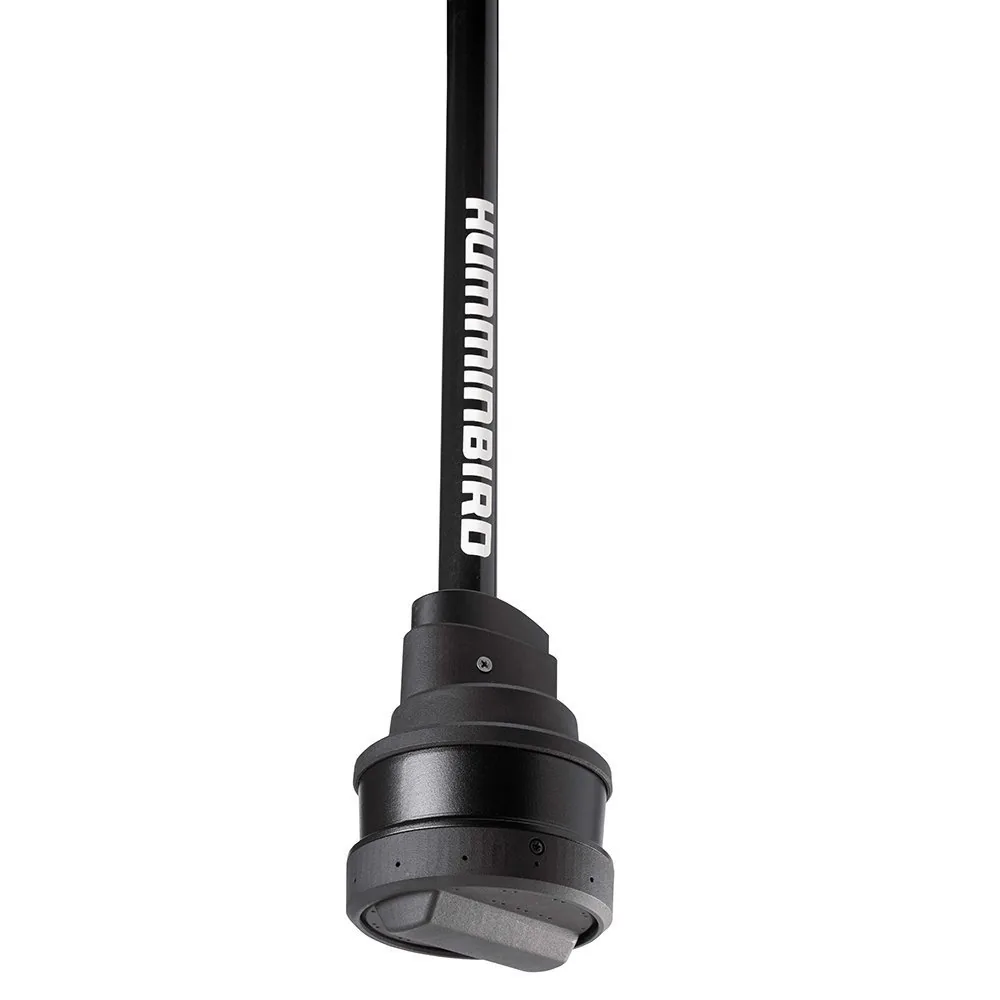

The Humminbird MEGA 360 Imaging Fortrex Transducer Kit gives a compatible Minn Kota Fortrex boat a rotating underwater view around the bow. Instead of scanning only beneath the transducer, it shows structure, cover, and fish in a 360-degree sweep while you work a spot. This is a sonar pod and mounting kit for freshwater tournament bass boats, not a display or standalone fishfinder.

MEGA Imaging+ operates in the 1.15-1.25MHz range and scans out to 125 feet in every direction. That range is most useful for locating nearby structure before a cast, especially in clear or moderately shallow water. The Fortrex bow-mount bracket integrates with the shaft, while the 10-foot transducer cable and 10-foot power lead simplify the run. A compatible Humminbird MEGA+ display, seven-pin adapter or network switch is still required.

Key Features

- MEGA 360 Imaging – Provides continuous rotating sonar coverage around the bow.
- 1.15-1.25MHz MEGA Imaging+ spectrum – Supports high-frequency structure scanning.
- 125-foot radial coverage – Shows the stated scanning distance in every direction.

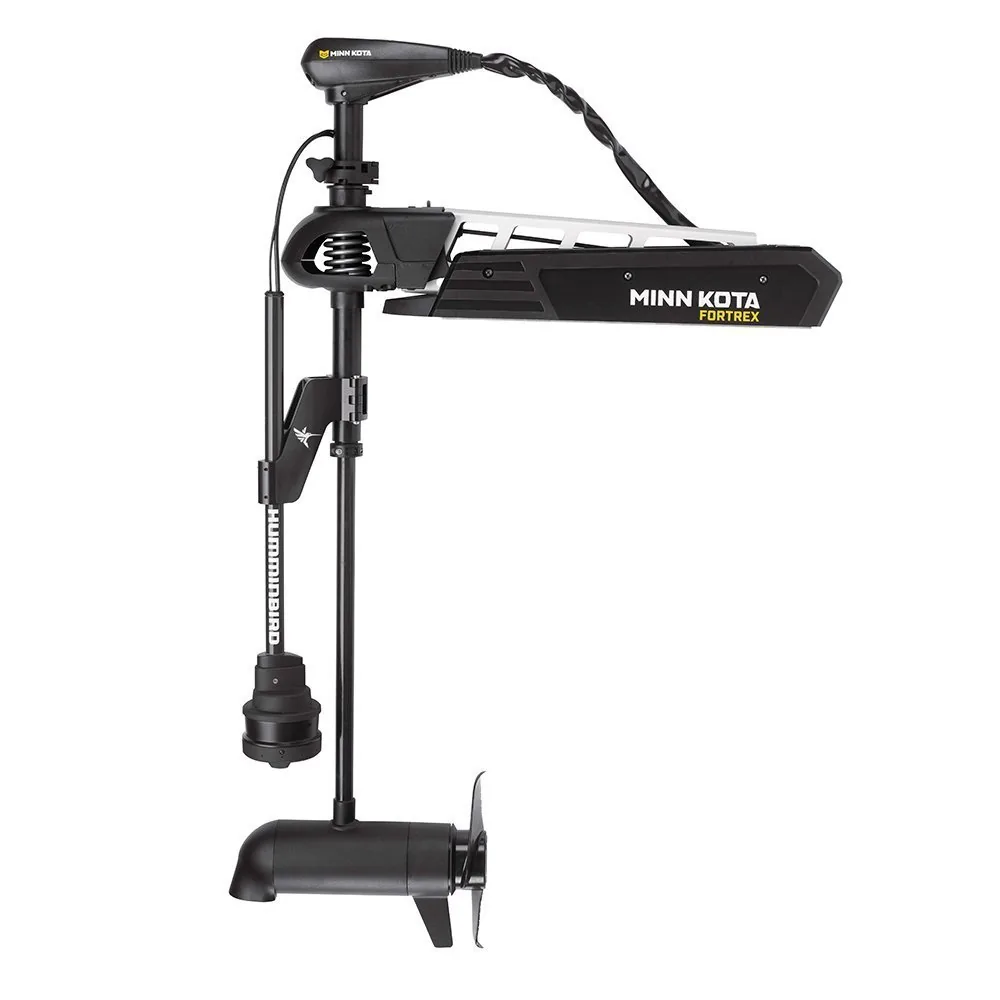

- Fortrex bow-mount bracket – Integrates the pod with a Minn Kota Fortrex shaft.
- 500W RMS output and 10-foot cables – Provides the listed sonar output and installation reach.

Who Is This For?

This Humminbird MEGA 360 Fortrex kit suits tournament bass boats and freshwater multi-species boats using a Minn Kota Fortrex motor. It is not ideal for boats without a compatible MEGA+ display or for buyers expecting a complete fishfinder; the display, adapter or network switch, and system connection are separate.

Compatibility

Confirmed compatibility includes Humminbird HELIX G3N/G4N, SOLIX, and APEX units with MEGA+ support, plus Minn Kota Fortrex bow-mount shaft integration. The supplied information does not identify Garmin, Raymarine, Simrad, NMEA 2000, or third-party trolling-motor compatibility. No named incompatible system was provided; verify the seven-pin adapter and network requirements before installation.

Technical Specifications

- Brand: Humminbird
- Model: MEGA 360 Imaging Fortrex, 411250-1
- Device type: 360-degree scanning sonar pod and mounting kit
- Sonar output: 500W RMS; 4000W peak-to-peak equivalent
- Frequency: MEGA Imaging+ 1.15-1.25MHz
- Range: 125 feet radial scanning coverage
- Mounting: Minn Kota Fortrex bow-mount bracket

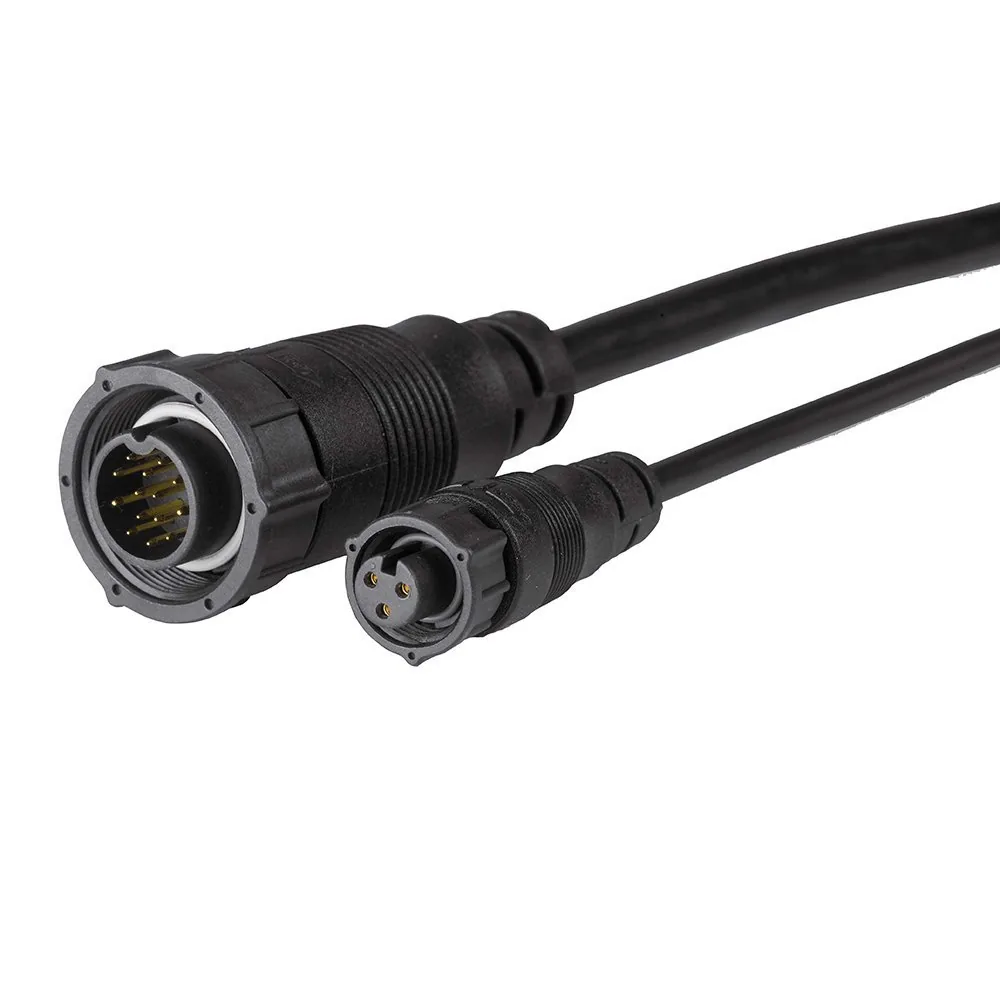

- Cables: 10-foot transducer and 10-foot power leads
- Voltage: 10-18V DC; 0.5A at 12V
- Warranty: 1-year limited warranty

Warranty & Support

Humminbird provides a 1-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The MEGA 360 Fortrex kit is the right choice when the boat already uses a Fortrex motor and a compatible Humminbird display. Its main advantage is seeing structure before positioning the boat over it. The trade-off is that the kit is not a complete electronics package, so confirm the display, adapter, cabling, and network path before planning the installation.
