Humminbird ICE HELIX 5 CHIRP GPS G3 – Sonar/GPS Combo

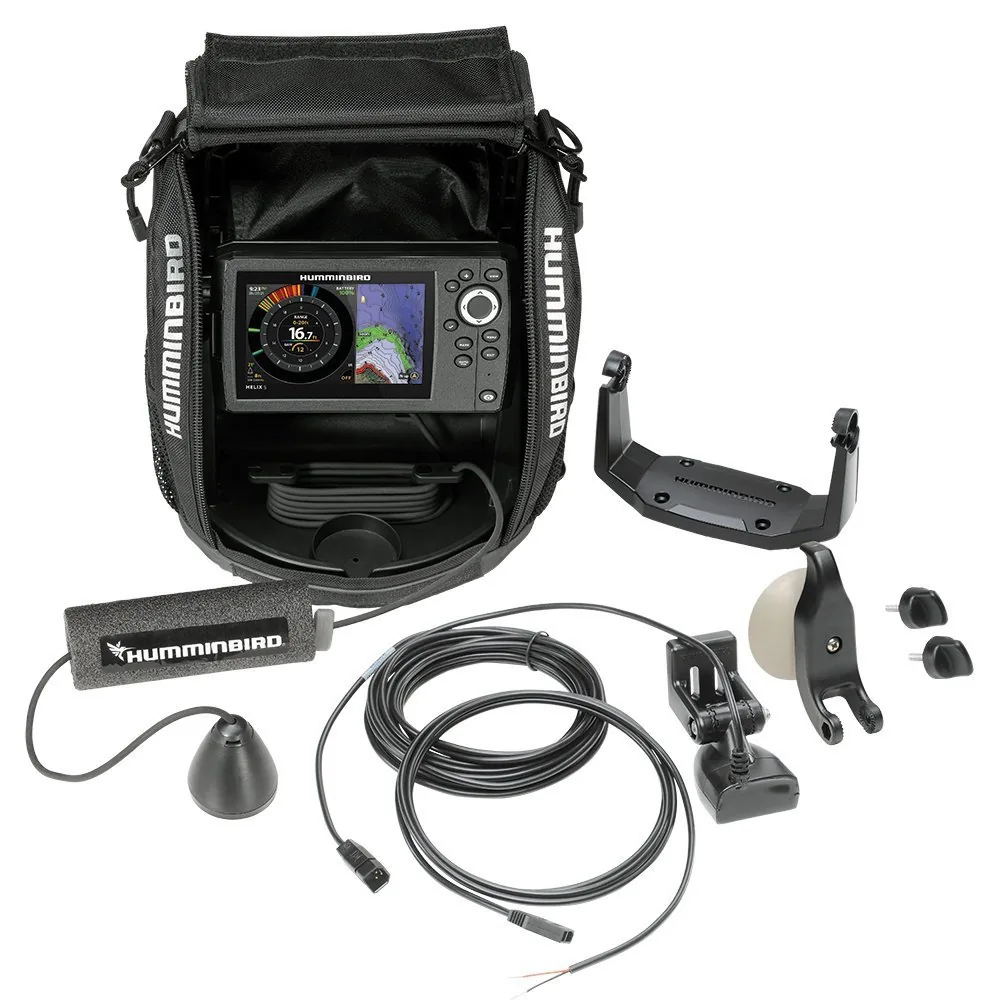

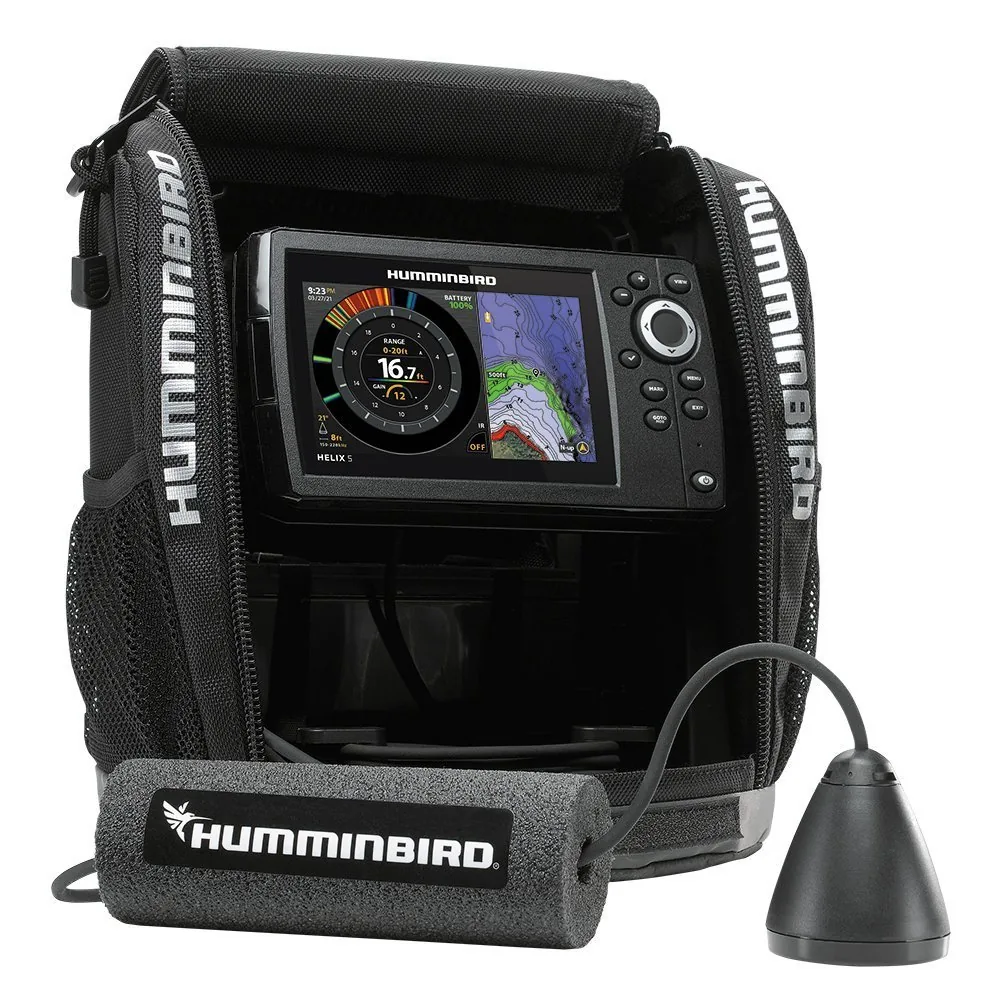

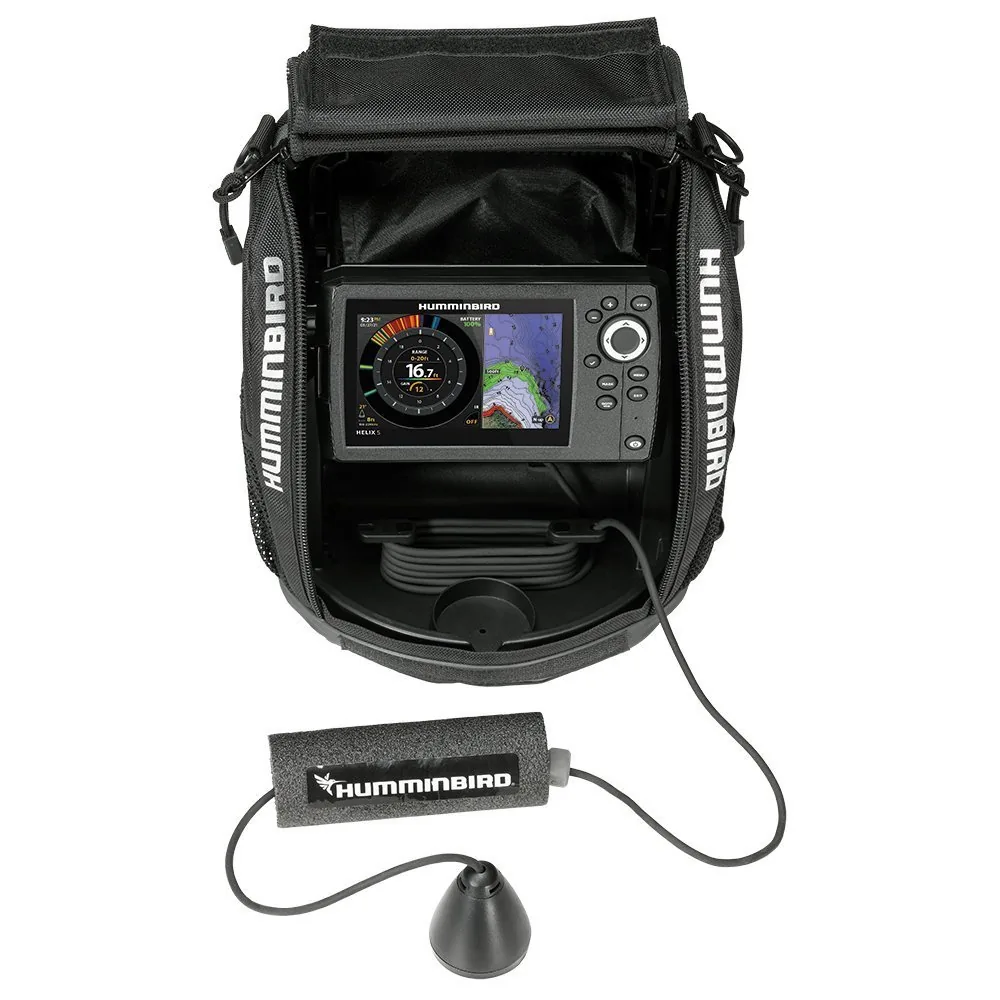

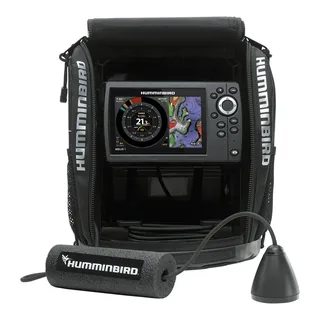

The Humminbird ICE HELIX 5 CHIRP GPS G3 is a portable ice fishing sonar and GPS combo with a 5-inch color display, included XI 9 1521 ice transducer, Humminbird Basemap, AutoChart Live ICE, and Flasher View. It is built for anglers fishing vertically through the ice, where watching lure position and bottom return on a compact screen matters more than a large chartplotter.

The 800 x 480 display keeps the portable unit easy to carry, while Dual Spectrum CHIRP provides the sonar detail used for fish and jig tracking. Built-in GPS supports mapping and location work, and the XI 9 1521 is supplied for ice use. This is not a coastal chartplotter or permanent boat MFD; its strength is portable freshwater ice fishing and a simple sonar setup that can move between holes.

Key Features

- 5-inch color TFT LCD – Keeps the portable ice-fishing package compact and easy to carry.
- 800 x 480 resolution – Shows essential flasher and sonar information.
- Dual Spectrum CHIRP – Provides detailed conventional sonar for vertical ice fishing.
- XI 9 1521 ice transducer included – Supplies the sensor required for the ice-fishing sonar.
- AutoChart Live ICE and Flasher View – Adds mapping and dedicated ice-fishing display options.

Who Is This For?

This portable ice fishing sonar suits ice anglers, small utility boats, and freshwater fishermen who need GPS and sonar in one compact unit. It is not ideal for offshore navigation, a permanent networked helm, or buyers who need Side Imaging or Down Imaging.

Compatibility

Confirmed components include the XI 9 1521 ice transducer, built-in GPS, Humminbird Basemap, AutoChart Live ICE, and Flasher View. The supplied information does not identify NMEA 2000, NMEA 0183, radar, autopilot, WiFi, Bluetooth, or third-party transducer compatibility. No named incompatible system was provided; treat this as a portable Humminbird ice-fishing system.

Technical Specifications

- Brand: Humminbird
- Model: ICE HELIX 5 CHIRP GPS G3, 411520-1
- Display: 5-inch color TFT LCD
- Resolution: 800 x 480 pixels
- Built-in sonar: Dual Spectrum CHIRP
- Transducer: XI 9 1521 ice transducer included
- Charts: Humminbird Basemap
- Features: Built-in GPS, AutoChart Live ICE, Flasher View
- Water rating: Not stated in the supplied specifications
- Warranty: 1-year limited warranty

Warranty & Support

Humminbird provides a 1-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The ICE HELIX 5 G3 is the compact ice-fishing choice for anglers who want the display, GPS, and ice transducer together. Its trade-off is clear: the 5-inch screen and ice-specific setup are not intended to replace a larger boat fishfinder. Choose it for portable freshwater sonar and Flasher View, not for a permanent coastal installation.
