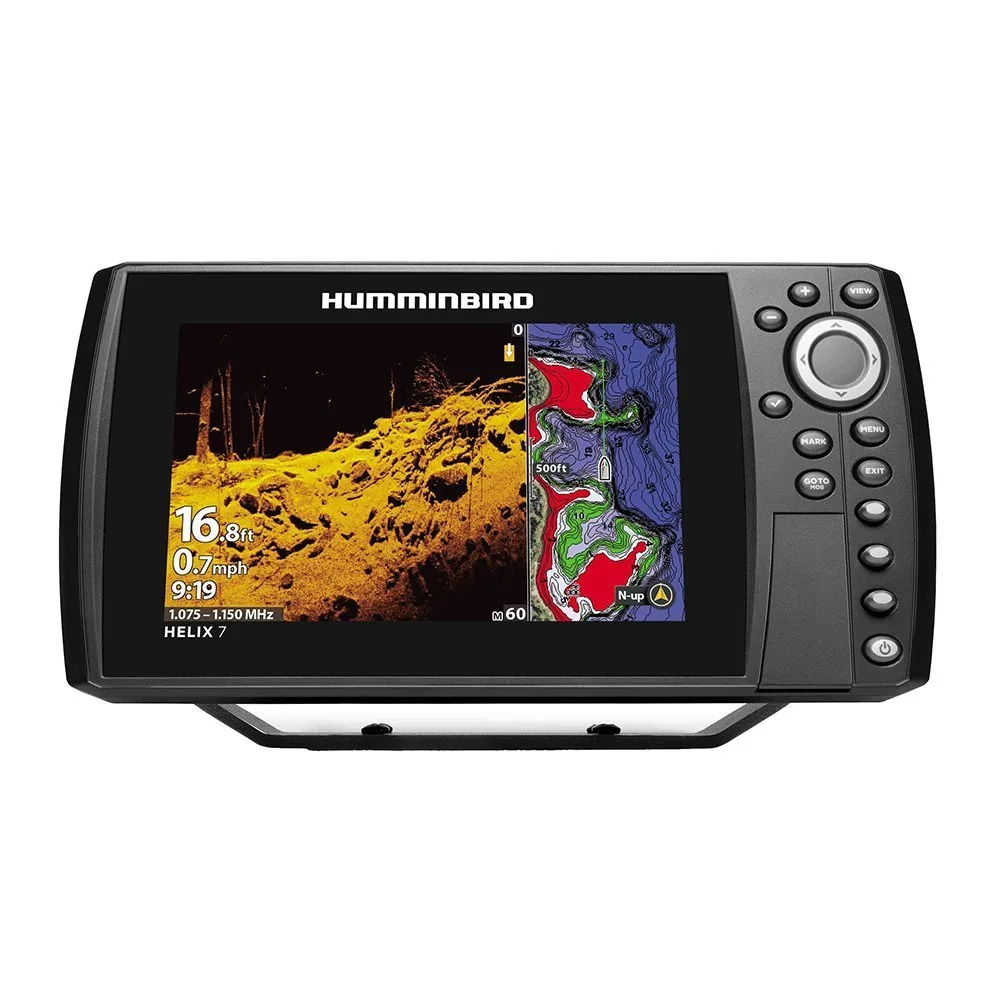

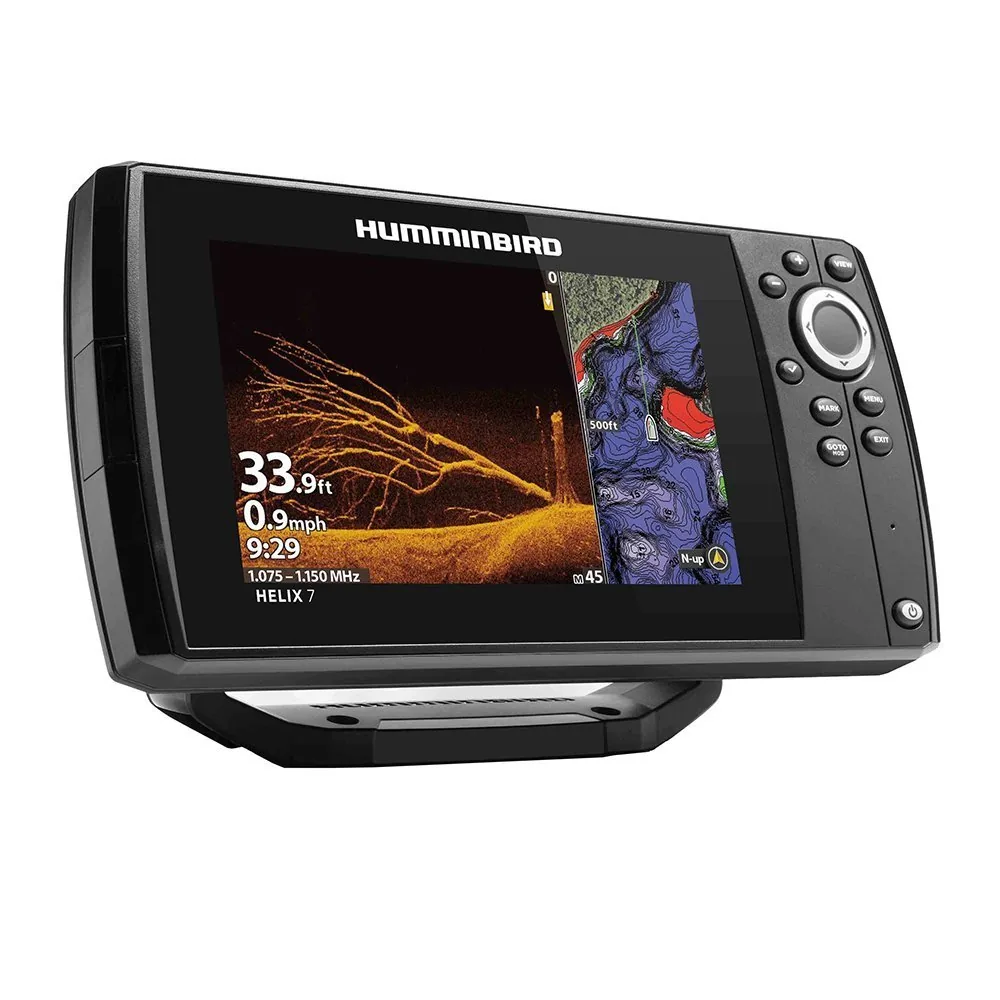

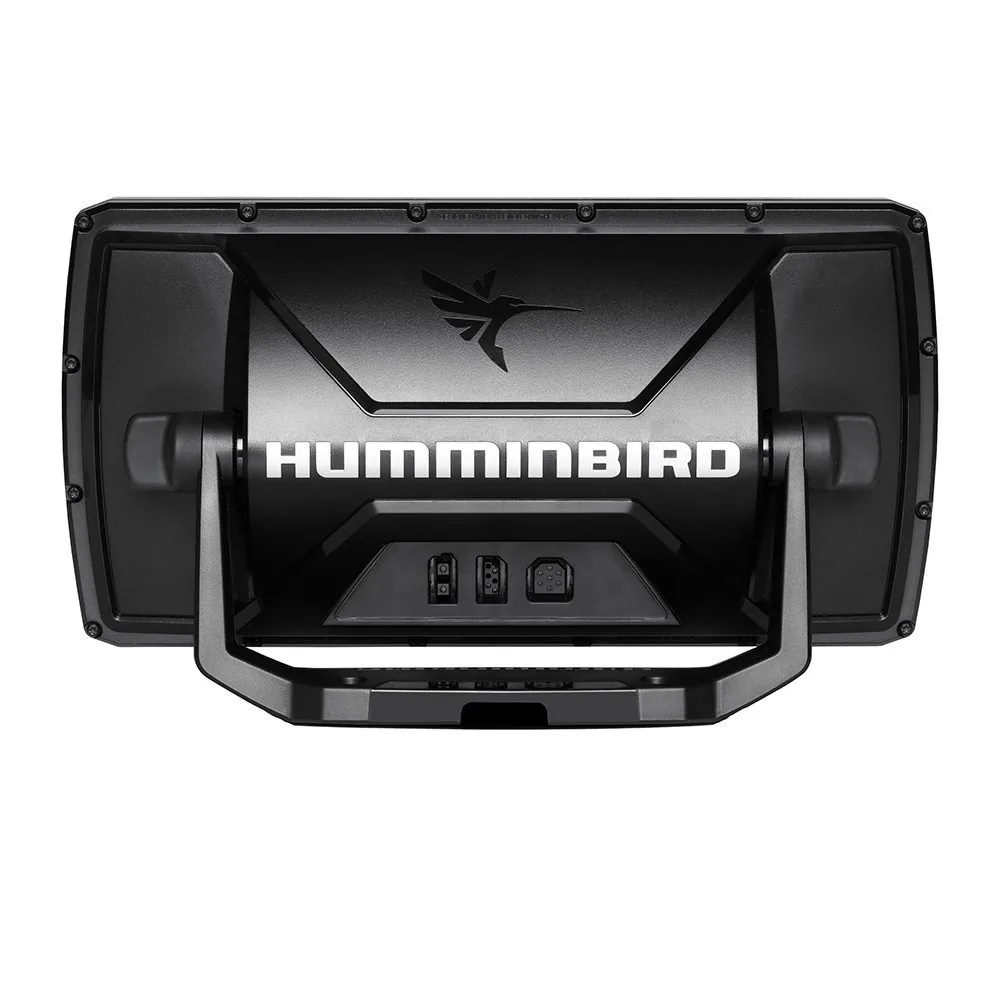

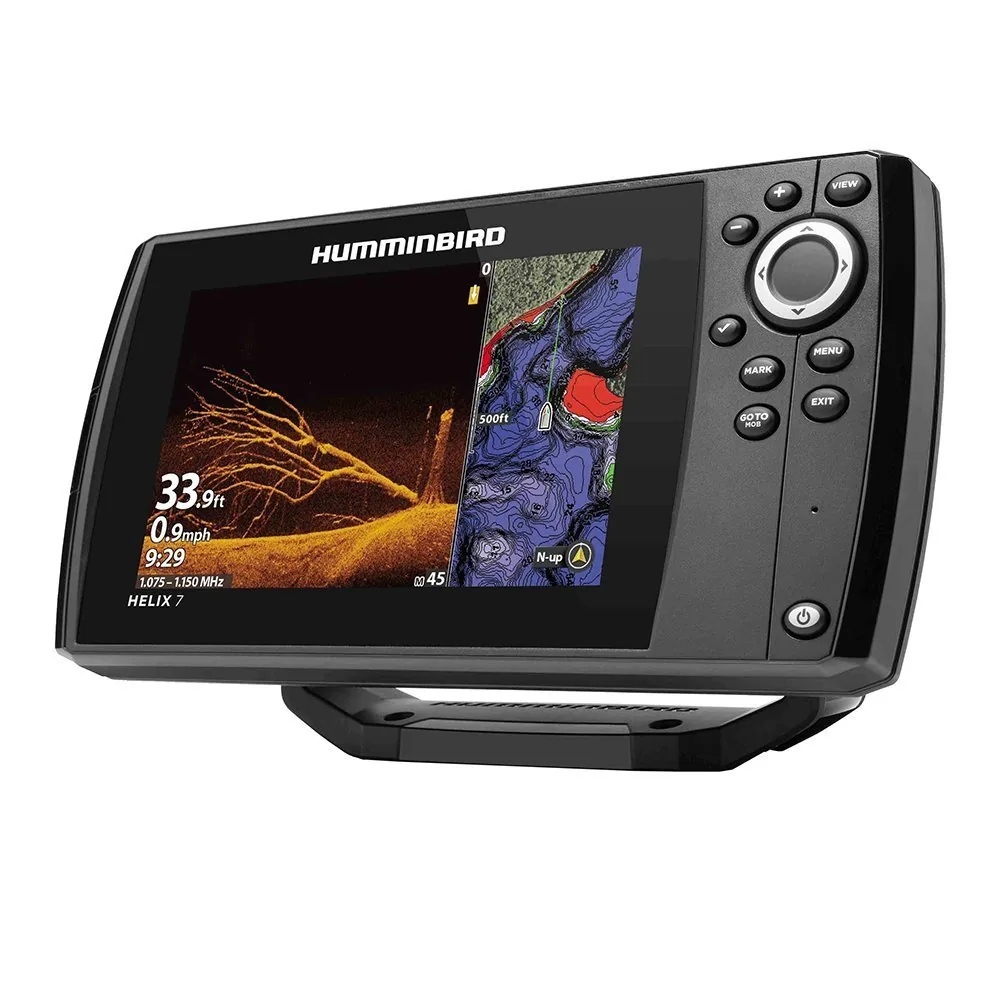

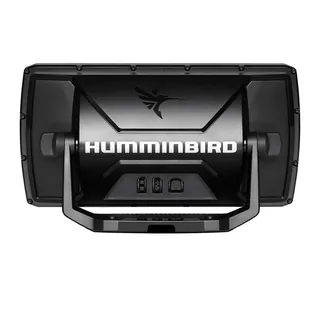

The Humminbird HELIX 7 CHIRP MEGA DI GPS G4 combines a 7-inch 1024 x 600 HD display with MEGA Down Imaging, Dual Spectrum CHIRP, internal GPS, AutoChart Live, and an included XNT 9 HW MDI 75 T transom-mount transducer. It is a complete fishing and mapping package for bass boats, aluminum boats, freshwater craft, and smaller center consoles.

Key Features

- 7-inch HD widescreen display – Gives you more viewing room than compact 6-inch units for chart and sonar panels.
- 1024 x 600 resolution – Provides sharper detail than 800 x 480 displays for mapping and bottom structure.
- MEGA Down Imaging and Dual Spectrum CHIRP – Combines detailed downward imaging with conventional fishfinding.
- XNT 9 HW MDI 75 T transducer included – Supplies the transducer required to use the built-in sonar.
- Internal GPS with AutoChart Live – Lets you record position data and build chart information while operating.

Who Is This For?

This model suits freshwater fishing boats, bass boats, aluminum boats, and smaller center consoles that need a dedicated Humminbird chartplotter/fishfinder. The included GPS and transducer make it practical for a new installation.

It is not ideal for a large offshore navigation system or buyers who need broad NMEA 2000 marine integration. Its focus is fishing, mapping, GPS, and sonar.

Compatibility

Confirmed compatibility includes the XNT 9 HW MDI 75 T transom-mount transducer, internal GPS, AutoChart Live, and Humminbird Basemap. The supplied specifications do not identify NMEA 2000, NMEA 0183, autopilot, radar, or third-party chartplotter compatibility. No named incompatible system was provided; verify Humminbird accessory requirements before installation.

Technical Specifications

- Brand: Humminbird
- Model: HELIX 7 CHIRP MEGA DI GPS G4, 411640-1
- Display: 7-inch HD widescreen
- Resolution: 1024 x 600 pixels
- Built-in sonar: MEGA Down Imaging and Dual Spectrum CHIRP
- Transducer: XNT 9 HW MDI 75 T transom mount included
- GPS: Internal GPS with AutoChart Live
- Preloaded charts: Humminbird Basemap
- Warranty: 1-year limited warranty
- Origin: Designed and made in the USA

Warranty & Support

Humminbird provides a 1-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The HELIX 7 G4 offers a sharper display than the Garmin 6-inch units and includes the GPS and transducer needed for a basic installation. Its trade-off is system scope: it is better suited to focused fishing and mapping than to a large interconnected offshore electronics suite. Choose it for detailed downward imaging and AutoChart Live in a compact fishing boat.
