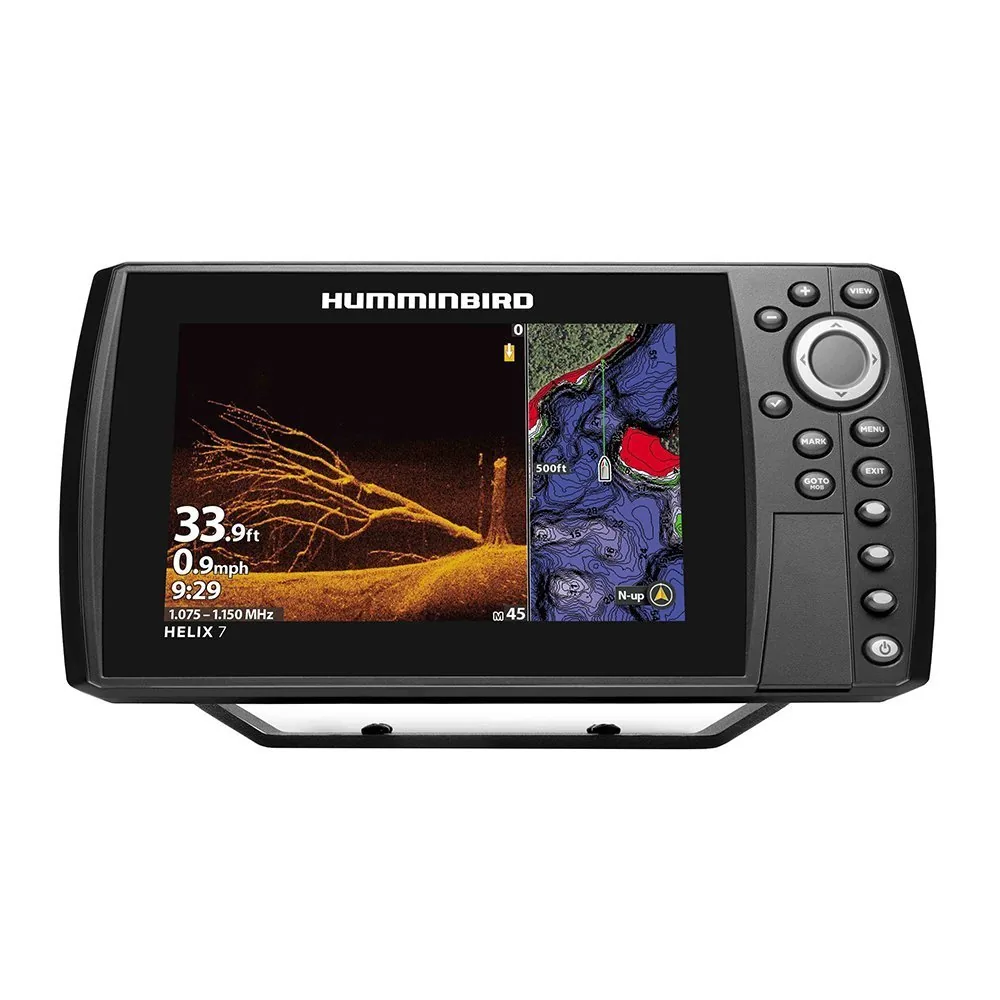

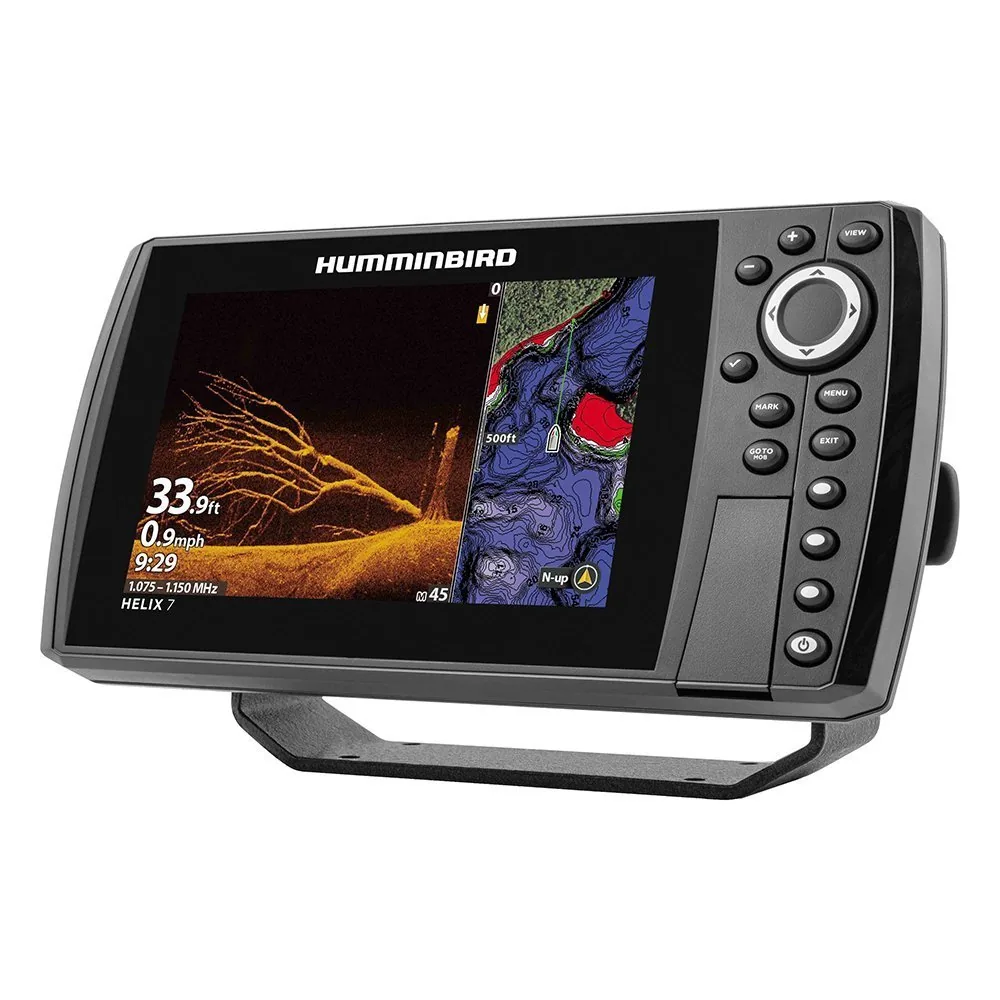

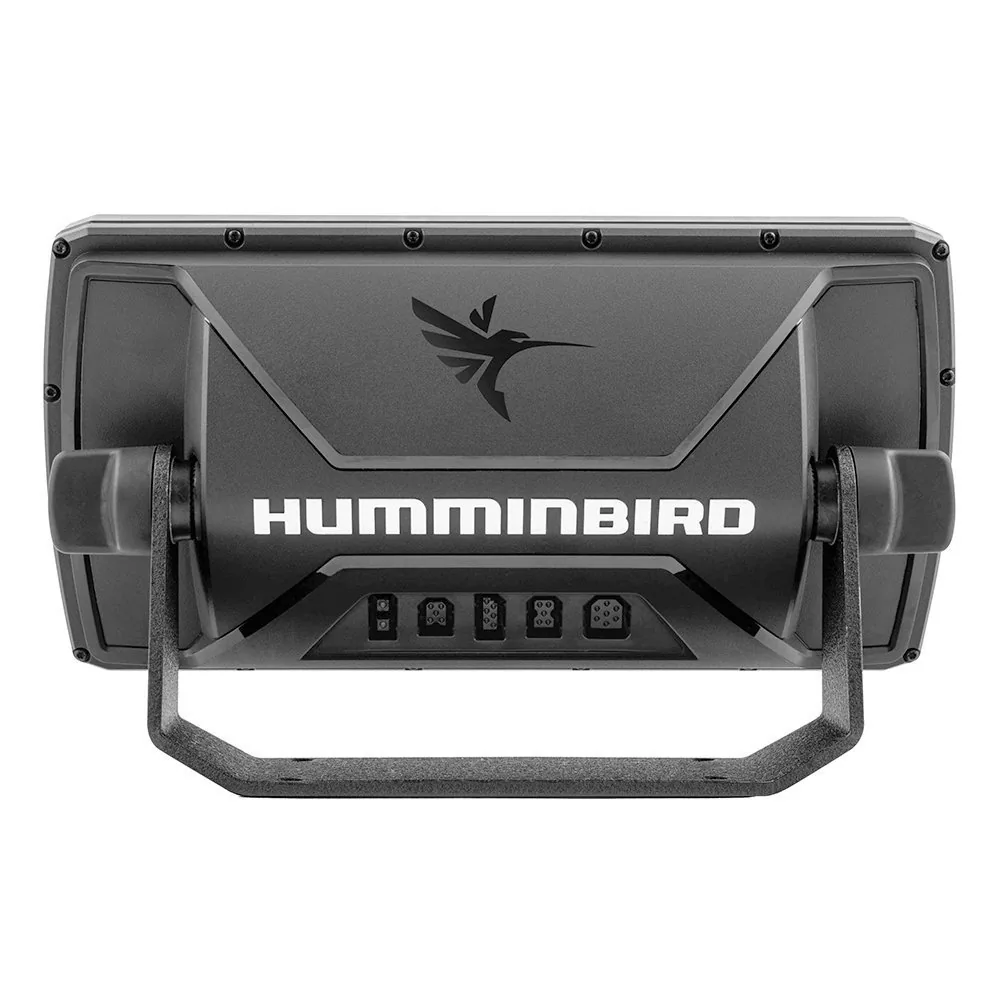

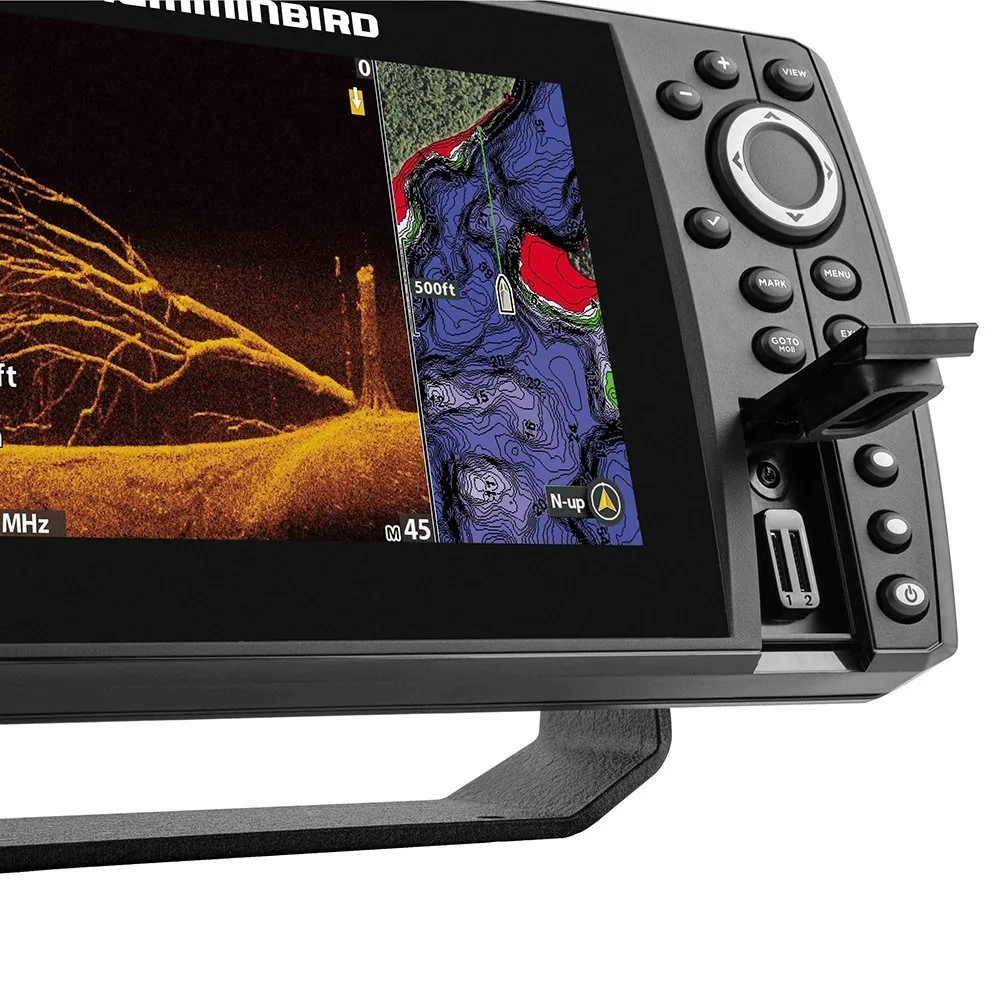

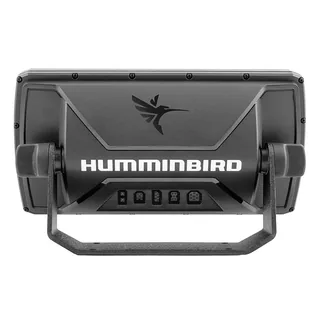

The Humminbird HELIX 7 CHIRP MEGA DI GPS G4N combines a 7-inch 1024 x 600 HD display with MEGA Down Imaging, Dual Spectrum CHIRP, an included XNT 9 HW MDI 75 T transom-mount transducer, internal networking, AutoChart Live, and One-Boat Network compatibility. It is a fishing-focused chartplotter/fishfinder package for anglers who want a complete Humminbird installation in a compact display.

Key Features

- 7-inch HD widescreen display – Provides a clear chart and sonar workspace in a compact helm footprint.
- 1024 x 600 resolution – Shows sharper mapping and fishfinding detail than 800 x 480 displays.
- MEGA Down Imaging and Dual Spectrum CHIRP – Combines detailed downward imaging with conventional fishfinding.
- XNT 9 HW MDI 75 T transducer included – Provides the transducer required for the listed sonar functions.
- Ethernet, NMEA 2000, Bluetooth, and WiFi – Provides confirmed connection options for a larger Humminbird system.

Who Is This For?

This unit suits bass boats, aluminum fishing boats, bay boats, and smaller coastal craft that need charting, sonar, and network expansion. The included transducer makes it suitable for a new fishing installation.

It is not ideal for a large offshore helm that needs a 9- or 12-inch display, or for anglers who specifically require Side Imaging. The supplied sonar specification lists MEGA Down Imaging and Dual Spectrum CHIRP.

Compatibility

Confirmed components include the XNT 9 HW MDI 75 T transom-mount transducer, Ethernet, NMEA 2000, Bluetooth, WiFi, AutoChart Live, and One-Boat Network compatibility. The supplied information does not identify NMEA 0183, radar, autopilot, or third-party chartplotter compatibility. No named incompatible system was provided; verify Humminbird accessory and network requirements before installation.

Technical Specifications

- Brand: Humminbird
- Model: HELIX 7 CHIRP MEGA DI GPS G4N, 411640-1
- Display: 7-inch HD widescreen
- Resolution: 1024 x 600 pixels
- Built-in sonar: MEGA Down Imaging and Dual Spectrum CHIRP
- Transducer: XNT 9 HW MDI 75 T transom mount included
- Networking: Ethernet, NMEA 2000, Bluetooth, WiFi
- Features: AutoChart Live, One-Boat Network compatibility
- Warranty: 1-year limited warranty
- Origin: Designed and made in the USA

Warranty & Support

Humminbird provides a 1-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The HELIX 7 G4N is the complete fishing package in this group for buyers who want a transducer and display together. It offers a sharper 1024 x 600 screen than many compact units and adds MEGA Down Imaging, AutoChart Live, and Humminbird networking. The trade-off is sonar coverage: it focuses on Down Imaging and Dual Spectrum CHIRP rather than the SideVision and RealVision 3D features of the Raymarine bundle.
