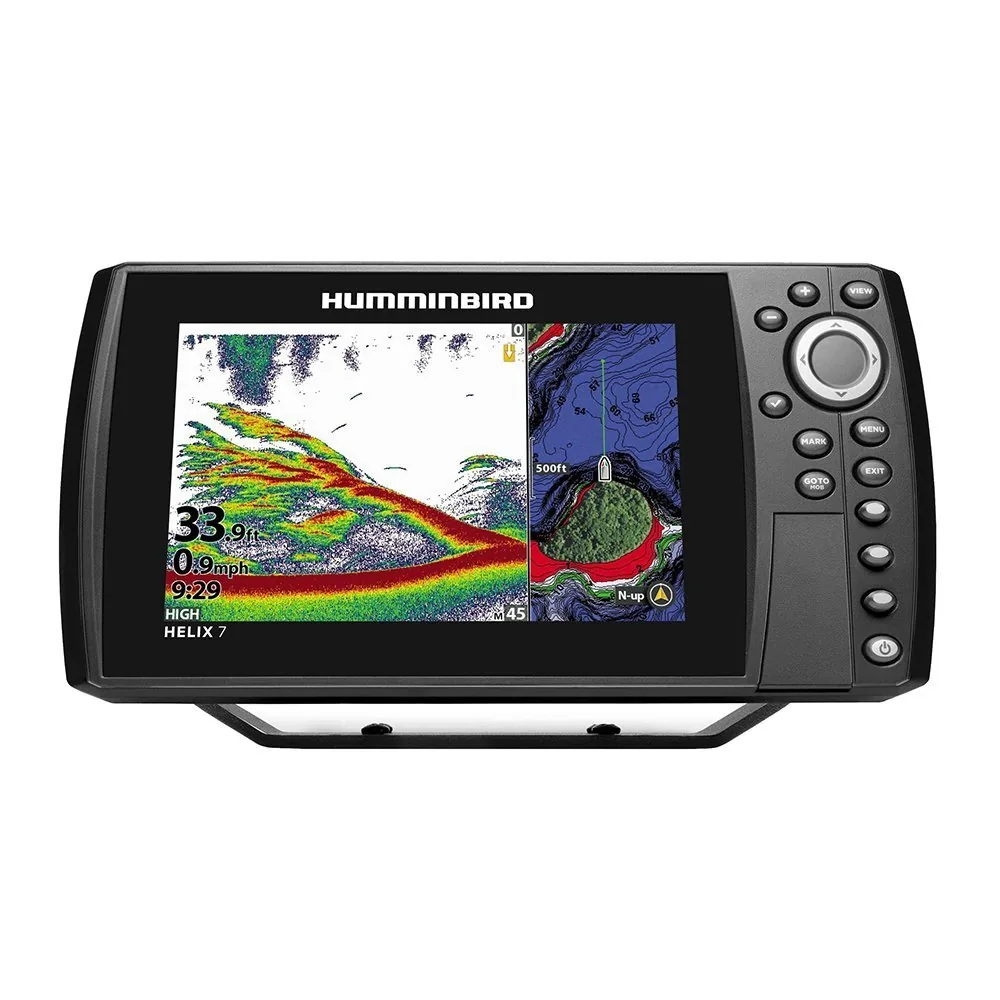

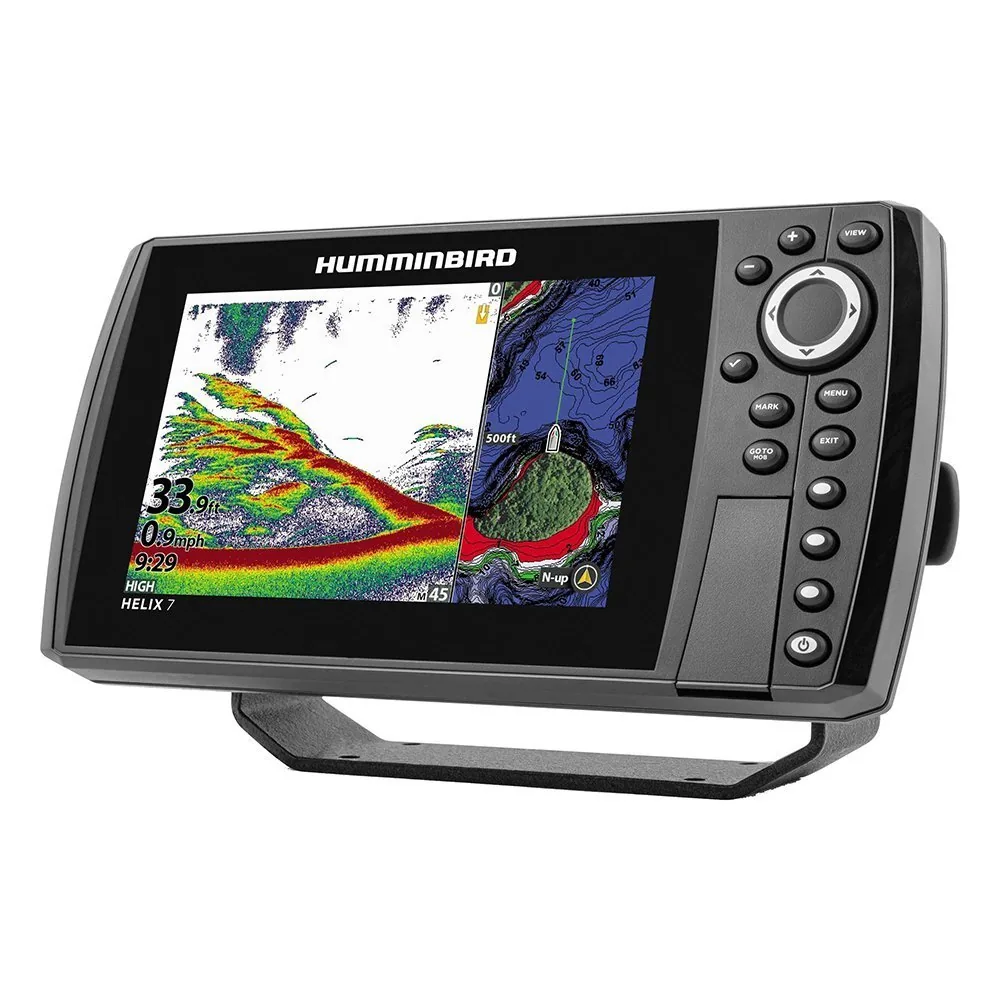

The Humminbird HELIX 7 CHIRP GPS G4N combines a 7-inch 1024 x 600 HD display with Dual Spectrum CHIRP, an included XNT 9 HW T High-Wide CHIRP transducer, internal networking, AutoChart Live, and One-Boat Network compatibility. It is a fishing-focused chartplotter and fishfinder for anglers who want a complete Humminbird package with more display detail than 800 x 480 units.

Key Features

- 7-inch HD widescreen display – Provides a clear chart and sonar workspace in a compact helm footprint.
- 1024 x 600 resolution – Shows sharper mapping and fishfinding detail than 800 x 480 displays.
- XNT 9 HW T High-Wide CHIRP transducer included – Provides the transducer required for the listed Dual Spectrum CHIRP sonar.
- Ethernet, NMEA 2000, Bluetooth, and WiFi – Provides confirmed wired and wireless connections for a Humminbird system.
- AutoChart Live and One-Boat Network compatibility – Supports user-created mapping and compatible system sharing.

Who Is This For?

This model suits bass boats, aluminum fishing boats, bay boats, and smaller coastal craft that need charting, CHIRP sonar, and network expansion. The included transducer makes it a practical choice for a new Humminbird installation.

It is not ideal for a large offshore helm that needs a 9- or 12-inch display, or for anglers specifically seeking Side Imaging or Down Imaging. The supplied sonar specification lists Dual Spectrum CHIRP only.

Compatibility

Confirmed components include the XNT 9 HW T High-Wide CHIRP transducer, Ethernet, NMEA 2000, Bluetooth, WiFi, AutoChart Live, and One-Boat Network. The supplied information does not identify NMEA 0183, radar, autopilot, or third-party chartplotter compatibility. No named incompatible system was provided; verify Humminbird accessory and network requirements before installation.

Technical Specifications

- Brand: Humminbird
- Model: HELIX 7 CHIRP GPS G4N, 411650-1
- Display: 7-inch HD widescreen
- Resolution: 1024 x 600 pixels
- Built-in sonar: Dual Spectrum CHIRP
- Transducer: XNT 9 HW T High-Wide CHIRP included
- Networking: Ethernet, NMEA 2000, Bluetooth, WiFi
- Special features: AutoChart Live, One-Boat Network compatibility
- Warranty: 1-year limited warranty
- Origin: Designed and made in the USA

Warranty & Support

Humminbird provides a 1-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The HELIX 7 G4N is the better choice than the Simrad GO7 when a sharper 1024 x 600 display and Humminbird networking matter more than radar support. It includes the High-Wide CHIRP transducer and AutoChart Live, making the initial fishing setup straightforward. The trade-off is sonar scope: the supplied specification lists Dual Spectrum CHIRP rather than the Simrad package’s DownScan, SideScan, and ForwardScan support.
