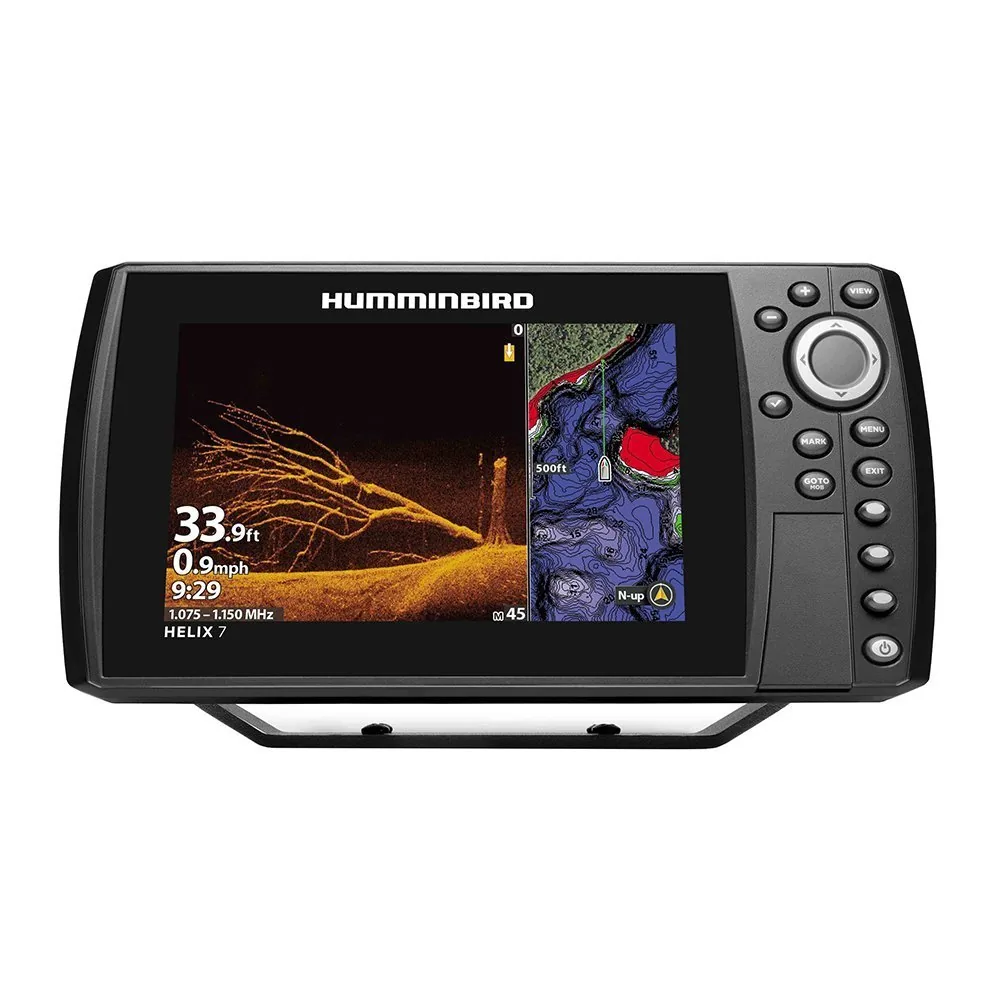

The Humminbird HELIX 7 CHIRP MEGA DI GPS G4N CHO is a control-head-only chartplotter and fishfinder for an existing Humminbird installation. Its 7-inch 1024 x 600 HD display supports MEGA Down Imaging and Dual Spectrum CHIRP, while internal GPS and AutoChart Live add mapping capability. Unlike the standard G4 bundle, this CHO version does not include a transducer, so it suits buyers who already have a compatible transducer or are planning a matched installation.

Key Features

- 7-inch HD widescreen display – Provides a clear working area for charting and sonar in a compact helm footprint.
- 1024 x 600 resolution – Shows sharper mapping and sonar detail than 800 x 480 screens.
- MEGA Down Imaging and Dual Spectrum CHIRP – Supports detailed bottom imaging and conventional fishfinding with a suitable transducer.
- Internal GPS with AutoChart Live – Allows position tracking and user-created mapping without a separate GPS receiver listed.
- NMEA 2000, Ethernet, WiFi, and Bluetooth – Provides confirmed connection options for a broader Humminbird system.

Who Is This For?

This model is aimed at anglers replacing or expanding a Humminbird control head on a fishing boat, bass boat, aluminum boat, or coastal skiff. It makes sense when the transducer is already installed or will be selected separately.

It is not ideal for a first-time buyer who wants a complete fishfinder kit because the transducer is explicitly excluded. It is also not the best choice for someone who does not need Humminbird networking or advanced imaging features.

Compatibility

Confirmed features include internal GPS with AutoChart Live, NMEA 2000, Ethernet, WiFi, and Bluetooth networking. The supplied specifications do not identify a specific compatible transducer, autopilot, radar, or NMEA 0183 system. No named incompatible system was provided; verify the exact Humminbird transducer and network components before purchase.

Technical Specifications

- Brand: Humminbird
- Model: HELIX 7 CHIRP MEGA DI GPS G4N CHO, 411640-1CHO
- Display: 7-inch HD widescreen
- Resolution: 1024 x 600 pixels
- Built-in sonar: MEGA Down Imaging and Dual Spectrum CHIRP
- Transducer: Not included; control head only
- Networking: NMEA 2000, Ethernet, WiFi, Bluetooth
- GPS: Internal GPS with AutoChart Live
- Warranty: 1-year limited warranty
- Origin: Designed and made in the USA

Warranty & Support

Humminbird provides a 1-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The G4N CHO is the right HELIX 7 choice when you want the control head and networking features without receiving another transducer. It offers a 1024 x 600 display, MEGA Down Imaging, Dual Spectrum CHIRP, AutoChart Live, and several network interfaces. The trade-off is the missing transducer: compared with the standard HELIX 7 G4 bundle, you have more installation flexibility but must confirm and purchase the correct sonar hardware separately.
