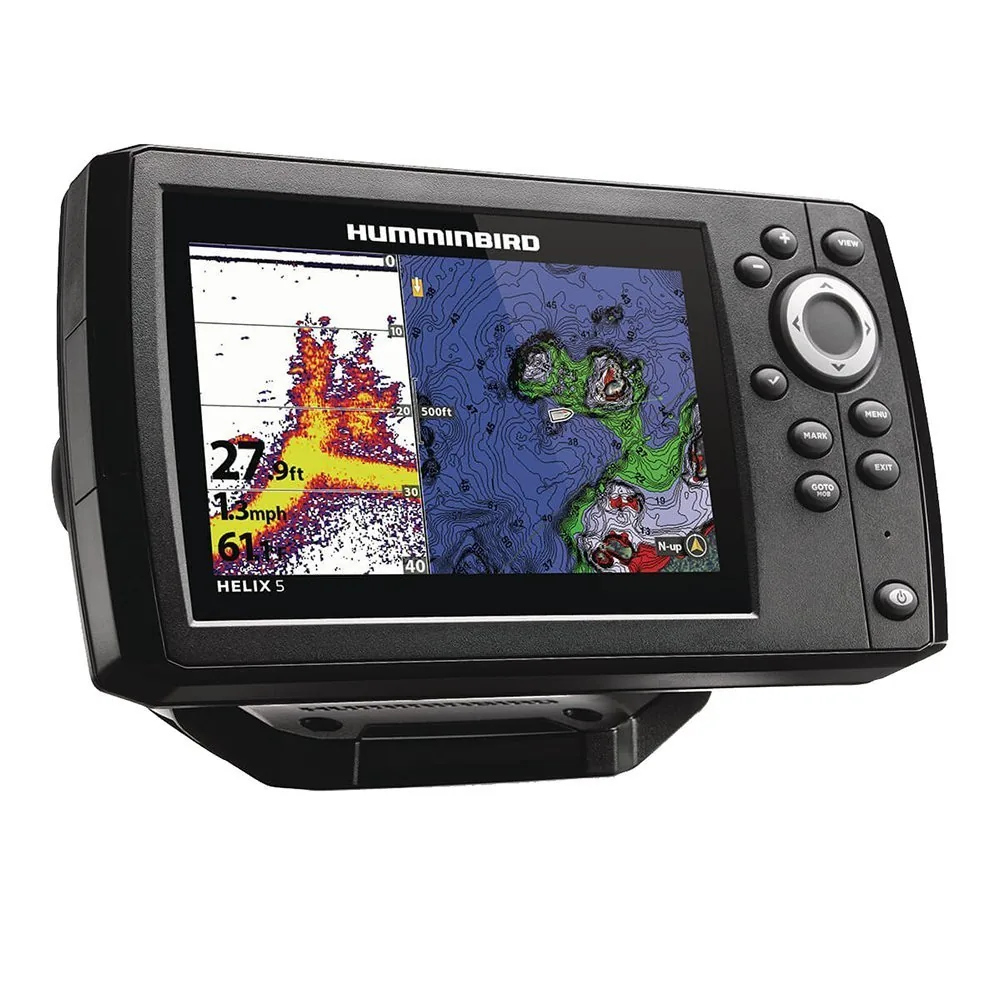

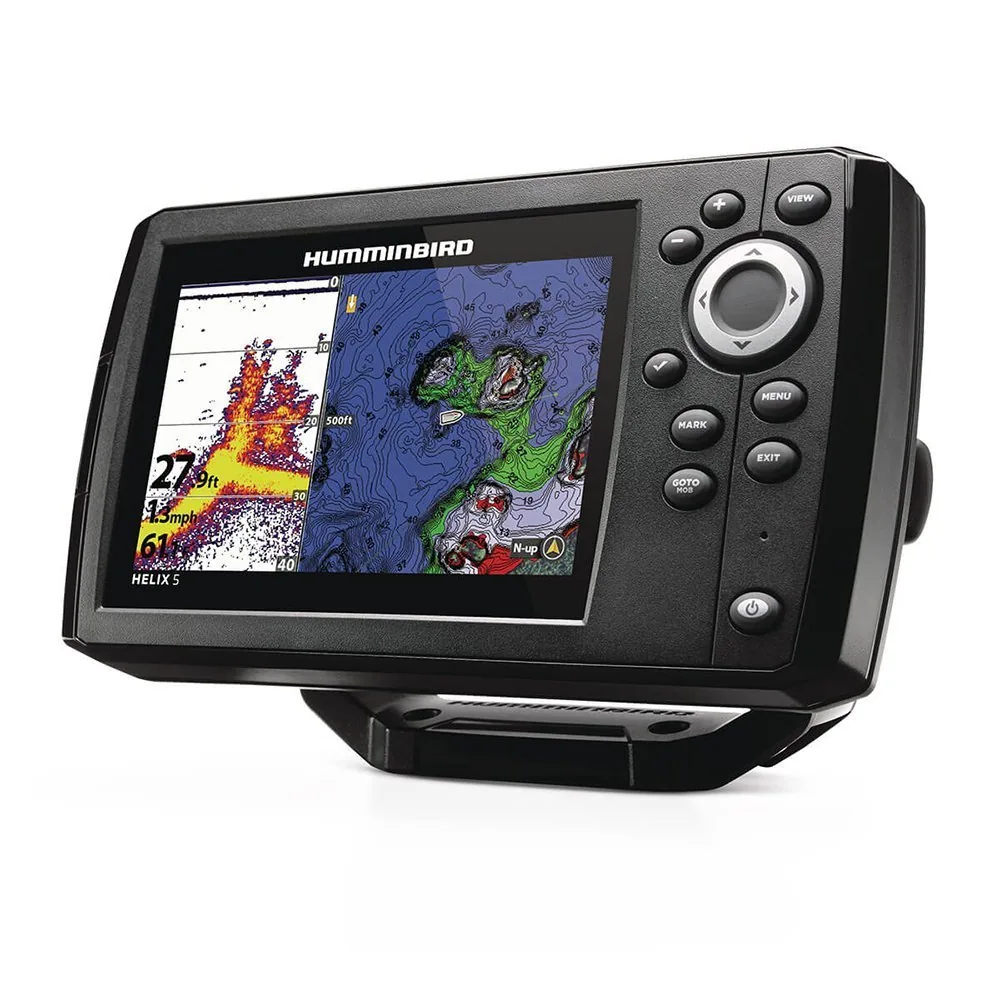

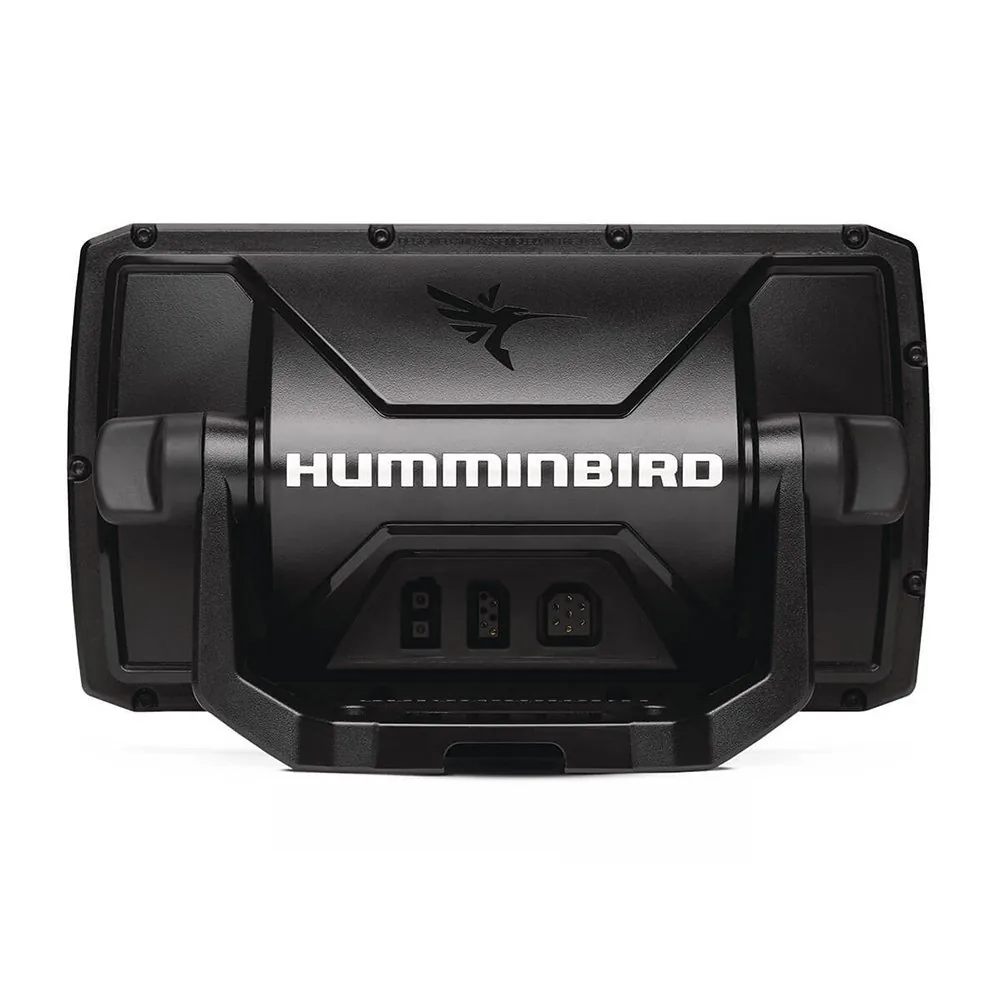

The Humminbird HELIX 5 CHIRP GPS G3 Portable is designed for anglers who need a portable sonar and GPS package rather than a permanently installed boat display. Its 5-inch 800 x 480 screen, Dual Spectrum CHIRP sonar, internal GPS, track plotting, portable transducer, shuttle, suction-cup mount, 7Ah battery, and charger provide a self-contained setup for small boats, kayaks, and temporary fishing locations.

Key Features

- 5-inch 256-color TFT display – Provides a compact screen for sonar and GPS information.
- 800 x 480 resolution – Keeps chart and sonar data readable in a portable package.
- Dual Spectrum CHIRP sonar – Provides conventional fishfinding detail with the included portable transducer.

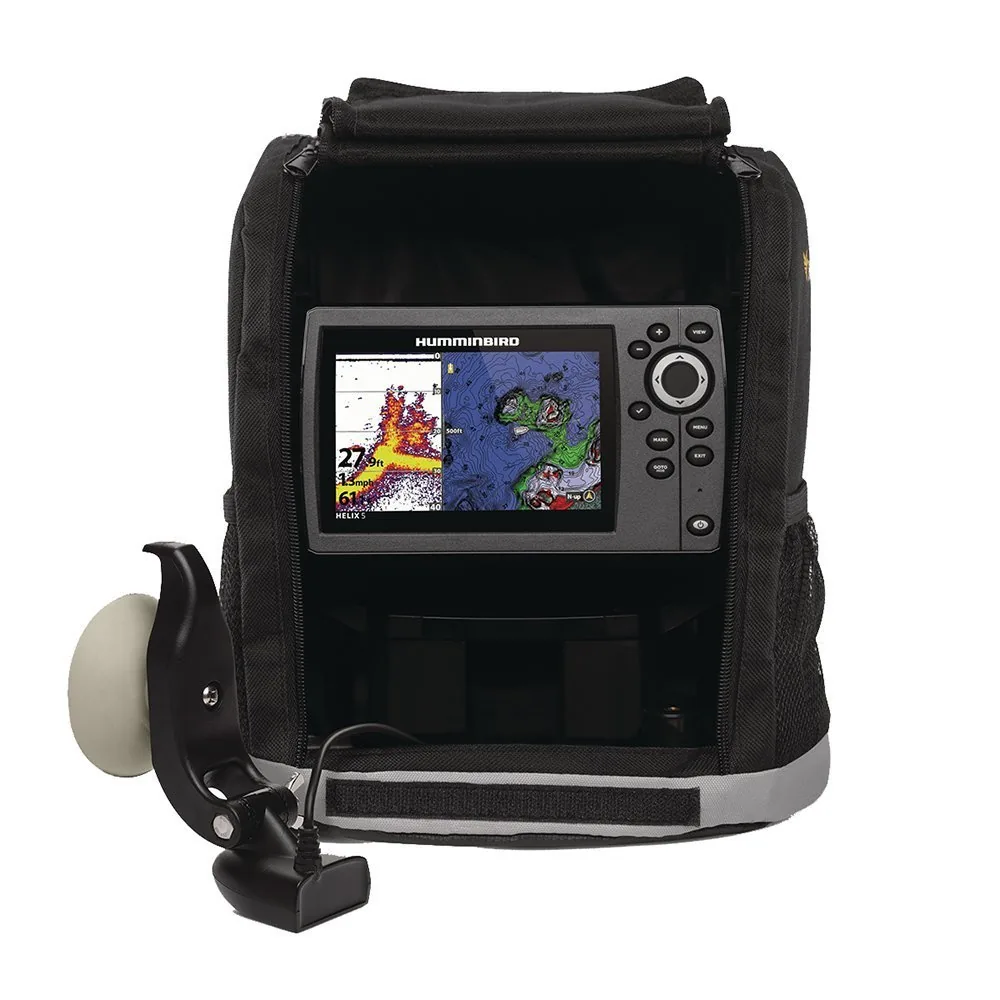

- Portable kit with shuttle and suction-cup mount – Makes the unit easier to move between boats or temporary mounting locations.
- 7Ah battery and charger included – Provides a dedicated power source without requiring permanent boat wiring.

Who Is This For?

This package suits small-boat anglers, kayak users, rental boats, ice-free portable fishing setups, and owners who do not want to cut into a console. The suction-cup mount and internal battery make setup and removal straightforward.

It is not ideal for a permanent offshore helm, a large connected marine electronics system, or buyers who need Down Imaging. The supplied sonar type is Dual Spectrum CHIRP, and the portable kit is the main advantage of this package.

Compatibility

Confirmed components include the XNT 9 HW T portable transducer, shuttle, suction-cup mount, 7Ah battery, charger, internal GPS, and track plotting. The supplied specifications do not identify NMEA 2000, NMEA 0183, radar, autopilot, or third-party chartplotter compatibility. No named incompatible system was provided; treat this as a portable Humminbird sonar/GPS package.

Technical Specifications

- Brand: Humminbird
- Model: HELIX 5 CHIRP GPS G3 Portable, 411660-1P
- Display: 5-inch 256-color TFT
- Resolution: 800 x 480 pixels
- Built-in sonar: Dual Spectrum CHIRP
- Portable kit: Shuttle, suction-cup mount, 7Ah battery, charger
- Transducer: XNT 9 HW T portable transducer included
- GPS: Internal GPS with track plotting
- Warranty: 1-year limited warranty
- Origin: Designed and made in the USA

Warranty & Support

Humminbird provides a 1-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The HELIX 5 CHIRP GPS G3 Portable is the clear choice over the fixed HELIX 5 DI GPS G3 when portability matters. The shuttle, suction-cup mount, battery, charger, and portable transducer let you move the system between boats or use it without permanent installation. The trade-off is the absence of Down Imaging and broader marine networking, making it better for flexible fishing use than a full helm electronics system.
