Humminbird APEX 19 VX MSI+ Chartplotter/Fishfinder w/Transom Mount Transducer

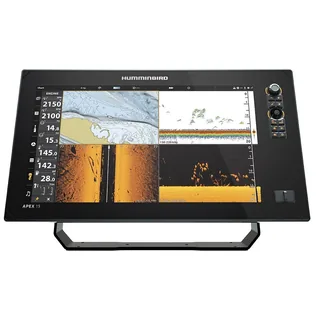

The Humminbird APEX 19 VX MSI+ bundle provides an 18.5-inch Full HD touchscreen, an included XM 14 HW MSI T transom-mount transducer, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP, and internal Precision GPS. Dual Ethernet, NMEA 2000, HDMI input/output, WiFi, and Bluetooth support a large connected fishing helm. This is a substantial system for boats with plenty of dash space.

Key Features

- 18.5-inch Full HD touchscreen – Provides a very large workspace for charts, sonar, and split-screen fishing data.
- 1920 x 1080 resolution – Shows detailed mapping and sonar information across the large display.
- XM 14 HW MSI T transducer included – Provides MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP.
- Dual Ethernet, NMEA 2000, HDMI input/output, WiFi, and Bluetooth – Supports marine network, video, and wireless connections.
- Internal Precision GPS – Provides onboard positioning for the chartplotter system.

Who Is This For?

This bundle suits large tournament boats, offshore sportfishing vessels, commercial-style helms, and multi-display fishing systems that can accommodate an 18.5-inch screen. The included transducer makes it more complete for a new installation.

It is not ideal for a small center console or buyers who already have a compatible transducer. The display, network hardware, and transom-mount transducer require careful installation planning.

Compatibility

Confirmed components include the XM 14 HW MSI T transducer, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP, internal Precision GPS, dual Ethernet, NMEA 2000, HDMI input/output, WiFi, and Bluetooth. The supplied information does not identify NMEA 0183, radar, autopilot, or third-party transducer compatibility. No named incompatible system was provided; verify Humminbird network and accessory requirements before installation.

Technical Specifications

- Brand: Humminbird
- Model: APEX 19 MSI+, 411510-1
- Display: 18.5-inch Full HD touchscreen
- Resolution: 1920 x 1080 pixels
- Built-in sonar: MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP
- Transducer: XM 14 HW MSI T transom mount included
- Networking: Dual Ethernet, NMEA 2000, HDMI input/output, WiFi, Bluetooth
- GPS: Internal Precision GPS
- Warranty: 2-year limited warranty
- Origin: Designed and made in the USA

Warranty & Support

Humminbird provides a 2-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The APEX 19 MSI+ bundle is the largest Humminbird fishing display in this group and includes the XM 14 transducer for immediate MEGA imaging. It offers far more viewing space than the APEX 13, but that advantage comes with a major installation trade-off: the 18.5-inch screen requires a large, carefully planned helm. Choose it for a flagship fishing boat, not a compact console.
