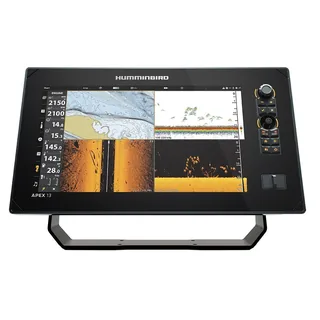

Humminbird APEX 13 VX MSI+ Chartplotter/Fishfinder w/Transom Mount Transducer

The Humminbird APEX 13 VX MSI+ bundle combines a 13.3-inch Full HD touchscreen with an included XM 14 HW MSI T transducer, MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP. A dedicated 2D/CHIRP port and MEGA Imaging+ port support a structured sonar installation, while dual Ethernet, NMEA 2000, HDMI input/output, WiFi, and Bluetooth provide system expansion.

Key Features

- 13.3-inch Full HD touchscreen – Provides a large chart and sonar workspace without the helm demand of a 15.6- or 18.5-inch display.
- 1920 x 1080 resolution – Shows detailed mapping and imaging information across the screen.
- XM 14 HW MSI T transducer included – Provides MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP.
- Dedicated 2D/CHIRP and MEGA Imaging+ ports – Supports separate sonar connections for a more flexible installation.
- Dual Ethernet, NMEA 2000, HDMI input/output, WiFi, and Bluetooth – Provides broad network, video, and wireless options.

Who Is This For?

This bundle suits offshore fishing boats, tournament rigs, large center consoles, and anglers who want a large Full HD display with the transducer included. The 13.3-inch size offers more viewing room than smaller XPLORE units while remaining easier to mount than the APEX 16 or 19.

It is not ideal for a compact helm or buyers who already own a compatible transducer. The dual sonar ports and network connections also require more installation planning than a simple standalone fishfinder.

Compatibility

Confirmed components include the XM 14 HW MSI T transom-mount transducer, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP, dedicated 2D/CHIRP and MEGA Imaging+ ports, dual Ethernet, NMEA 2000, HDMI input/output, WiFi, and Bluetooth. The supplied information does not identify NMEA 0183, radar, autopilot, or third-party transducer compatibility. No named incompatible system was provided; verify Humminbird network and sonar requirements before installation.

Technical Specifications

- Brand: Humminbird
- Model: APEX 13 MSI+, 411470-1
- Display: 13.3-inch Full HD touchscreen
- Resolution: 1920 x 1080 pixels
- Built-in sonar: MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP
- Transducer: XM 14 HW MSI T transom mount included
- Sonar ports: Dedicated 2D/CHIRP port and MEGA Imaging+ port

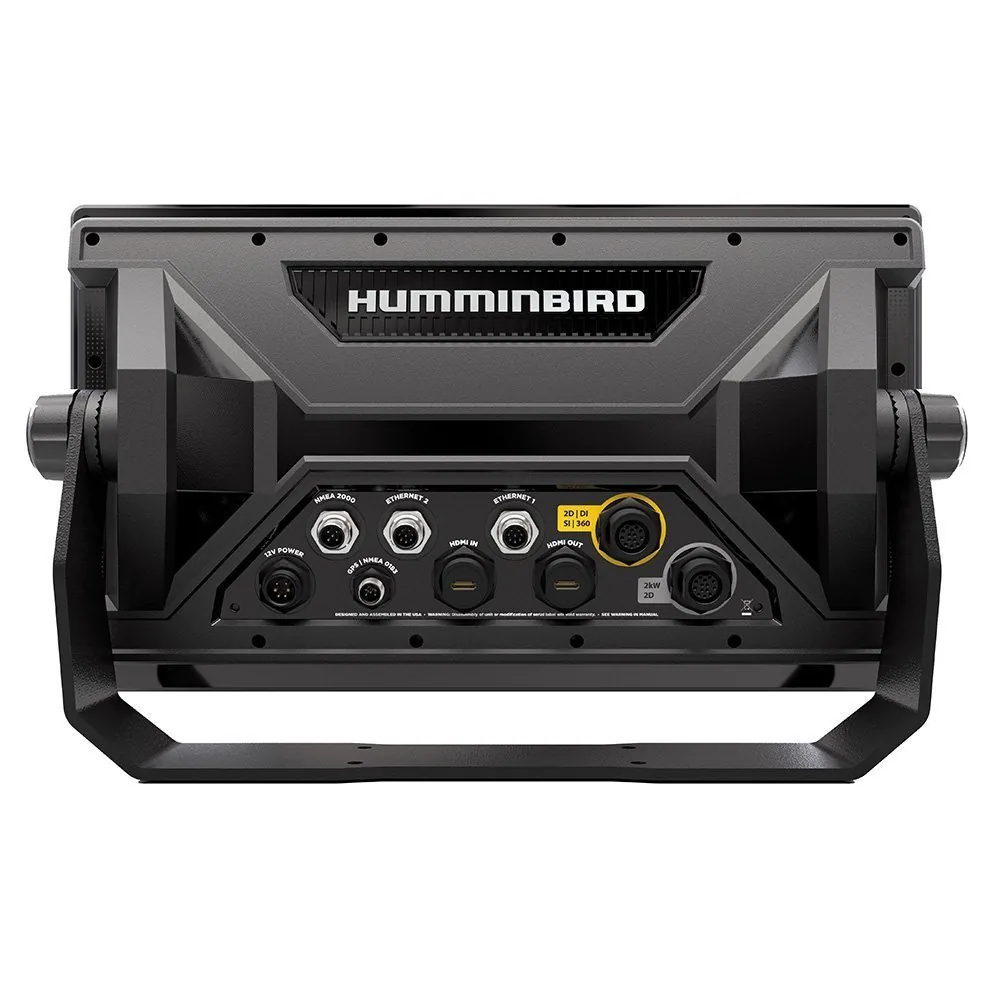

- Networking: Dual Ethernet, NMEA 2000, HDMI input/output, WiFi, Bluetooth
- Warranty: 2-year limited warranty
- Origin: Designed and made in the USA

Warranty & Support

Humminbird provides a 2-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The APEX 13 MSI+ bundle is the middle ground between the APEX 16 and smaller XPLORE displays, offering Full HD resolution, an included XM 14 transducer, and dedicated sonar ports. It provides more room and connection flexibility than a 10-inch unit without the mounting demand of the 15.6-inch and 18.5-inch models. Choose it for a serious fishing helm where a balanced screen size matters.
