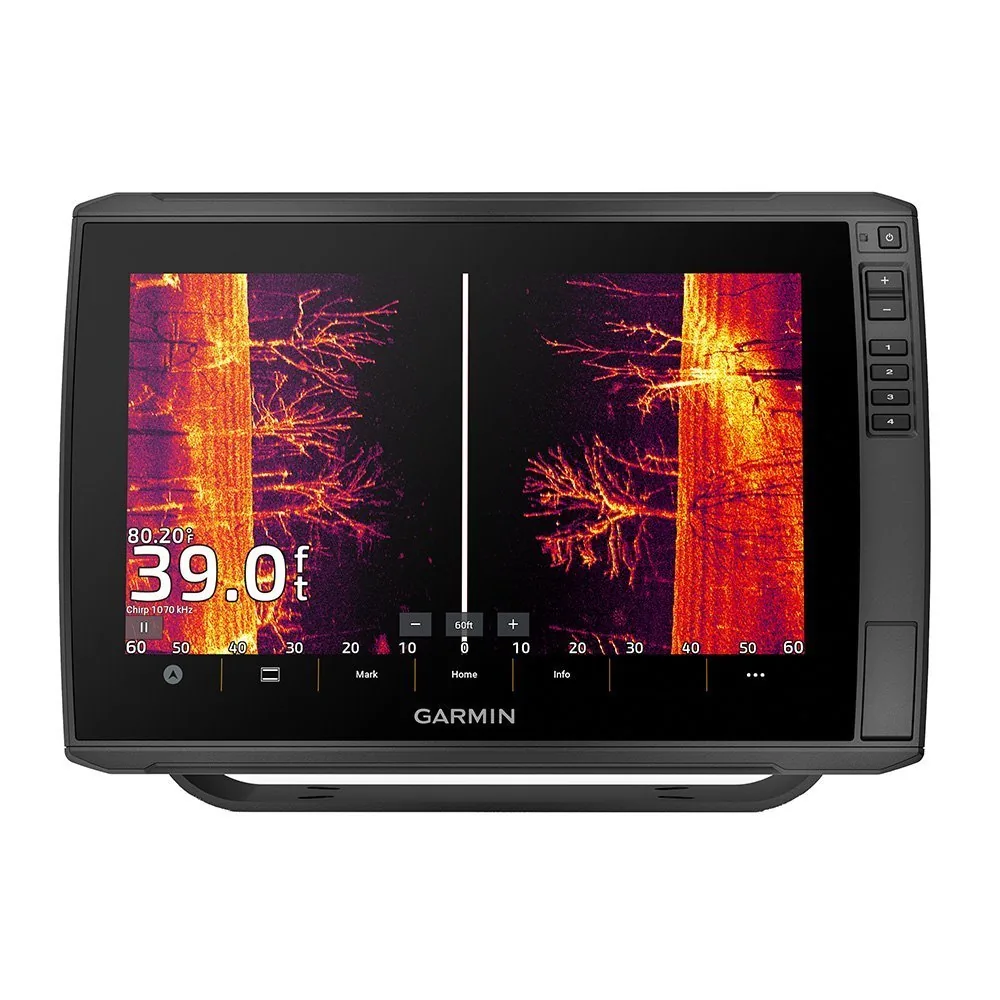

Garmin ECHOMAP Ultra 2 126sv w/o Transducer – Garmin Navionics+

The Garmin ECHOMAP Ultra 2 126sv display-only package provides a 12-inch IPS touchscreen with keyed assist, Garmin Navionics+ US Inland and Coastal charts, UHD ClearVü, SideVü, traditional CHIRP, and LiveScope readiness. No transducer is included, so this version suits buyers who want the larger ECHOMAP Ultra 2 display but plan to choose or reuse compatible sonar hardware separately. NMEA 2000 and WiFi support multi-unit wireless networking.

Key Features

- 12-inch IPS touchscreen with keyed assist – Provides a large workspace for charts, sonar, and split-screen information.
- 1280 x 800 resolution – Shows useful chart and system detail across the large display.
- UHD ClearVü, SideVü, and traditional CHIRP support – Provides several sonar options when paired with suitable hardware.
- Garmin Navionics+ US Inland and Coastal charts – Provides preloaded chart coverage for supported waters.
- LiveScope readiness, NMEA 2000, and WiFi – Supports future live-sonar expansion and multi-unit wireless networking.

Who Is This For?

This model suits larger fishing boats, coastal cruisers, center consoles, and owners upgrading an existing Garmin installation. It is useful when the helm needs a 12-inch screen but the buyer wants to select the transducer separately.

It is not ideal for buyers seeking a complete ready-to-fish package because no transducer is included. The bundled 126sv is more convenient for a new installation that requires the GT56UHD-TM.

Compatibility

Confirmed features include Garmin Navionics+ US Inland and Coastal charts, UHD ClearVü, SideVü, traditional CHIRP, LiveScope readiness, NMEA 2000, and WiFi multi-unit wireless networking. The supplied information does not identify specific transducer models, NMEA 0183, radar, autopilot, or third-party accessory compatibility. No named incompatible system was provided; verify Garmin transducer and network requirements before installation.

Technical Specifications

- Brand: Garmin
- Model: ECHOMAP Ultra 2 126sv, 010-02888-00
- Display: 12-inch IPS touchscreen with keyed assist
- Resolution: 1280 x 800 pixels
- Preloaded charts: Garmin Navionics+ US Inland and Coastal
- Built-in sonar: UHD ClearVü, SideVü, traditional CHIRP, LiveScope ready
- Transducer: Not included
- Networking: NMEA 2000, WiFi multi-unit wireless networking
- Warranty: 1-year limited warranty
- Origin: Designed in the USA; made in Taiwan

Warranty & Support

Garmin provides a 1-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The ECHOMAP Ultra 2 126sv display-only model gives you the same 12-inch screen, US Inland and Coastal charts, and LiveScope-ready sonar platform as the bundle while leaving transducer selection open. That flexibility helps when replacing a control head or matching hardware to a hull, but it adds compatibility work before the sonar can be used. Choose the bundle for a simpler installation; choose this version for a planned Garmin system.
