Garmin ECHOMAP Ultra 2 106sv w/o Transducer – Garmin Navionics+

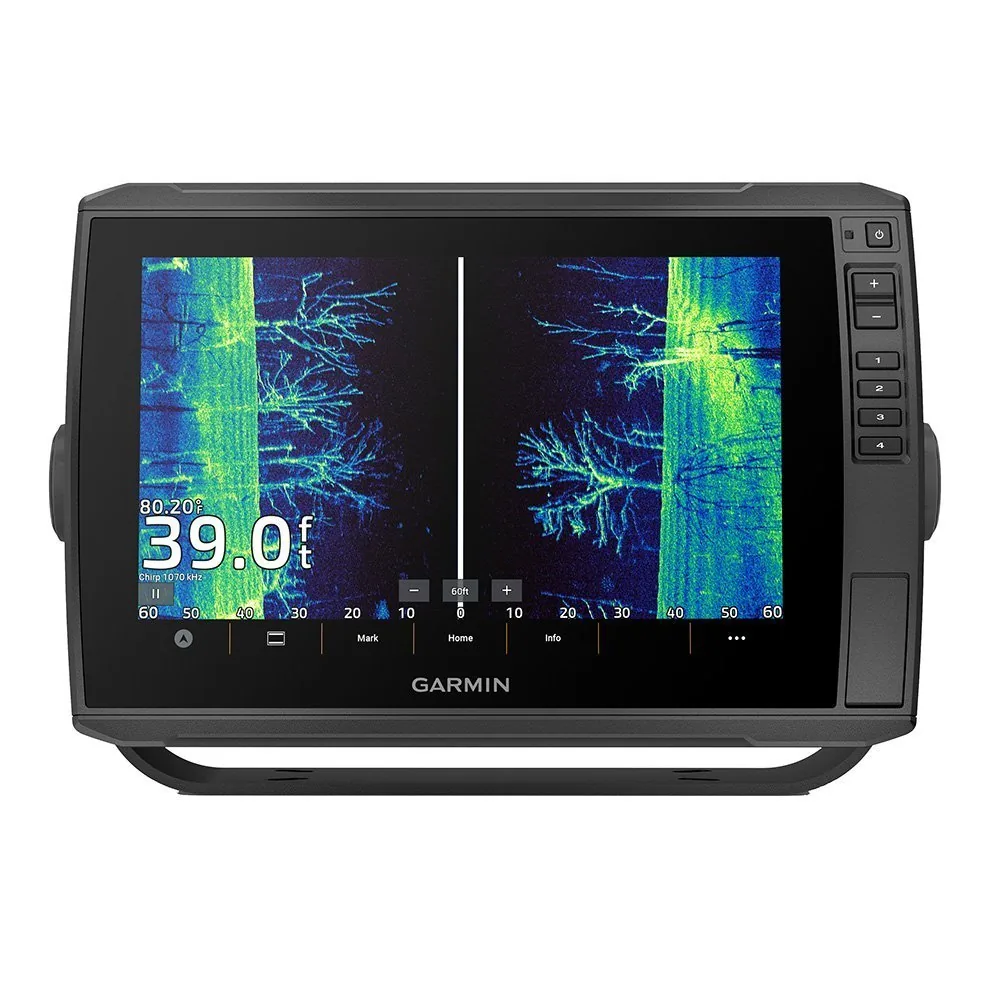

The Garmin ECHOMAP Ultra 2 106sv display-only package provides a 10-inch IPS touchscreen with keyed assist, Garmin Navionics+ US Inland and Coastal charts, UHD ClearVü, SideVü, traditional CHIRP, and LiveScope readiness. No transducer is included, so this version suits an existing Garmin installation or a custom build where the sonar transducer will be selected separately. The 1280 x 800 display provides a useful balance between screen area and installation space.

Key Features

- 10-inch IPS touchscreen with keyed assist – Provides a clear chart and sonar workspace while retaining physical button support.
- 1280 x 800 resolution – Shows useful detail across mapping, sonar, and split-screen information.
- UHD ClearVü, SideVü, and traditional CHIRP – Supports multiple sonar views when paired with compatible hardware.
- Garmin Navionics+ US Inland and Coastal charts – Provides preloaded chart coverage for supported regions.

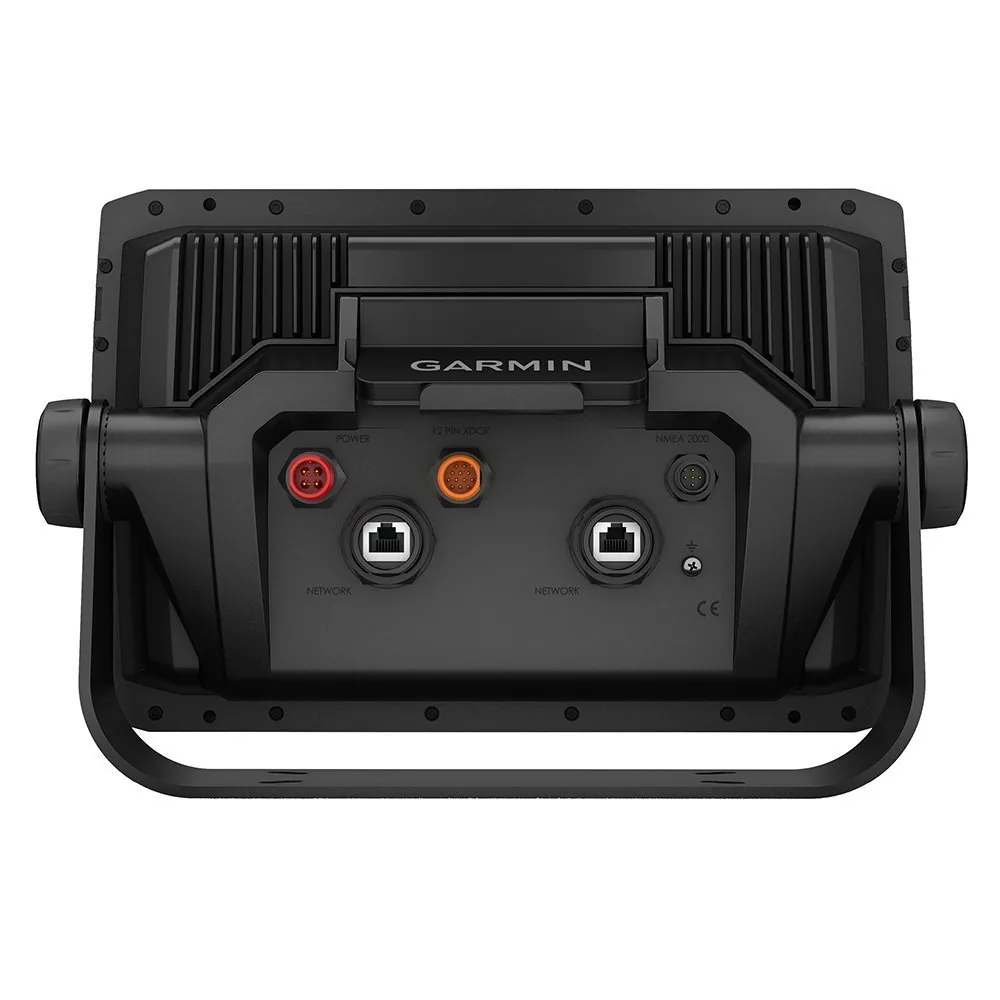

- LiveScope ready, NMEA 2000, and two Garmin Network ports – Provides listed expansion and connection options for a Garmin system.

Who Is This For?

This model suits fishing boats, center consoles, cruisers, and owners upgrading to a 10-inch Garmin display while keeping transducer selection open. Its screen size offers more viewing area than 7-inch units without the installation demand of a 12-inch display.

It is not ideal for buyers who need a complete sonar package because no transducer is included. The bundled version is more convenient for a new installation requiring the GT56UHD-TM.

Compatibility

Confirmed features include Garmin Navionics+ US Inland and Coastal charts, UHD ClearVü, SideVü, traditional CHIRP, LiveScope readiness, NMEA 2000, and two Garmin Network ports. The supplied information does not identify specific transducer models, NMEA 0183, radar, autopilot, or third-party accessory compatibility. No named incompatible system was provided; verify Garmin transducer and network requirements before installation.

Technical Specifications

- Brand: Garmin
- Model: ECHOMAP Ultra 2 106sv, 010-02884-00
- Display: 10-inch IPS touchscreen with keyed assist
- Resolution: 1280 x 800 pixels
- Preloaded charts: Garmin Navionics+ US Inland and Coastal
- Built-in sonar: UHD ClearVü, SideVü, traditional CHIRP, LiveScope ready
- Transducer: Not included
- Networking: NMEA 2000, two Garmin Network ports
- Warranty: 1-year limited warranty
- Origin: Designed in the USA; made in Taiwan

Warranty & Support

Garmin provides a 1-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The no-transducer ECHOMAP Ultra 2 106sv gives you the same 10-inch screen, regional charts, sonar platform, and LiveScope readiness as the bundle while leaving the transducer open for separate selection. That flexibility helps with a replacement or custom installation, but sonar cannot be used until compatible hardware is connected. Choose the bundle for a simpler setup; choose this model when you already have a transducer plan.
