Garmin GPSMAP 943xsv Combo GPS Fishfinder GN+ w/GT56-TM

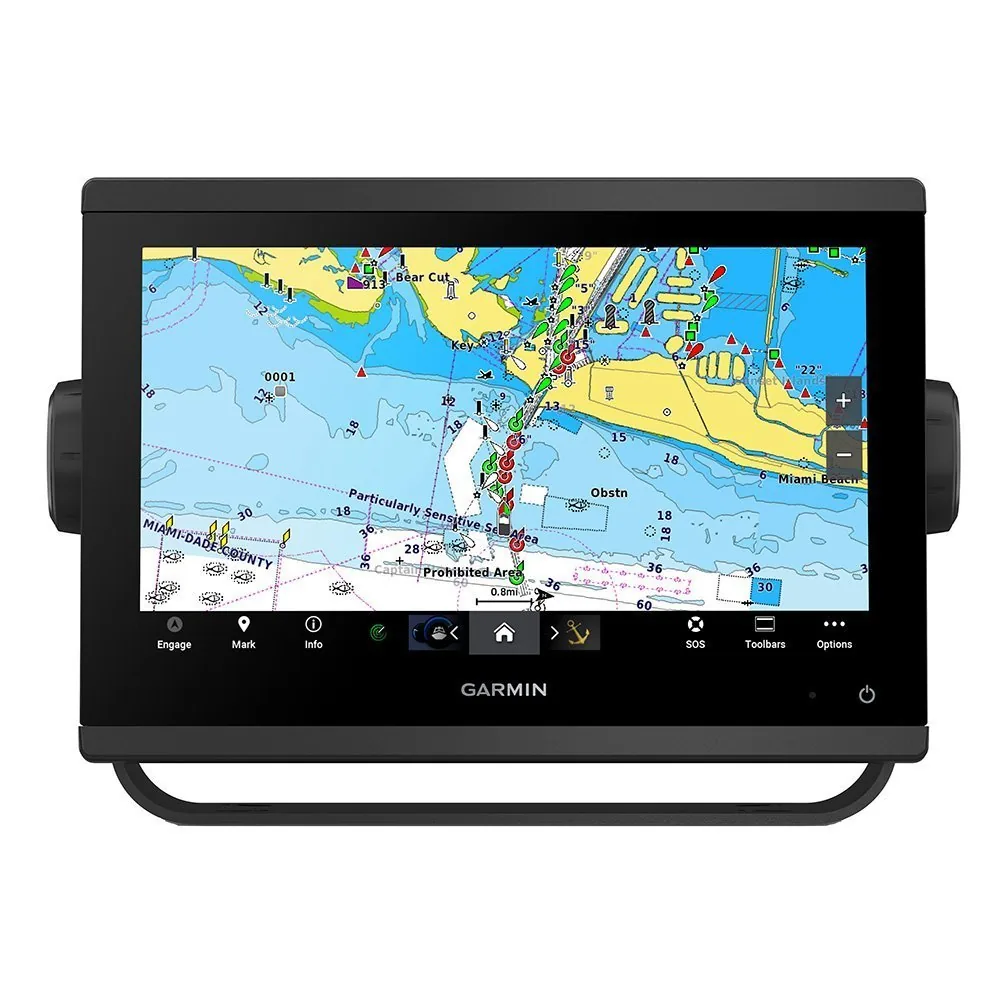

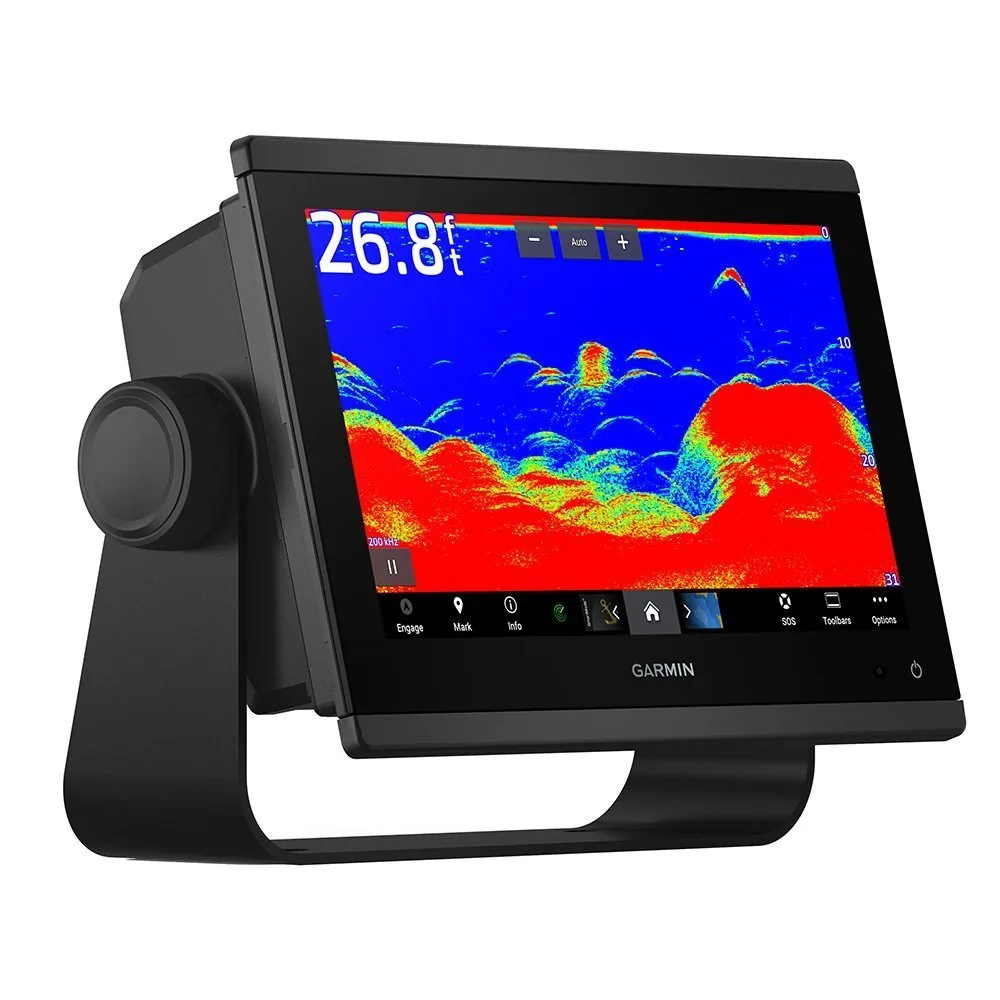

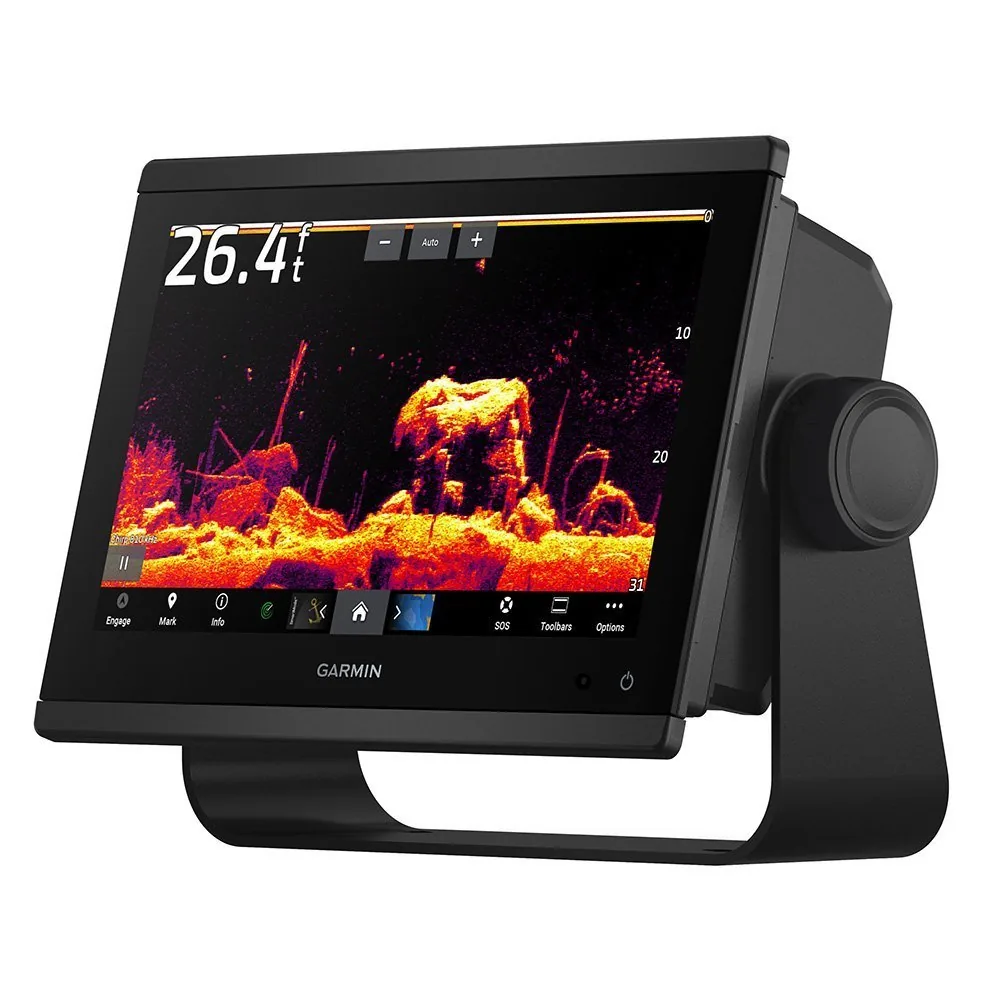

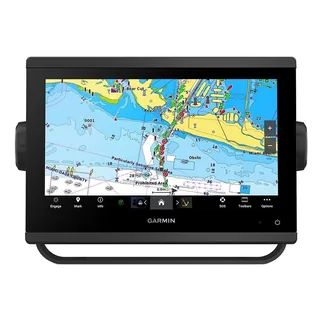

The Garmin GPSMAP 943xsv GN+ with GT56-TM combines a 9-inch high-resolution IPS touchscreen with Garmin Navionics+ coastal and inland charts for the US and Canada. The included GT56UHD-TM transducer supports UHD ClearVü, UHD SideVü, and High-Wide CHIRP, giving this package a broad sonar range in a compact helm installation. NMEA 2000, J1939, Garmin Network, and WiFi support connected boat systems.

Key Features

- 9-inch high-resolution IPS touchscreen – Provides a clear chart and sonar display without requiring the dash space of a 12-inch unit.
- 1280 x 720 resolution – Shows sharper chart labels and sonar detail than 800 x 480 displays.

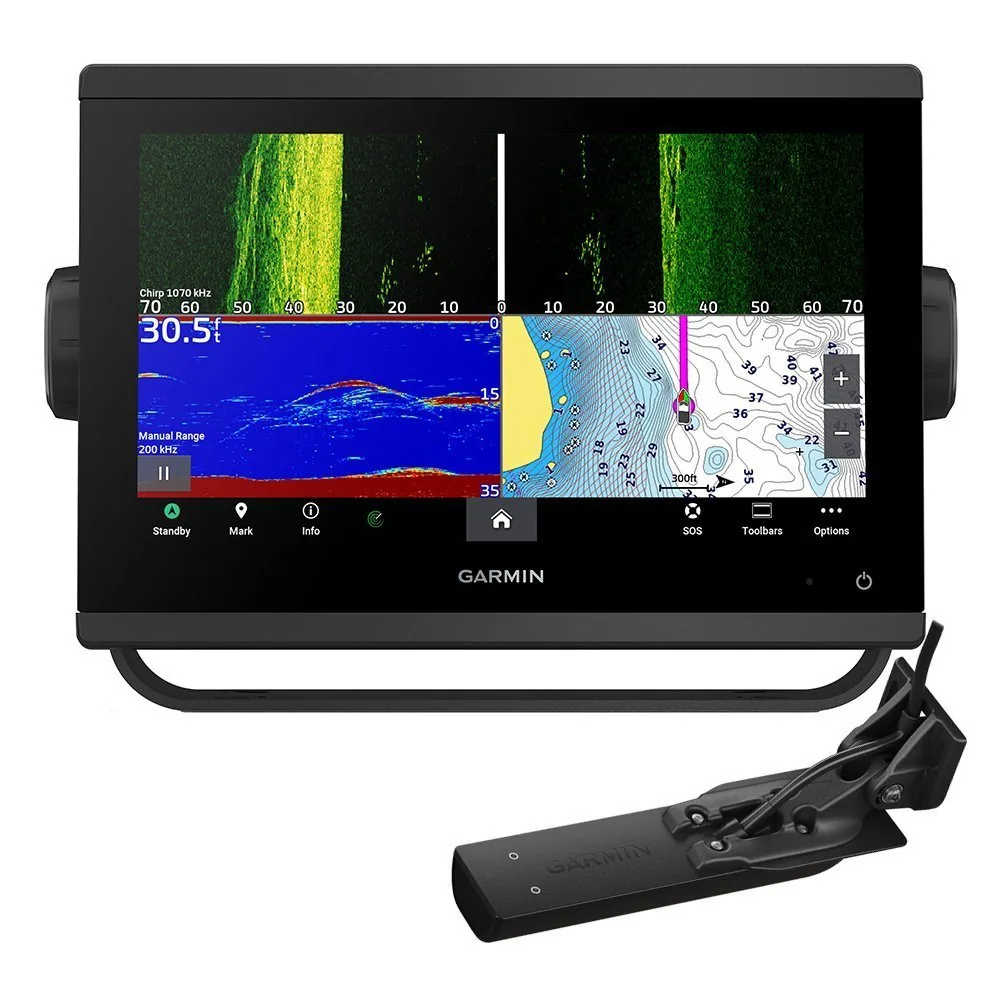

- GT56UHD-TM transducer included – Provides UHD ClearVü, UHD SideVü, and High-Wide CHIRP from the supplied transducer.
- Garmin Navionics+ US and Canada coastal and inland charts – Provides detailed regional chart coverage for supported areas.
- NMEA 2000, J1939, Garmin Network, and WiFi – Supports marine, engine-data, wired network, and wireless connections.

Who Is This For?

This bundle suits coastal fishing boats, inland fishing rigs, center consoles, and cruisers that need detailed charts and multiple sonar views in a 9-inch touchscreen. The included GT56 transducer makes it suitable for a complete new installation.

It is not ideal for a buyer who prefers physical keypad controls, or for a large helm where a 12-inch screen would be easier to view from a standing position. The GT56 transducer is also a transom-mount unit, so hull and mounting conditions must be suitable.

Compatibility

Confirmed components include the GT56UHD-TM transducer, Garmin Navionics+ coastal and inland US/Canada charts, NMEA 2000, J1939, Garmin Network, and WiFi. The supplied information does not identify NMEA 0183, autopilot, radar, or specific third-party accessory compatibility. No named incompatible system was provided; verify Garmin network and transducer requirements before installation.

Technical Specifications

- Brand: Garmin
- Model: GPSMAP 943xsv GN+, 010-02366-52
- Display: 9-inch high-resolution IPS touchscreen
- Resolution: 1280 x 720 pixels
- Transducer: GT56UHD-TM with UHD ClearVü, UHD SideVü, and High-Wide CHIRP
- Preloaded charts: Garmin Navionics+ coastal and inland US/Canada
- Networking: NMEA 2000, J1939, Garmin Network, WiFi
- Sonar support: UHD scanning sonar and 1kW traditional CHIRP
- Warranty: 2-year limited consumer warranty
- Origin: Designed in the USA; made in Taiwan

Warranty & Support

Garmin provides a 2-year limited consumer warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GPSMAP 943xsv GT56 bundle is the broader sonar choice compared with the GT23 version because its included transducer adds UHD SideVü and High-Wide CHIRP. The 9-inch 1280 x 720 touchscreen also gives a good balance between detail and installation size. Choose it for side-looking sonar and detailed regional charts; choose the GT23 bundle if Mid-band CHIRP and ClearVü are sufficient for your fishing style.
