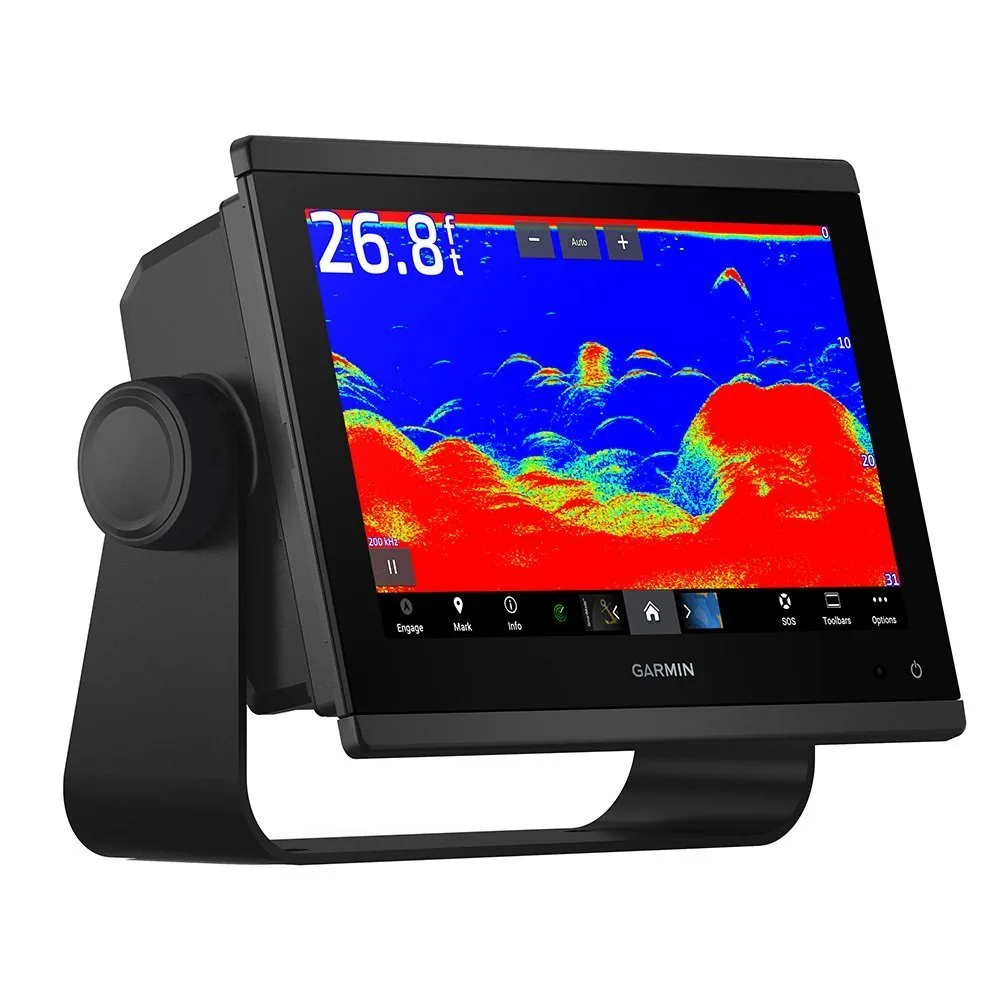

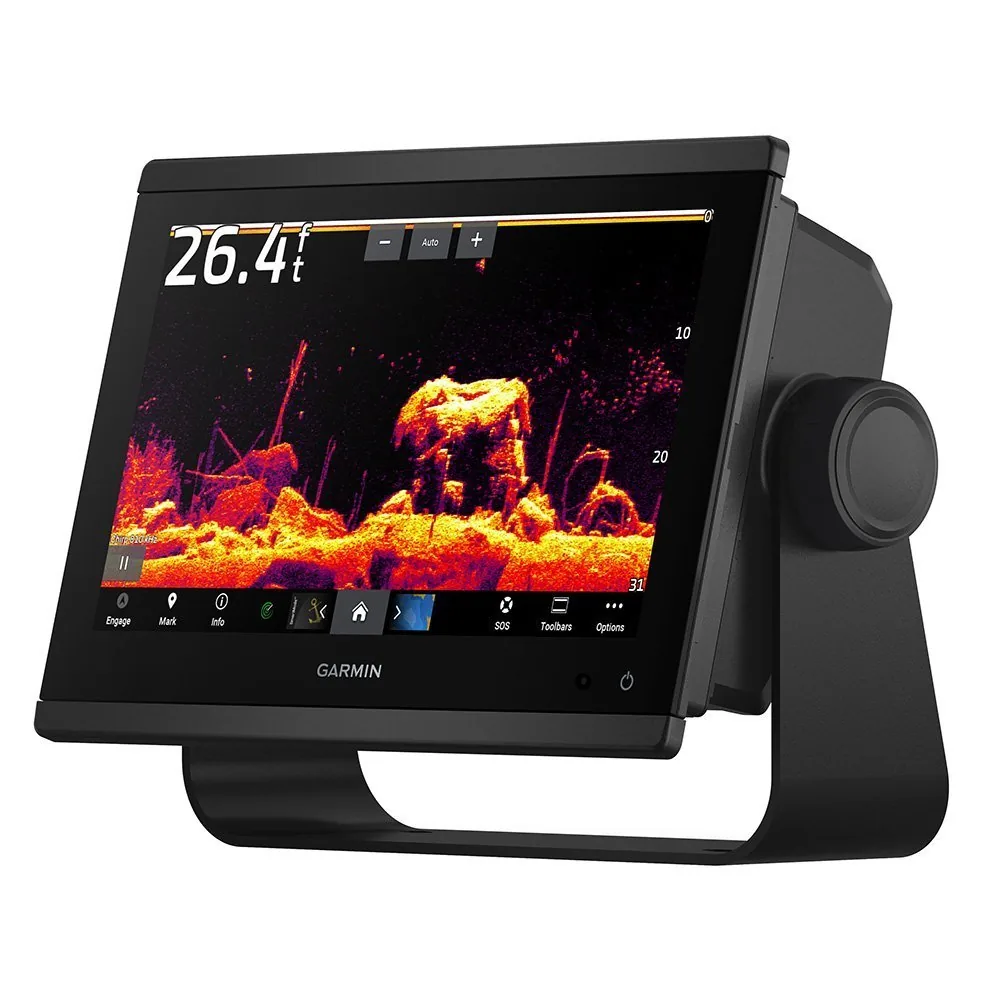

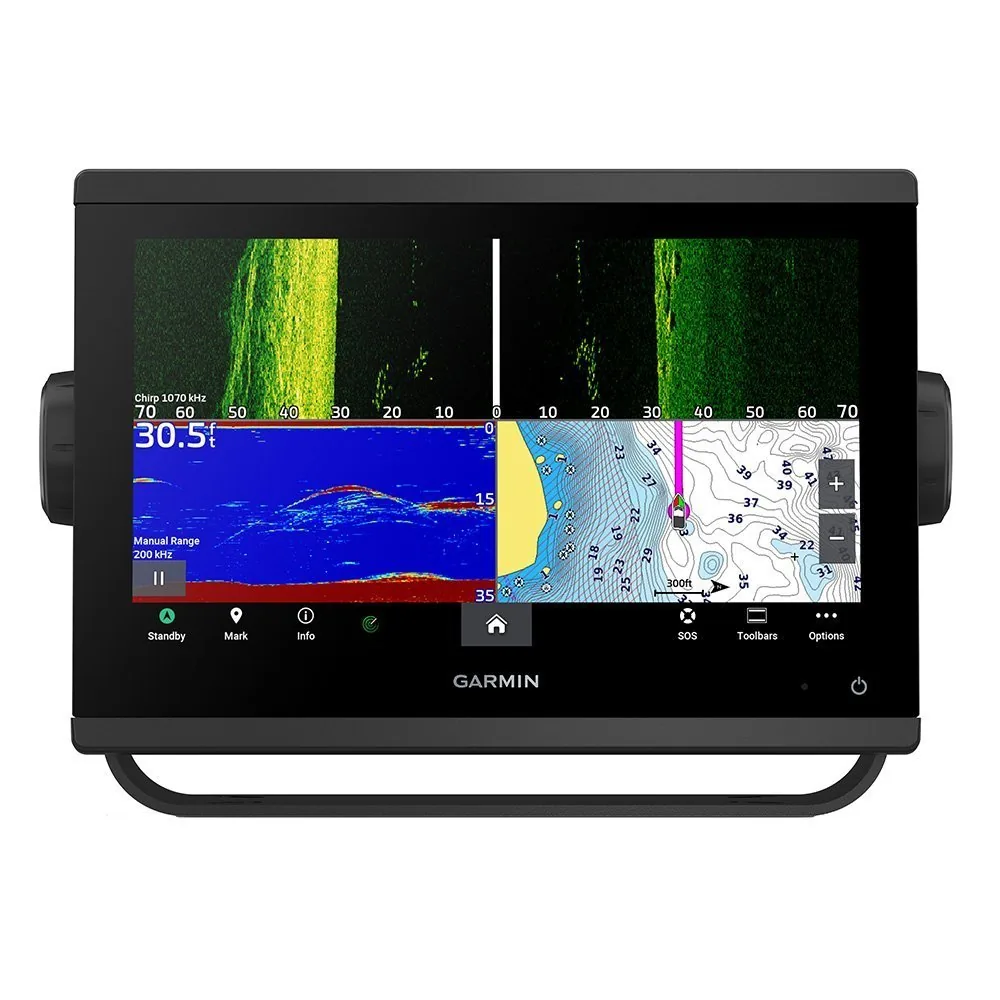

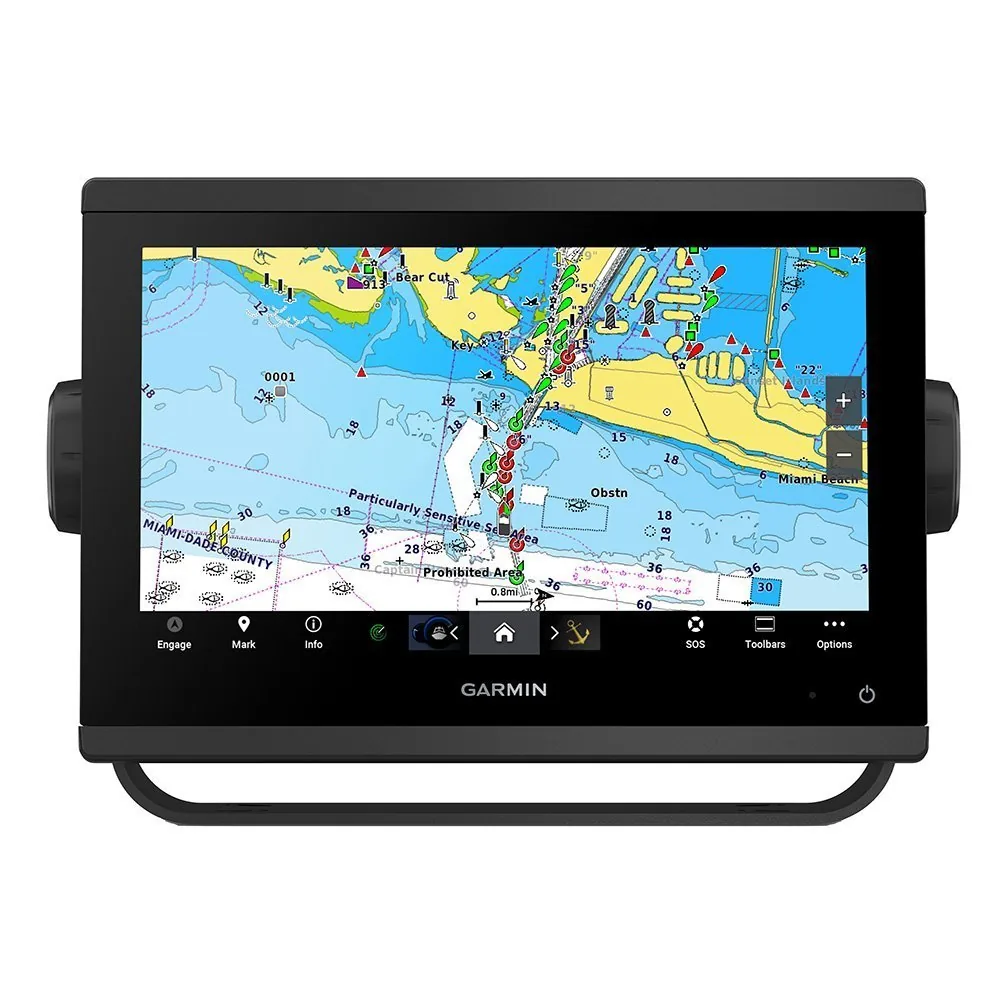

The Garmin GPSMAP 943xsv GN+ is a 9-inch high-resolution IPS touchscreen chartplotter and fishfinder with Garmin Navionics+ coastal and inland US/Canada charts, built-in 1kW CHIRP, UHD ClearVü, and UHD SideVü. No transducer is included, so this model suits a planned Garmin installation where the sonar hardware will be selected separately. NMEA 2000, J1939, Garmin Network, and WiFi support connected boat systems.

Key Features

- 9-inch high-resolution IPS touchscreen – Provides a clear chart and sonar display in a manageable helm size.
- 1280 x 720 resolution – Shows sharper chart labels and sonar detail than 800 x 480 displays.
- 1kW CHIRP, UHD ClearVü, and UHD SideVü – Supports conventional and scanning sonar with a suitable transducer.
- Garmin Navionics+ US and Canada charts – Provides preloaded coastal and inland chart coverage for supported areas.
- NMEA 2000, J1939, one Garmin Network port, and WiFi – Supports marine, engine-data, wired network, and wireless connections.

Who Is This For?

This unit suits coastal fishing boats, cruisers, center consoles, and Garmin network installations that need a 9-inch touchscreen with detailed regional charts. It is a good choice for buyers who already have a transducer plan or want to select hardware for a particular hull.

It is not ideal for buyers seeking a complete fishfinder bundle because the transducer is not included. A 12-inch display is better for a large helm where several split-screen panels must remain visible.

Compatibility

Confirmed features include Garmin Navionics+ coastal and inland US/Canada charts, NMEA 2000, J1939 port, one Garmin Network connection, WiFi, 1kW CHIRP, UHD ClearVü, and UHD SideVü. The supplied information does not identify specific transducer models, NMEA 0183, radar, autopilot, or third-party chartplotter compatibility. No named incompatible system was provided; verify Garmin network and transducer requirements before installation.

Technical Specifications

- Brand: Garmin
- Model: GPSMAP 943xsv GN+, 010-02366-50
- Display: 9-inch high-resolution IPS touchscreen
- Resolution: 1280 x 720 pixels
- Built-in sonar: 1kW CHIRP, UHD ClearVü, UHD SideVü
- Preloaded charts: Garmin Navionics+ coastal and inland US/Canada
- Transducer: Not included
- Networking: NMEA 2000, J1939 port, one Garmin Network, WiFi
- Warranty: 2-year limited consumer warranty
- Origin: Designed in the USA; made in Taiwan

Warranty & Support

Garmin provides a 2-year limited consumer warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GPSMAP 943xsv GN+ is the chart-ready alternative to the Raymarine Element 9 S and the display-only Garmin models with Worldwide Basemap. It includes detailed US and Canada charts and provides a 9-inch 1280 x 720 screen with ClearVü and SideVü support. The trade-off is the missing transducer, so buyers must still choose and verify the correct sonar hardware before installation.
