Garmin GPSMAP 923xsv Combo GPS/Fishfinder – Worldwide

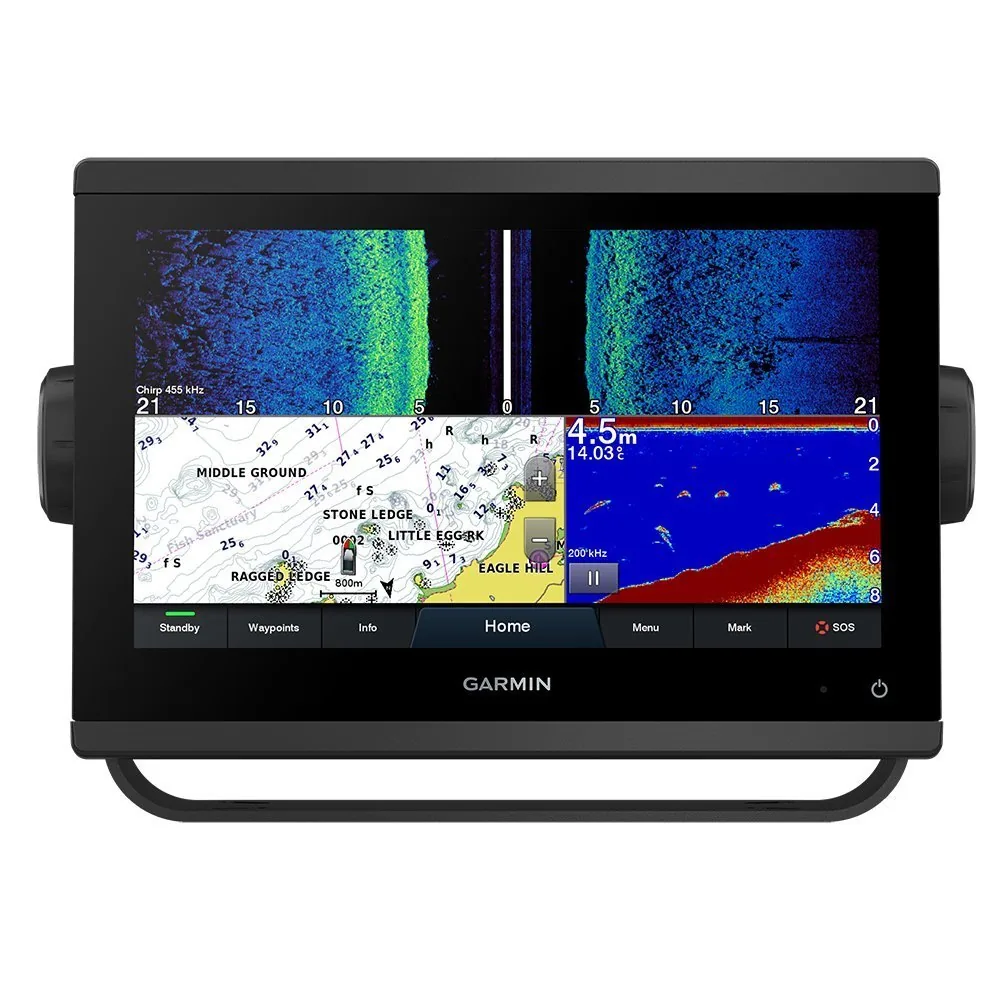

The Garmin GPSMAP 923xsv is a 9-inch high-resolution IPS touchscreen chartplotter and fishfinder with built-in 1kW CHIRP, UHD ClearVü, UHD SideVü, and a Worldwide Basemap. No transducer or regional charts are included, so this model is aimed at buyers building a Garmin system who want to choose the sonar hardware and chart coverage separately. J1939, NMEA 2000, and Garmin Network connections support connected marine installations.

Key Features

- 9-inch high-resolution IPS touchscreen – Provides a clear chart and sonar display without requiring a 12-inch helm cutout.
- 1280 x 720 resolution – Shows sharper chart labels and sonar detail than 800 x 480 displays.
- 1kW CHIRP, UHD ClearVü, and UHD SideVü – Supports conventional and scanning sonar when paired with suitable hardware.
- Worldwide Basemap – Provides basic global reference mapping, but detailed regional charts are not preloaded.
- J1939 engine port, NMEA 2000, and Garmin Network – Supports engine data, marine networking, and Garmin system expansion.

Who Is This For?

This unit suits coastal fishing boats, cruisers, and Garmin network installations that need a 9-inch touchscreen with advanced sonar processing. It is a good fit for buyers who already have a transducer plan and want to select detailed charts for their operating area.

It is not ideal for buyers who want a complete chartplotter/fishfinder package ready to use, because no transducer or regional charts are included. A bundled GPSMAP model is more convenient for a new installation.

Compatibility

Confirmed interfaces include J1939 engine port, NMEA 2000, Garmin Network, 1kW CHIRP, UHD ClearVü, and UHD SideVü. The supplied information does not identify specific compatible transducer models, NMEA 0183, radar, autopilot, or Panoptix equipment. No named incompatible system was provided; verify Garmin network, chart, and transducer requirements before installation.

Technical Specifications

- Brand: Garmin
- Model: GPSMAP 923xsv, 010-02366-03
- Display: 9-inch high-resolution IPS touchscreen
- Resolution: 1280 x 720 pixels
- Charts: Worldwide Basemap; no preloaded regional charts
- Built-in sonar: 1kW CHIRP, UHD ClearVü, UHD SideVü
- Transducer: Not included

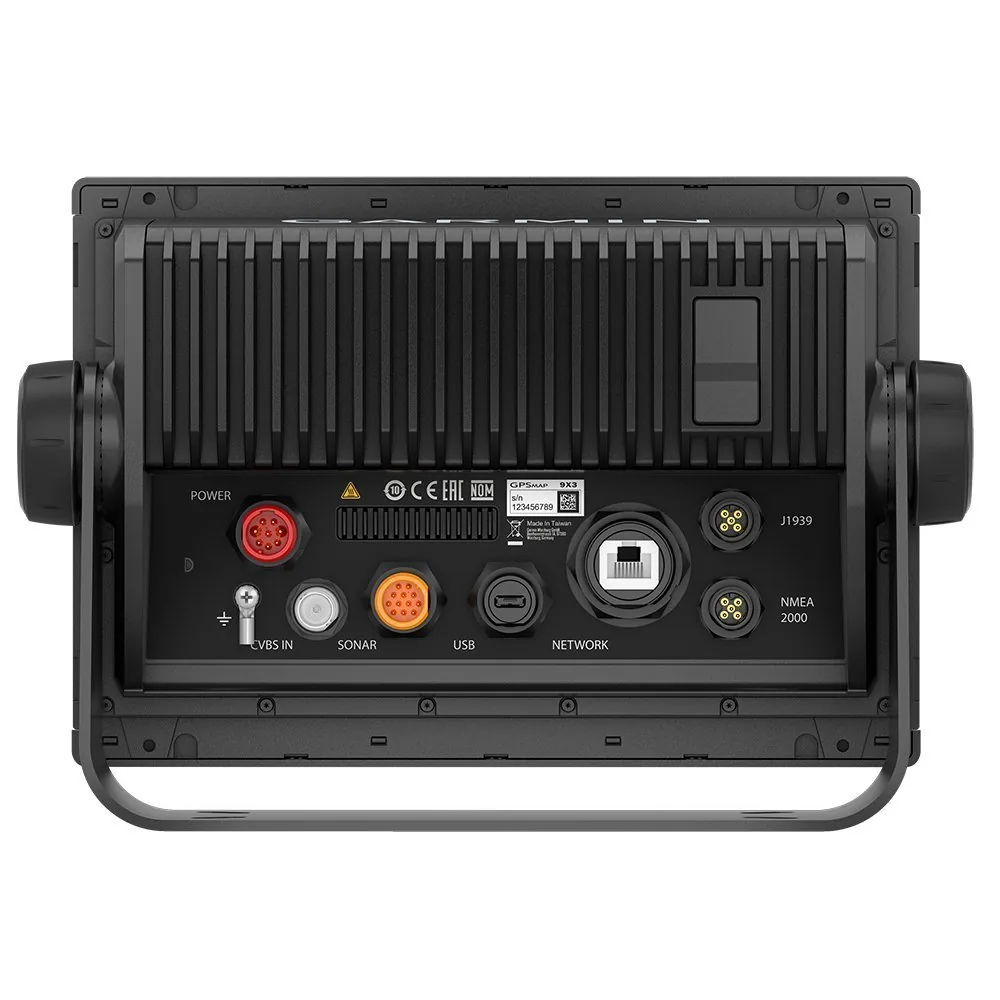

- Networking: J1939 engine port, NMEA 2000, Garmin Network
- Warranty: 2-year limited consumer warranty
- Origin: Designed in the USA; made in Taiwan

Warranty & Support

Garmin provides a 2-year limited consumer warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GPSMAP 923xsv is the flexible display-only alternative to Garmin bundles with included transducers and regional charts. Its 9-inch 1280 x 720 touchscreen, 1kW CHIRP, ClearVü, SideVü, and Garmin networking provide a strong platform for a custom installation. The trade-off is the setup work: you must add a compatible transducer and detailed chart coverage, so this model suits planned system builds rather than buyers seeking an all-in-one package.
