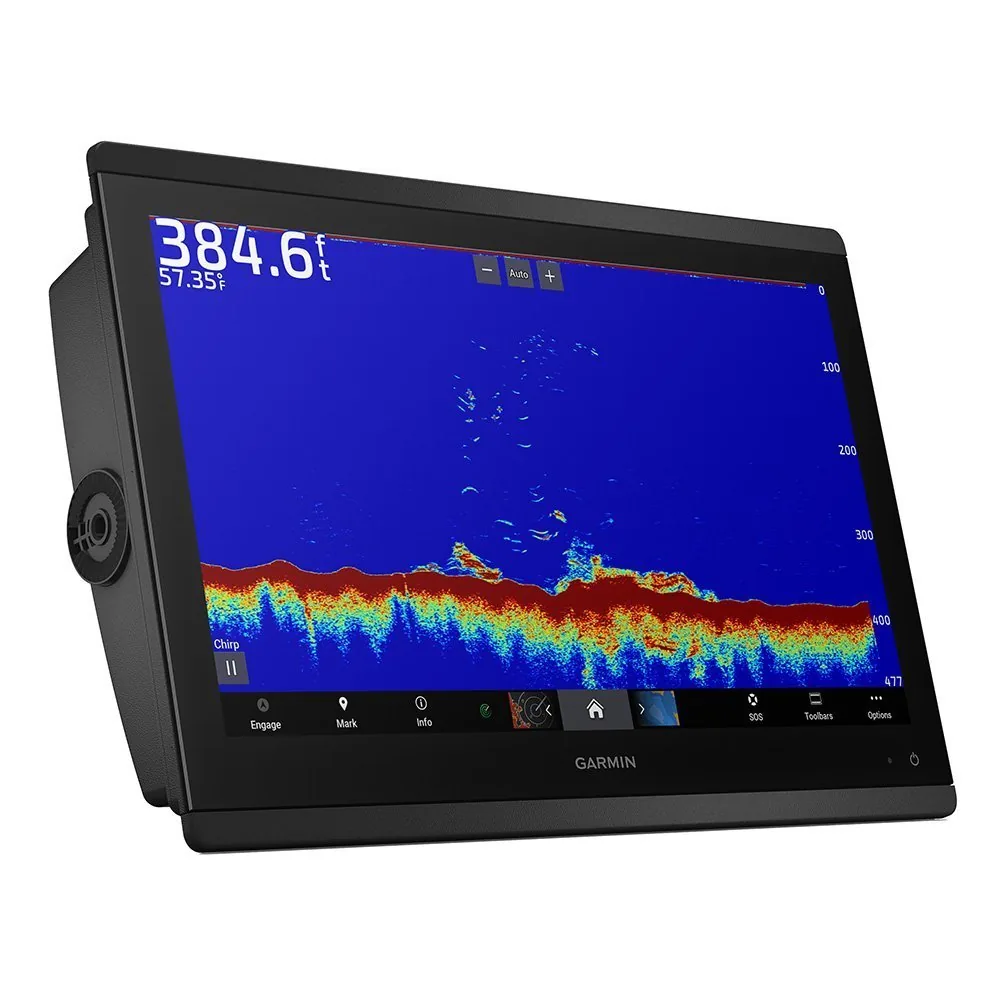

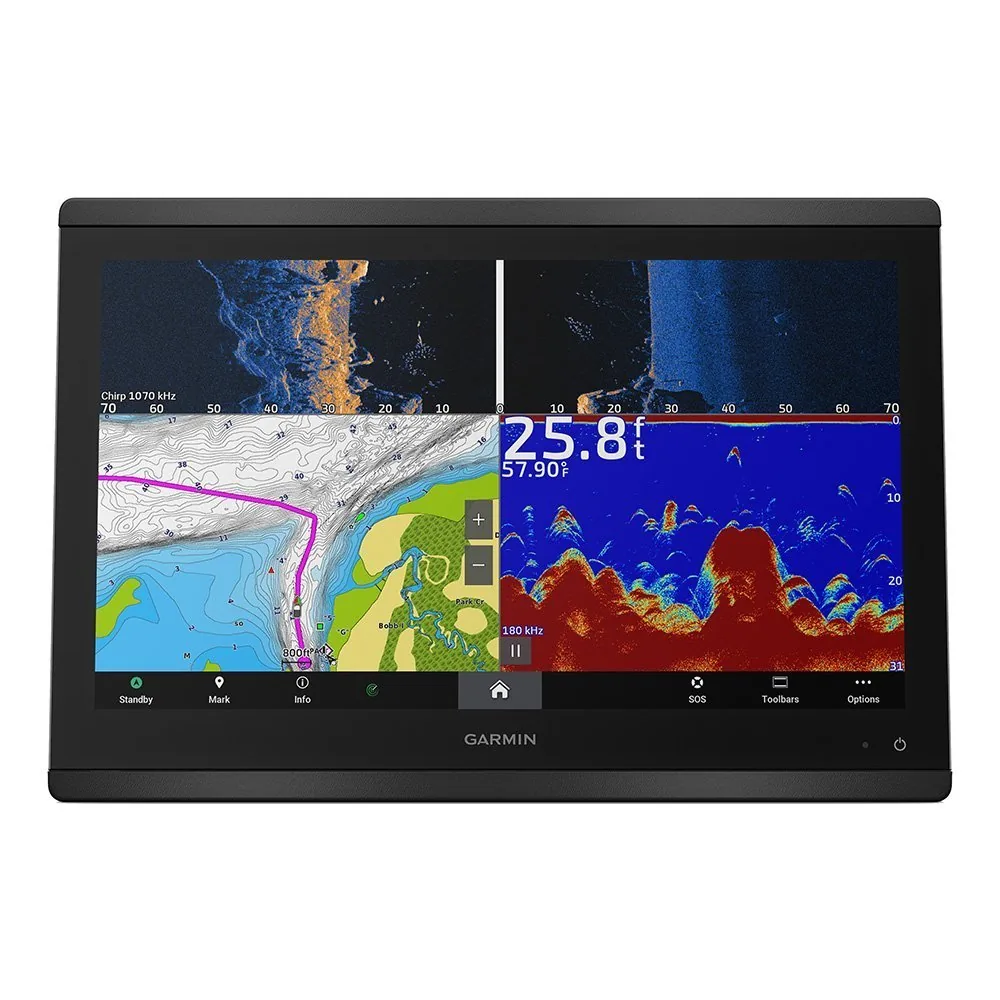

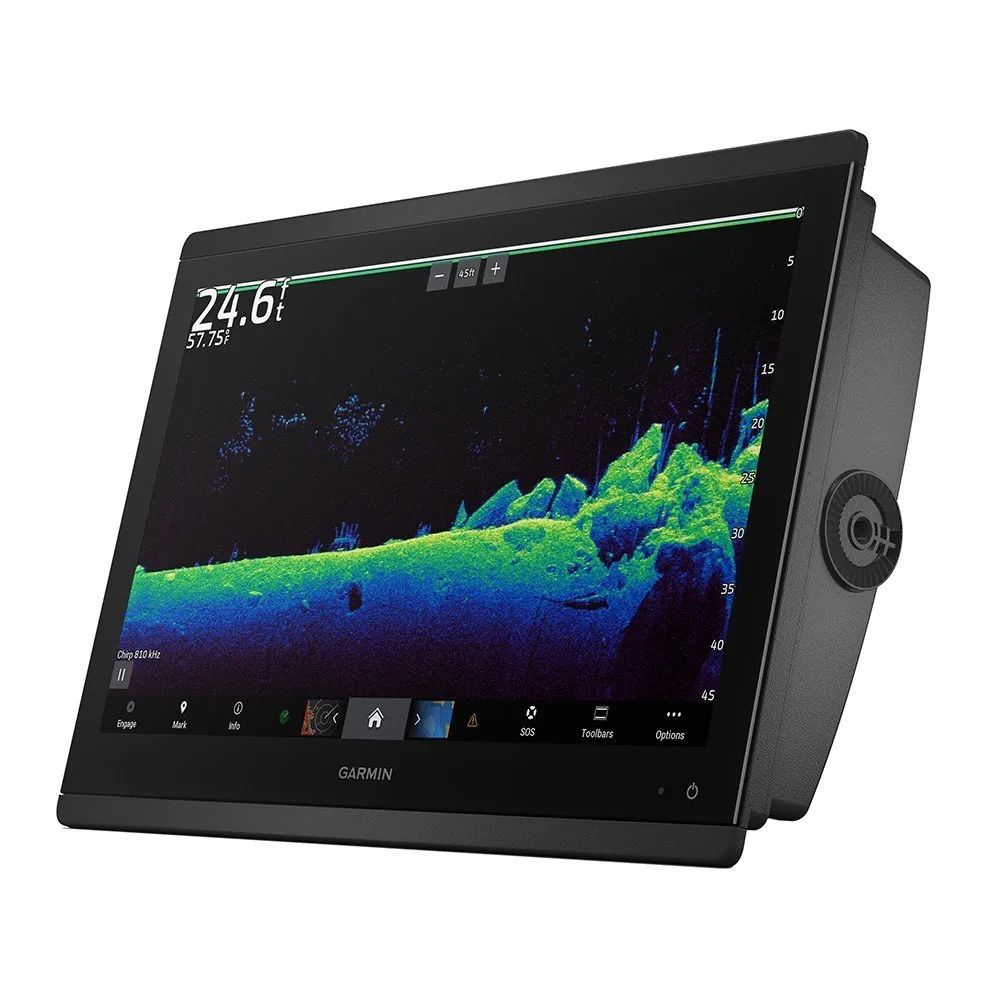

Garmin GPSMAP 8616xsv Combo GPS/Fishfinder GN+

The Garmin GPSMAP 8616xsv GN+ provides a 16-inch Full HD IPS touchscreen with Garmin Navionics+ coastal and inland charts, dual-channel 1kW CHIRP, UHD ClearVü, and UHD SideVü. No transducer is included, but NMEA 2000, J1939, Garmin Network, WiFi, and ANT+ provide a broad connection platform for a large fishing boat, cruiser, or multi-display helm.

Key Features

- 16-inch Full HD IPS touchscreen – Provides a very large workspace for charts, sonar, and split-screen system information.
- 1920 x 1080 resolution – Shows detailed mapping, sonar, and navigation data across the large display.
- Dual-channel 1kW CHIRP, UHD ClearVü, and UHD SideVü – Supports conventional and scanning sonar when paired with suitable hardware.
- Garmin Navionics+ coastal and inland charts – Provides preloaded chart coverage for supported waters.
- NMEA 2000, J1939, Garmin Network, WiFi, and ANT+ – Supports marine, engine-data, wired network, and wireless connections.

Who Is This For?

This model suits large offshore fishing boats, commercial-style helms, coastal cruisers, and multi-display installations where a 16-inch screen can be viewed comfortably. Its Full HD resolution is useful when several chart and sonar panels must remain visible.

It is not ideal for a compact console or buyers who need a complete fishfinder bundle, because the transducer is not included. A 9- or 12-inch unit is easier to install where helm space is limited.

Compatibility

Confirmed interfaces include NMEA 2000, J1939, Garmin Network, WiFi, ANT+, dual-channel 1kW CHIRP, UHD ClearVü, and UHD SideVü. The supplied information does not identify specific transducer models, NMEA 0183, radar, autopilot, or third-party chartplotter compatibility. No named incompatible system was provided; verify Garmin network and transducer requirements before installation.

Technical Specifications

- Brand: Garmin
- Model: GPSMAP 8616xsv GN+, 010-02093-52
- Display: 16-inch Full HD IPS touchscreen
- Resolution: 1920 x 1080 pixels
- Preloaded charts: Garmin Navionics+ coastal and inland
- Built-in sonar: Dual-channel 1kW CHIRP, UHD ClearVü, UHD SideVü
- Transducer: Not included

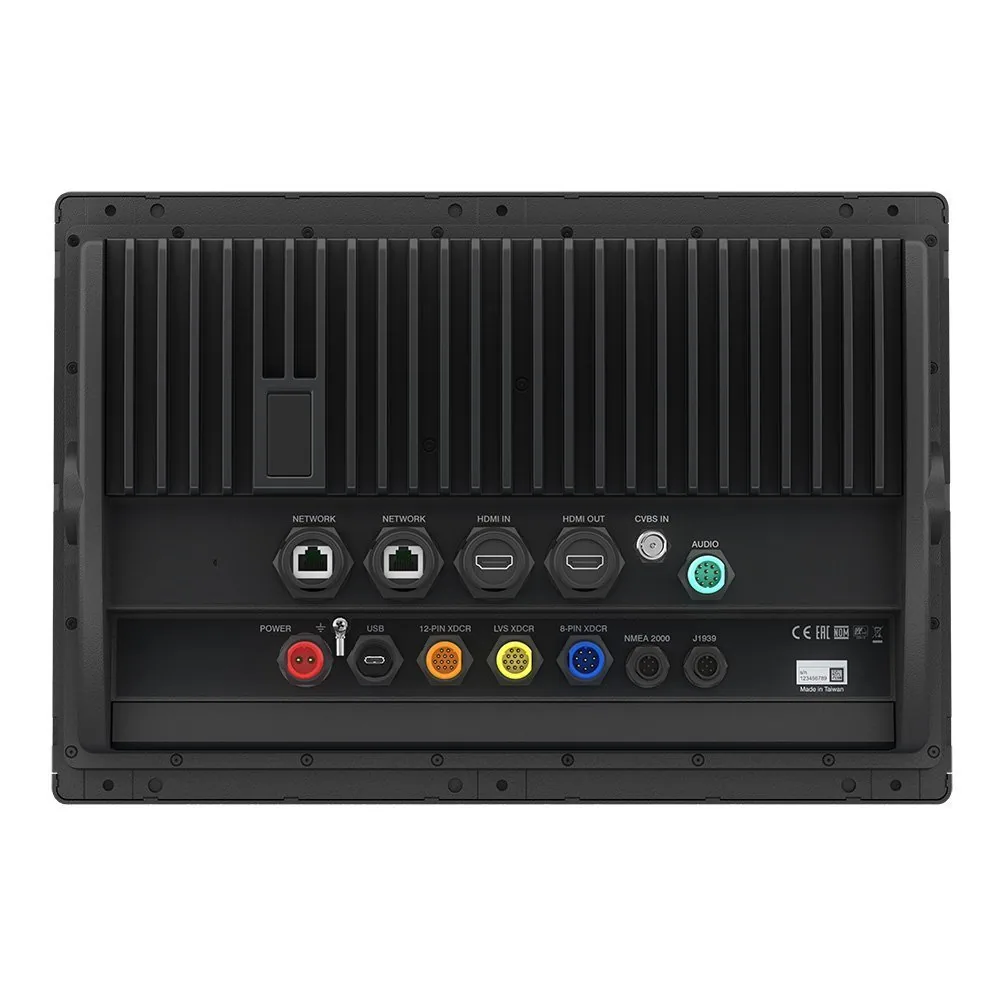

- Networking: NMEA 2000, J1939, Garmin Network, WiFi, ANT+
- Warranty: 2-year limited warranty
- Origin: Designed in the USA; made in Taiwan

Warranty & Support

Garmin provides a 2-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GPSMAP 8616xsv is the large-screen Garmin choice here, offering more viewing area than the 12-inch ECHOMAP Ultra 2 models and a sharper Full HD resolution. Its broad networking and dual-channel 1kW sonar platform suit a planned large-vessel system. The trade-off is installation size and the missing transducer, so it is not the right choice for a small boat or an out-of-the-box fishing package.
