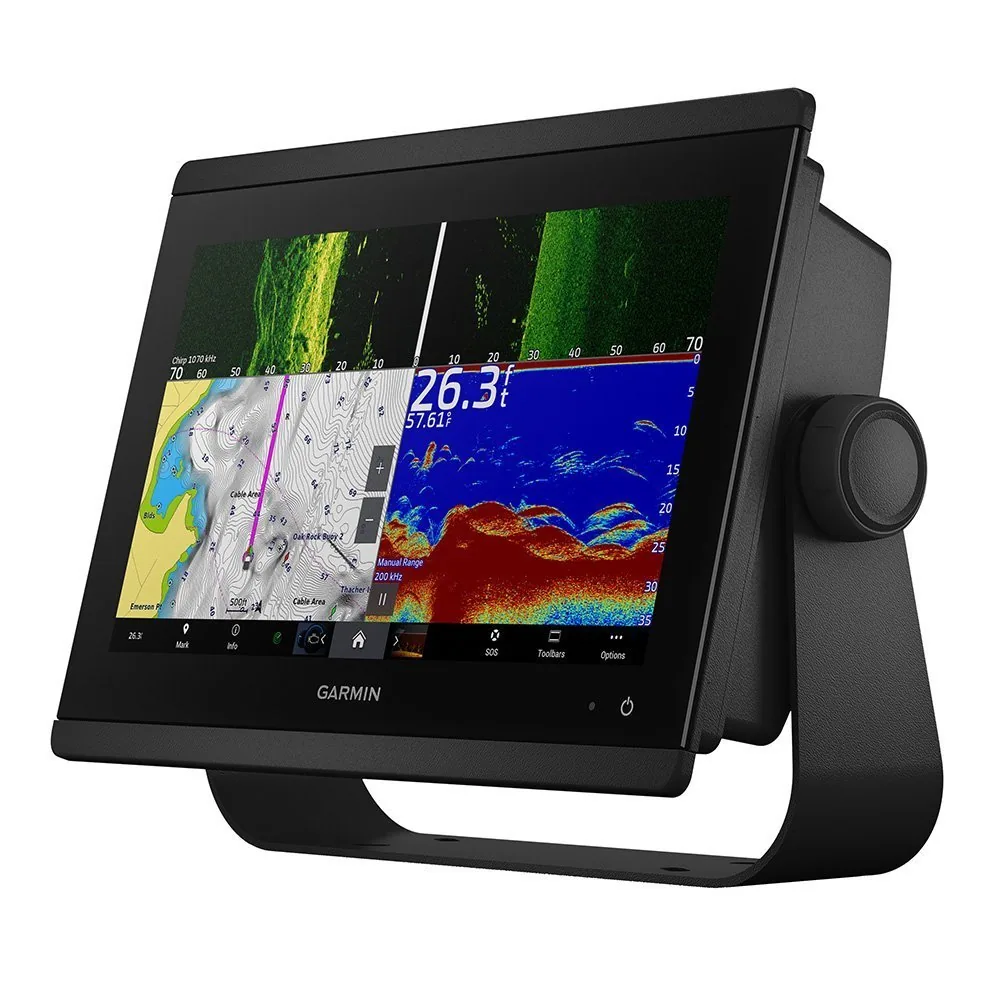

Garmin GPSMAP 8612xsv Combo GPS/Fishfinder GN+

At the helm of a larger offshore fishing boat, a 12-inch screen makes charts and sonar easier to read from a standing position. The Garmin GPSMAP 8612xsv GN+ combines a Full HD touchscreen with built-in dual-channel 1kW CHIRP, ClearVü, and SideVü sonar. It includes Garmin Navionics+ coastal and inland charts for the US and Canada, but no transducer, so the sounder installation must be planned separately.

Key Features

- 12-inch Full HD IPS touchscreen → Provides a large viewing area for charts, sonar, and split-screen information at the helm.
- 1920 x 1200 resolution → Delivers sharper chart labels and more detailed screen layouts than 1280 x 800 or 800 x 480 displays.
- Dual-channel 1kW CHIRP sonar → Supports powerful fishfinding performance when matched with a suitable transducer.
- ClearVü and SideVü sonar → Gives you downward and side-looking views for examining bottom structure and targets around the boat.

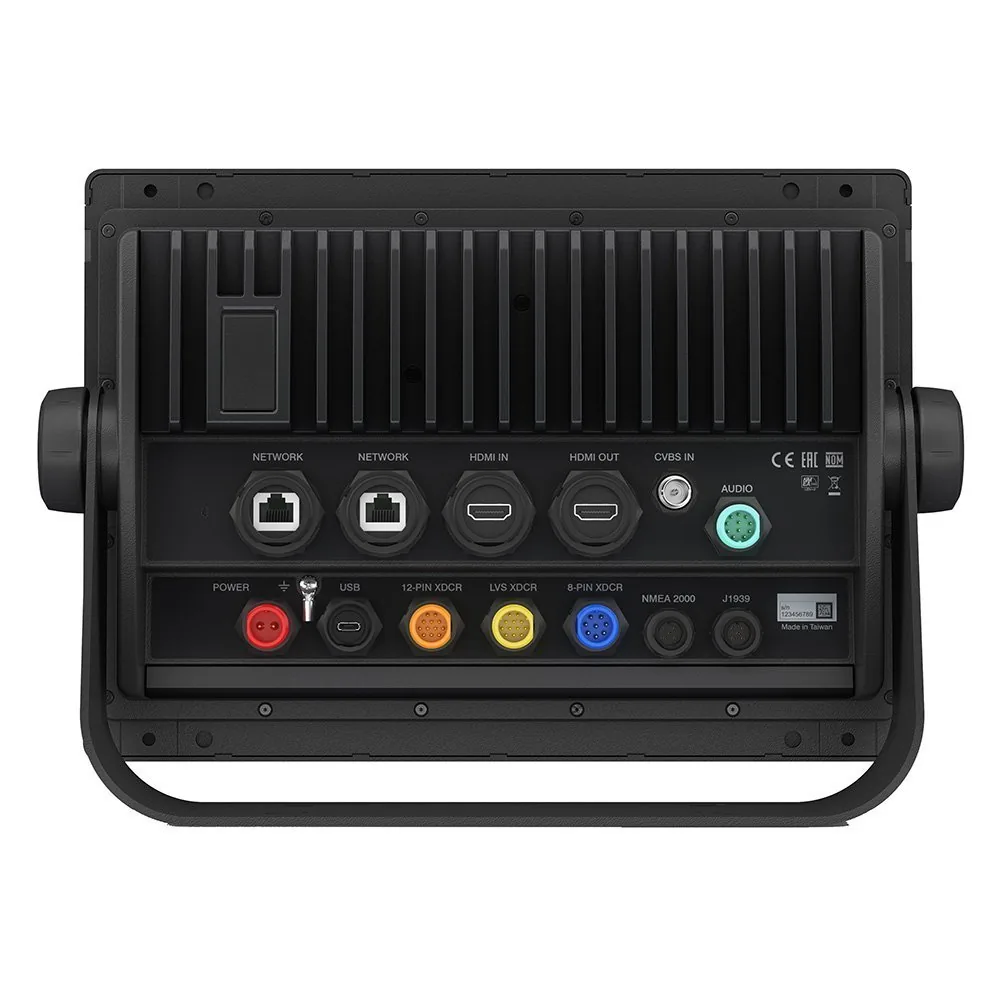

- NMEA 2000, two Garmin Network ports, WiFi, Bluetooth, and ANT → Provides several confirmed connection options for building a Garmin electronics network and sharing data wirelessly.

Who Is This For?

This GPS/fishfinder combo is suited to offshore fishing boats, larger center-consoles, coastal cruisers, and vessels with enough dash space for a 12-inch MFD. It is a good fit for Garmin owners who want a large, high-resolution display and multiple network connections.

It is not ideal for a small boat with a compact console, and it is not a complete sonar bundle because the transducer is not included. Buyers who only need a basic 7-inch display may find the physical size and installation requirements excessive.

Compatibility

Confirmed networking includes NMEA 2000, two Garmin Network ports, WiFi, Bluetooth, and ANT. The supplied specifications do not identify compatible transducer models, autopilots, or NMEA 0183 equipment. No specific incompatible system was provided, but Garmin Network connections and sonar transducers should be checked against the exact components already installed on the boat.

Technical Specifications

- Brand: Garmin
- Model: GPSMAP 8612xsv GN+, 010-02092-51
- Display: 12-inch Full HD IPS touchscreen
- Resolution: 1920 x 1200 pixels
- Built-in sonar: Dual-channel 1kW CHIRP, ClearVü, SideVü
- Preloaded charts: Garmin Navionics+ coastal and inland US/Canada
- Transducer: Not included
- Networking: NMEA 2000, two Garmin Network ports, WiFi, Bluetooth, ANT
- Warranty: 2-year limited consumer warranty
- Origin: Designed in the USA; made in Taiwan

Warranty & Support

Garmin provides a 2-year limited consumer warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GPSMAP 8612xsv is the strongest choice in this group for buyers who want a large, high-resolution Garmin display and a well-connected network platform. Its 1920 x 1200 screen gives you considerably more chart and sonar detail than the 7-inch ECHOMAP UHD2 73sv, while ClearVü and SideVü add dedicated imaging views. The trade-off is that it requires more helm space and still needs a separate transducer, unlike the bundled ECHOMAP package.
