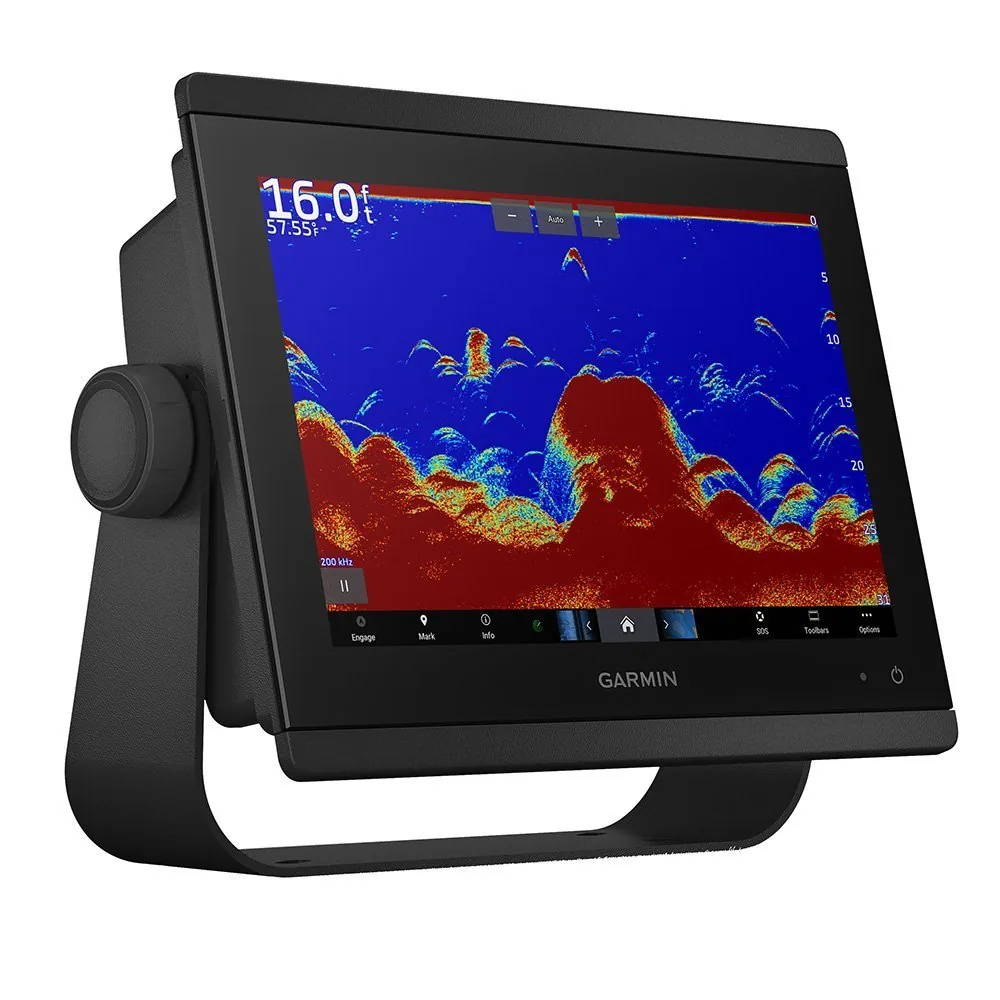

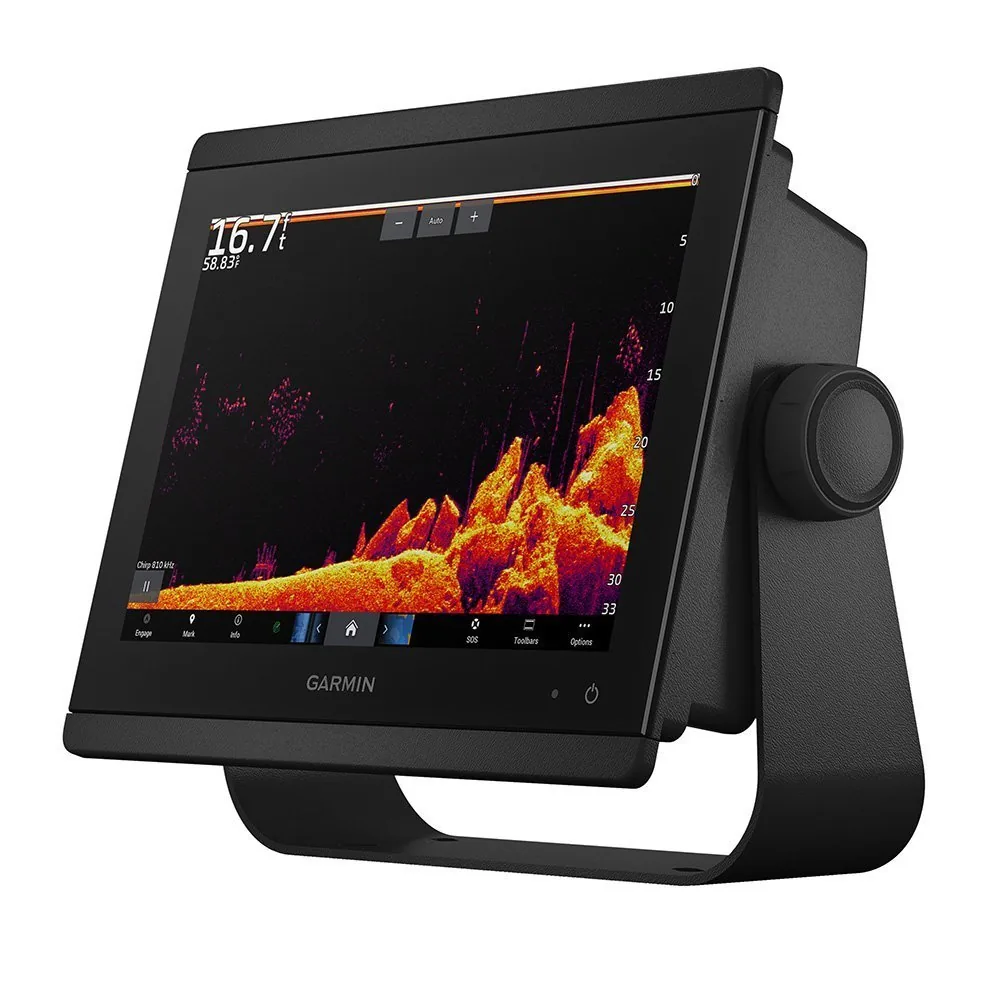

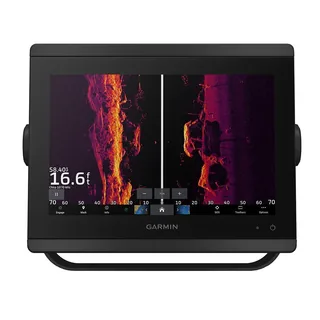

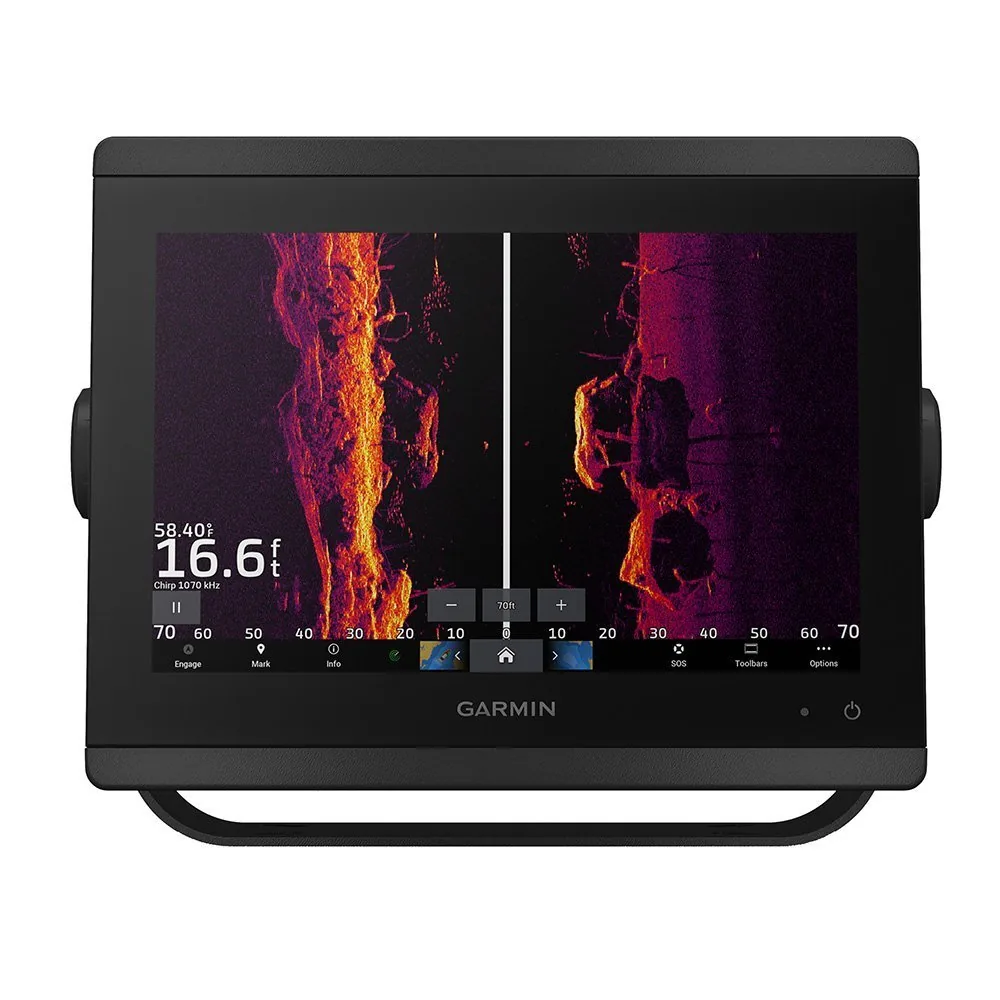

Garmin GPSMAP 8610xsv Combo GPS/Fishfinder GN+

Charts that are already loaded when you power on for the first time save a setup step a lot of buyers don’t expect to deal with. The Garmin GPSMAP 8610xsv GN+ comes preloaded with Garmin Navionics+ coastal and inland charts for the US and Canada, paired with a 10-inch Full HD display that’s noticeably roomier than the 7-to-9-inch units most anglers compare it against.

Key Features

- 10″ Full HD IPS touchscreen at 1920×1200 (WUXGA) — enough resolution to run a split-screen chart-and-sonar view without either panel feeling cramped.
- Garmin Navionics+ Coastal & Inland charts preloaded for US/Canada — no separate chart card purchase needed to start navigating out of the box.
- Dual-channel 1kW CHIRP sonar with ClearVü and SideVü — reads bottom structure and fish arches in the detail serious anglers rely on.
- Built-in Ultra High-Definition scanning — sharper down and side imaging than standard CHIRP alone, useful for picking individual fish out of a school.
- Three mounting options — bail, flat, or flush — which matters more than it sounds on boats where the helm layout doesn’t leave room for a standard bracket.

Who This Is For

This suits anglers who want the largest practical screen for a single-display helm and don’t want to buy charts separately after already paying for the unit. It’s less suited to anyone tight on dash space — a 10-inch display needs real console real estate — or to anyone building a multi-display network from day one, where a smaller unit per station usually makes more sense.

Compatibility

Confirmed compatible: NMEA 2000 devices, Garmin Marine Network (2 ports) for linking additional Garmin displays, and Wi-Fi for the Garmin app. One practical note: whether a transducer ships with this specific bundle varies by listing — confirm that detail before checkout rather than assuming it’s included, since the xsv sonar engine needs a compatible transducer connected to function.

Technical Specifications

- Display: 10″ Full HD IPS touchscreen, 1920×1200 (WUXGA)
- Charts: Garmin Navionics+ Coastal & Inland, US/Canada, preloaded
- Sonar: Dual-channel 1kW CHIRP, ClearVü, SideVü, UHD scanning

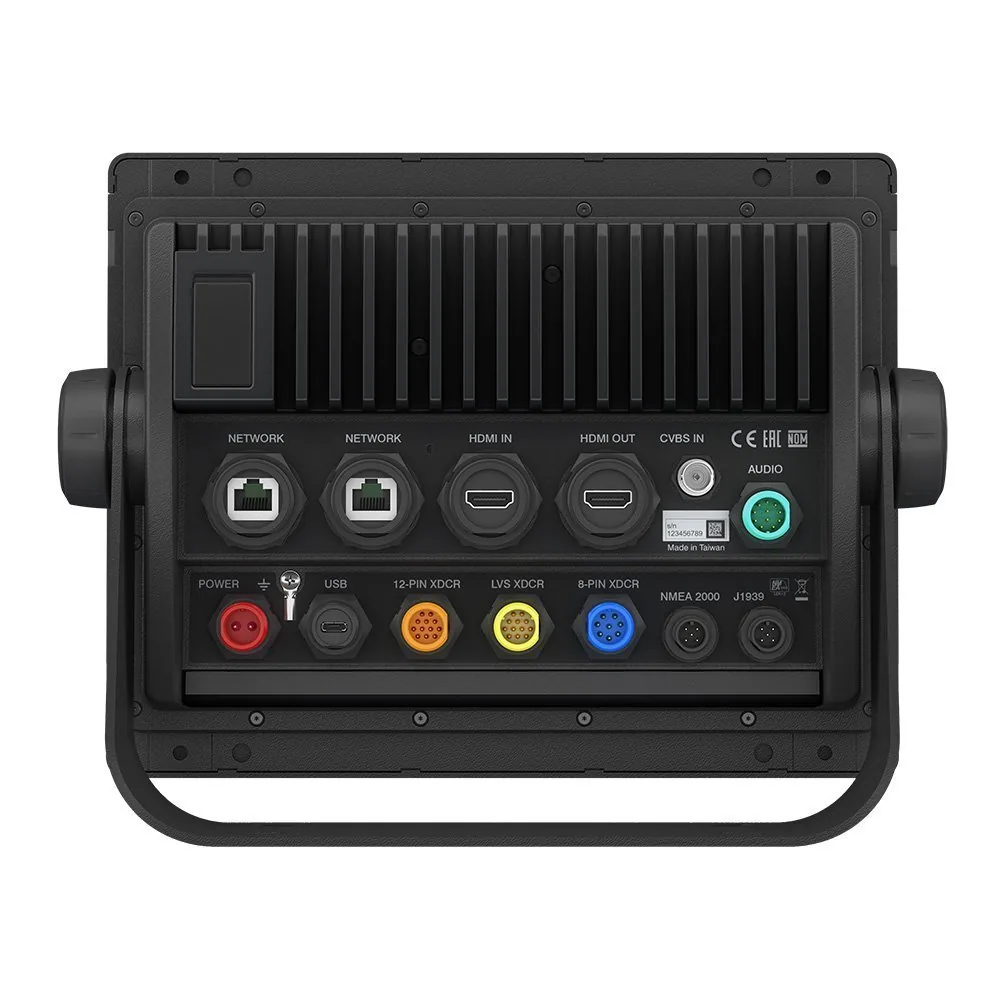

- Networking: NMEA 2000, 2x Garmin Marine Network ports, Wi-Fi
- Mounting: Bail, flat, or flush mount
- Water rating: IPX7

Warranty & Support

Covered under Garmin’s Standard Marine Consumer Limited Warranty — 2 years from purchase for owner-installed units, repaired or replaced at Garmin’s discretion.

Against the Elite FS 7, the trade is screen size and preloaded charts versus console space — the 8610xsv wants a bigger dash. Against the Axiom 2 Pro 9, the difference is chart-out-of-the-box convenience versus the deeper expansion ecosystem Raymarine offers. If preloaded charts and maximum screen size matter more to you than modular expansion, this is the one built around that priority.
