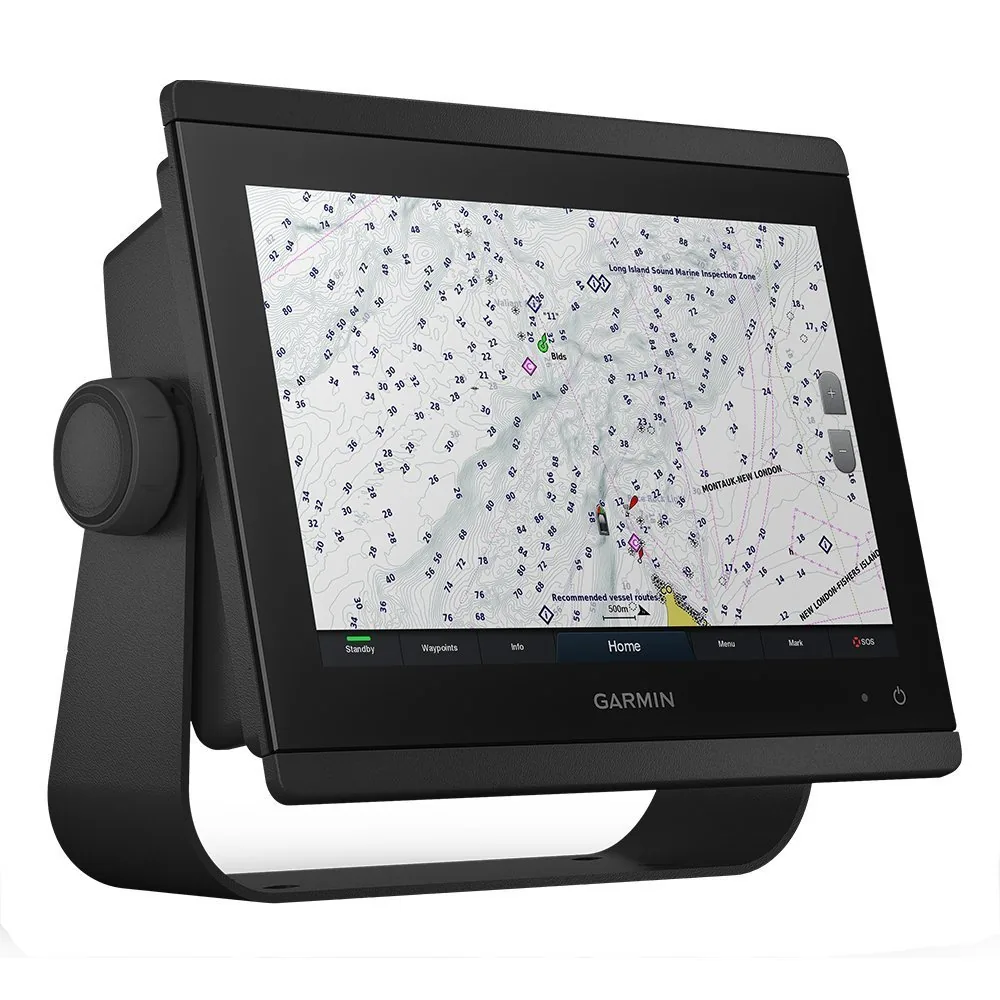

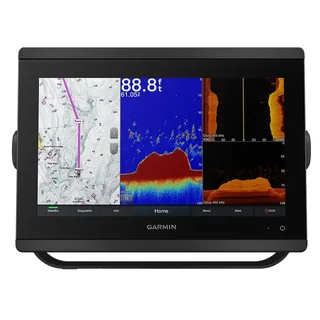

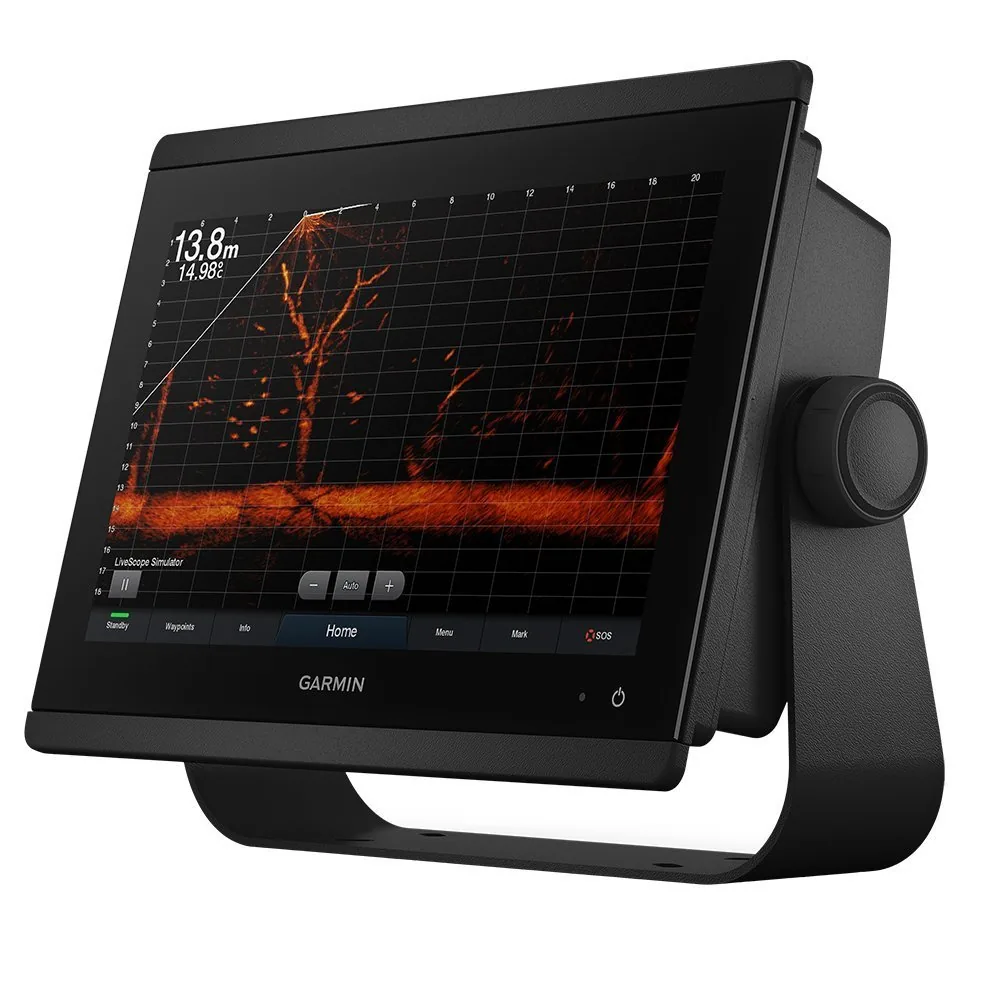

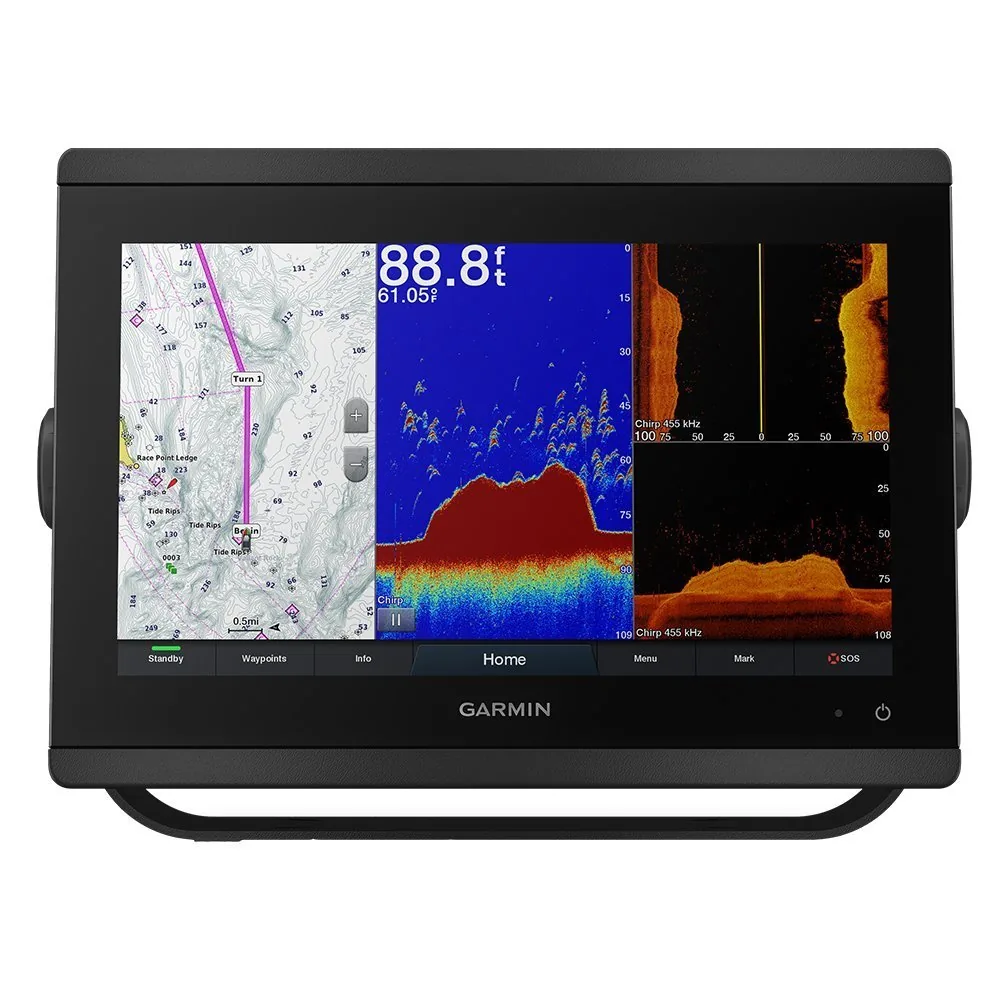

Garmin GPSMAP 8412xsv 12 Chartplotter/Sounder Combo w/Worldwide Basemap & Sonar

The Garmin GPSMAP 8412xsv is a 12-inch Full HD IPS touchscreen chartplotter and sounder with dual-channel 1kW CHIRP, ClearVü, and SideVü sonar processing. It includes a Worldwide Basemap rather than detailed regional charts, and no transducer is included. NMEA 2000, J1939, dual Garmin Network ports, WiFi, and ANT+ support a connected Garmin installation for larger boats.

Key Features

- 12-inch Full HD IPS touchscreen – Provides a large workspace for charts, sonar, and split-screen data.
- 1920 x 1200 resolution – Delivers sharper mapping and sonar detail than 1280 x 800 and 800 x 480 displays.
- Dual-channel 1kW CHIRP, ClearVü, and SideVü – Supports conventional and scanning sonar when paired with suitable hardware.
- Worldwide Basemap – Provides basic global reference mapping, but detailed regional charts are not listed.
- NMEA 2000, J1939, two Garmin Network ports, WiFi, and ANT+ – Supports marine, engine-data, wired network, and wireless connections.

Who Is This For?

This unit suits offshore fishing boats, coastal cruisers, larger center consoles, and multi-display Garmin installations where a 12-inch Full HD screen is useful. Its network connections make it suitable for a planned marine electronics system.

It is not ideal for small boats with limited dash space or buyers who need a ready-to-use chart and sonar package. The Worldwide Basemap is not detailed regional chart coverage, and the transducer must be selected separately.

Compatibility

Confirmed interfaces include NMEA 2000, J1939, two Garmin Network ports, WiFi, ANT+, dual-channel 1kW CHIRP, ClearVü, and SideVü. The supplied information does not identify specific transducer models, NMEA 0183, radar, autopilot, or third-party chartplotter compatibility. No named incompatible system was provided; verify Garmin network, chart, and transducer requirements before installation.

Technical Specifications

- Brand: Garmin
- Model: GPSMAP 8412xsv, 010-02092-02
- Display: 12-inch Full HD IPS touchscreen
- Resolution: 1920 x 1200 pixels
- Preloaded charts: Worldwide Basemap
- Built-in sonar: Dual-channel 1kW CHIRP, ClearVü, SideVü
- Transducer: Not included

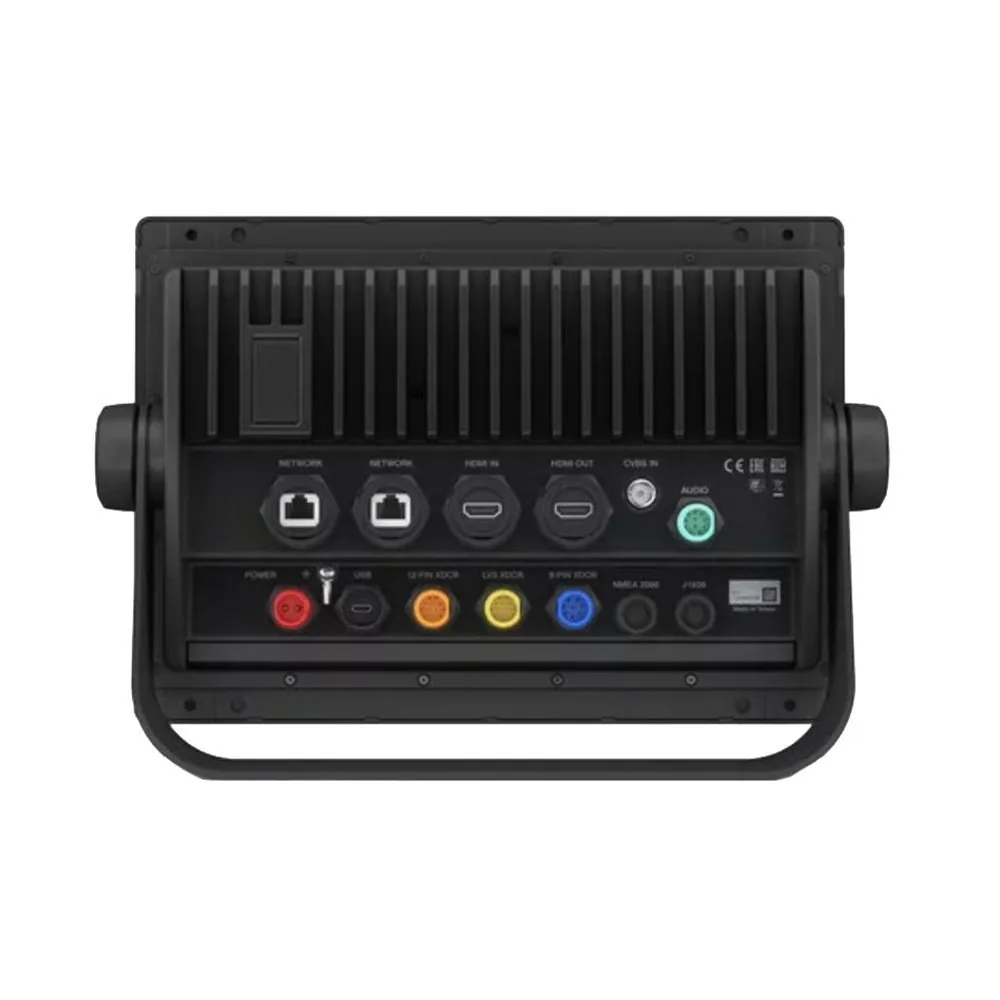

- Networking: NMEA 2000, J1939, two Garmin Network ports, WiFi, ANT+
- Warranty: 2-year limited consumer warranty
- Origin: Designed in the USA; made in Taiwan

Warranty & Support

Garmin provides a 2-year limited consumer warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GPSMAP 8412xsv is the largest and highest-resolution display in this group, making it the better choice for a larger helm and frequent split-screen use. Its dual-channel 1kW CHIRP, ClearVü, SideVü, and broad Garmin networking provide a strong system platform. The trade-off is the incomplete navigation package: detailed charts and a compatible transducer must be added separately, so it suits a planned installation rather than a ready-to-fish bundle.
