Garmin GPSMAP 8410xsv 10 Chartplotter/Sounder Combo w/Worldwide Basemap

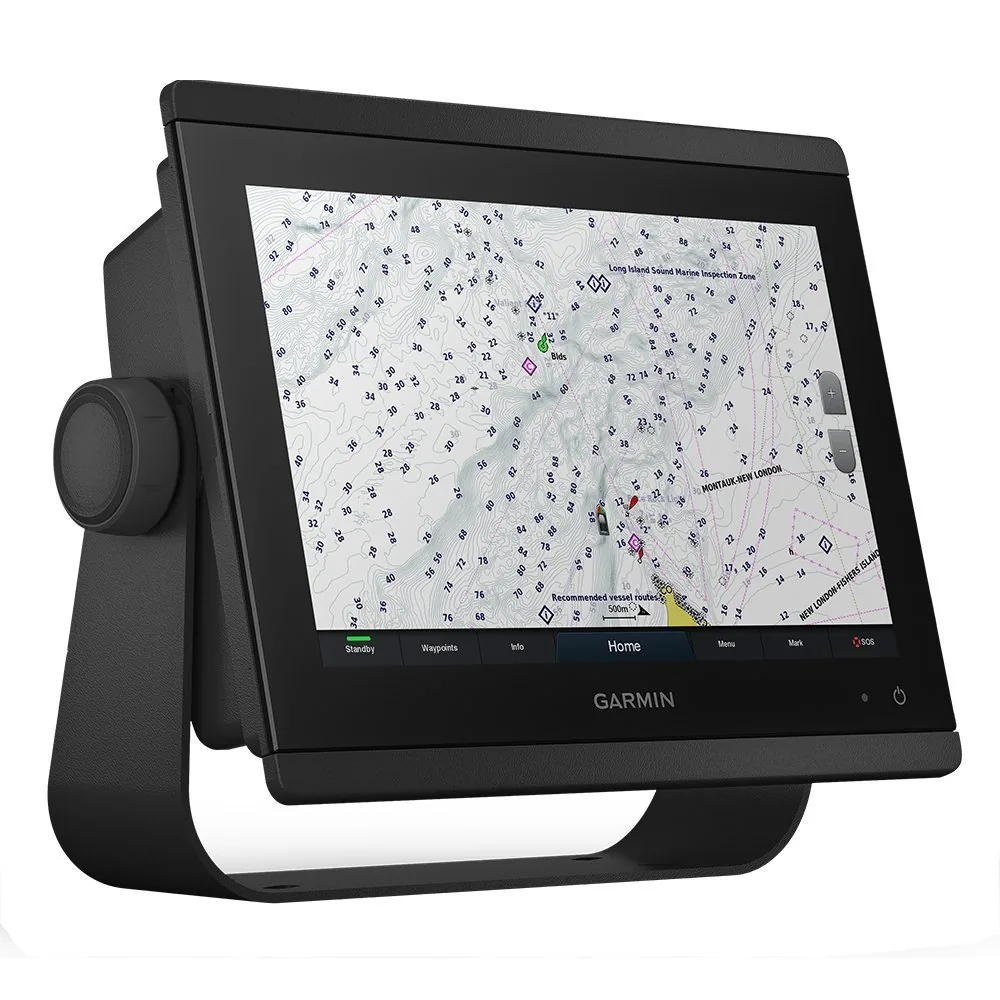

The Garmin GPSMAP 8410xsv combines a 10-inch IPS touchscreen with 1920 x 1200 WUXGA resolution, a dual-channel 1kW CHIRP sounder, UHD ClearVü, and UHD SideVü. It includes a Worldwide Basemap but no transducer, making it suited to buyers building a Garmin system who want a high-resolution display and broad network connections. Two Garmin Network ports, NMEA 2000, J1939, WiFi, and ANT+ support a connected installation.

Key Features

- 10-inch IPS touchscreen – Provides a clear chart and sonar workspace for a mid-size helm.
- 1920 x 1200 WUXGA resolution – Shows sharper chart and sonar detail than 1280 x 800 and 800 x 480 displays.
- Dual-channel 1kW CHIRP, UHD ClearVü, and UHD SideVü – Supports conventional and scanning sonar when paired with suitable hardware.
- Worldwide Basemap – Provides basic global reference mapping, but detailed regional charts are not included.
- Two Garmin Network ports, NMEA 2000, J1939, WiFi, and ANT+ – Supports marine, engine-data, wired, and wireless connections.

Who Is This For?

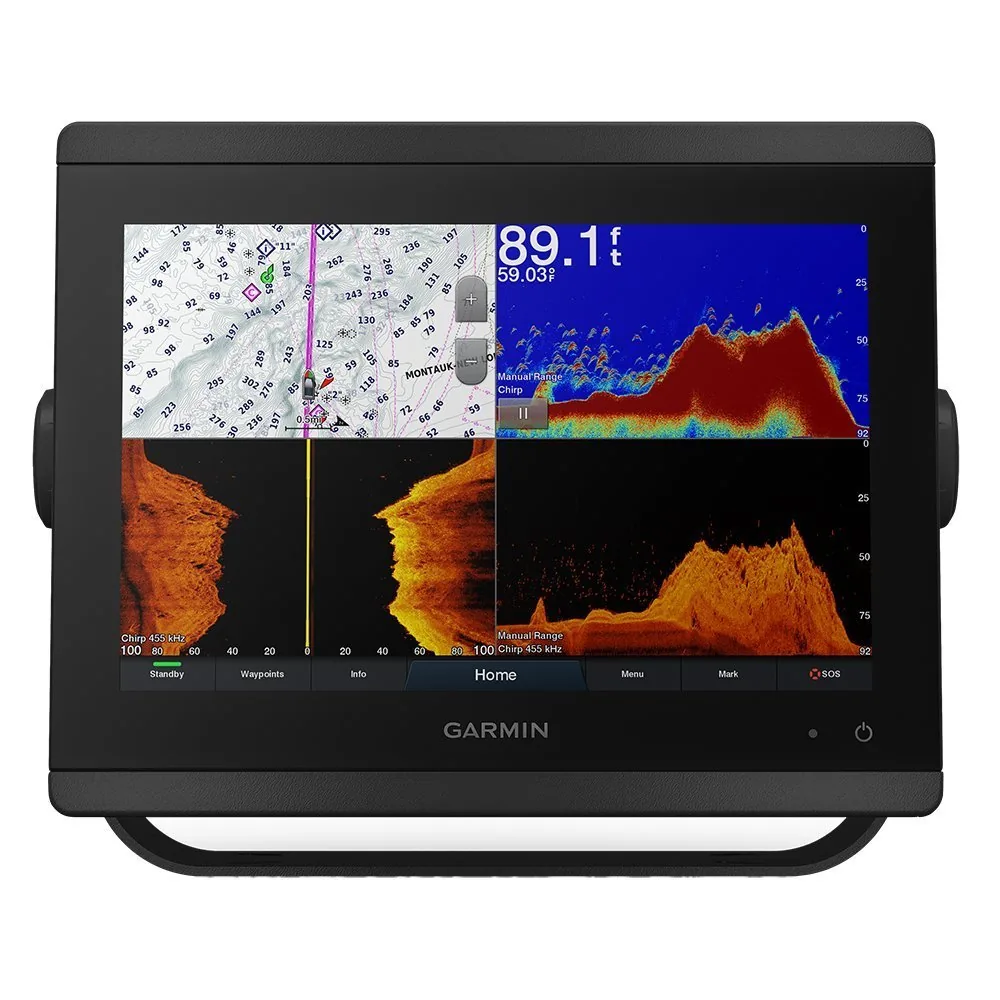

This unit suits offshore fishing boats, coastal cruisers, larger center consoles, and Garmin multi-display installations that benefit from a high-resolution 10-inch screen. Its WUXGA resolution is useful when chart and sonar views are displayed together.

It is not ideal for a compact console or buyers seeking a complete ready-to-fish package. The Worldwide Basemap is not detailed regional chart coverage, and no transducer is included.

Compatibility

Confirmed interfaces include two Garmin Network ports, NMEA 2000, J1939, WiFi, ANT+, dual-channel 1kW CHIRP, UHD ClearVü, and UHD SideVü. The supplied information does not identify specific transducer models, NMEA 0183, radar, autopilot, or third-party chartplotter compatibility. No named incompatible system was provided; verify Garmin network, chart, and transducer requirements before installation.

Technical Specifications

- Brand: Garmin
- Model: GPSMAP 8410xsv, 010-02091-02
- Display: 10-inch IPS touchscreen
- Resolution: 1920 x 1200 WUXGA
- Preloaded charts: Worldwide Basemap
- Built-in sonar: Dual-channel 1kW CHIRP, UHD ClearVü, UHD SideVü
- Transducer: Not included

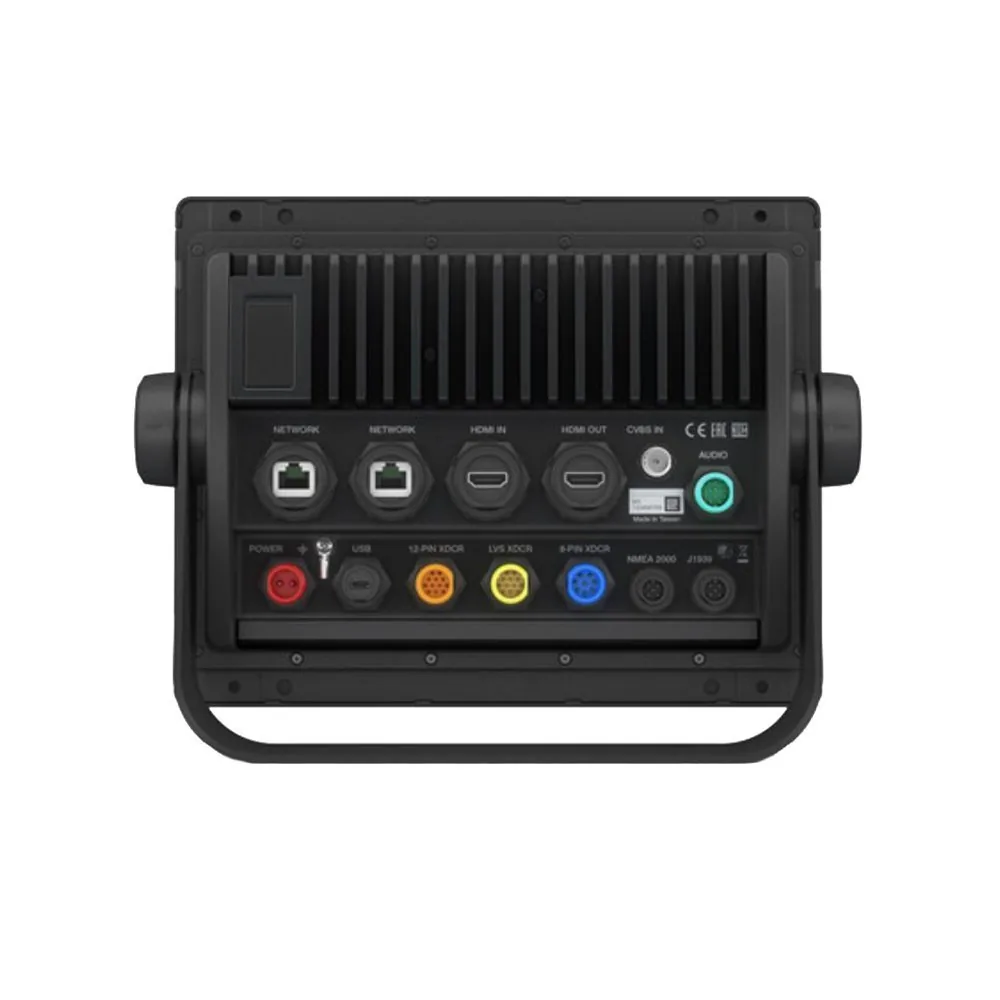

- Networking: Two Garmin Network ports, NMEA 2000, J1939, WiFi, ANT+
- Warranty: 2-year limited warranty
- Origin: Designed in the USA; made in Taiwan

Warranty & Support

Garmin provides a 2-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GPSMAP 8410xsv is the high-resolution display choice compared with the 9-inch Simrad NSX 3009, offering considerably more pixels for chart and sonar work. Its dual-channel 1kW sounder and broad Garmin networking suit a planned marine system. The trade-off is that detailed charts and a compatible transducer must be added separately, so it is not the simplest out-of-the-box package.
