Garmin GPSMAP 1223xsv Combo GPS/Fishfinder – Worldwide

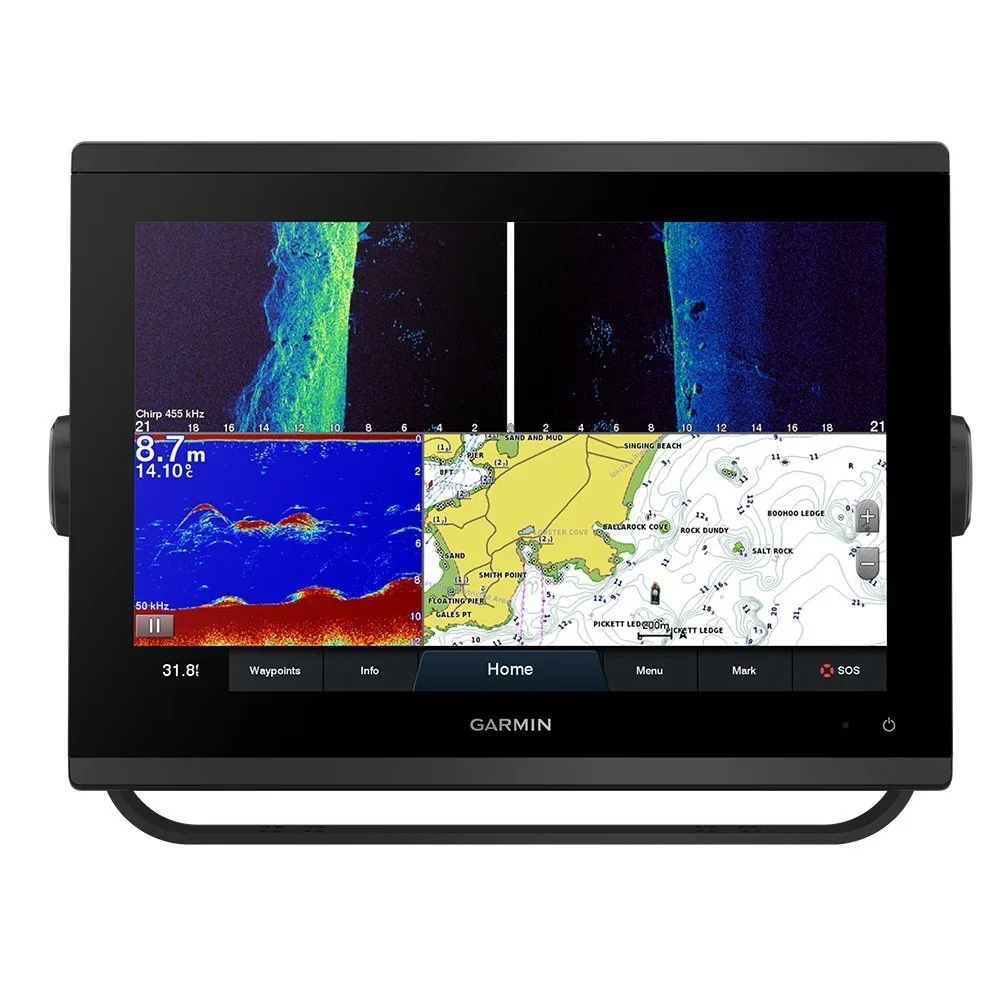

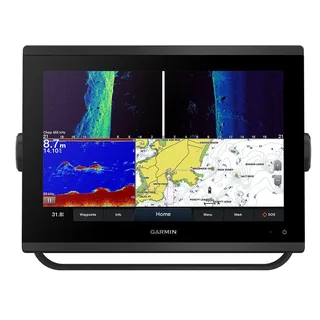

The Garmin GPSMAP 1223xsv provides a 12-inch high-resolution IPS touchscreen with 1280 x 800 resolution, built-in 1kW CHIRP, UHD ClearVü, and UHD SideVü. It includes a Worldwide Basemap rather than detailed regional charts, and no transducer is included. NMEA 2000, J1939, Garmin Network, and WiFi support make it suited to a larger connected marine electronics installation.

Key Features

- 12-inch high-resolution IPS touchscreen – Provides a large workspace for charts, sonar, and split-screen system information.
- 1280 x 800 resolution – Shows detailed chart and sonar data across the 12-inch display.
- 1kW CHIRP, UHD ClearVü, and UHD SideVü – Supports conventional and scanning sonar when paired with suitable hardware.
- Worldwide Basemap – Provides basic global reference mapping, but detailed regional charts are not preloaded.
- NMEA 2000, J1939, Garmin Network, and WiFi – Supports marine, engine-data, wired network, and wireless connections.

Who Is This For?

This model suits offshore fishing boats, coastal cruisers, larger center consoles, and multi-display helms where a 12-inch touchscreen is useful. Its large screen makes chart and sonar split views easier to read from a standing helm.

It is not ideal for a small console or buyers who need a complete chartplotter/fishfinder package. Detailed charts and a compatible transducer must be added separately.

Compatibility

Confirmed interfaces include NMEA 2000, J1939, Garmin Network, WiFi, 1kW CHIRP, UHD ClearVü, and UHD SideVü. The supplied information does not identify specific transducer models, NMEA 0183, radar, autopilot, or third-party chartplotter compatibility. No named incompatible system was provided; verify Garmin network, chart, and transducer requirements before installation.

Technical Specifications

- Brand: Garmin
- Model: GPSMAP 1223xsv, 010-02367-03
- Display: 12-inch high-resolution IPS touchscreen
- Resolution: 1280 x 800 pixels
- Preloaded charts: Worldwide Basemap
- Built-in sonar: 1kW CHIRP, UHD ClearVü, UHD SideVü
- Transducer: Not included

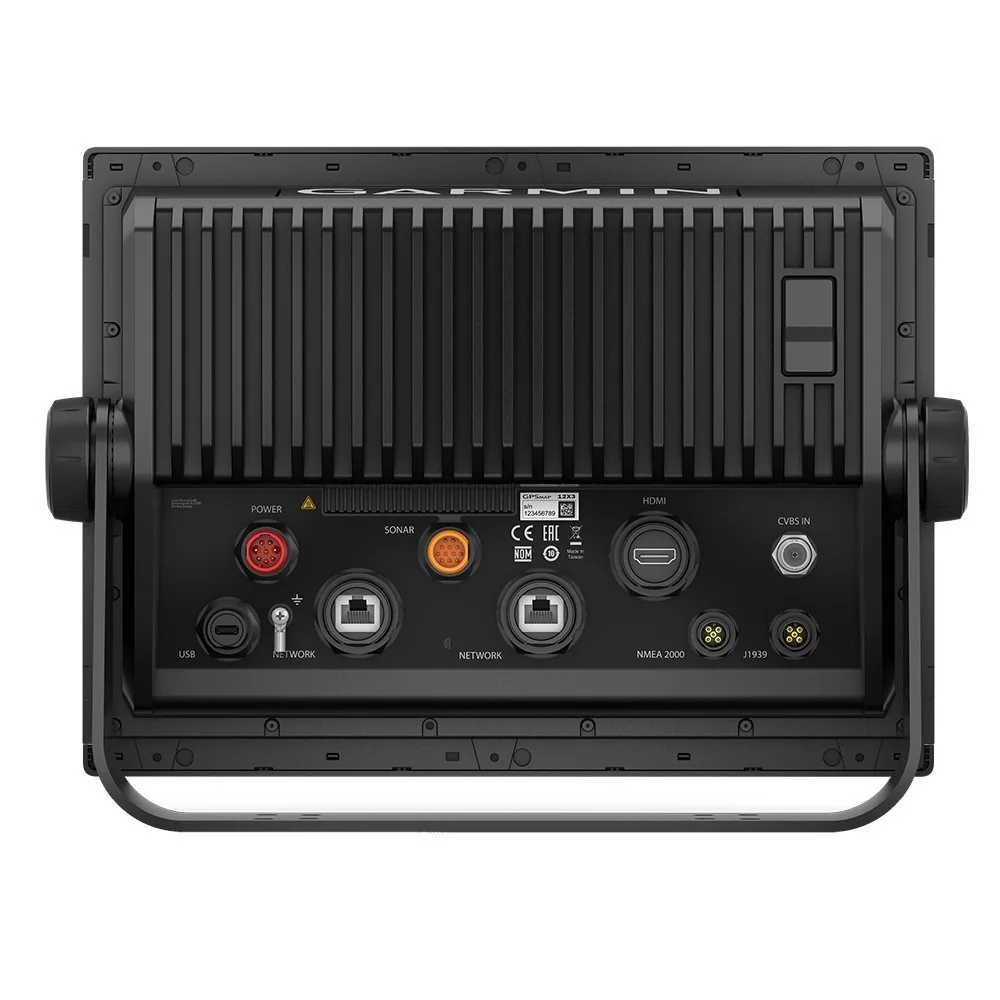

- Networking: NMEA 2000, J1939, Garmin Network, WiFi
- Warranty: 2-year limited warranty
- Origin: Designed in the USA; made in Taiwan

Warranty & Support

Garmin provides a 2-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GPSMAP 1223xsv is the larger-screen choice compared with the ECHOMAP UHD2 94sv and 93sv, providing more room for split-screen chart and sonar views. Its 1kW CHIRP, ClearVü, SideVü, and Garmin networking suit a planned larger-vessel installation. The trade-off is the Worldwide Basemap and missing transducer, so detailed charts and sonar hardware must be selected separately.
