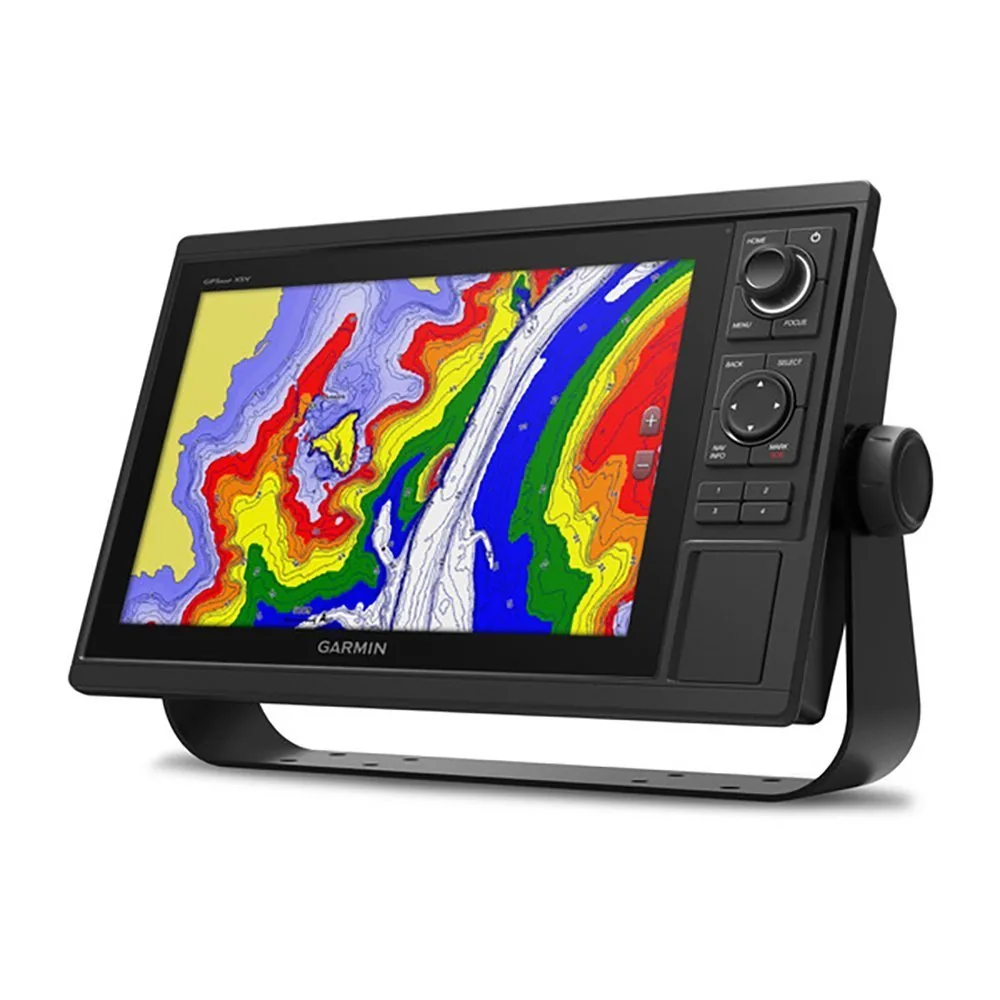

Garmin GPSMAP 1022xsv Keyed Networking Combo Worldwide – No Transducer

The Garmin GPSMAP 1022xsv is a 10.1-inch keyed chartplotter and fishfinder with a non-touch display, 1kW CHIRP, ClearVü, SideVü, and worldwide basemap coverage. It does not include detailed charts or a transducer, so this model is aimed at owners building a Garmin network who want physical controls, multiple sonar options, and the flexibility to select their own chart and transducer hardware.

Key Features

- 10.1-inch non-touch keyed display – Provides a large viewing area with physical controls for wet or rough helm conditions.
- 1024 x 600 resolution – Shows useful chart and sonar detail while fitting more compactly than a 12-inch unit.
- 1kW CHIRP, ClearVü, and SideVü sonar – Supports conventional and scanning sonar when paired with suitable hardware.
- Worldwide basemap – Provides basic global reference mapping, but detailed charts must be added separately.
- NMEA 2000, NMEA 0183, and two Garmin Network ports – Supports a connected Garmin installation with multiple data and network connections.

Who Is This For?

This model suits coastal fishing boats, commercial skiffs, cruisers, and multi-display Garmin installations where physical keypad operation is preferred. The 10.1-inch display provides more working room than 7-inch units without the dash requirements of a 12-inch screen.

It is not ideal for buyers who need a ready-to-use detailed chart package or an included transducer. The worldwide basemap is not the same as detailed coastal or inland chart coverage, so additional chart hardware may be required.

Compatibility

Confirmed interfaces include NMEA 2000, NMEA 0183, two Garmin Network ports, 1kW CHIRP, ClearVü, and SideVü sonar. The supplied information does not identify specific compatible transducer models, radar, autopilot, Panoptix, or Force Live Sonar equipment. No named incompatible system was provided; verify Garmin network, chart, and transducer requirements before installation.

Technical Specifications

- Brand: Garmin
- Model: GPSMAP 1022xsv, 010-01740-03
- Display: 10.1-inch non-touch keyed display
- Resolution: 1024 x 600 pixels
- Charts: Worldwide Basemap; no detailed charts included
- Built-in sonar: 1kW CHIRP, ClearVü, SideVü
- Transducer: Not included
- Networking: NMEA 2000, NMEA 0183, two Garmin Network ports
- Warranty: 2-year limited consumer warranty
- Origin: Designed in the USA; made in Taiwan

Warranty & Support

Garmin provides a 2-year limited consumer warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GPSMAP 1022xsv is the right choice over smaller Garmin units when physical controls and a larger 10.1-inch display matter. It gives you a broad sonar platform and network connections, but the worldwide basemap and missing transducer create a clear setup cost: you must add detailed charts and select the correct sonar hardware. Choose it for a planned Garmin system, not for an out-of-the-box fishing package.
