Garmin GPSMAP 9210xsv Premium Chartplotter/Sonar Combo w/Garmin Navionics+

The Garmin GPSMAP 9210xsv combines a 10-inch IPS touchscreen with 1280 x 800 resolution, Garmin Navionics+ coastal and inland charts, built-in dual-channel 1kW CHIRP, and UHD ClearVü and SideVü. No transducer is included, but NMEA 2000, J1939, Garmin Network, WiFi, and ANT+ provide a broad connected marine electronics platform for fishing boats and cruisers.

Key Features

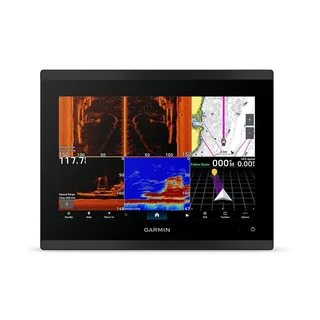

- 10-inch IPS touchscreen – Provides a clear workspace for charts, sonar, and split-screen system information.
- 1280 x 800 resolution – Shows detailed mapping and fishfinding information in a mid-size display.
- Dual-channel 1kW CHIRP, UHD ClearVü, and SideVü – Supports conventional and scanning sonar with suitable hardware.
- Garmin Navionics+ coastal and inland charts – Provides preloaded regional chart coverage for supported waters.
- NMEA 2000, J1939, Garmin Network, WiFi, and ANT+ – Supports marine, engine-data, wired network, and wireless connections.

Who Is This For?

This unit suits coastal fishing boats, cruisers, center consoles, and Garmin network installations that need a 10-inch display with detailed charts and advanced sonar processing. Its 1280 x 800 screen provides useful room for split-screen chart and sonar views.

It is not ideal for buyers seeking a complete fishfinder package because no transducer is included. A smaller ECHOMAP is easier to fit on a compact console, while a larger GPSMAP provides more screen area for a flagship helm.

Compatibility

Confirmed interfaces include NMEA 2000, J1939, Garmin Network, WiFi, ANT+, dual-channel 1kW CHIRP, UHD ClearVü, UHD SideVü, and Garmin Navionics+ coastal and inland charts. The supplied information does not identify specific transducer models, NMEA 0183, radar, autopilot, or third-party chartplotter compatibility. No named incompatible system was provided; verify Garmin network and transducer requirements before installation.

Technical Specifications

- Brand: Garmin
- Model: GPSMAP 9210xsv, 010-02856-02
- Display: 10-inch IPS touchscreen
- Resolution: 1280 x 800 pixels
- Preloaded charts: Garmin Navionics+ coastal and inland
- Built-in sonar: Dual-channel 1kW CHIRP, UHD ClearVü, UHD SideVü
- Transducer: Not included
- Networking: NMEA 2000, J1939, Garmin Network, WiFi, ANT+
- Warranty: 2-year limited warranty
- Origin: Made in Taiwan

Warranty & Support

Garmin provides a 2-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GPSMAP 9210xsv is the Garmin alternative to the Humminbird XPLORE 10 CHO, offering the same general 10-inch 1280 x 800 display class but with preloaded Garmin Navionics+ coastal and inland charts and a dual-channel 1kW sonar platform. Its main trade-off is the missing transducer, so the Garmin sounder hardware must be selected separately. Choose it for Garmin network integration and regional chart coverage.
