Garmin GPSMAP 9010xsv Premium Chartplotter/Sonar Combo w/Worldwide Basemap

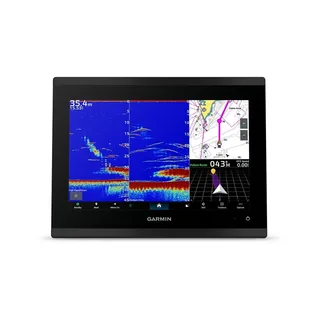

The Garmin GPSMAP 9010xsv is a 10-inch marine chartplotter and sonar display with a 1280 x 800 IPS touchscreen, dual-channel 1kW CHIRP, UHD ClearVü, and UHD SideVü. It includes a Worldwide Basemap but no transducer, making it suitable for a custom Garmin installation where regional charts and sonar hardware will be selected separately. NMEA 2000, J1939, Garmin Network, WiFi, and ANT+ support system expansion.

Key Features

- 10-inch IPS touchscreen – Provides a clear chart and sonar workspace for a mid-size helm.
- 1280 x 800 resolution – Shows detailed mapping and fishfinding information across the display.
- Dual-channel 1kW CHIRP, UHD ClearVü, and SideVü – Supports conventional and scanning sonar when paired with suitable hardware.
- Worldwide Basemap – Provides basic global reference mapping, but detailed regional charts are not included.
- NMEA 2000, J1939, Garmin Network, WiFi, and ANT+ – Provides marine, engine-data, wired network, and wireless connections.

Who Is This For?

This model suits coastal fishing boats, cruisers, center consoles, and Garmin network installations that need a 10-inch display with advanced sonar processing. Its 1280 x 800 screen provides useful room for charts and split-screen sonar.

It is not ideal for buyers seeking a complete fishfinder package because no transducer is included. It is also less suitable when detailed regional charts are required immediately, since the package lists only a Worldwide Basemap.

Compatibility

Confirmed interfaces include NMEA 2000, J1939, Garmin Network, WiFi, ANT+, dual-channel 1kW CHIRP, UHD ClearVü, and UHD SideVü. The supplied information does not identify specific transducer models, NMEA 0183, radar, autopilot, or third-party chartplotter compatibility. No named incompatible system was provided; verify Garmin network, chart, and transducer requirements before installation.

Technical Specifications

- Brand: Garmin
- Model: GPSMAP 9010xsv, 010-02856-00
- Display: 10-inch IPS touchscreen
- Resolution: 1280 x 800 pixels
- Preloaded charts: Worldwide Basemap
- Built-in sonar: Dual-channel 1kW CHIRP, UHD ClearVü, UHD SideVü
- Transducer: Not included

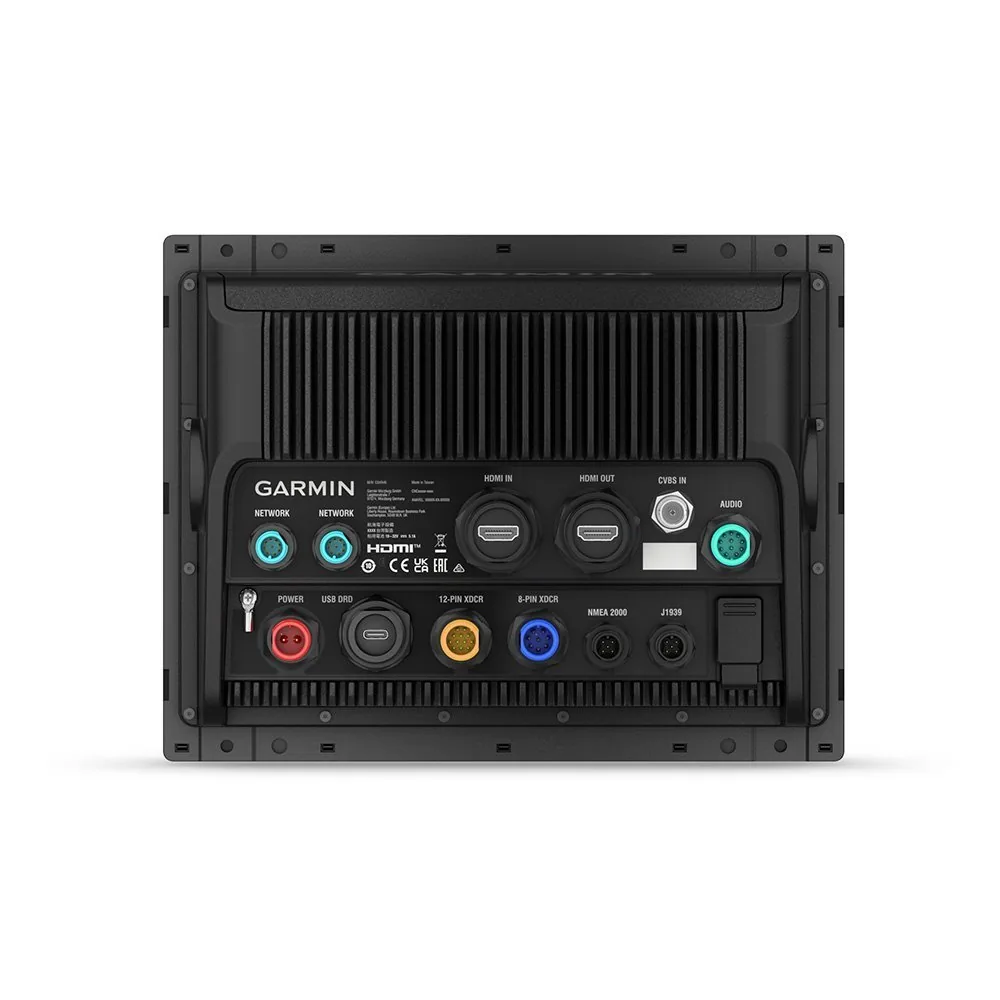

- Networking: NMEA 2000, J1939, Garmin Network, WiFi, ANT+
- Warranty: 2-year limited warranty
- Origin: Made in Taiwan

Warranty & Support

Garmin provides a 2-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GPSMAP 9010xsv is the custom-installation alternative to Garmin models with regional charts or an included transducer, offering a 10-inch display and broad sonar processing in a connected Garmin platform. Its main trade-off is the Worldwide Basemap and missing transducer, so chart and sonar hardware must be planned separately. Choose it for a flexible Garmin system rather than a ready-to-fish package.
