The Garmin GPSMAP 1543xsv provides a 15.4-inch ultrawide IPS multi-touch display with 1280 x 800 resolution, built-in 1kW traditional and dual-channel CHIRP hardware, UHD ClearVü, UHD SideVü, and Panoptix and LiveScope compatibility. No transducer is included, but multiple network options including NMEA 2000, NMEA 0183, J1939, and Garmin Marine Network support a flagship offshore installation.

Key Features

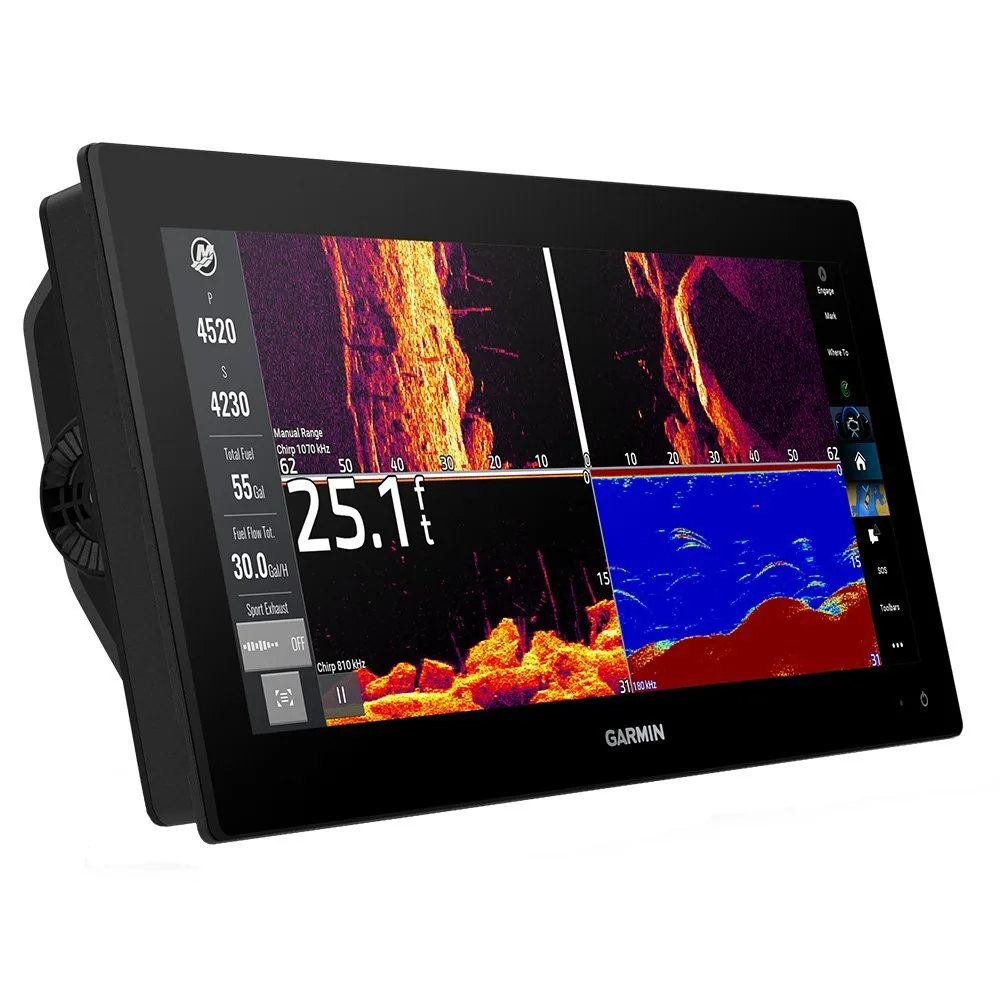

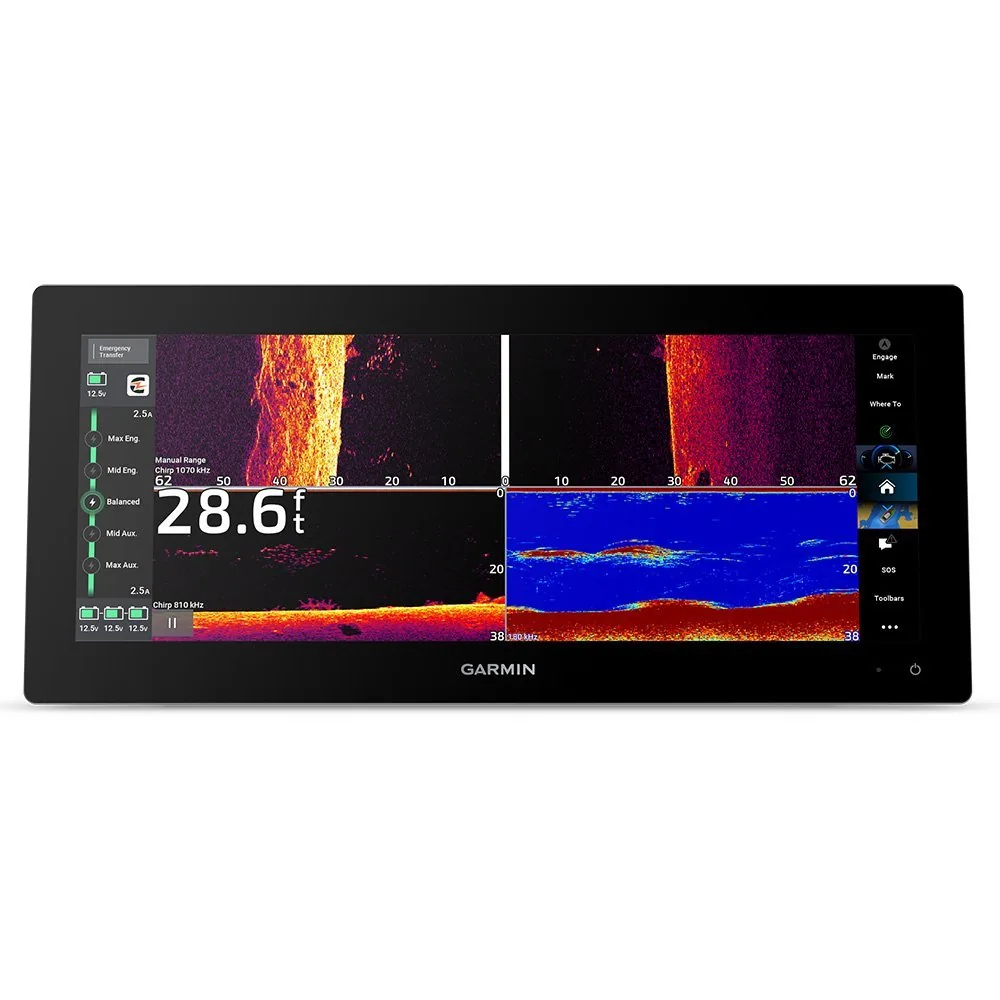

- 15.4-inch ultrawide IPS multi-touch display – Provides a large 16:9 workspace for charts, sonar, and multi-window system views.
- 1280 x 800 resolution – Shows detailed mapping and sonar information across the large display.
- 1kW traditional and dual-channel CHIRP output – Supports high-power conventional fishfinding when paired with suitable transducers.
- UHD ClearVü and UHD SideVü processors – Provides scanning sonar support with compatible hardware.
- Panoptix and LiveScope LVS34 Plus compatibility – Allows expansion with Garmin live-sonar systems.

Who Is This For?

This unit suits flagship offshore cruisers, commercial sportfishing boats, luxury flybridge helms, and 28- to 60-plus-foot vessels with room for an ultrawide display. The large screen is useful when charts, sonar, radar, and engine data must be visible at the same time.

It is not ideal for a small boat or a buyer seeking a complete fishfinder package, because no transducer is included. Its large physical size and power demand also require careful installation planning.

Compatibility

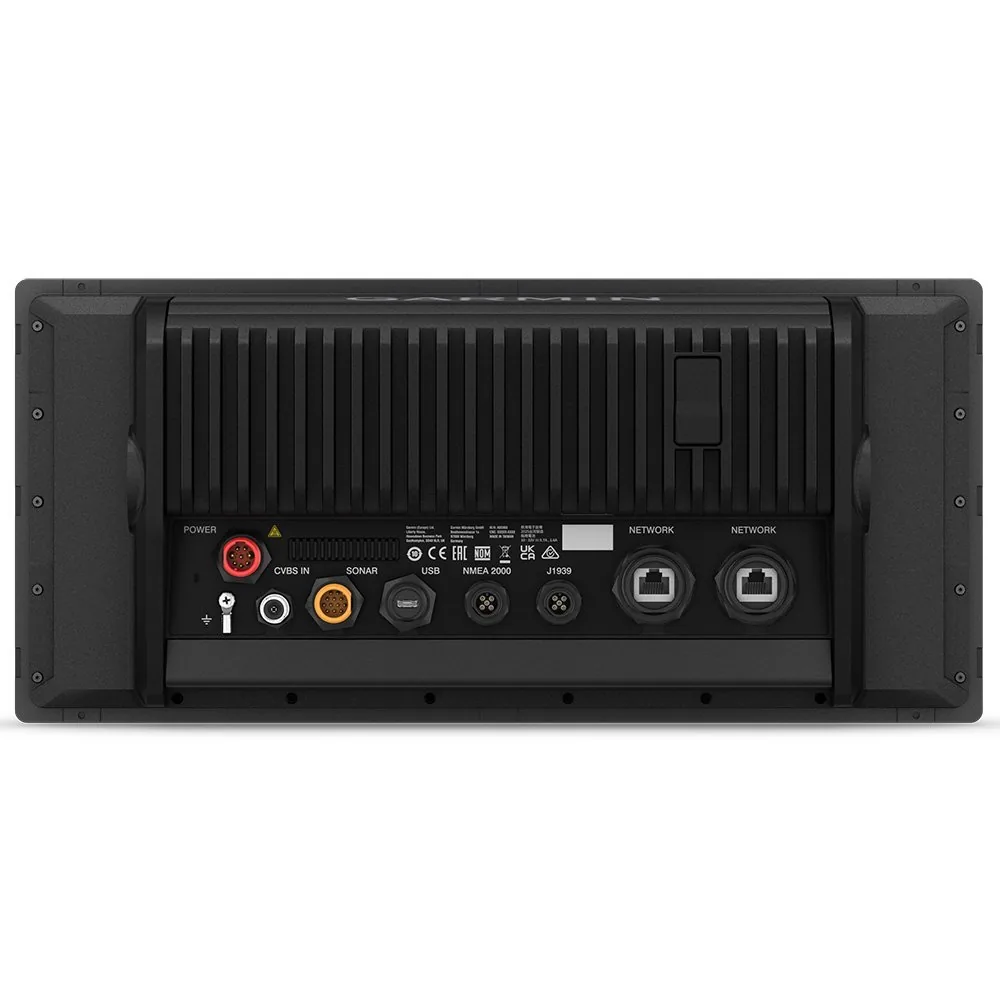

Confirmed compatibility includes Panoptix, LiveScope LVS34 Plus, Garmin Marine Network Ethernet, NMEA 2000, NMEA 0183, J1939 engine CAN bus, OneHelm, UHD ClearVü, UHD SideVü, and dual-channel CHIRP. The supplied information does not identify specific transducer models, radar, autopilot, or third-party chartplotter compatibility. No named incompatible system was provided; verify Garmin network, power, and transducer requirements before installation.

Technical Specifications

- Brand: Garmin
- Model: GPSMAP 1543xsv, 010-02860-03
- Display: 15.4-inch ultrawide WXGA IPS multi-touch
- Resolution: 1280 x 800 pixels
- Sonar output: 1,000 watts RMS traditional and dual-channel CHIRP network output
- Scanning sonar: ClearVü and SideVü at 455kHz, 800kHz, and 1070kHz
- Live sonar: Panoptix and LiveScope LVS34 Plus compatible
- Maximum depth: 1,524 m / 5,000 ft traditional, dependent on transducer
- Operating voltage: 10-32 VDC
- Waterproof rating: IPX7

Warranty & Support

The supplied specifications do not state a warranty term for this model. Confirm Garmin’s current warranty coverage and exclusions before purchase.

The GPSMAP 1543xsv is the flagship large-screen choice here, offering a much wider workspace than the B&G 9-inch sailing displays and the Lowrance dual-screen kit. Its broad networking and LiveScope Plus compatibility suit a premium vessel system, but the transducer must be selected separately and the 15.4-inch display requires substantial space. Choose it for a large offshore helm, not a compact fishing console.
