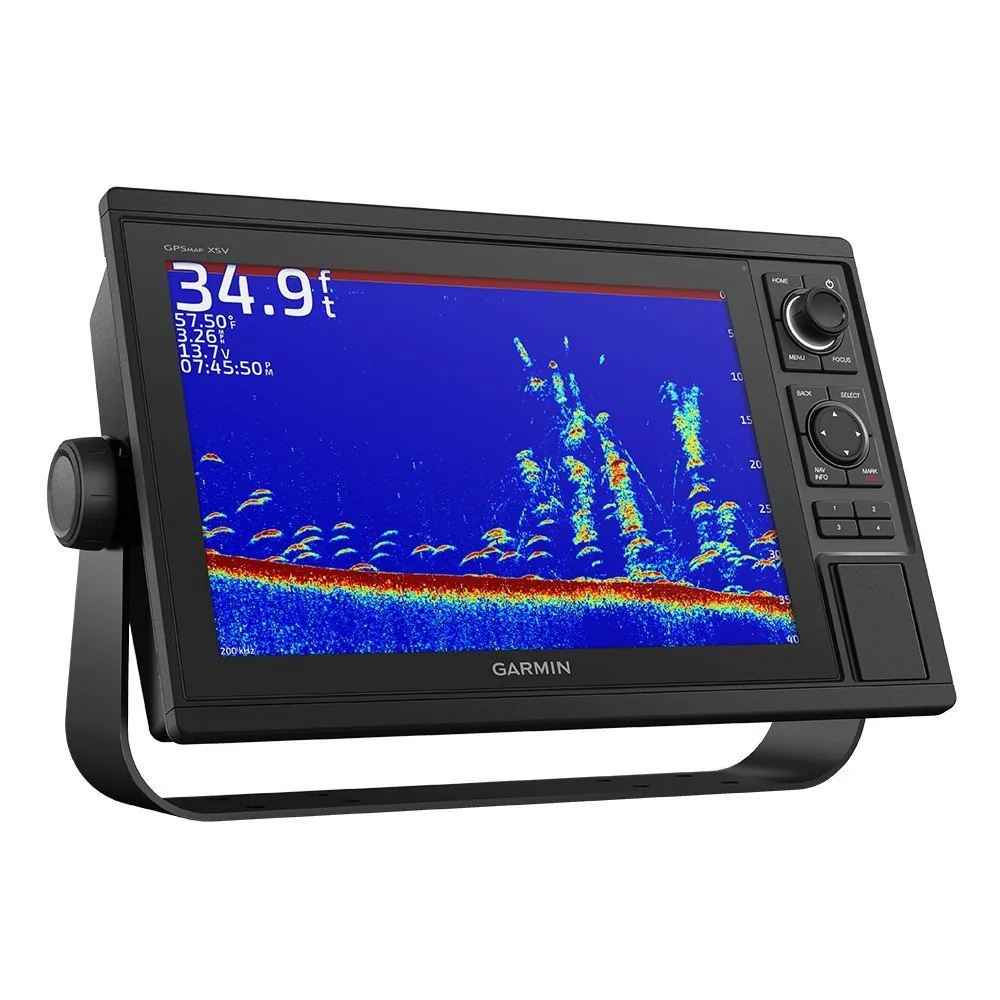

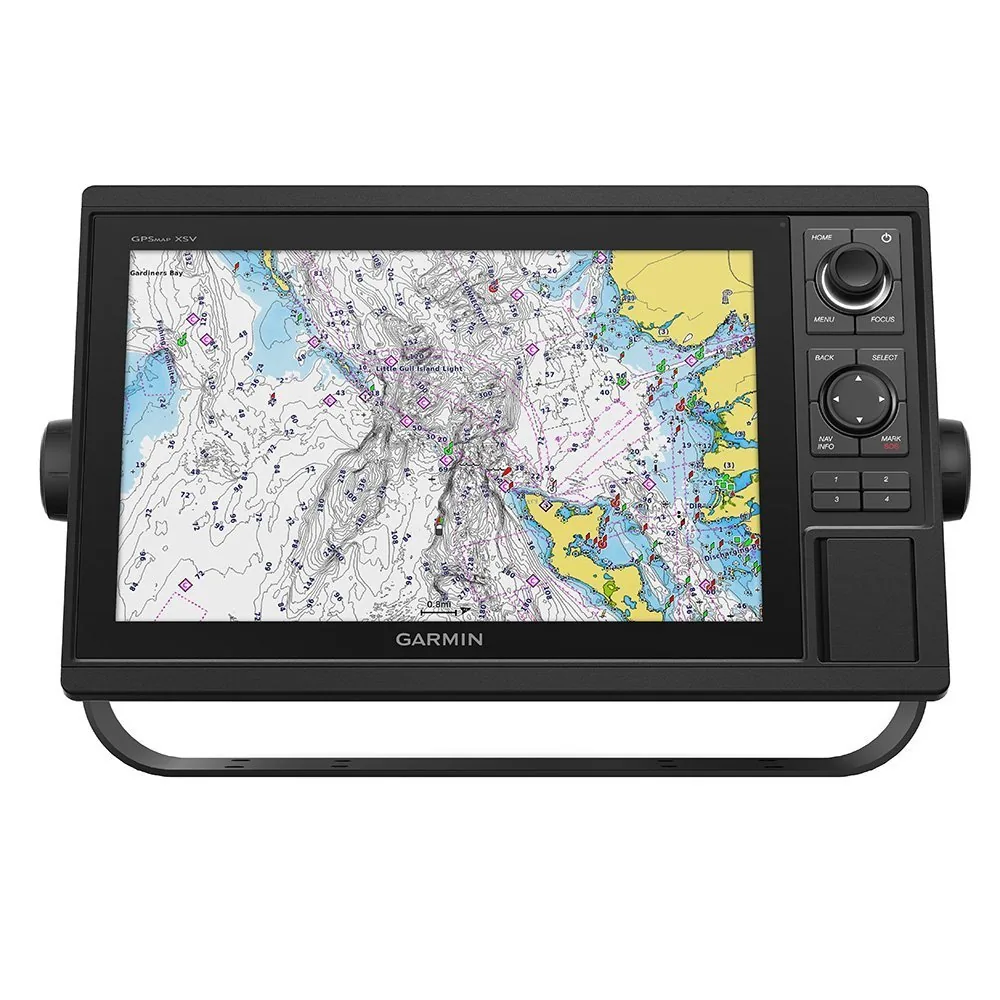

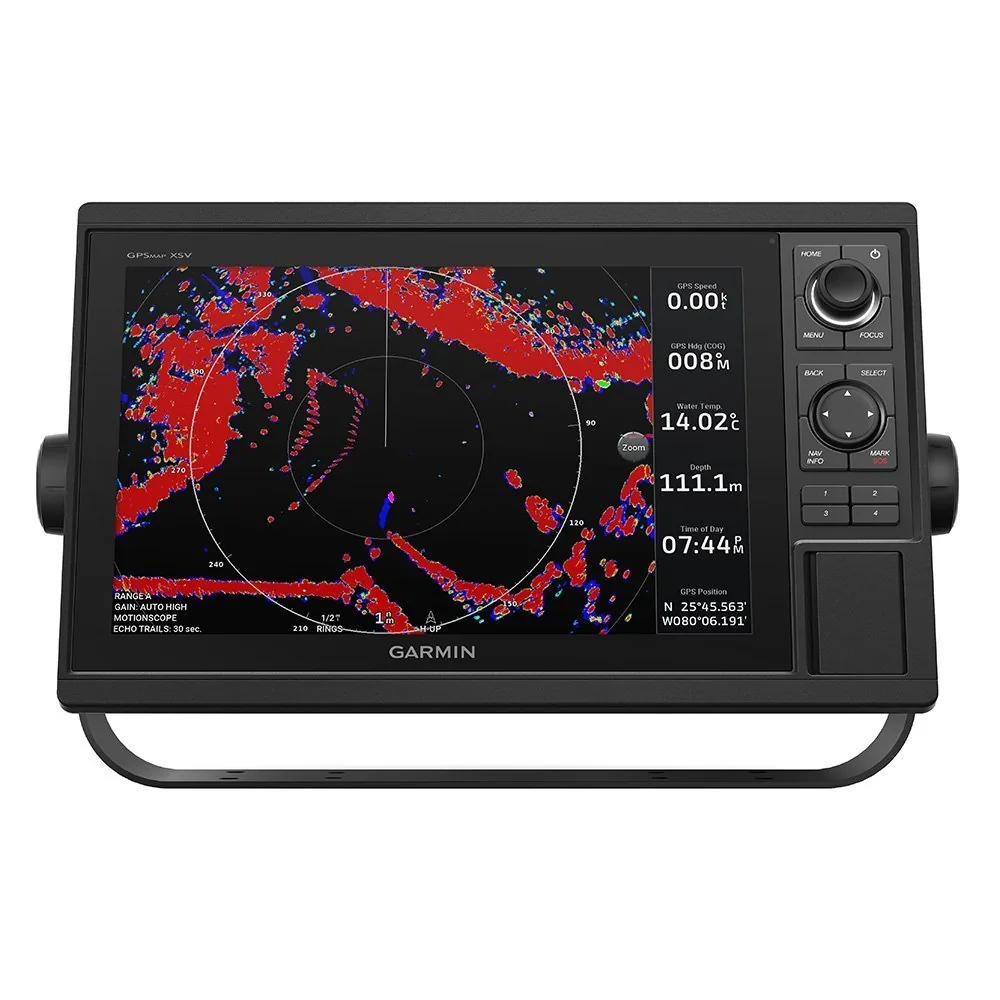

Garmin GPSMAP 1242xsv 12″ Marine Chartplotter Unit

A touchscreen with wet, cold, or gloved hands is often the reason commercial crews skip touch displays entirely — the GPSMAP 1242xsv is built around that reality, with a rotary dial and keyed control instead of a touch panel. Garmin positions it specifically for commercial crabbing vessels, night fishing skiffs, and rough-sea pilot boats where physical controls simply work more reliably than touch.

Key Features

- Rotary dial menu with keyed physical controls — no touchscreen to fight with in gloves, spray, or rough seas.
- 1,000W RMS sonar via CHIRP network hub delivery — covers traditional CHIRP at 50/77/83 kHz plus scanning sonar at 260/455/800 kHz in one unit.
- Panoptix and Force Live Sonar Network compatible — built to run Garmin’s live-imaging sonar if you add it later, without a display swap.
- 5,000 ft maximum depth capacity (transducer-dependent) — well past what inshore or even most offshore recreational fishing needs.
- J1939 engine bus support alongside NMEA 2000/0183 — reads engine data directly, useful on commercial vessels already wired for it.

Who This Is For

Built for commercial and semi-commercial operations — crabbing vessels, night fishing boats, pilot boats — and multi-display dashboards where physical, tactile controls matter more than touchscreen convenience. It’s not the pick for a recreational center console where a touchscreen interface is the expected, faster way to navigate menus; Garmin’s touch-enabled xsv models fit that use case better.

Compatibility

Confirmed compatible: Garmin Marine Network (Ethernet), NMEA 2000, NMEA 0183, J1939 engine bus, and Garmin’s Panoptix and Force Live Sonar systems. This is a display-and-sonar-processor unit — sonar transducer selection affects both frequency coverage and maximum depth capacity, so match the transducer to your target depth before assuming the 5,000 ft figure applies.

Technical Specifications

- Display: 12.1″ High-Bright WXGA non-touch, 1280×800, rotary dial menu
- Sonar: 1,000W RMS, CHIRP 50/77/83/200 kHz, ClearVü/SideVü at 260/455/800 kHz
- Max depth: 5,000 ft traditional (transducer-dependent)

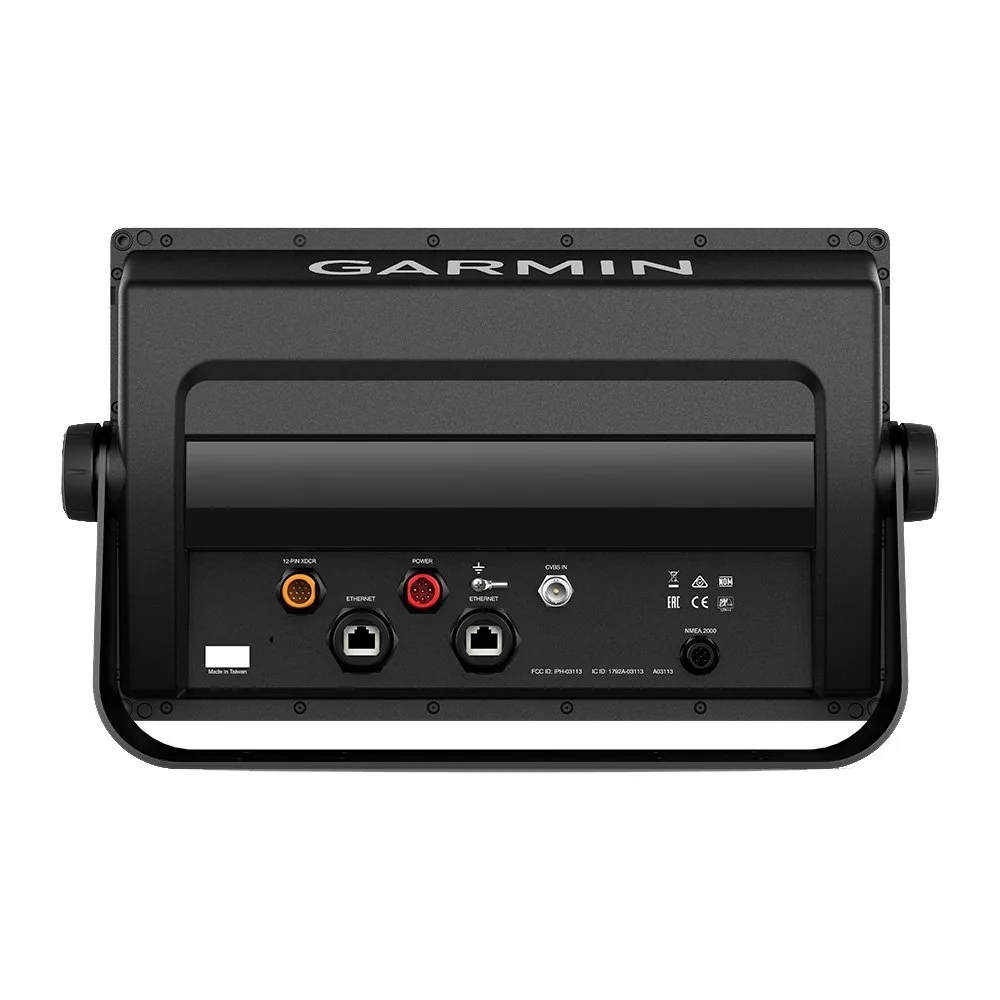

- Networking: Garmin Marine Network (Ethernet), NMEA 2000, NMEA 0183, J1939
- Water rating: IPX7
- Operating voltage: 10-32V DC, 2.2A max draw
- Dry weight: 2.3 kg / 5.2 lbs

Warranty & Support

Covered under Garmin’s Standard Marine Consumer Limited Warranty — 2 years from purchase for owner-installed units.

Against a touch-enabled Garmin xsv display of similar size, the trade here is deliberate: physical controls that keep working in conditions where touch panels get unreliable, at the cost of the faster menu navigation touch usually offers. For the commercial and rough-water use cases Garmin built this for, that trade is the point, not a compromise.
