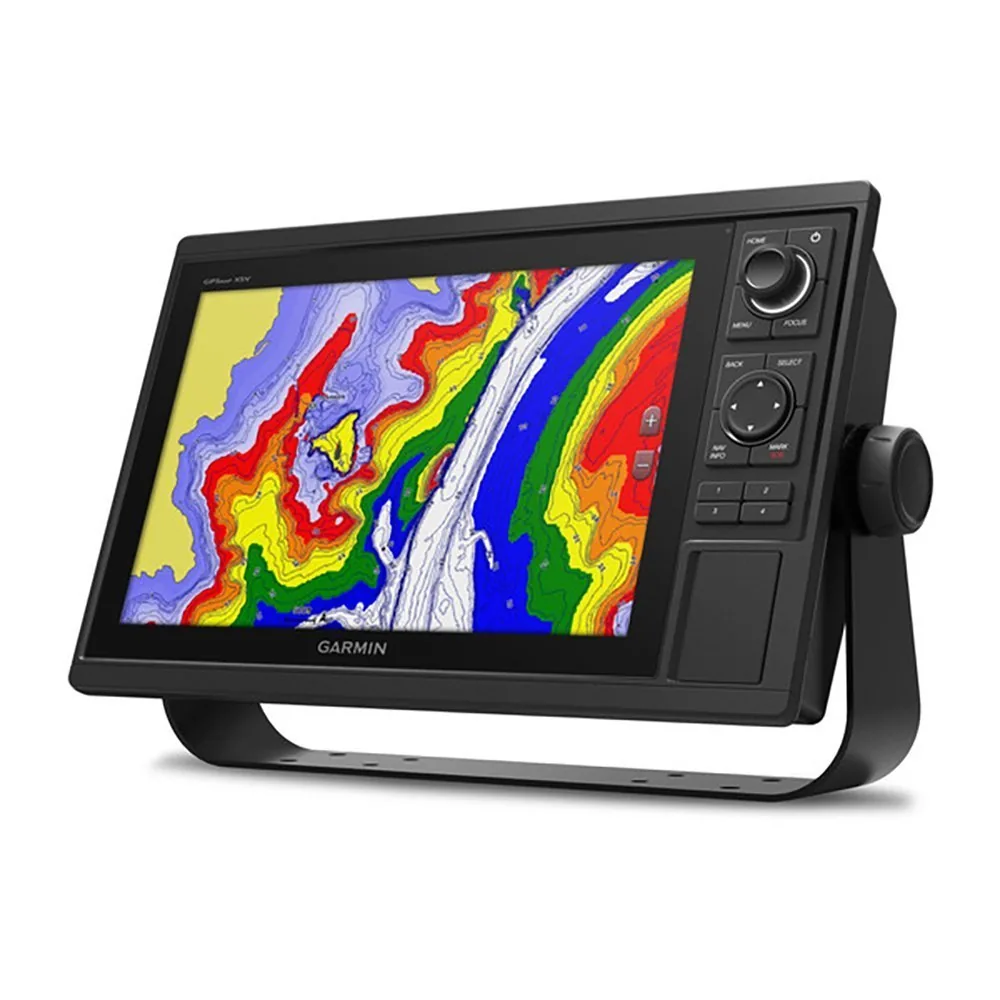

Garmin GPSMAP 1222xsv 12″ Keyed Network Chartplotter

For a commercial fishing boat or multi-display helm, the Garmin GPSMAP 1222xsv provides a large 12.1-inch non-touch screen with physical controls and 1280 x 800 resolution. It supports networked 1kW CHIRP sonar, built-in ClearVü and SideVü processing, Panoptix and Force Live Sonar compatibility, plus Garmin Marine Network, NMEA 2000, NMEA 0183, and J1939 connections. Its keyed rotary interface suits operators who prefer tactile control in rough or wet conditions.

Key Features

- 12.1-inch high-bright WXGA non-touch display – Provides a large chart and sonar workspace from a standing helm.
- 1280 x 800 resolution – Shows more chart and data detail than compact 800 x 480 units.
- 1,000 watts RMS network sonar delivery – Supports a powerful CHIRP installation when paired with the appropriate transducer and network sounder hardware.
- Physical keypad and rotary dial menu – Gives reliable tactile operation when spray, gloves, or boat motion make touchscreen control less practical.
- Garmin Marine Network, NMEA 2000, NMEA 0183, and J1939 – Supports the marine and engine-data connections listed in the specifications.

Who Is This For?

This unit suits commercial crabbing vessels, rough-sea pilot boats, dedicated fishing skiffs, and 22- to 38-foot boats using multi-display dashboards. A physical keypad can be an advantage on a wet helm where touch controls are harder to use accurately.

It is not ideal for a small console that needs a simple touchscreen unit, and the supplied specifications do not list a transducer as included. The 1,524 m depth figure depends on transducer selection and should not be treated as a guaranteed operating depth.

Compatibility

Confirmed compatibility includes Garmin Marine Network Ethernet, NMEA 2000, NMEA 0183, J1939 engine bus, Panoptix, Force Live Sonar, and the listed Garmin ClearVü/SideVü sonar platform. The supplied information does not identify specific transducer models, autopilot packages, or radar models. No named incompatible system was provided; verify Garmin network and transducer requirements before installation.

Technical Specifications

- Brand: Garmin
- Model: GPSMAP 1222xsv, 010-01741-02
- Display: 12.1-inch high-bright WXGA non-touch screen
- Resolution: 1280 x 800
- Sonar output: 1,000 watts RMS network hub delivery
- Traditional CHIRP: 50/77/83/200 kHz
- Scanning sonar: ClearVü, SideVü, 260/455/800 kHz system profiling
- Maximum depth: 1,524 m / 5,000 ft traditional, dependent on transducer
- Operating voltage: 10-32 VDC
- Waterproof rating: IPX7

Warranty & Support

The supplied specifications do not state a warranty term for this model. Confirm Garmin’s current warranty coverage and exclusions before purchase.

The GPSMAP 1222xsv is the tactile-control alternative to touchscreen MFDs, with a large 12.1-inch screen and broad Garmin networking that includes NMEA 2000, NMEA 0183, J1939, and Ethernet. It is a better fit than a compact touchscreen for rough commercial or pilot-boat work where physical controls matter. The trade-off is that it occupies more helm space and the transducer must be selected separately, so it suits a planned network installation rather than a small self-contained package.
