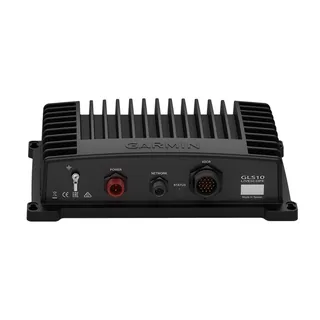

The Garmin GLS 10 is the processing core for a Garmin LiveScope installation. It accepts LVS32, LVS34, and LVS62 transducers and sends the processed live sonar image to a compatible Garmin display through the Marine Network RJ45 connection. This is a black-box sonar module, not a screen or complete LiveScope system, so the display and transducer must be selected separately.

The GLS 10 supports a plug-and-play setup with the listed LiveScope transducers and runs from 10-32V DC, which suits both 12V and 24V boat systems. A diagnostic LED on the housing helps with basic status checks during installation. The most important compatibility check is the Garmin display and transducer pairing. A GLS 10 cannot create a usable live image without an LVS32, LVS34, or LVS62 and a compatible Garmin MFD.

Key Features

- LiveScope processing core – Converts compatible LVS transducer data into Garmin live sonar views.
- LVS32, LVS34, and LVS62 support – Allows the installer to select the appropriate Garmin LiveScope transducer.
- Garmin Marine Network RJ45 – Connects the module to a compatible Garmin display.
- 10-32V DC input – Fits common 12V and 24V marine systems.
- Diagnostic LED – Provides a quick visual indication of module status.

Who Is This For?

This Garmin LiveScope module suits boat owners adding live sonar to a compatible Garmin GPSMAP or ECHOMAP system. It is not ideal as a standalone purchase for a buyer without an LVS transducer and supported display, because the GLS 10 has no screen or charting functions.

Compatibility

Confirmed compatibility includes Garmin LVS32, LVS34, and LVS62 transducers and Garmin Marine Network RJ45 connections. The supplied information does not identify exact GPSMAP or ECHOMAP display models, NMEA 2000, NMEA 0183, radar, autopilot, Lowrance, Raymarine, or Simrad compatibility. No named incompatible system was provided; verify the Garmin network components before installation.

Technical Specifications

- Brand: Garmin
- Model: GLS 10 Black Box, 010-12716-00
- Function: LiveScope processing core
- Supported transducers: LVS32, LVS34, LVS62 extended range
- Networking: Garmin Marine Network RJ45
- Voltage: 10-32V DC
- Features: Plug-and-play setup for compatible LiveScope transducers
- Status: Diagnostic LED on housing
- Display: Not included
- Warranty: 1-year limited warranty

Warranty & Support

Garmin provides a 1-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GLS 10 is the required processing box for a Garmin LiveScope installation, but it is not the part to buy in isolation unless the display and LVS transducer are already sorted. Its trade-off is simple: it offers flexible transducer choices, but compatibility must be checked across the whole Garmin network. Choose it for a planned LiveScope system.
