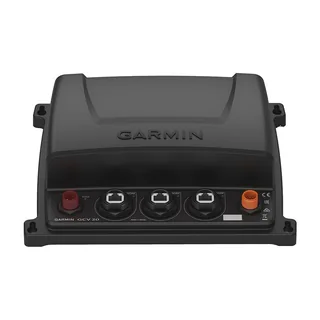

The Garmin GCV 20 is an Ultra HD scanning sonar black box for a custom Garmin installation. This module-only version processes UHD ClearVü, UHD SideVü, and CHIRP scanning data but does not include the GT34UHD-TM transducer. It suits owners upgrading an existing GPSMAP or ECHOMAP system who already have, or plan to source, the correct transducer separately.

The GCV 20 uses 800kHz for ClearVü and a 1,200kHz band for SideVü, giving detailed scanning in the listed ranges. Its three Garmin Marine Network ports also act as a network expander, which is useful in a multi-display helm. Automatic peripheral detection helps pair connected hardware, while the 10-35V DC input fits a broad range of boat systems. The key limitation is simple: without the GT34UHD-TM or another compatible transducer, the module cannot produce sonar images.

Key Features

- UHD ClearVü and UHD SideVü processing – Provides high-definition downward and side-looking sonar.
- 800kHz ClearVü and 1,200kHz SideVü – Uses the listed high-frequency scanning bands.
- Three Garmin Marine Network ports – Adds network expansion for compatible Garmin displays and modules.
- Automatic peripheral detection – Helps pair connected sonar equipment.
- 10-35V DC input – Fits a wide range of marine electrical systems.

Who Is This For?

This Garmin GCV 20 sonar module suits owners expanding a Garmin GPSMAP or ECHOMAP network with UHD scanning sonar. It is not ideal for a first-time buyer without a compatible transducer and display; this is a black box only, not a complete fishfinder bundle.

Compatibility

Confirmed features include Garmin GPSMAP and ECHOMAP compatibility, three Garmin Marine Network ports, UHD ClearVü, UHD SideVü, CHIRP scanning processing, and compatible GT34UHD-TM hardware. The supplied information does not identify specific display models, NMEA 2000, NMEA 0183, radar, autopilot, Raymarine, Simrad, or Lowrance compatibility. No named incompatible system was provided.

Technical Specifications

- Brand: Garmin
- Model: GCV 20 Sonar Module Only, 010-01952-00
- Technology: UHD ClearVü, UHD SideVü, CHIRP scanning processing
- Frequency: 800kHz ClearVü; approximately 1,200kHz SideVü
- Output: 500W RMS
- Networking: Three Garmin Marine Network Ethernet ports
- Voltage: 10-35V DC
- Power draw: 1.05A at 12V; 3.5A peak
- Transducer: Not included
- Warranty: 1-year limited warranty

Warranty & Support

Garmin provides a 1-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The module-only GCV 20 is the flexible option for a Garmin owner who already has a transducer plan and wants to expand a networked helm. Compared with the GCV 20 bundle, it lowers duplication when the GT34UHD-TM is already available. The trade-off is that the module has no value as a standalone purchase without a compatible display and transducer.
