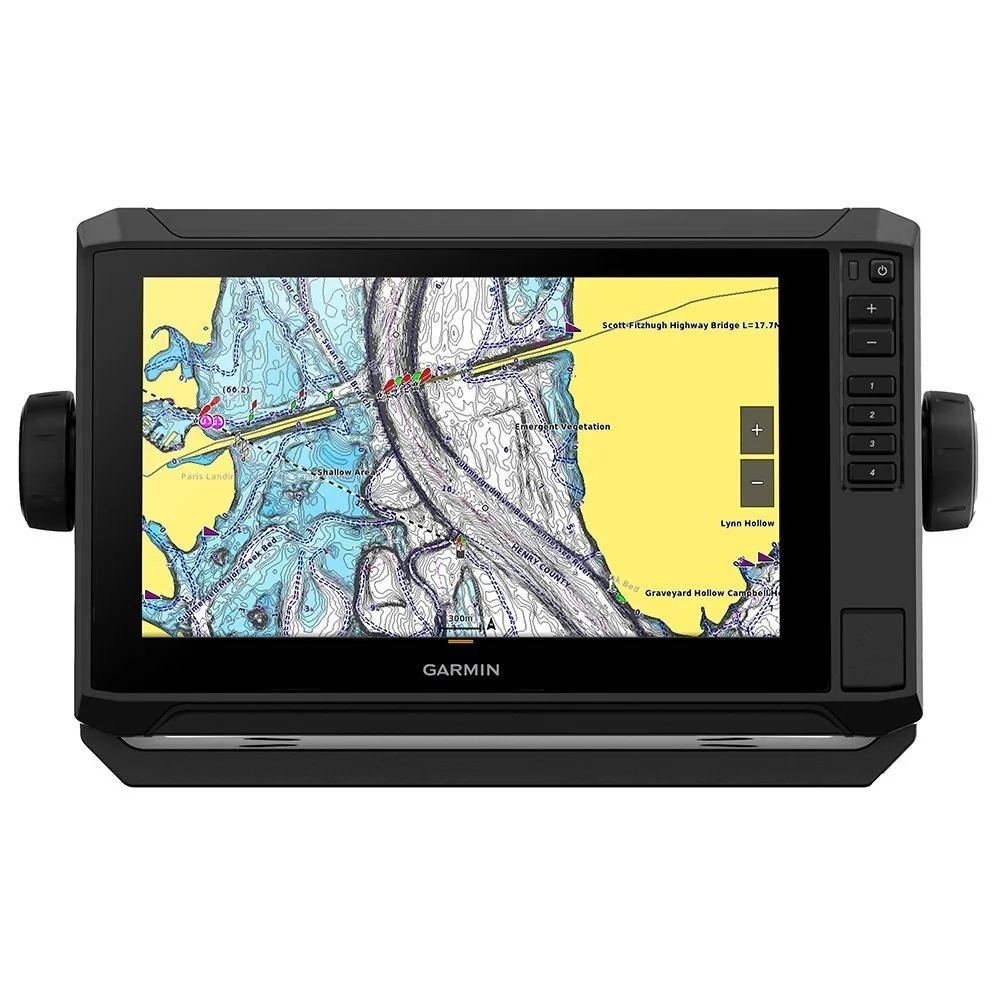

Garmin ECHOMAP UHD2 93sv 9″ Inland Chartplotter

The Garmin ECHOMAP UHD2 93sv is a 9-inch freshwater chartplotter and fishfinder platform with a bright 1024 x 600 multi-touch display, keyed assist, 500W sonar, and preloaded inland mapping. Traditional CHIRP, UHD ClearVü, and UHD SideVü support a range of fishing views, while Panoptix and LiveScope network compatibility allows expansion through compatible Garmin equipment. No transducer is included.

Key Features

- 9-inch multi-touch display with keyed assist – Provides touch operation and physical button support for freshwater fishing conditions.
- 1024 x 600 resolution – Gives the screen enough detail for charts and sonar in a compact format.
- 500 watts RMS output – Provides the stated sonar power when paired with a suitable transducer.
- UHD ClearVü, UHD SideVü, and traditional CHIRP – Supports downward, side-looking, and conventional sonar views.
- Panoptix and LiveScope compatibility – Allows expansion with compatible Garmin live-sonar equipment through Ethernet or wireless sharing.

Who Is This For?

This model suits tournament bass boats, aluminum multi-species boats, freshwater fishing skiffs, and 16- to 24-foot hulls using inland mapping. The keyed assist is useful when operating the unit in a moving boat or with wet hands.

It is not ideal for coastal navigation if the preloaded inland mapping does not cover your operating area. It also does not include a transducer, so the sonar installation requires separate hardware.

Compatibility

Confirmed features include Panoptix and LiveScope network compatibility, Ethernet or wireless node sharing, Garmin Marine Network, NMEA 2000, traditional CHIRP, UHD ClearVü, and UHD SideVü. The supplied information does not identify a specific compatible transducer, NMEA 0183, radar, or autopilot system. No named incompatible system was provided; verify Garmin network and transducer requirements before installation.

Technical Specifications

- Brand: Garmin
- Model: ECHOMAP UHD2 93sv, 010-02689-00
- Display: 9-inch bright color WVGA multi-touch with keyed assist
- Resolution: 1024 x 600
- Sonar output: 500 watts RMS
- Traditional CHIRP: 50/77/83/200 kHz
- Scanning sonar: ClearVü 800 kHz and SideVü 1070 kHz
- Maximum depth: 700 m / 2,300 ft traditional freshwater, dependent on transducer

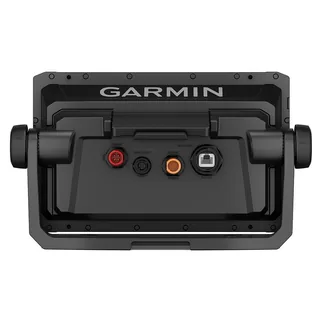

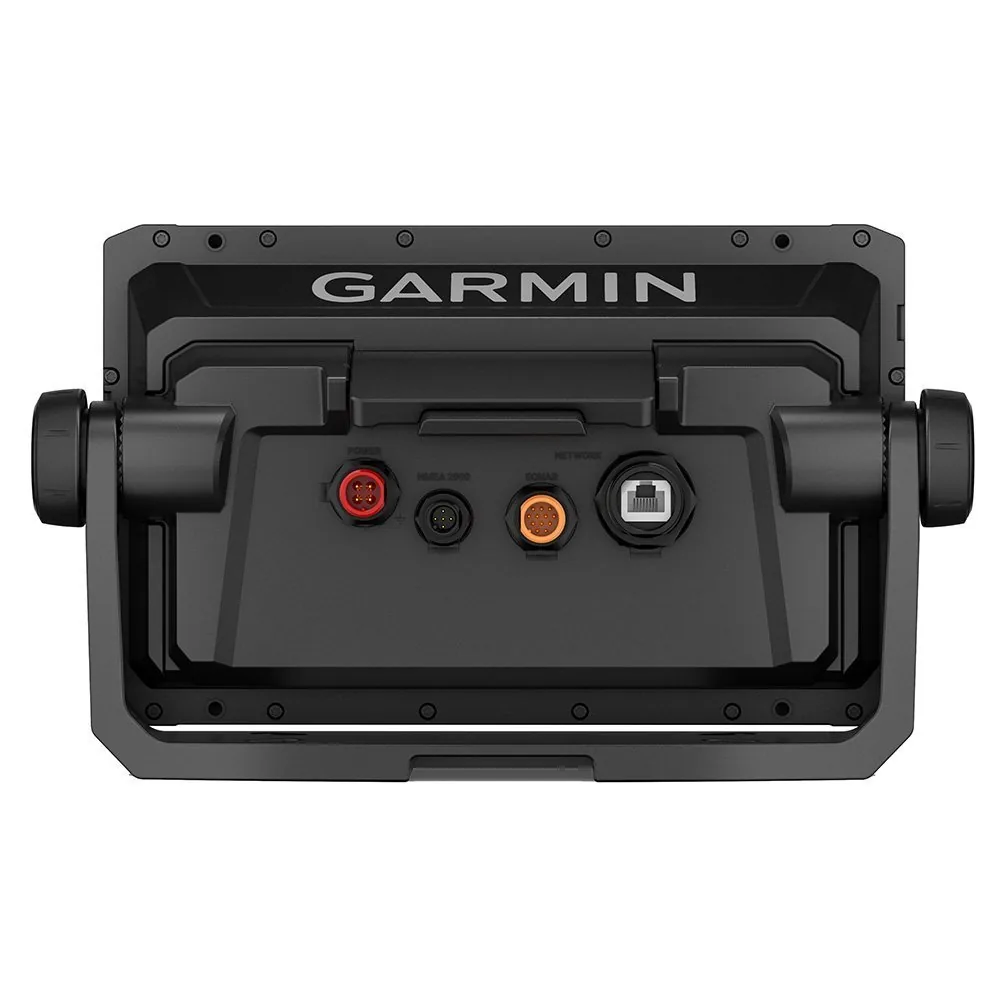

- Networking: Garmin Marine Network, one 100Mbps RJ45 port, NMEA 2000, wireless mesh
- Waterproof rating: IPX7

Warranty & Support

The supplied specifications do not state a warranty term for this model. Confirm the current Garmin warranty coverage and exclusions before purchase.

The ECHOMAP UHD2 93sv is the inland-focused alternative to the coastal-charted 94sv, with the same general 9-inch display class but freshwater application and inland mapping. It supports Panoptix and LiveScope expansion and provides a 500W sonar platform, but the transducer is not included. Choose it for freshwater fishing and tournament-style installations, not for coastal chart coverage or a complete out-of-the-box bundle.
