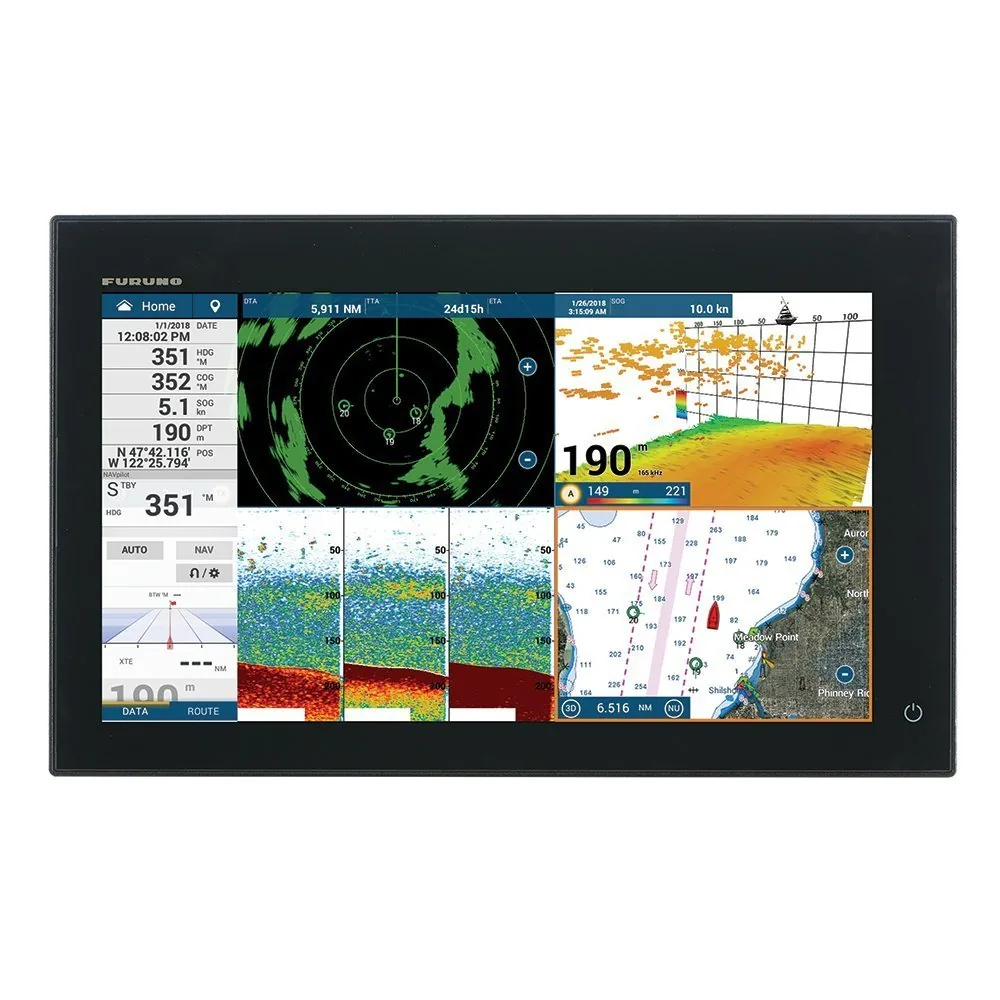

Furuno NavNet TZtouch3 16 MFD w/1kW Dual Channel CHIRP Sounder & Internal GPS

The Furuno NavNet TZtouch3 16 provides a 15.6-inch Full HD IPS multi-touch display with a built-in 1kW dual-channel CHIRP sounder, 72-channel internal GPS, and quad-core processing. No transducer is included, so this model suits large offshore boats and multi-display systems where the sounder hardware will be selected separately. The Full HD screen provides room for charts, sonar, and other vessel information.

Key Features

- 15.6-inch IPS multi-touch display – Provides a very large workspace for charts, sonar, and system data.
- 1920 x 1080 Full HD resolution – Shows detailed navigation and sonar information across the large display.
- 1kW dual-channel CHIRP sounder – Supports a powerful fishfinding platform when paired with a suitable transducer.
- 72-channel internal GPS receiver – Provides onboard positioning without a separate GPS receiver listed.
- Quad-core processor – Provides the stated processing platform for the TZtouch3 16 MFD.

Who Is This For?

This model suits offshore fishing vessels, commercial boats, large cruisers, and multi-display helms that have room for a 15.6-inch display. Its large Full HD screen is useful when several information panels must remain visible.

It is not ideal for a compact console or buyers seeking a complete sonar bundle. The transducer is not included, and the large display requires careful mounting and power planning.

Compatibility

Confirmed features include the 1kW dual-channel CHIRP sounder, 72-channel internal GPS, quad-core processor, and multi-touch display. The supplied information does not identify NMEA 2000, NMEA 0183, Ethernet, radar, autopilot, or specific transducer compatibility. No named incompatible system was provided; verify Furuno network and sonar requirements before installation.

Technical Specifications

- Brand: Furuno
- Model: NavNet TZtouch3 16, TZT16F
- Display: 15.6-inch IPS multi-touch display
- Resolution: 1920 x 1080 Full HD
- Built-in sonar: 1kW dual-channel CHIRP sounder
- GPS: 72-channel internal GPS receiver
- Processor: Quad-core processing power
- Transducer: Not included
- Warranty: 2-year standard warranty
- Origin: Designed and made in Japan

Warranty & Support

Furuno provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The TZtouch3 16 is the large-format alternative to the 12-inch Simrad and Garmin units, with a 15.6-inch Full HD screen and internal 72-channel GPS. Its dual-channel 1kW CHIRP sounder suits a serious offshore installation, but the missing transducer means the sonar system is not complete from the box. Choose it when maximum display size matters more than compact installation.
