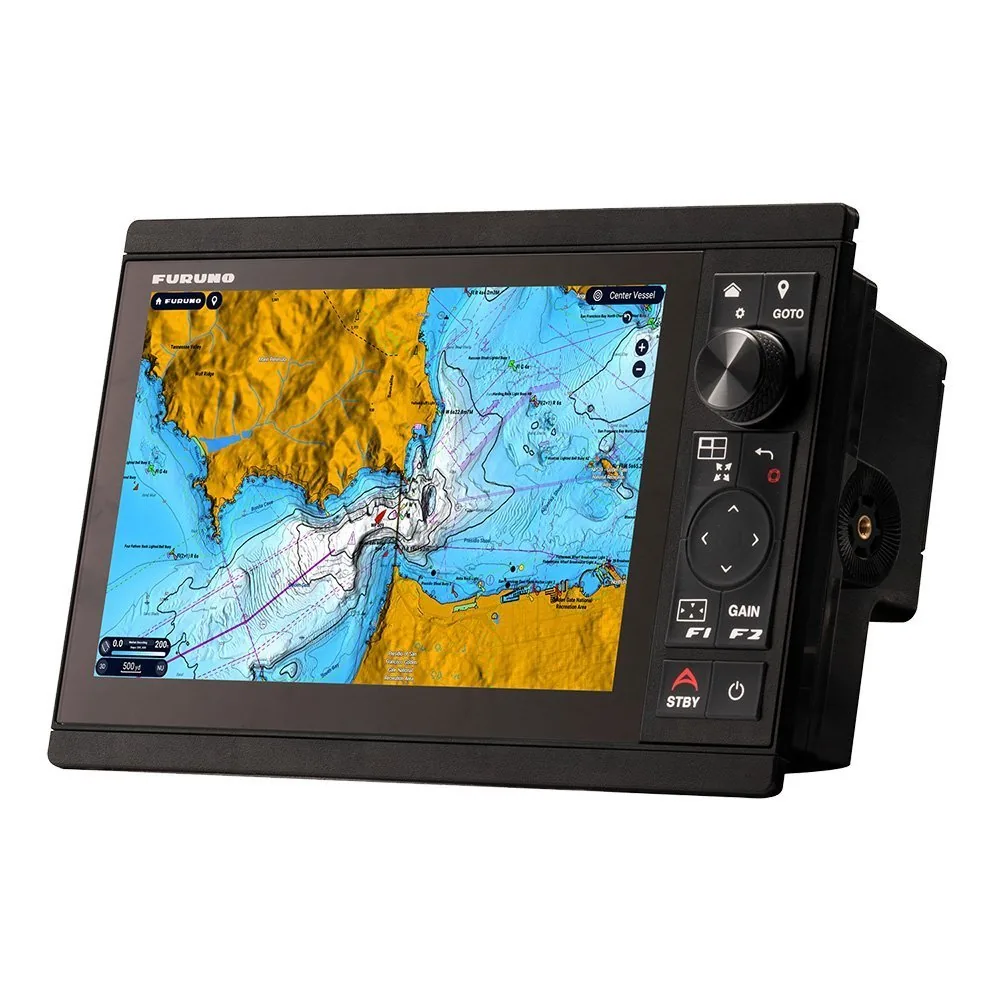

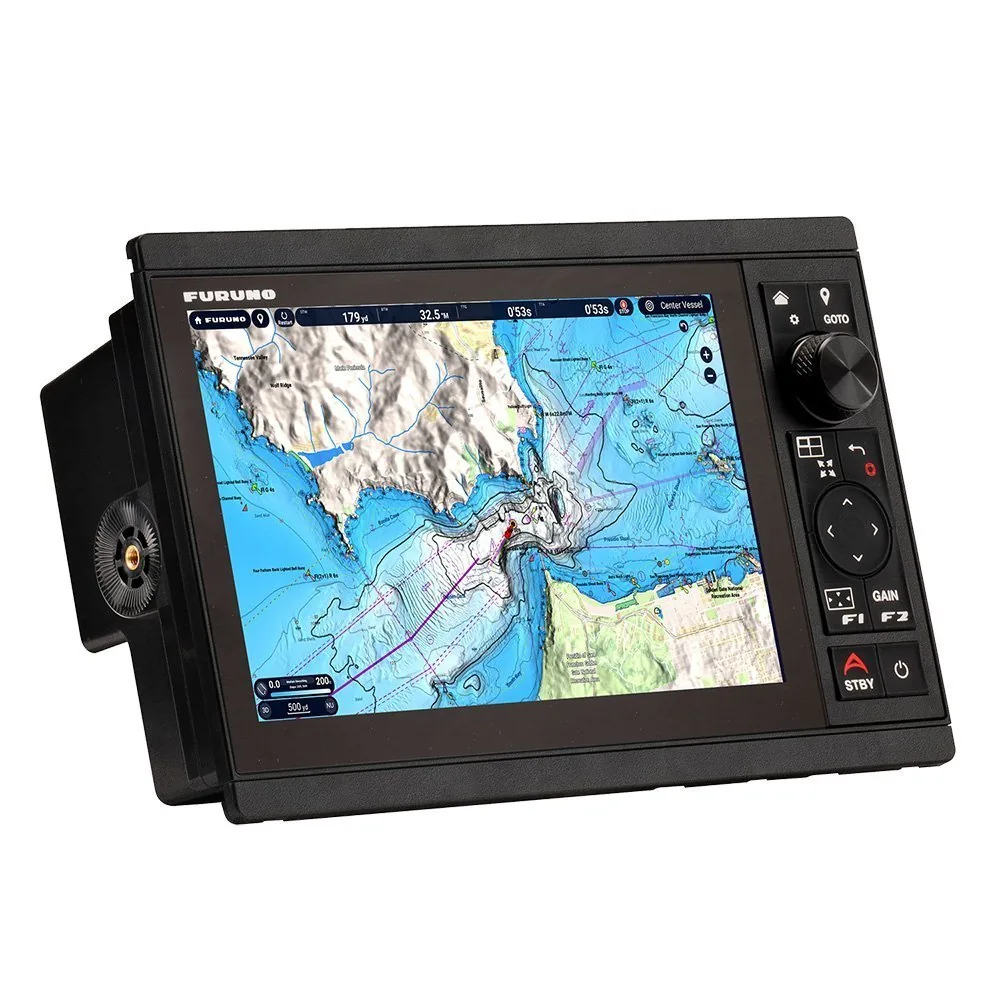

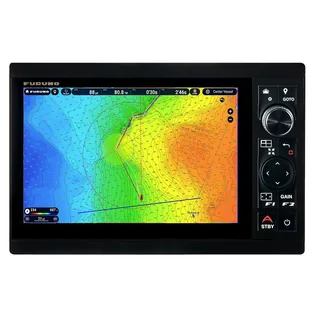

The Furuno TZT10X is a 10.1-inch wide hybrid-touch MFD with a 1920 x 1200 WUXGA display, hexacore processor, built-in 1kW dual-channel TruEcho CHIRP and CW sonar, and Side-Scan readiness. Its internal 72-channel GNSS receiver provides onboard positioning, while TZ MAPS, MM3 Vector, and CMOR support give the chart system room to match different operating areas. No transducer is included.

Key Features

- 10.1-inch wide hybrid-touch IPS LCD – Provides touchscreen and physical-control operation in a manageable helm size.
- 1920 x 1200 WUXGA resolution – Shows sharp chart and sonar detail in a 10-inch display.
- 1kW dual-channel TruEcho CHIRP and CW sonar – Supports high-power conventional fishfinding with suitable hardware.
- Side-Scan ready – Allows expansion with compatible side-looking sonar equipment.
- 72-channel internal GNSS receiver – Provides onboard positioning without a separate GPS receiver listed.

Who Is This For?

This model suits coastal fishing boats, cruisers, center consoles, and owners who want a high-resolution Furuno MFD without moving to a 15.6-inch display. Hybrid control is useful when the helm is wet or boat movement makes touchscreen-only operation less practical.

It is not ideal for buyers who need a complete sonar bundle, because no transducer is included. The wider chart and sonar platform also requires more installation planning than a small standalone unit.

Compatibility

Confirmed features include TZ MAPS, MM3 Vector, CMOR chart support, a 72-channel internal GNSS receiver, 1kW dual-channel TruEcho CHIRP and CW sonar, and Side-Scan readiness. The supplied information does not identify NMEA 2000, NMEA 0183, Ethernet, WiFi, radar, autopilot, or specific transducer compatibility. No named incompatible system was provided; verify Furuno chart, sonar, and network requirements before installation.

Technical Specifications

- Brand: Furuno NavNet TZtouchXL
- Model: TZT10X
- Display: 10.1-inch wide hybrid-touch IPS LCD
- Resolution: 1920 x 1200 WUXGA
- Processor: Hexacore high-speed processor
- Built-in sonar: 1kW dual-channel TruEcho CHIRP and CW
- Sonar readiness: Side-Scan ready
- Charts supported: TZ MAPS, MM3 Vector, CMOR
- GPS: 72-channel internal GNSS receiver
- Transducer: Not included

Warranty & Support

Furuno provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The TZT10X is the practical Furuno alternative to the larger TZT16X, retaining WUXGA resolution, dual-channel 1kW sonar, Side-Scan readiness, and internal GNSS in a smaller display. Its hybrid control suits a working helm, but the transducer and chart media must be selected separately. Choose it when high resolution and Furuno chart flexibility matter more than an included sonar bundle.
