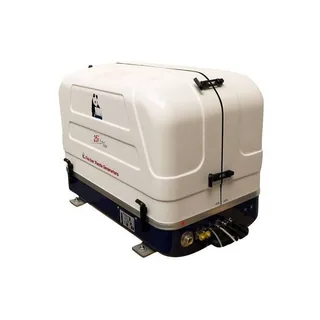

The Fischer Panda 25i is a variable-speed inverter marine diesel generator for vessels requiring high-capacity 230V, 50Hz single-phase AC power. It delivers 20 kW continuous output, or 25 kVA, through inverter technology that maintains pure sine-wave output while the Kubota V1505-T four-cylinder turbocharged diesel engine adjusts speed according to electrical demand.

The generator uses a fully water-cooled closed-circuit system with a freshwater heat exchanger and seawater raw-water circuit. It is enclosed in a 3D sound-insulation fiberglass capsule and uses the iControl2 remote interface with diagnostic and auto-start capability. A complete installation requires correctly engineered fuel, cooling, exhaust, ventilation, electrical distribution, shore-power transfer, grounding, and service-access arrangements.

Key Specifications

- Variable-speed inverter marine diesel generator for 230V single-phase 50Hz AC systems.
- Provides 20 kW continuous output, equivalent to 25 kVA.
- Uses a Kubota V1505-T turbocharged four-cylinder diesel engine with 1,498 cc displacement.
- Operates at approximately 2,200 to 2,800 RPM according to electrical demand.
- Uses inverter technology to provide pure sine-wave 230V 50Hz output.
- Uses fully water-cooled engine and alternator components with freshwater and seawater cooling circuits.
- Fuel consumption is listed at approximately 2.2 to 4.9 L per hour, depending on electrical load.
- Measures approximately 840 mm by 540 mm by 660 mm and has a listed dry weight of approximately 310 kg.

System Integration

This generator requires a complete high-capacity marine electrical installation. Add diesel fuel supply and return, seawater intake and strainer, wet exhaust system, engine-room ventilation, starting battery, AC distribution, shore-power transfer switch or interlock, grounding and bonding, circuit protection, and appropriately rated single-phase cables.

Confirm that the vessel requires 230V single-phase 50Hz power and calculate continuous demand, simultaneous loads, power factor, and motor-starting surge before selecting a 20 kW generator. Air conditioning, watermakers, galley appliances, battery chargers, pumps, refrigeration, and other high-demand loads should be included in the load calculation.

Installation Considerations

Install the generator on a rigid vibration-isolated foundation designed for approximately 310 kg, with access for oil changes, filters, coolant, impeller, exhaust, electrical terminals, and sound-capsule service. Provide safe exhaust routing, reliable raw-water circulation, protected diesel plumbing, and adequate ventilation. Test voltage, frequency, load response, cooling, inverter operation, alarms, shutdowns, and transfer-switch operation during commissioning.

Before Ordering

Confirm required continuous and surge load within 20 kW, 230V single-phase 50Hz compatibility, available 840 mm by 540 mm by 660 mm installation space, structural support for approximately 310 kg, diesel fuel layout, raw-water intake, exhaust route, ventilation capacity, starting-battery system, iControl2 panel cable route, AC distribution and transfer-switch design, grounding plan, service access, and qualified marine-generator installation requirements before purchase.
