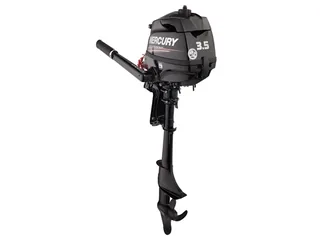

2020 Mercury 3.5 HP 3.5MH Outboard Motor

The Mercury 3.5hp outboard motor features a larger carburetor for increased performance features that set it apart from other outboards in the same class. The Mercury 3.5 outboard engine is a great choice of power for canoes, small tenders and inflatables boats.. At just 41 lbs, Mercury designed the 3.5 HP (3 5 HP) outboard for real portability. The ergonomic carry handle evenly balances the engine for easy transporting. The Mercury 3.5 HP outboard model # 3.5MH is equipped with the 15 inch short shaft, tiller steering and manual start.

- Compact and Lightweight
- Digital CD Ignition System
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes
- Forward-Neutral Gear Shift
- 360° Steering w/ Tension Feature
- Twist-Grip Throttle with Tension Control
- Integrated Carry Handle
- Thermostat Controlled Water Cooling
- Visual Oil Level Indicator
- Over-Rev Protection
- 4 Trim Level Positions
- Below-The-Water Exhaust
- 1.0 Liter (.30 Gallon) Integral Fuel Tank
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty

MODEL 3.5MH

MODEL YEAR 2020

SKU 3.5MH-20

WEIGHT 41.0 lb

MANUFACTURER Mercury

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 3.5hp

SHAFT LENGTH 15″ (Short)

STEERING Tiller

STARTING Manual

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK Internal

CYLINDER(S) 1

DISPLACEMENT 5.2/85

BORE AND STROKE 2.16 x 1.42 in

FULL THROTTLE RPM RANGE 5000-6000

IGNITION SYSTEM CDI w/electric spark advance

INDUCTION SCAVENGING OHV

VALVES PER CYLINDER 2

FUEL TYPE 87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE 0.3 US Gallon (0.95 liter)

OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY 10 fl. Oz. (300 ml)

LUBRICATION Slinger Splashing System

ALTERNATOR Not available on 3.5hp models (4hp & up only)

COOLING SYSTEM Water-cooled w/thermostat

SALTWATER RATED Yes

GEAR RATIO 2.15:1

GEAR SHIFT Forward-Neutral w/ 360° Steering for Reverse

PROPELLER 7.4″ Diameter x 7.0″ Pitch 3-Blade Composite
