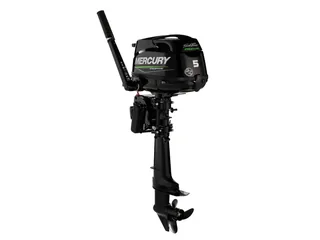

2020 Mercury 5 HP 5MXLHA-LPG Sail Power Propane Outboard Motor

Mercury’s all-new 5hp FourStroke Propane outboard provides more convenience and less hassle. Sail Power model is designed for sailboats and features an alternator and more thrust. Ideal for sailboats, but also a good fit for aluminum tiller, inflatable or jon / utility boats.

- Compact and Lightweight
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes
- Forward-Neutral-Reverse Gear Shift
- Adjustable Steering Tension Control
- Forward Mounted Gear Shift Selector
- Twist-Grip Throttle with Tension Control
- Integrated Carry Handle
- Thermostat Controlled Water Cooling
- Shallow Water Drive; 6 Trim Positions
- Quiet Through-Propeller-Hub Exhaust
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty

MODEL 5MXLH-LPG-SAIL POWER

MODEL YEAR 2020

SKU 5MXLHA-LPG-20

WEIGHT 65.0 lb

MANUFACTURER Mercury

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 5hp

SHAFT LENGTH 25″ (Extra Long)

STEERING Tiller

STARTING Manual

TRIM & TILT Manual

FUEL DELIVERY Propane

FUEL TANK External

CYLINDER(S) 1

DISPLACEMENT 123 cc (7.5 cubic inches)

BORE AND STROKE 59 x 45 mm (2.32 x 1.77 inches)

FULL THROTTLE RPM RANGE 4500-5500

IGNITION SYSTEM Digital CD Ignition w/Electronic Spark Advance

INDUCTION SCAVENGING OHV

VALVES PER CYLINDER 2

FUEL TYPE LPG

FUEL TANK / FUEL LINE LPG Fuel Supply Line

OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY 15 fl. Oz. (450 ml)

LUBRICATION Trochoid Pump

ALTERNATOR 12V 50W 4A

COOLING SYSTEM Water-Cooled, Thermostatically Controlled

SALTWATER RATED Yes

GEAR RATIO 2.15:1

GEAR SHIFT Forward-Neutral-Reverse (forward mounted shift lever)

PROPELLER 6.0″ Pitch High-Thrust 3-Blade

INTERNAL BATTERY No
