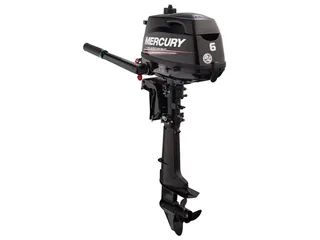

2020 Mercury 6 HP 6MLH Outboard Motor

Truly a portable outboard, the 6 HP Mercury weighs only 58 lbs and comes with an integrated gas tank. the Mercury 6 hp Model 6MLH is equipped with the 20 inch long shaft, tiller steering and manual rope start. Standard features of this single cylinder outboard engine include forward, neutral and reverse shift, and access for an external gas tank.

- Compact and Lightweight
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes
- Forward-Neutral-Reverse Gear Shift
- Adjustable Steering Tension Control
- Forward Mounted Gear Shift Selector
- Twist-Grip Throttle with Tension Control
- Integrated Carry Handle
- Thermostat Controlled Water Cooling
- Shallow Water Drive; 6 Trim Positions
- Quiet Through-Propeller-Hub Exhaust
- 1.15 Liter (.30 Gallon) Integral Fuel Tank
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty

MODEL 6MLH

MODEL YEAR 2020

SKU 6MLH-20

WEIGHT 58.0 lb

MANUFACTURER Mercury

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 6hp

SHAFT LENGTH 20″ (Long)

STEERING Tiller

STARTING Manual

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK Internal

CYLINDER(S) 1

DISPLACEMENT 7.5/123

BORE AND STROKE 2.32 x 1.77

FULL THROTTLE RPM RANGE 5000-6000

IGNITION SYSTEM CDI w/electric spark advance

INDUCTION SCAVENGING OHV

VALVES PER CYLINDER 2

FUEL TYPE 87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE 0.3 US Gallon (1.15 liter)

OIL TYPE Mercury 4-Stroke Outboard Oil

OIL CAPACITY 450 mL / 15 oz

LUBRICATION Wet sump

ALTERNATOR Optional 12V 50W 4A (installation required)

COOLING SYSTEM Water-cooled w/thermostat

SALTWATER RATED Yes

GEAR RATIO 2.15:1

GEAR SHIFT Forward-Neutral-Reverse (forward mounted shift lever)

PROPELLER 7.7″ Diameter X 8.0″ Pitch 3-Blade Aluminum
